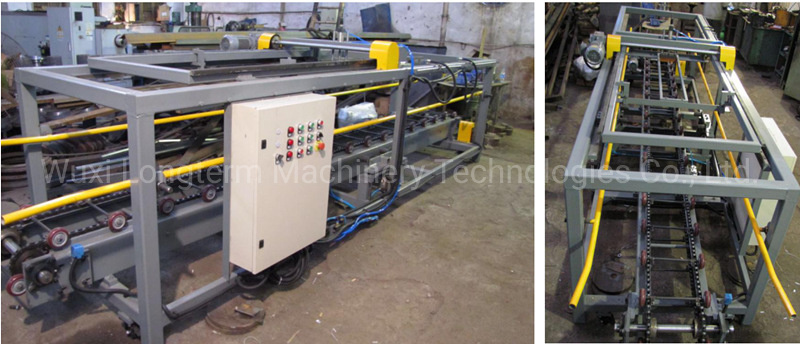

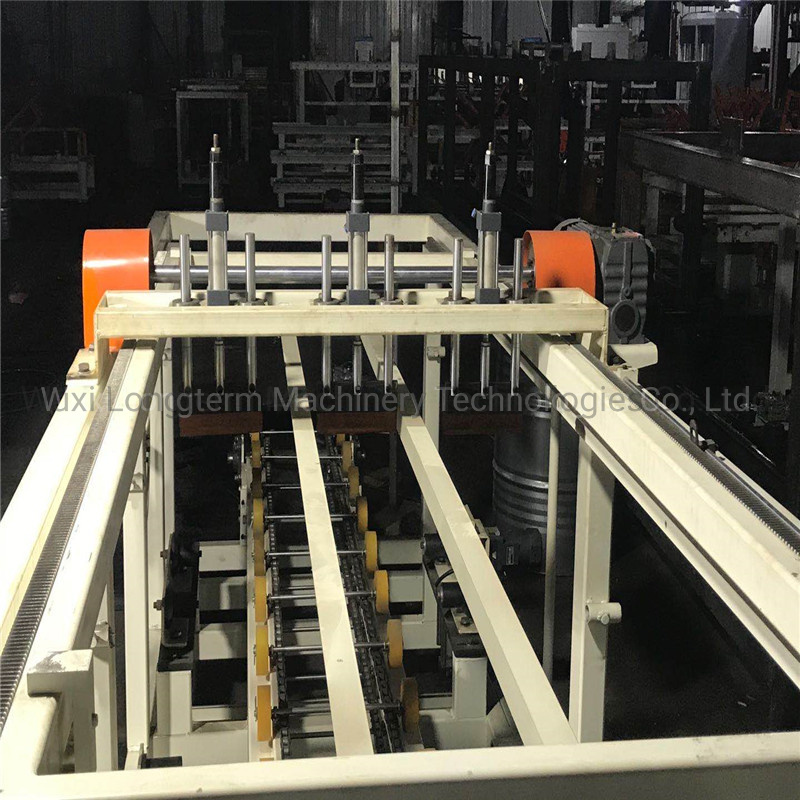

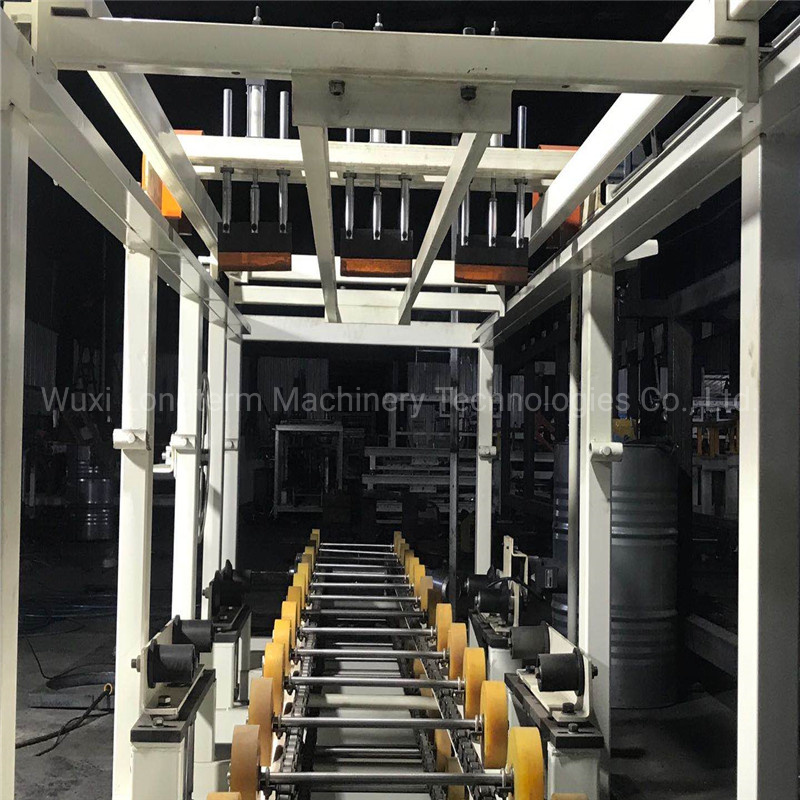

New Technology Conical Steel Drum/Barrel Silk Printing Machine

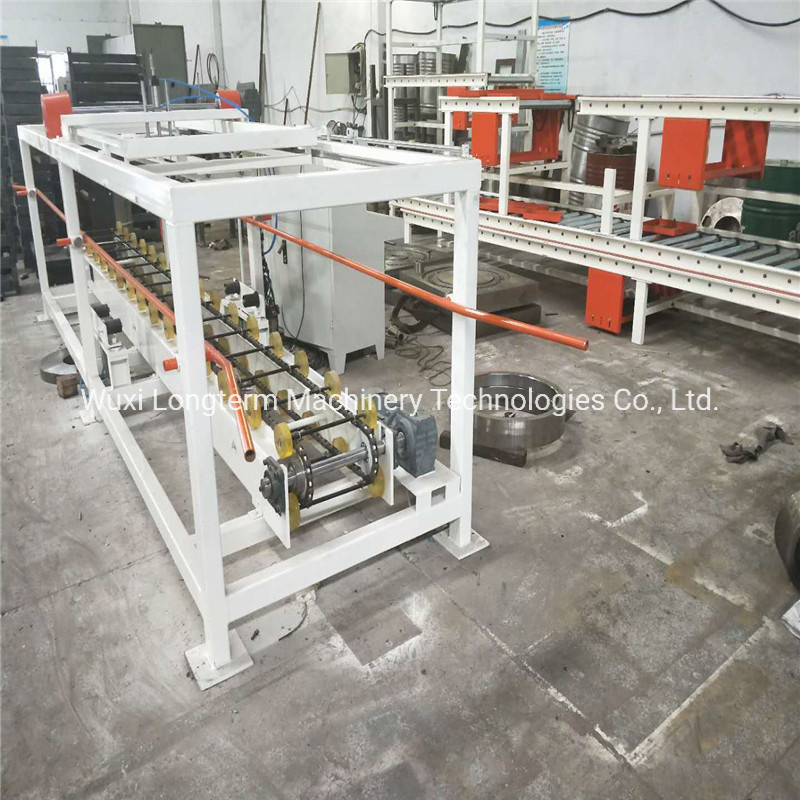

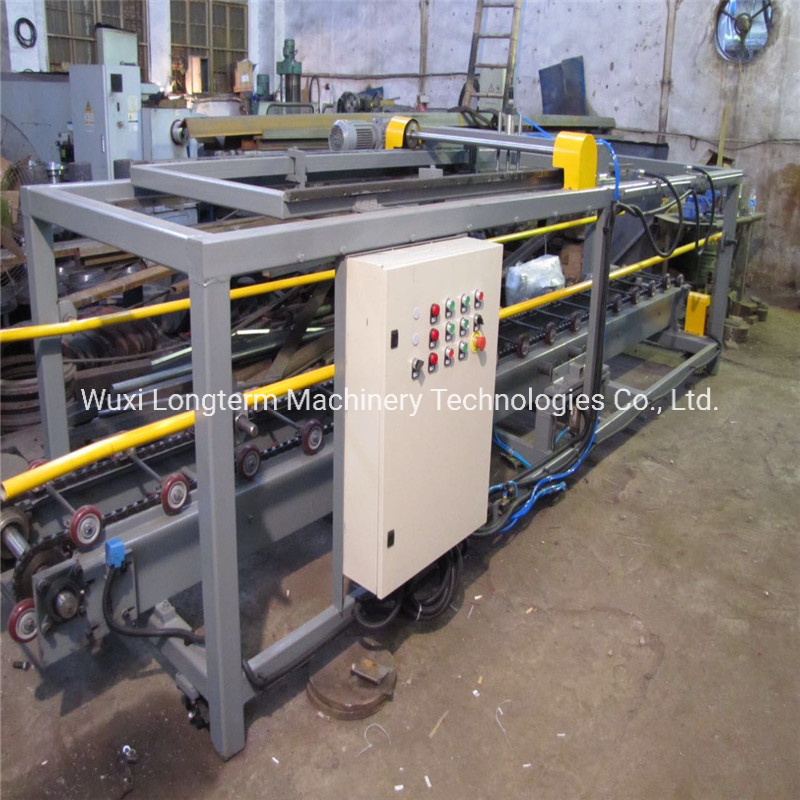

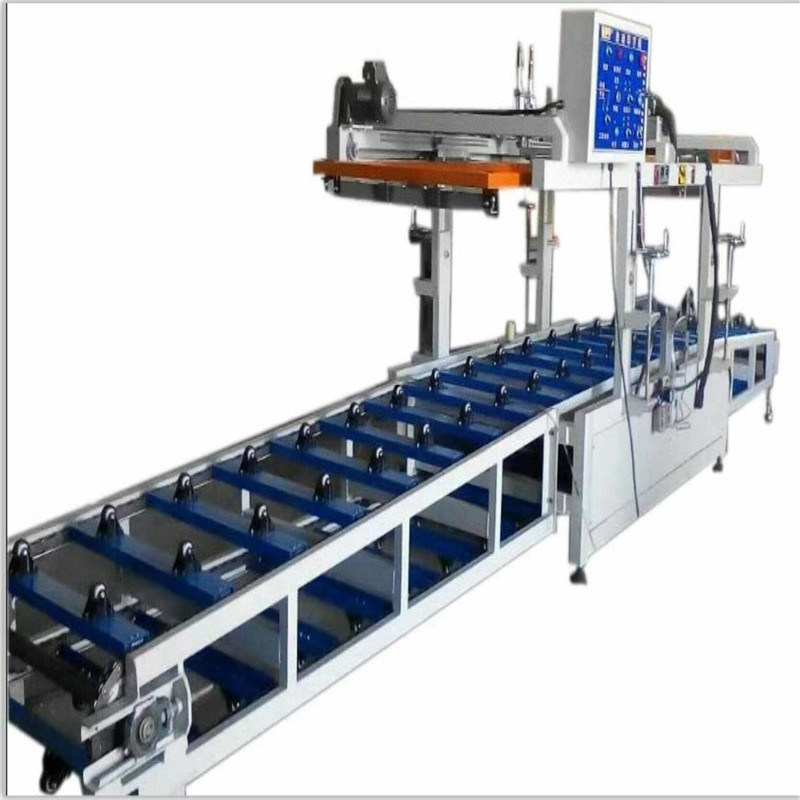

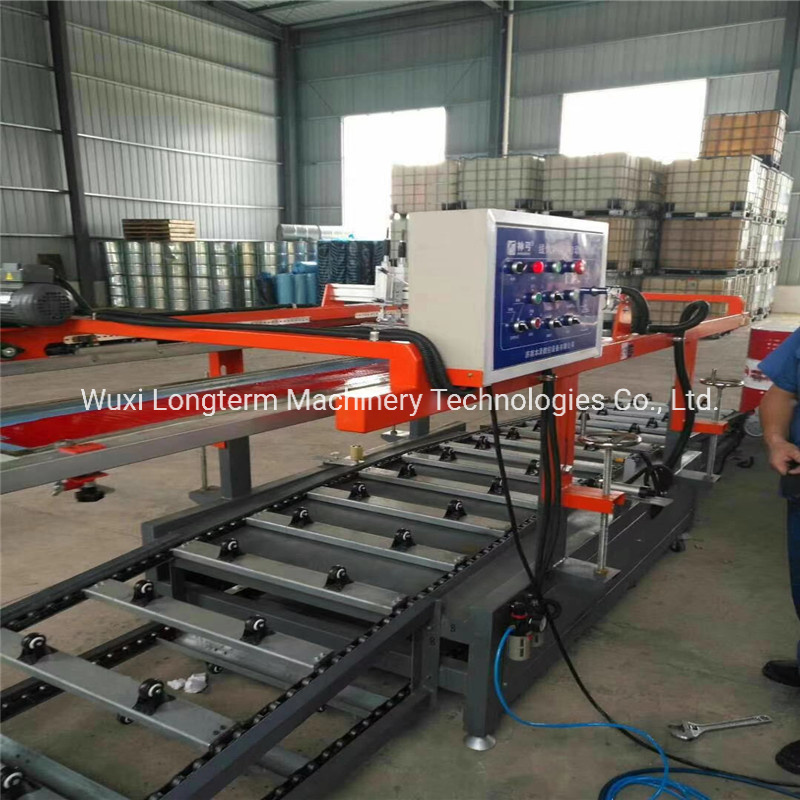

1. Conical drum silk printing machine
Speed: It could print 10 drums per minute. (maximum size 600X400mm).
Single-band silk printing(only print middle part)
The main parts
A. Structure: All steel structure, paint treatment.
B. The positioning system adopts program-controlled positioning.
C. The motor adopts national excellent brands.
D. The transmission chain adopts domestic high-quality carbon steel plate type rolling chain, equipped with a complete set of medium-hardness polyurethane supporting drum (which can effectively avoid the drum surface from scratching the drum)
E. The control and industrial control system adopts German Siemens PLC program controller, and the electronic control accessories choose national excellent brands.
VI. Technical Parameters:
Voltage:380V,50HZ. Three-phase four-wire system
Total power: 4.5KW
Air pressure: 0.4---0.8KPa
Drum diameter: 500-600mm, adjustable.
Drum height: 100-400mm, adjustable.
Screen printing accuracy: ≤1mm.
Machine dimension: Length between 4000-4500mm; width: 1300mm

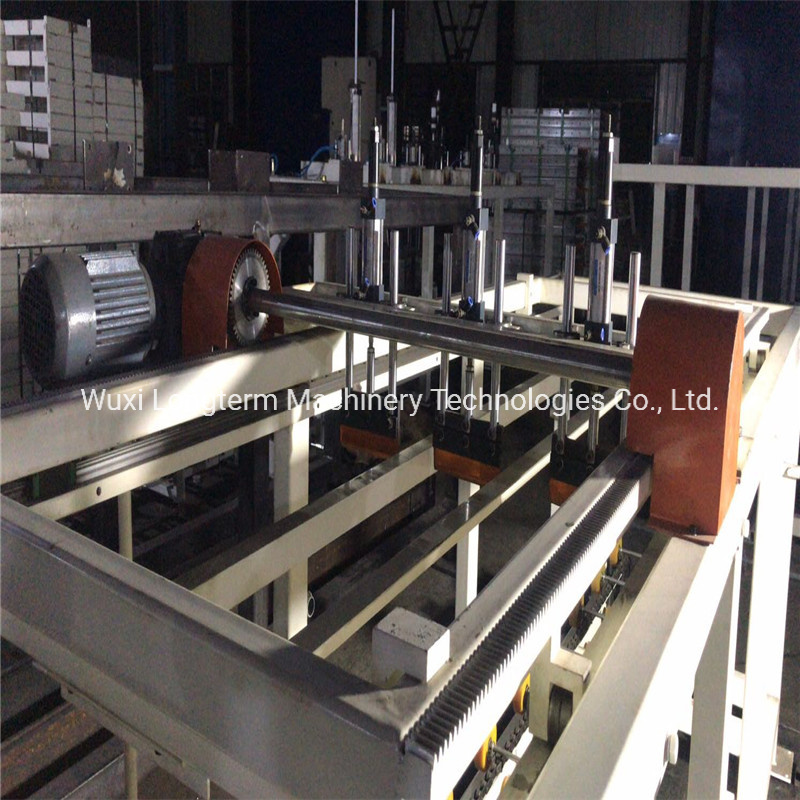

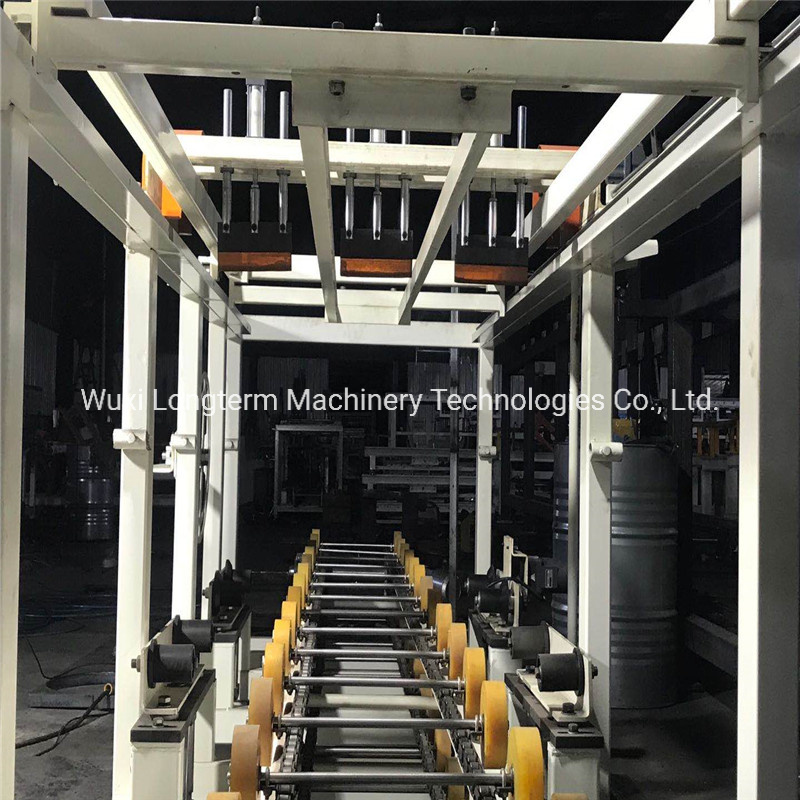

2. Standard steel drum silk printing machine
The machine can print the up, middle and bottom of the drum at the same time.
Speed: 8-10 pcs/min
Automatically loading and unloading the drum.
PLC controller, the electronics are from domestic famous brand.
Main brand for important parts:
1. Machine body is 45# weld assembly, which has been tempered overall to ensure the machine body will not be deformed.
2. PLC: Mitsubishi
3. Pneumatic components: Taiwan Airtac
4. Pneumatic clutch: Italy OPMI
5. Electrics: Chint Group, Delixi
Option 1: Single-band Silk Printing Machine
Option 2: Three-band Screen Printing Machine

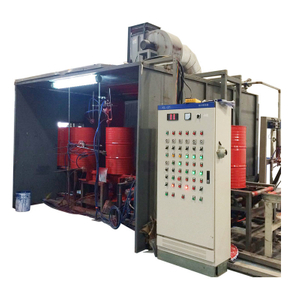

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling ≷uing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &seaming machine,drum painting spray booth,drying oven,silk printing machine etc..
Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Qatar, Australia, Bangladesh, Vietnam, India, Ukraine, Mexico, etc..
We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.
For more information, you could check our homepage: kelly-huang71.en.made-in-china.com

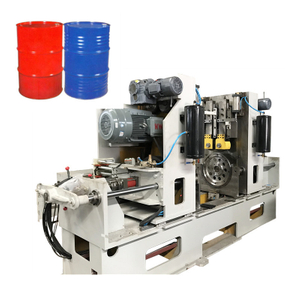

Other Steel drum Welding Manufacturing Machines

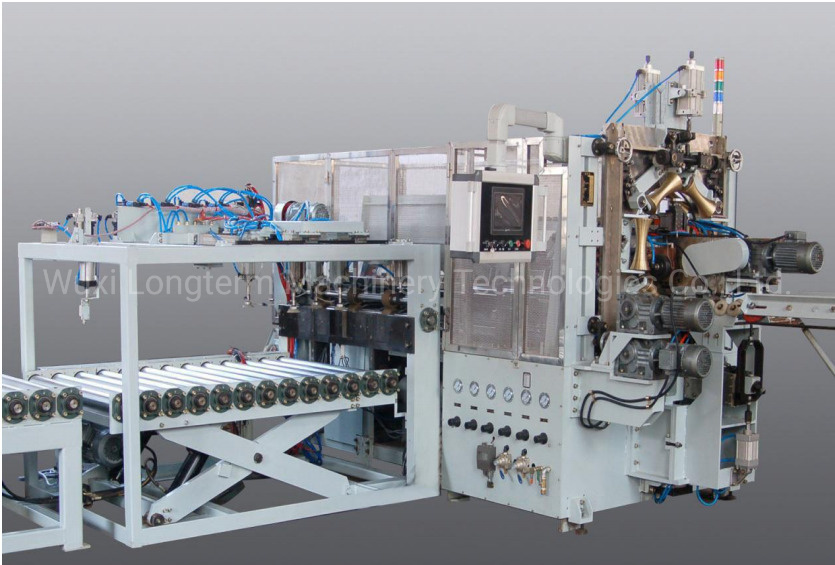

Automatic sheet rolling & longitudinal seam welding machine
Type I: Fully Automatic Welding Line
Type II: Semi-automatic welding machine

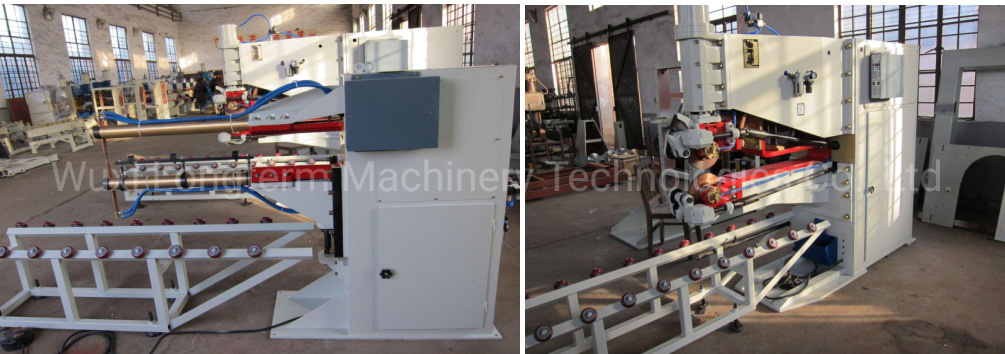

Type III: a: Spot welding machine
b: Longitudinal Seam Welding Machine

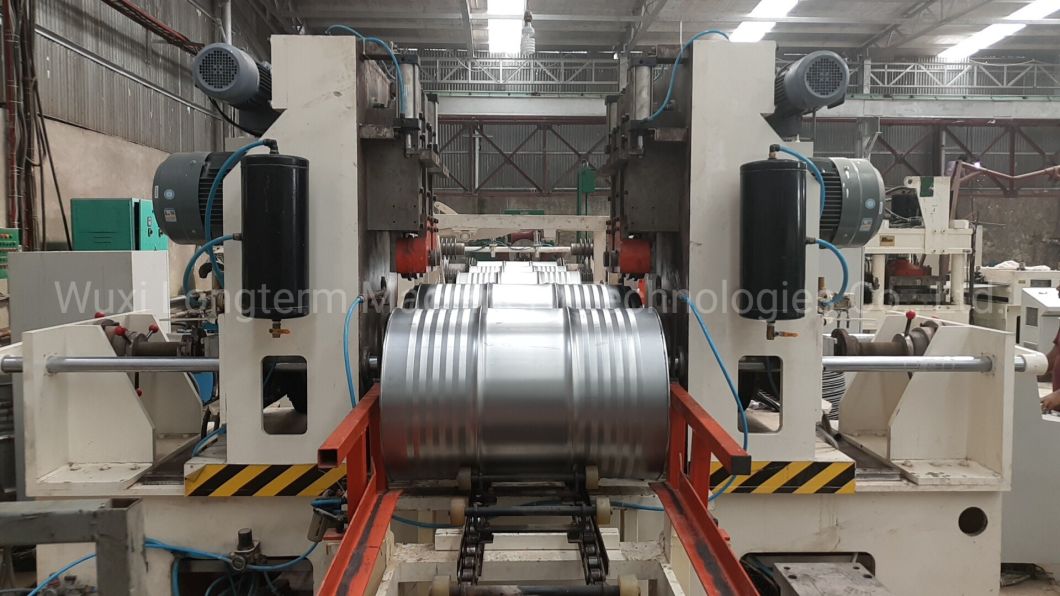

4.Drum body flanger and curler machine, speed: > 6pcs/min
The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs

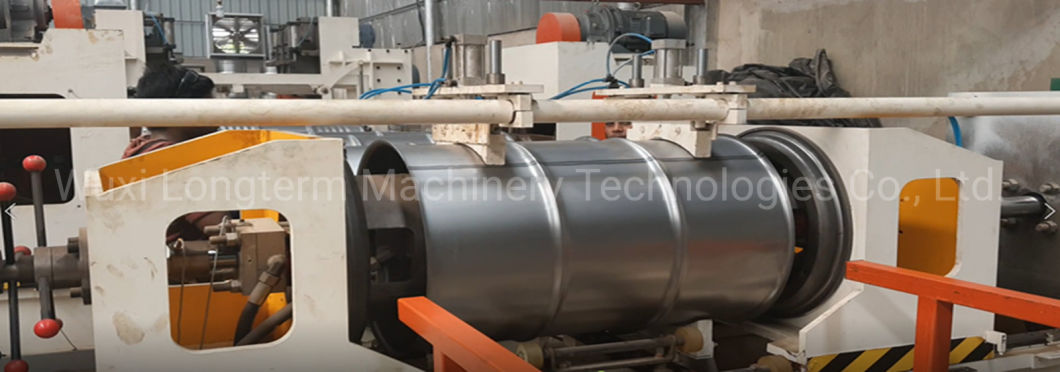

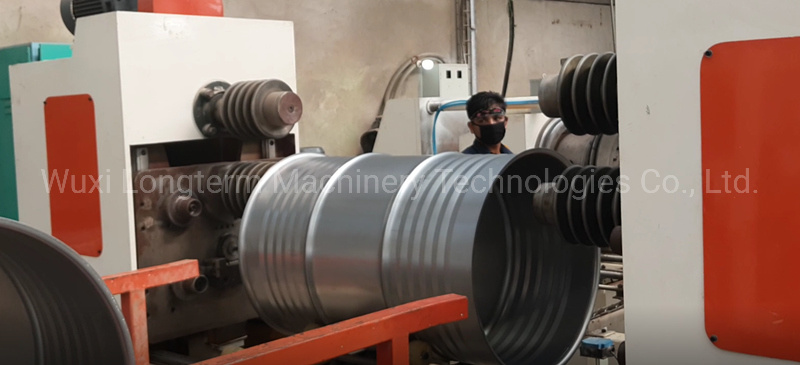

5.W-beader& corrugator machine
Capacity: 6pcs/min, Power: 15KW
The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
6.Drum assembly&seaming machine, speed: >6pcs/min
Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Packaging Details: Standard seaworthy packing
Delivery Time: 3 months after receving your advance payment
Engineers available to service machinery overseas.
To enable me give you correct proposal for correct machines, please tell me following details:
A: Technical drawing of steel drum
B: What's the capacity per shift/day?
