Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

Quantity:
  • Liquid
  • Steel Barrel /Drum Silk Screen Printing Machine
  • 7PCS/Min
  • PLC Controller
  • Mitsubishi
  • Automatically Loading and Unloading The Drum.
  • Steel Drum Printing
  • Three Color Can Be Printed
  • Standard Seaworthy Packaging
  • HLT
  • HLT
  • Jiangsu, China
  • 8443192201
  • 5000 Sets Per Year
  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Multi color Petrol Barrel Automatic Screen steel Drum Printing machine for 210L drum

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

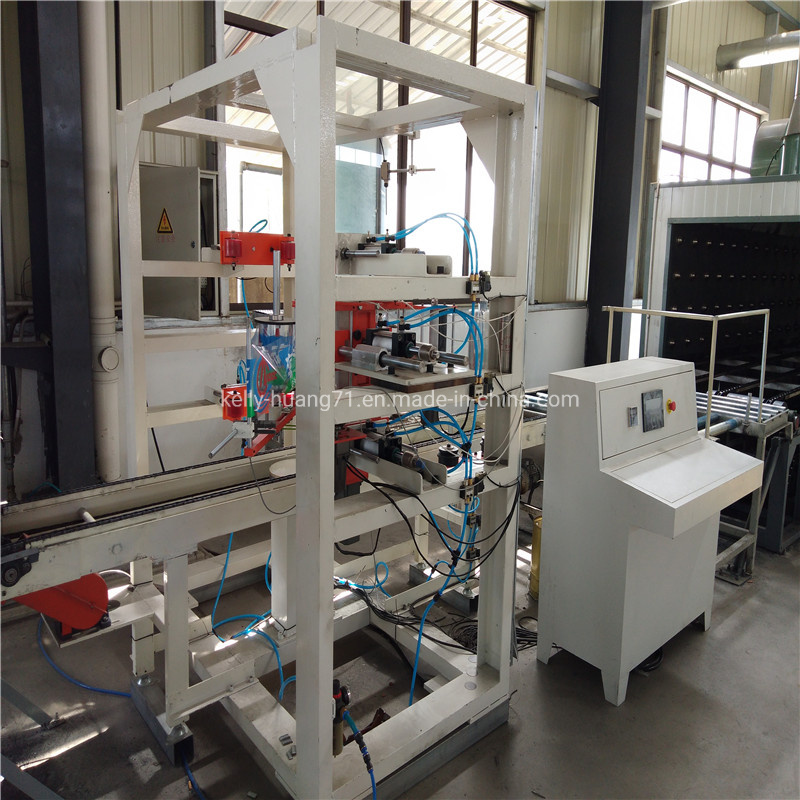

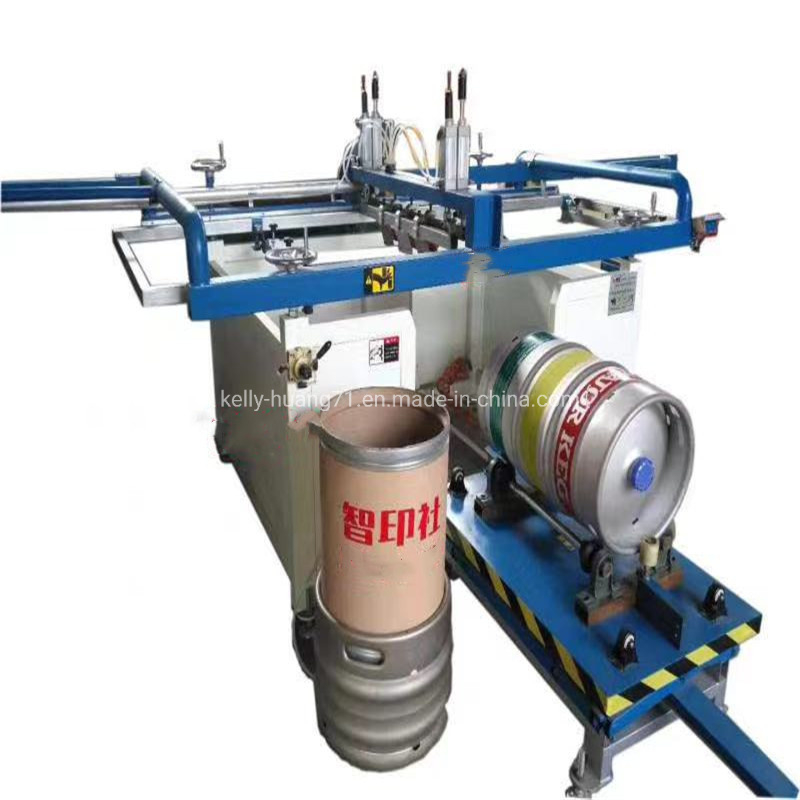

1. Conical drum silk printing machine

Main parameters:

Speed: It could print 10 drums per minute. (maximum size 600X400mm).
Single-band silk printing(only print middle part)

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum
The main parts
A. Structure: All steel structure, paint treatment.
B. The positioning system adopts program-controlled positioning.
C. The motor adopts national excellent brands.
D. The transmission chain adopts domestic high-quality carbon steel plate type rolling chain, equipped with a complete set of medium-hardness polyurethane supporting drum (which can effectively avoid the drum surface from scratching the drum)
E. The control and industrial control system adopts German Siemens PLC program controller, and the electronic control accessories choose national excellent brands.

VI. Technical Parameters:
Voltage:380V,50HZ. Three-phase four-wire system
Total power: 4.5KW
Air pressure: 0.4---0.8KPa
Drum diameter: 500-600mm, adjustable.
Drum height: 100-400mm, adjustable.
Screen printing accuracy: ≤1mm.
Machine dimension: Length between 4000-4500mm; width: 1300mm

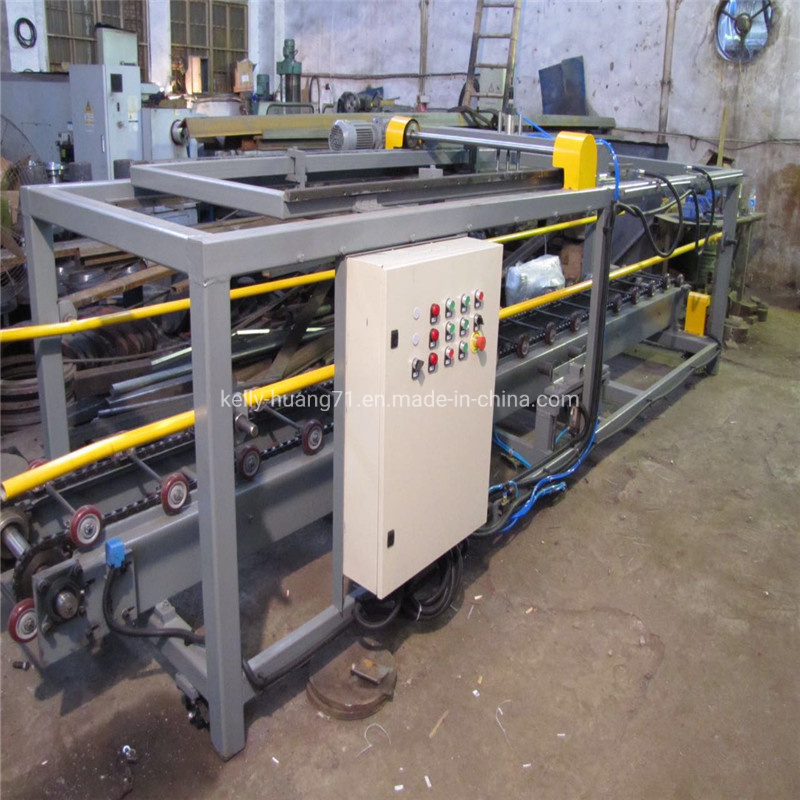

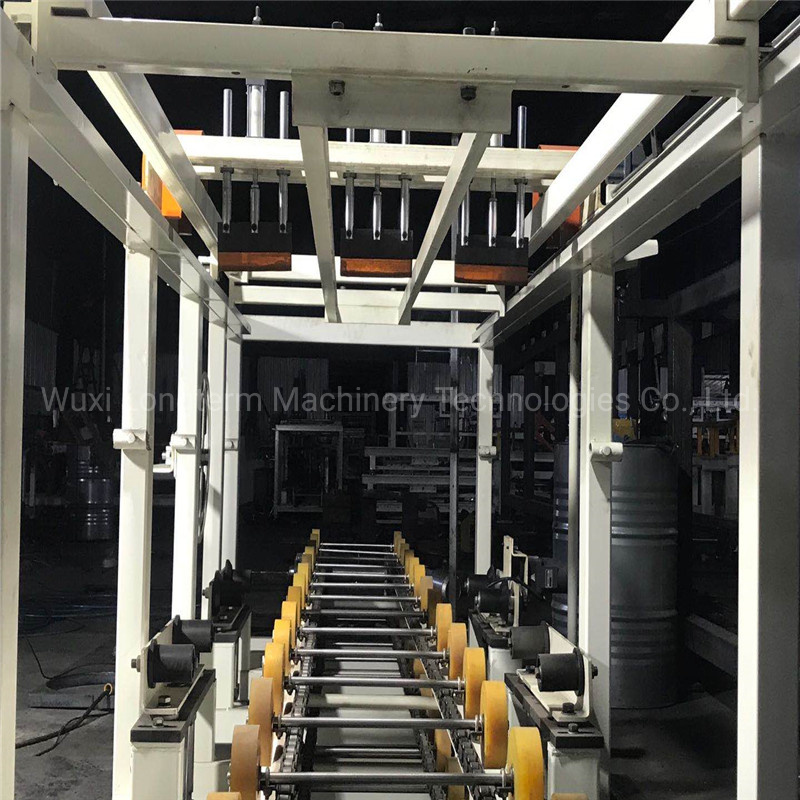

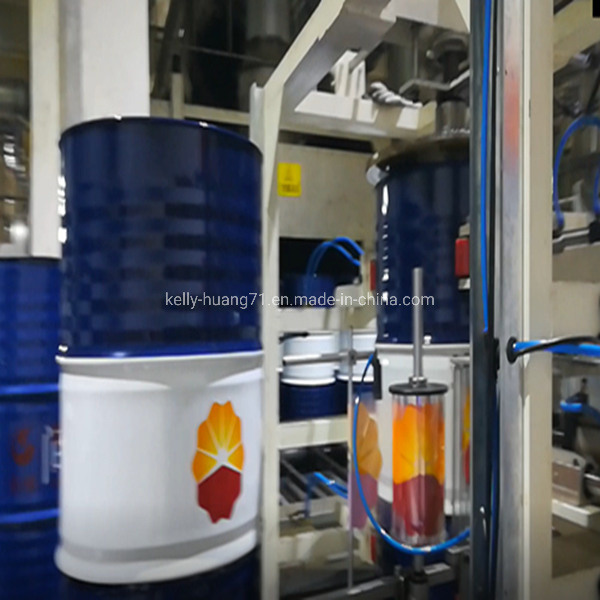

2. Standard steel drum silk printing machine
Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

Main Parameters:


The machine can print the up, middle and bottom of the drum at the same time.
Speed: 8-10 pcs/min
Automatically loading and unloading the drum.
PLC controller, the electronics are from domestic famous brand.

Main brand for important parts:
1. Machine body is 45# weld assembly, which has been tempered overall to ensure the machine body will not be deformed.
2. PLC: Mitsubishi
3. Pneumatic components: Taiwan Airtac
4. Pneumatic clutch: Italy OPMI
5. Electrics: Chint Group, Delixi

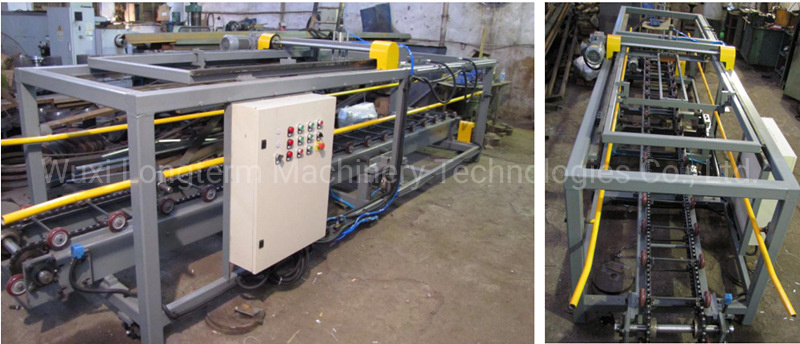

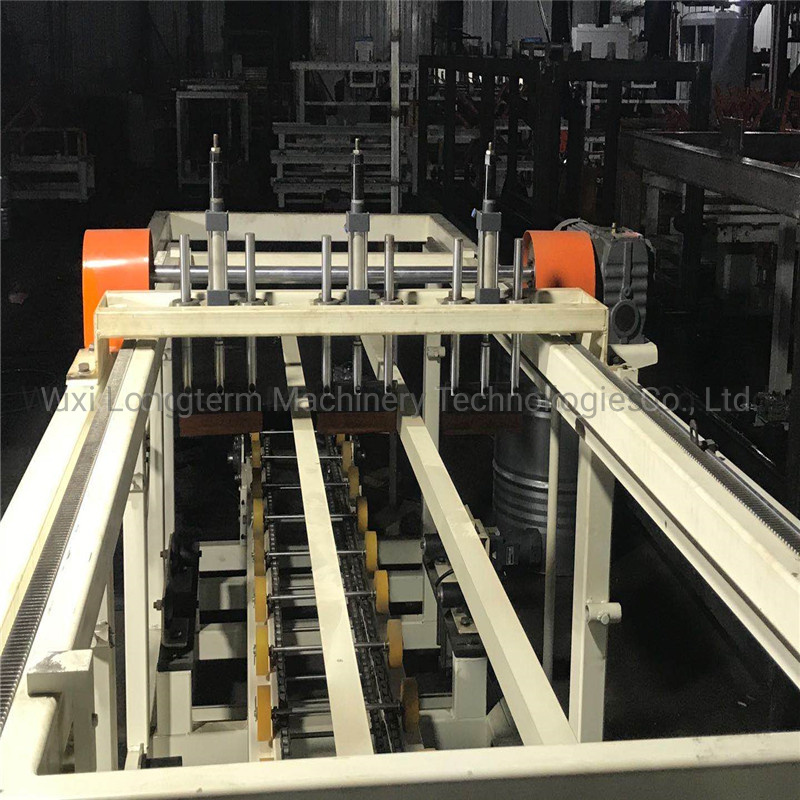

Option 1: Single-band Silk Printing Machine

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

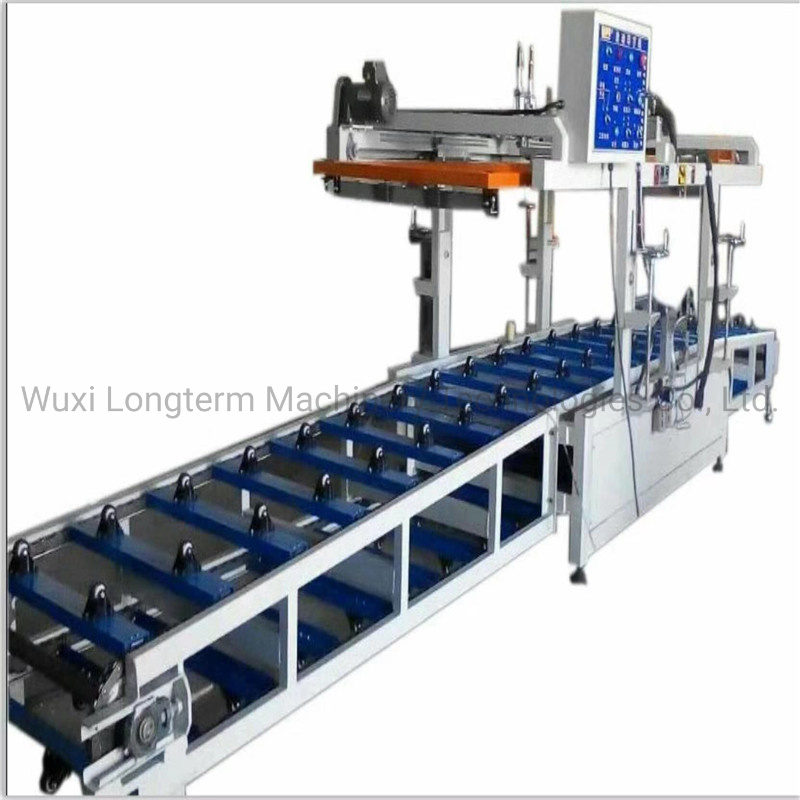

Option 2: Three-band Screen Printing Machine

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

Company Introduction

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling ≷uing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &seaming machine,drum painting spray booth,drying oven,silk printing machine etc..

Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Qatar, Australia, Bangladesh, Vietnam, India, Ukraine, Mexico, etc..

We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.
For more information, you could check our homepage: kelly-huang71.en.made-in-china.com



Other Steel drum Welding Manufacturing Machines

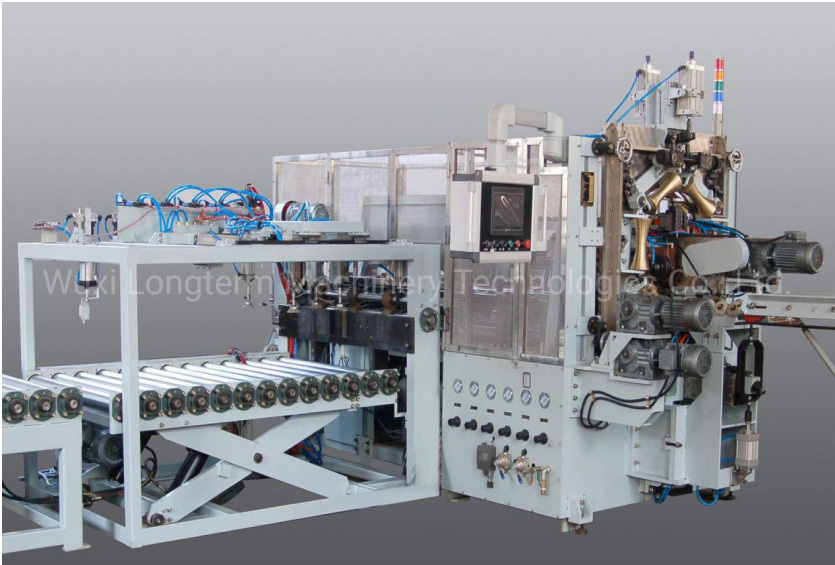

Automatic sheet rolling & longitudinal seam welding machine

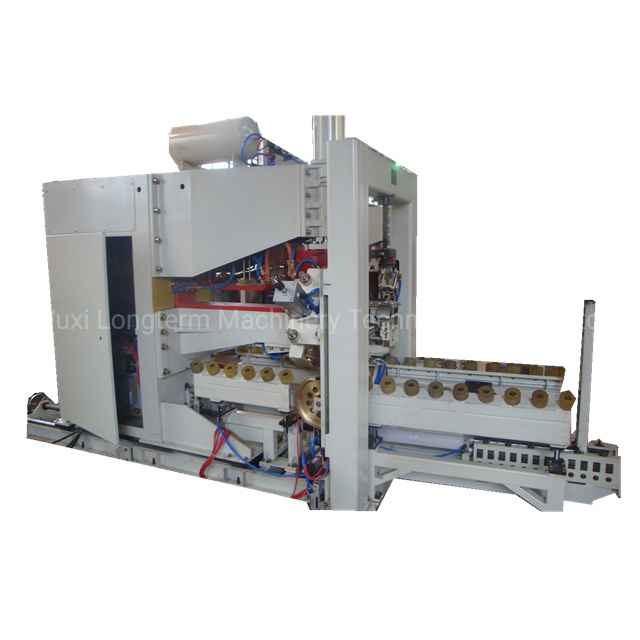

Type I: Fully Automatic Welding Line

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

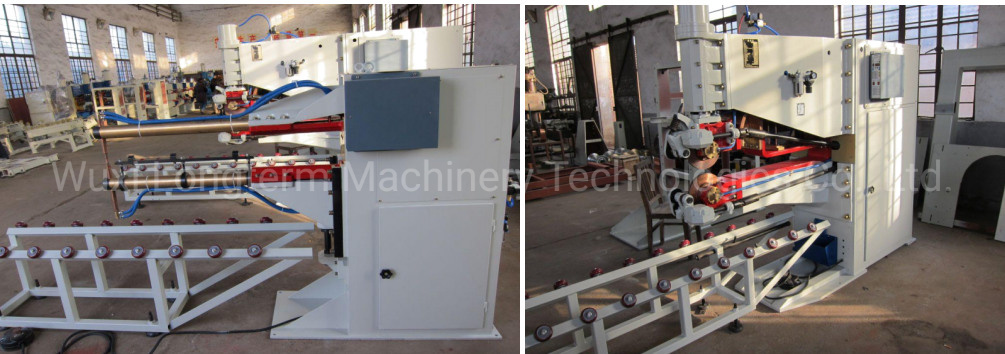

Type II: Semi-automatic welding machine
Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum
Type III: a: Spot welding machine
b: Longitudinal Seam Welding Machine


Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

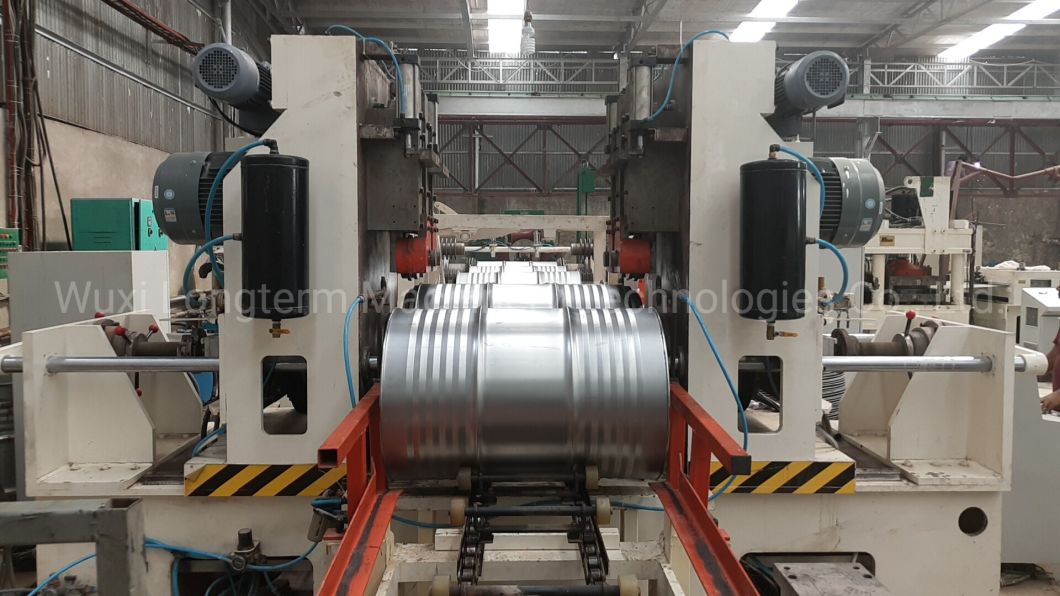

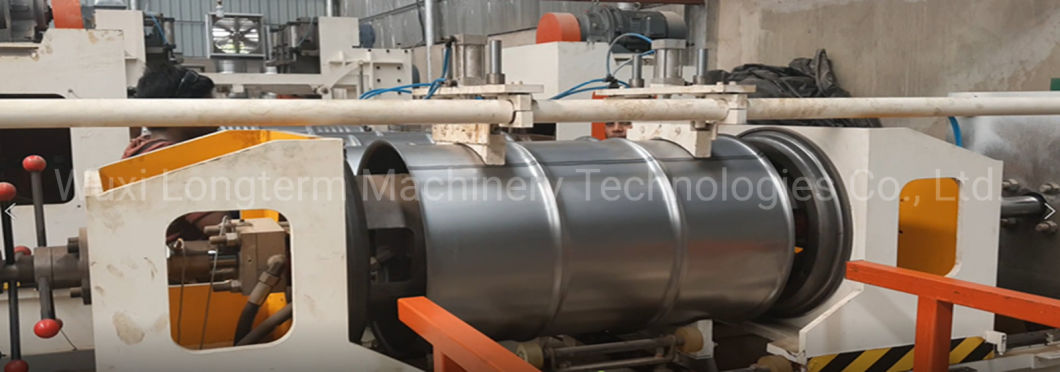

4.Drum body flanger and curler machine, speed: > 6pcs/min

The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs
Power: 18KW
Capacity:>6pcs/min
Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

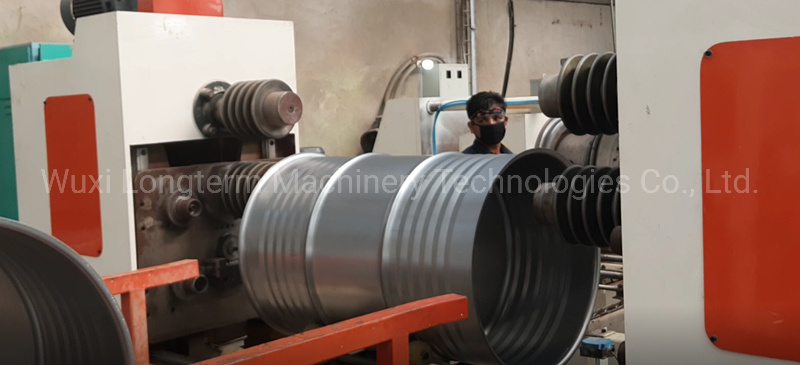

5.W-beader& corrugator machine

Capacity: 6pcs/min, Power: 15KW

The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

6.Drum assembly&seaming machine, speed: >6pcs/min

Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min

Multi Color Petrol Barrel Automatic Screen Steel Drum Printing Machine for 210L Drum

Packaging &Shipping

Packaging Details: Standard seaworthy packing

Delivery Time: 3 months after receving your advance payment

Our services

Engineers available to service machinery overseas.

FAQ

To enable me give you correct proposal for correct machines, please tell me following details:

A: Technical drawing of steel drum
B: What's the capacity per shift/day?
