Long piper for vehicle Hot Spinning Machine

This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.
Availability:
Quantity:
  • LTM SERIES

  • LTM

  • 8479819000

Product Description

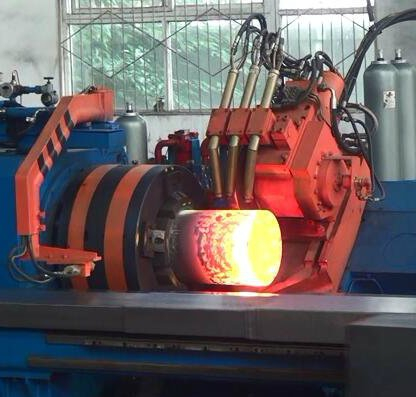

Hot spinning machine


High Pressure Cylinder Metal Spinning Machine


I. Technical specification

This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.

Spinning diameter Max. 406mm
Spinning diameter Min. 325mm
Spinning length Max. 2000mm
Spinning length Min. 800mm
Starting wall thickness Max. 18mm
Starting wall thickness Min. 5mm
Spinning cycle (incl. load/unloading/necking-in) Max. 2.5min
Equipment centre height 900mm
Main spindle drive 90KW
Axial stroke of sliding block 65mm
Radial stroke of sliding block 17mm
Radial clamping force 200KN
Main spindle speed (Variable) 0-320 rpm
Mould axial stroke 321KN
Max. mould axial feed-in speed 30°/s
Mould rotating angle 0-91°
Hydraulic motor 22KW
Proportional speed regulated reversing valve Italy ATOS
Control Siemens
Connected electrical load 3*380V, 50Hz
Heating power of the pipe end 500KW/1000Hz
Connected pneumatic load 6 bar


II. Machinery detail

Template type

hot-spinning-machine-213

Roller type

hot-spinning-machine-222


Head section view

hot-spinning-machine-2112



III. Solution for different size


CNC ROLLER TYPR SPINNING MACHINE

Machine Model LTM G+622 LTM G+660 LTM G+720 LTM G+920
Processing Dia. (mm) 406~622 406~660 559~720 559~920
Processing Length (mm) 5500-12500 5500-12500 5500-12500 5500-12500
Processing Thickness (mm) 10-30 10-30 10-30 10-30
Central Height (mm) 1300 1300 1300 1300
Main Engine Power (KW) 200 250 280 355
Rolling wheel swing angle 90° 90° 90° 90°
Control Methods CNC CNC CNC CNC

Machine Model LTM G 325 LTM G 406
Processing Dia. (mm) 219~325 325~406
Processing Length (mm) 800-2000 800-2000
Processing Thickness (mm) 5-18 5-18
Central Height (mm) 1100 1200
Main Engine Power (KW) 90 144
Rolling wheel swing angle 100° 100°
Control Methods CNC CNC

CNC Template TYPR SPINNING MACHINE
Machine Model LTM M 232 LTM M 325 LTM M 406
Processing Dia. (mm) 200~232 219~325 325~406
Processing Length (mm) 700-1700 800-2000 800-2000
Processing Thickness (mm) 3-15 5-15 5-18
Central Height (mm) 1000 1100 1200
Main Engine Power (KW) 37 90 110
Rolling wheel swing angle 90° 90° 90°
Control Methods PLC PLC PLC
