High Pressure Cylinder Metal Spinning Machine

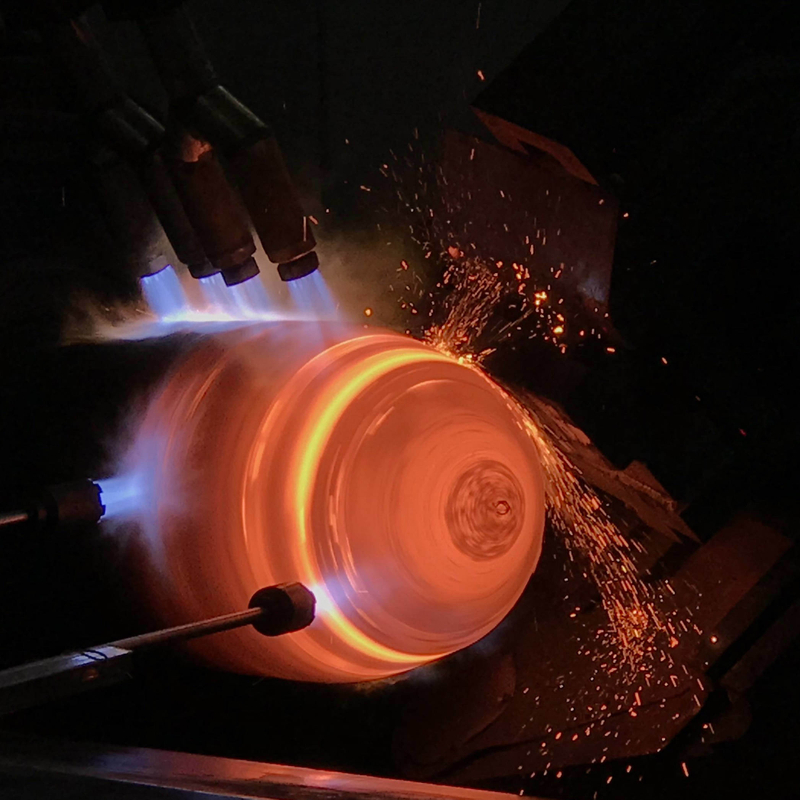

This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.

Quantity:
  • LTM SERIES
  • LTM
  • 8479819000

Product Description

Hot spinning machine


High Pressure Cylinder Metal Spinning Machine


I. Technical specification

This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.

Spinning diameterMax. 406mm
Spinning diameterMin. 325mm
Spinning lengthMax. 2000mm
Spinning lengthMin. 800mm
Starting wall thicknessMax. 18mm
Starting wall thicknessMin. 5mm
Spinning cycle (incl. load/unloading/necking-in)Max. 2.5min
Equipment centre height900mm
Main spindle drive90KW
Axial stroke of sliding block65mm
Radial stroke of sliding block17mm
Radial clamping force200KN
Main spindle speed (Variable)0-320 rpm
Mould axial stroke321KN
Max. mould axial feed-in speed30°/s
Mould rotating angle0-91°
Hydraulic motor22KW
Proportional speed regulated reversing valveItaly ATOS
ControlSiemens
Connected electrical load3*380V, 50Hz
Heating power of the pipe end500KW/1000Hz
Connected pneumatic load6 bar


II. Machinery detail

Template type

hot-spinning-machine-213

Roller type

hot-spinning-machine-222


Head section view

hot-spinning-machine-2112



III. Solution for different size


CNC ROLLER TYPR SPINNING MACHINE

Machine ModelLTM G+622LTM G+660LTM G+720LTM G+920
Processing Dia. (mm)406~622406~660559~720559~920
Processing Length (mm)5500-125005500-125005500-125005500-12500
Processing Thickness (mm)10-3010-3010-3010-30
Central Height (mm)1300130013001300
Main Engine Power (KW)200250280355
Rolling wheel swing angle90°90°90°90°
Control MethodsCNCCNCCNCCNC

Machine ModelLTM G 325LTM G 406
Processing Dia. (mm)219~325325~406
Processing Length (mm)800-2000800-2000
Processing Thickness (mm)5-185-18
Central Height (mm)11001200
Main Engine Power (KW)90144
Rolling wheel swing angle100°100°
Control MethodsCNCCNC

CNC Template TYPR SPINNING MACHINE
Machine ModelLTM M 232LTM M 325LTM M 406
Processing Dia. (mm)200~232219~325325~406
Processing Length (mm)700-1700800-2000800-2000
Processing Thickness (mm)3-155-155-18
Central Height (mm)100011001200
Main Engine Power (KW)3790110
Rolling wheel swing angle90°90°90°
Control MethodsPLCPLCPLC
