LPG/LNG Cylinder Shot Blasting Machine

Quantity:
  • LONGTERM

  • Product Line

  • 3kw

  • Production of Gas Cylinder

  • LPG/LNG Cylinder Shot Blasting Machine

  • Standard Seaworthy Package

  • SGS, CE

  • Longterm

  • China

  • 830710000

  • 500sets/Monthd

  • Available | Customized Request

Product Description

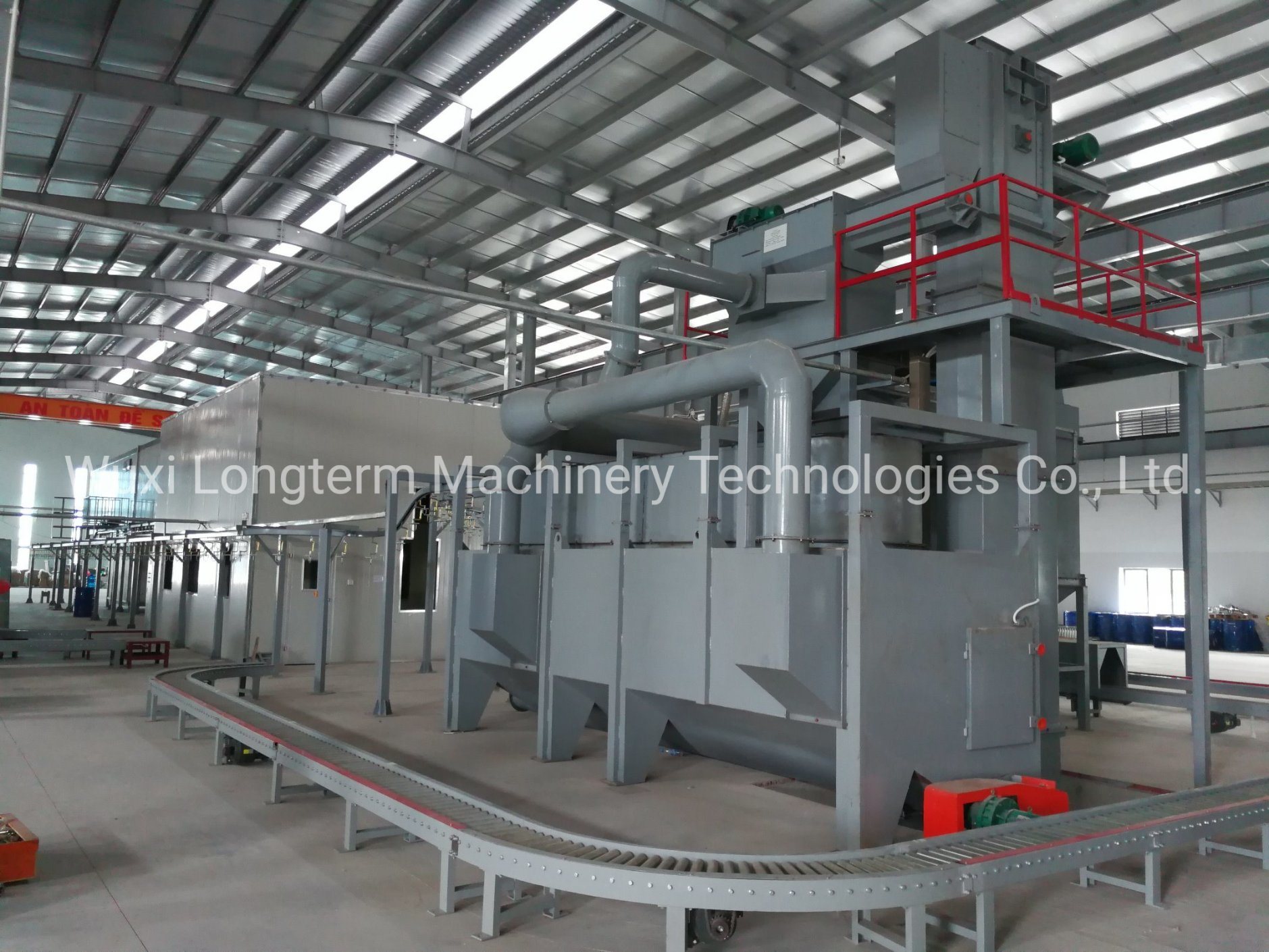

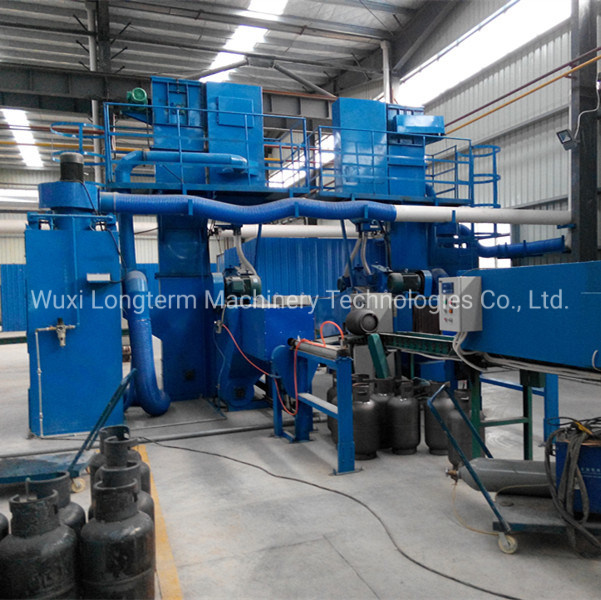

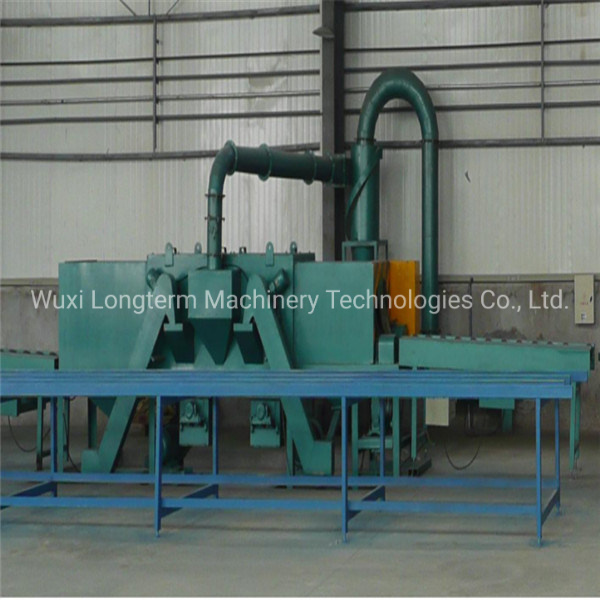

LPG/LNG Cylinder Flow Production Plant Shot Blasting Machine
LPG/LNG Cylinder Shot Blasting Machine

Main Technical Parameter
1.Production Efficiency 80~120Pieces/Hour
2.No. of Shot Blasting Machine 2 Sets
3.Hoist Motor Power 2.2KW
4.Total Motor Power 31.2KW
5.Diameter of Workpiece Φ320mm*Φ680mm
6.Machine Dimensions(length*width*height) L*7885*2460mm( L customized)
7.Weight 16T

Other Machines of the LPG Cylinder Production Line:
No. Description Size&Specis Unit
I Main Equipment
1 Hydraulic Press 500T set
2 De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell) XL-2 set
3 Material cutting mould on hydraulic press set
4 63ton hydraulic logo stamping machine 63T set
5 Shell drawing machine 200/300 set
6 Shell forming mould LS-2 set
7 Automatic trimming machine QK-4 set
8 End dish necking machine SK-3 set
9 Cleaning machine QL-5 set
10 Hole punching machine CK-3 set
11 Valve Seat Welding Machine HP-2 set
12 Shroud welding machine HZ-1 set
13 Bottom base welding machine DZ-1 set
14 Assembling Machine ZH-1 set
15 Option NO.1:Circumferential Seam welding machine HJ-3 set
Option NO.2:Circumferential seam welding machine Single head MAG set
16 Annealing furnace with burner TW-1 set
17 Hydrostatic Testing Machine SY-6 set
18 Shot blasting machine QYP15 set
19 Spraying line JH-2 set
20 Valve mounting machine JF-2 set
21 Air Leakage Testing Machine Cm-2 set
22 Printing machine ZS-2 set
23 Roller conveyor line m
24 Curve Convoyer m
25 Conveyor line power set
26 Motorized testing pump set
27 Cylinder drying machine set
II Equipment For Accessories Manufacturing Equipment
28 Punching machine/power press 25T set
29 Punching machine/power press 63T set
30 Punching machine/power press 100T set
31 Bottom base hydraulic forming machine set
32 Shroud upper R hydraulic forming machine set
33 shearing machine 4mm*1.5m set
34 Shearing machine 4mm*2.5m set
35 Printing machine GZ-2 set
36 Coding machine BM-1 set
37 Shroud rolling machine set
38 Bottom base rolling machine set
39 Shroud mould set
40 Bottom base mould DM-2 set
41 Bottonm base welding machine set
III Auxiliary Equipment
42 Air compressor (screw) 10/0.8 set
43 Air compressor (piston) 2.0/3.0 set
44 Air storage tank 1m3/3Mpa set
45 Air storage tank 2m3/1Mpa set
IV Testing Equipment
46 X-ray detecting equipment 2505C set
47 Mechanical property testing equipment WES-600B set
48 Burst pressure testing equipment set
49 Ultrasonic wall thickness testing equipment set


Customer visiting
LPG/LNG Cylinder Shot Blasting Machine


Installation and Commissioning

LPG/LNG Cylinder Shot Blasting Machine

LPG cylinder machinery exhibition
LPG/LNG Cylinder Shot Blasting Machine
LPG/LNG Cylinder Shot Blasting Machine




FAQ

LPG cylinder manufacturing equipment

Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing


We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?

Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).
