LPG Gas Cylinder Shot Blaster / Shot Blasting Machine

Quantity:
  • Rust / Corrosion Proof
  • New
  • Customized
  • Flexible
  • Comprehensive
  • Intelligent Manufacturing
  • Flow Production Line
  • Product Line
  • LPG Gas Cylinder Shot Blaster for Production Line
  • 6kg, 12kg, 25kg, 48kg, or Customized
  • 250PCS/Hour
  • <50kg
  • 4 Sets
  • About 83.5kw
  • Standard Seaworthy Package
  • 2-50KG
  • LONGTERM
  • China
  • 844790900
  • 2000/ 8 Hours
  • US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

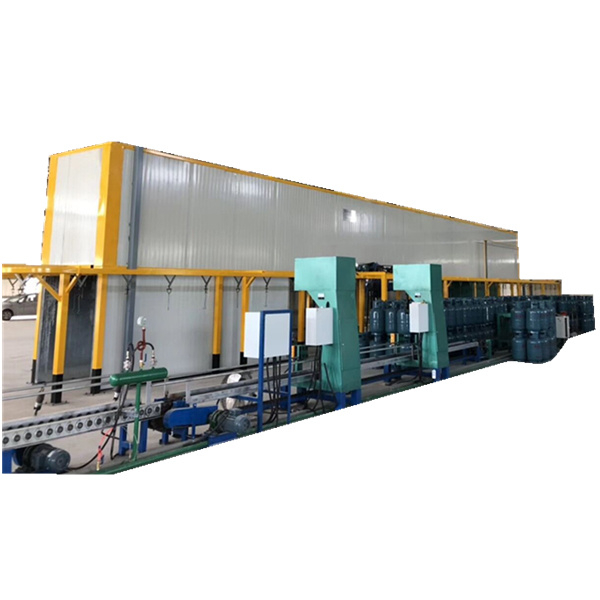

LPG Gas Cylinder Shot Blaster / Shot blasting machine

A. LPG Gas Cylinder Shot Blasting Machine

LPG Gas Cylinder Shot Blaster / Shot Blasting Machine

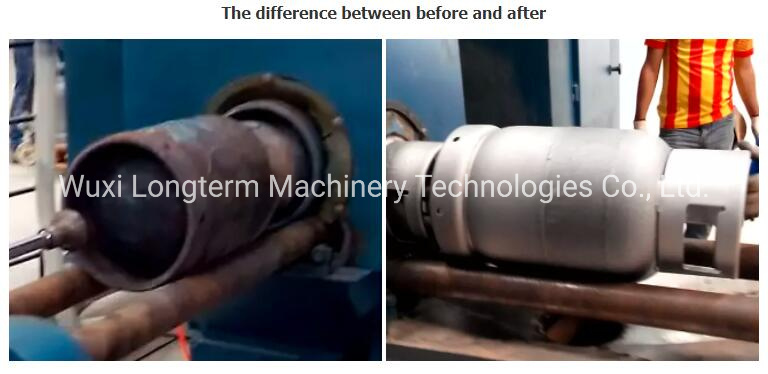

Our shot blasting machine is especially made for gas cylinder. Using the high speed shot to hit the surface of the cylinder, so that to clean the oxide-scale and make the cylinder surface silver gray and remove the inner stress of the cylinder, improve the surface adhesive force. Meanwhile, we will increase the compressive pre-stress through shot blasting to improve rigidity.

Specification:
Main Technical Parameter
1.Production Efficiency 250Pieces/Hour
2.No. of Shot Blasting Machine 2 Sets
3.Hoist Motor Power 2.2KW
4.Total Motor Power 83.5KW
5.Diameter of Workpiece Φ320mm*Φ680mm
6.Machine Dimensions(length*width*height) L*7885*2460mm( L customized)
7.Weight 16T

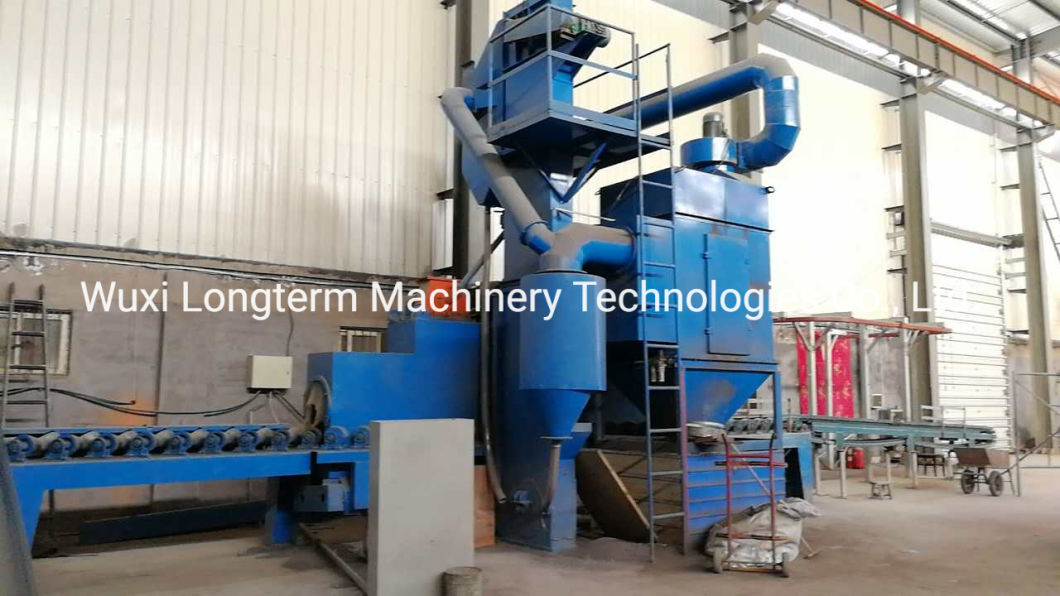

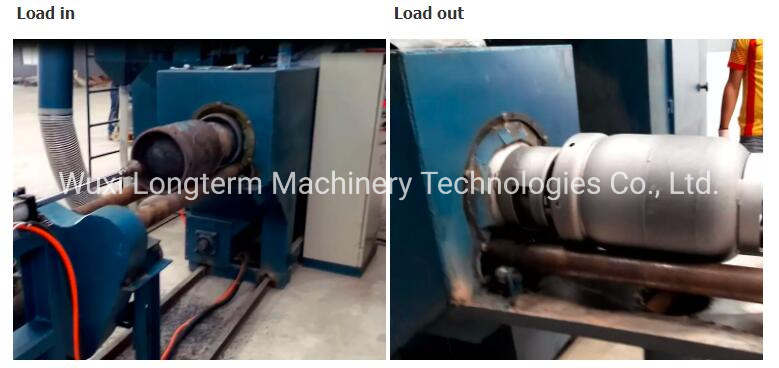

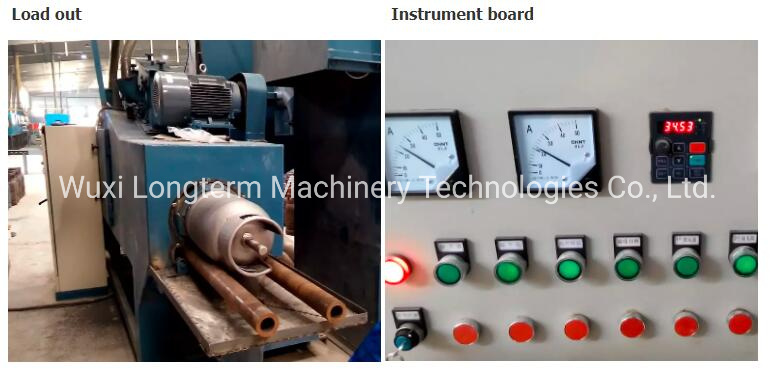

B. Detailed Process:

LPG Gas Cylinder Shot Blaster / Shot Blasting Machine

LPG Gas Cylinder Shot Blaster / Shot Blasting Machine

LPG Gas Cylinder Shot Blaster / Shot Blasting Machine


C.Pack∇ivery

LPG Gas Cylinder Shot Blaster / Shot Blasting Machine

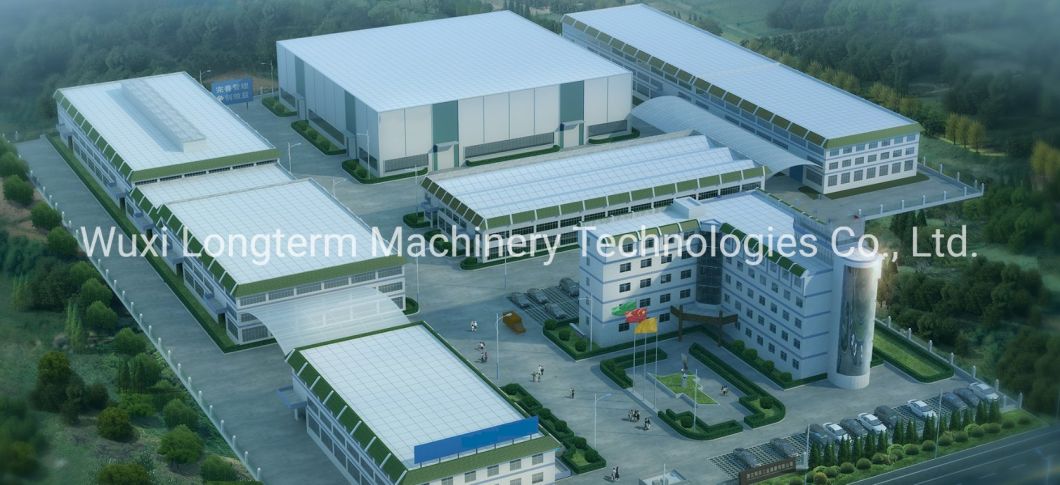

D.Our Company

LPG Gas Cylinder Shot Blaster / Shot Blasting Machine
Wuxi Longterm Machinery Technologies Co., Ltd

Wuxi Longterm Machinery Technologies is a professional manufacturer of solar water tank machinery, LPG& LNG cylinder and steel drum welding equipment with many years of experience.
With inner and outer solar water tank, LPG& LNG cylinder, fire extinguisher, and steel drum welding machine and system solutions, including circumferential seam welding, longitudinal seam welding, nozzle welding, jacket layer welding system, etc... Due to highly automatic, simple operation and reliable quality welding equipment, they are popular and well acceptable in many industries: pressure cylinders, fire extinguishers, solar water tank, enamel water tank, stainless steel tanks, etc... Our machines have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, etc...
Just let us know your requirement, we will give you perfect welding solutions!
We are longterm company, we will provide longterm quality machinery and longterm cooperation for the customers from all over the world!
Customers from all over the world
LPG Gas Cylinder Shot Blaster / Shot Blasting Machine
E. FAQ
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
