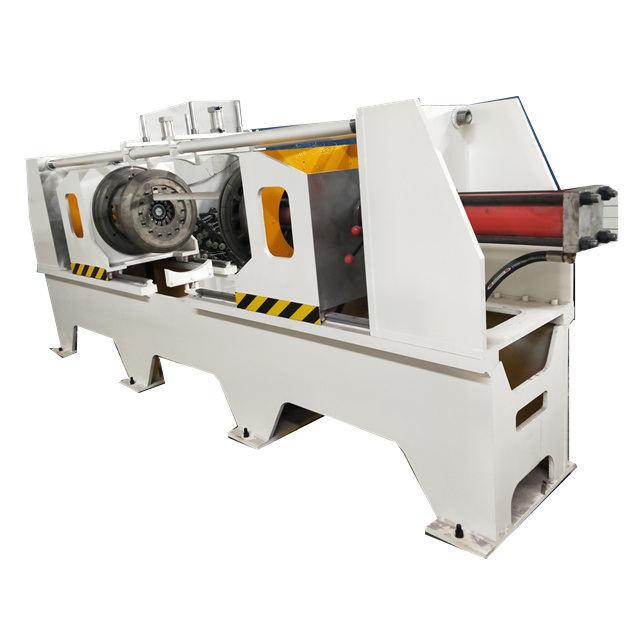

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

Quantity:
  • HLT
  • Product Line
  • Steel Drum Flanging Expanding Machine
  • 5-6PCS/Min
  • 15kw
  • 55 Gallon (Us) & 44 Gallon (UK)
  • 0.45-0.5mm
  • Shipping Bulk Cargo.
  • T/T
  • 4 Month
  • Standard Seaworthy Package
  • HLT
  • China Jiangsu
  • 8462919000
  • 500 One Year
  • US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

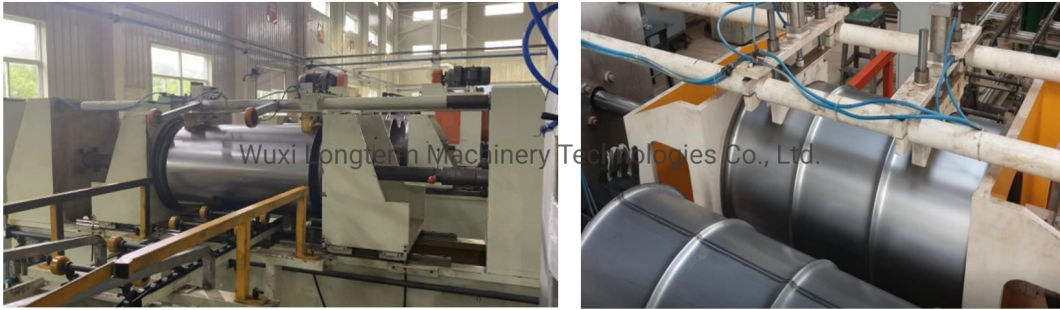

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum
Machine parameters

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel DrumCapacity: 5-6 pcs/min
Power: 18KW
The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.


Main Technical Parameter
1.Product Horizontal Automatic flanging & Expanding machine for steel drum
2. thickness range 0.45-0.5mm
3.drum size 55 Gallon
4.Power 15kw
5.capacity 5-6pcs/min
6.Delivery time 4 month
7.Payment term TT


Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

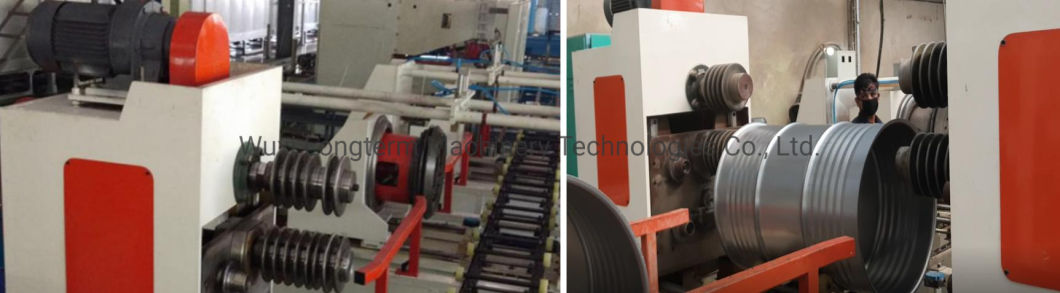

W-ring Forming Machine(W-beader,corrugating machine)

Capacity: 7-8pcs/min,
Power: 15KW
The conveyor will matically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will m forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.


Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

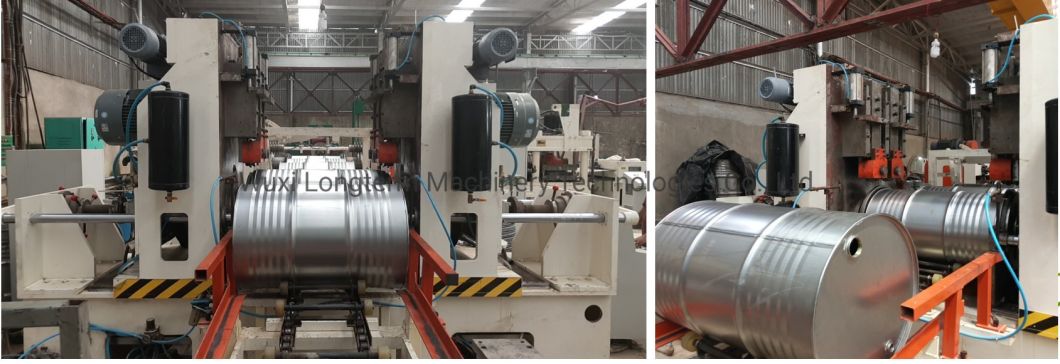

Assembly &seaming machine

Capacity:7-8pcs/min
Power: 1KW,
Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.



Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

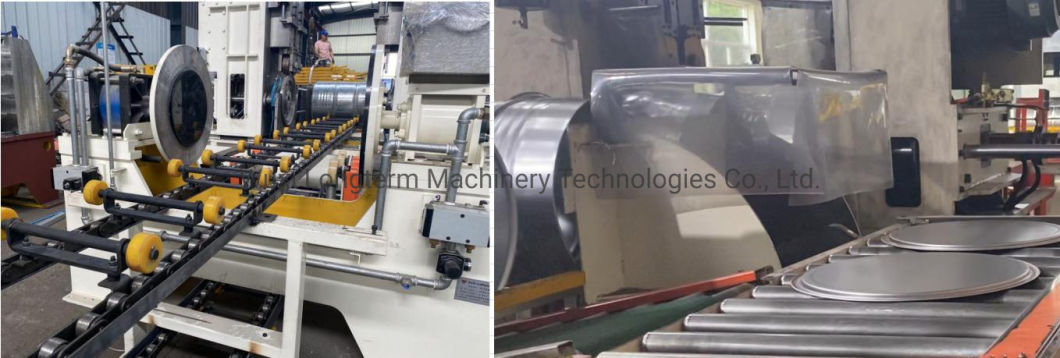

Seam positioning &Horizontal leak checking machine Automatic cover feeding device


Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

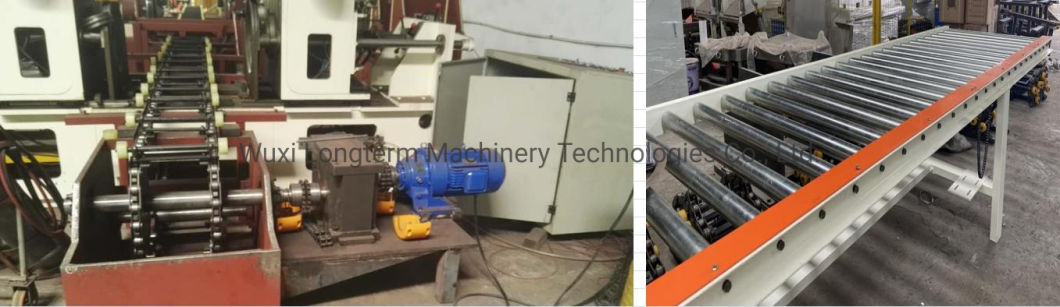

Middle process conveyor - with conveyor base and program controller

Related Machine

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum
Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum
Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

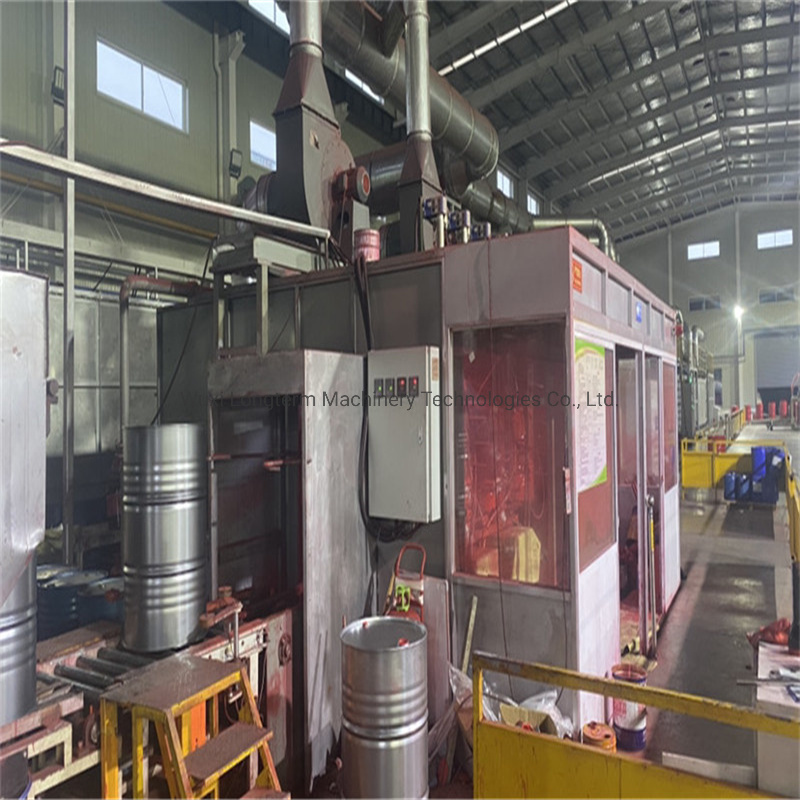

Welding machine for drum steel drum painting machine berral cleaning machine

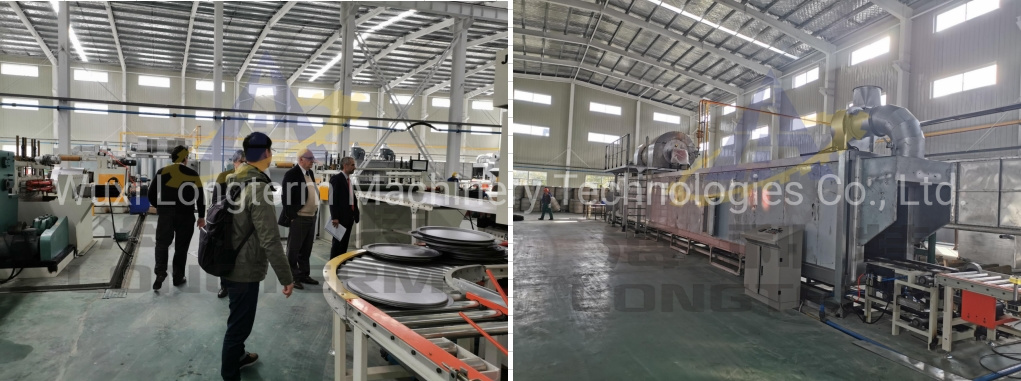

Customer Visiting


Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

Certificate & Patent

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

Company Information

Wuxi Longterm Machinery Technologies Co., Ltd
we are professional manufacturer of kinds of steeldrum making machines. Like punching machine, flanging , Beading.....Our machines are exported to Russia, India, Vietnam...with high qualy and good after-service. We believe that we are you best choice.

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum

Exhibition

Horizontal Automatic Flanging & Expanding Machine for Steel Oil Drum / Bitumen Barrel Drum


FAQ

To enable me send you offer for correct machines, please tell me following details:

A: Technical drawing of drum

B: What's the capacity per shift/day?
