High Quality Steel Gas Seamless Cylinder Embossing/ Stamping Machine

Share to:

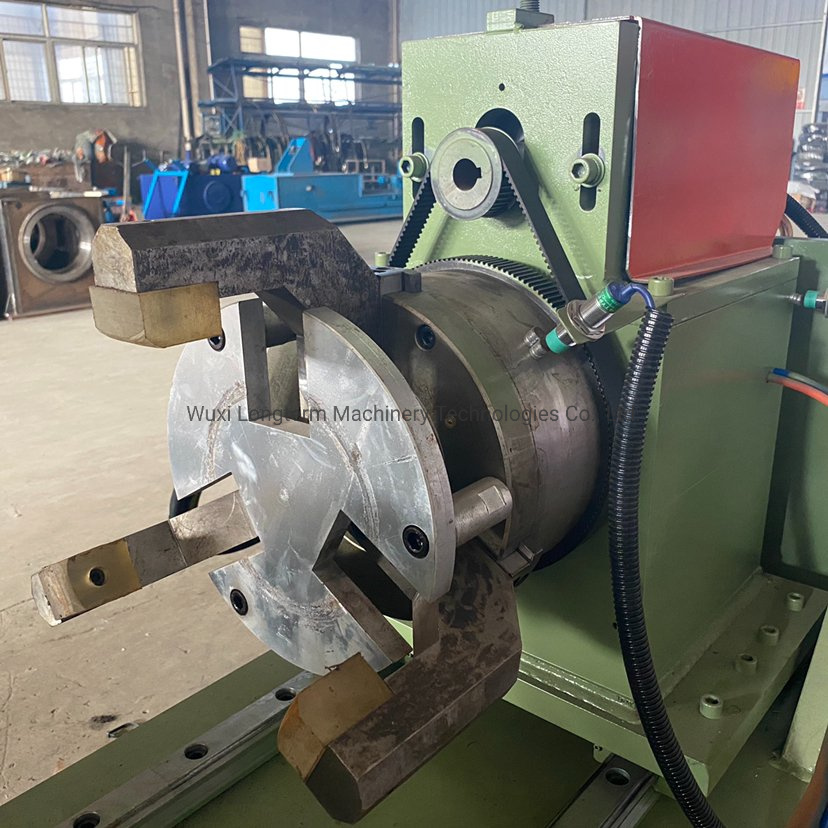

High Quality Steel Gas Seamless Cylinder Embossing/ Stamping Machine

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Computerized:
Computerized
Automatic Grade:
Automatic
Application:
Aluminum, Steel
Product Name:
Embossing Machine for Seamless Cylinders
Keyword:
Embossing
Material:
34CrMo4(35CrMo), 37mn, 30CrMo
Color:
Customized
Suitable for:
Seamless Cylinder
Power:
1.5kw
Cylinder Diameter Range:
219mm-406mm
Weight of Cylinder:
120kg
Length Range:
600mm--2200mm
Thickness Range:
5-12 mm
Transport Package:
Standard Seaworthy Package
Specification:
customized
Trademark:
HLT
Origin:
Jiangsu, China
Production Capacity:
500set Per Year
Customization:
Available | Customized Request

Product Description

Product Description

High Quality Steel gas seamless cylinder Embossing/ stamping machine

Product Description

1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).

2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.

3. The sliding seat moves back and forth on the guide rail, with automatic loading and unloading functions.

4. The production of cylinder with different diameters can be achieved by adjusting the center distance of the cylinder supporting rollers and the height of the roller base. 5. The rollers installed on the cylinder tray can move back and forth. When the workpiece is used for typing, the rollers of the cylinder tray can move up and down to protect the bottle from scratches on the workpiece.

Specification Cylinder Main parameter

Material:	34CrMo4(35CrMo),37Mn,30CrMo
Hardness of CNG cylinder after quenching and tempering	HB248-300
Cylinder diameter range	φ219mm- φ406mm
Length range	600mm--2200mm
Thickness range	5-12 mm
Weight of cylinder	≤120Kg

1.Embossing production beat (including loading and unloading time):
1. First row of 70-90pcs/hour
2. Second row 50~70 pcs/hour
3. Three rows of 35~45 pcs/hour
4. Four rows of 30-40 pcs/hour

2.The diameter of WORD rolling wheel is 650mm,The word code is arranged in a row, 200 characters can be arranged without spaces

1.Mitsubishi system PLC control, LED display, can realize automatic positioning, position value can also be input through the
keyboard, can realize automatic counting of class output.
2. Electronic encoder automatic detection-signal transmission-automatic editing, the detection accuracy is ±0.25mm
(circumferential and radial), and the deviation of stamping line spacing is within 3mm.
3. The power supply is three-phase five-wire system, 415V, 50HZ
4. The total power of the equipment is about 15KW.

Finished product
High Quality Steel Gas Seamless Cylinder Embossing/ Stamping Machine

Related Machine

Hot Spinning Machine

Cylinder Hot Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm.

Threaded Screw Machine

The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming.
2.Single station device is adopted for input and output materials(semi-automatic);
3.The workpiece clamping adopts the front top bowl positioning.
