Machine Cylinder Embossing Heat Stamping Machine for Cylinder

Quantity:
  • HLT
  • Computerized
  • Automatic
  • Aluminum, Steel
  • Machine Cylinder Embossing Heat Stamping Machine
  • Embossing
  • 34CrMo4(35CrMo), 37mn, 30CrMo
  • Customized
  • Seamless Cylinder
  • 1.5kw
  • 219mm-406mm
  • 120kg
  • 600mm--2200mm
  • 5-12 mm
  • Standard Seaworthy Package
  • customized
  • HLT
  • Jiangsu, China
  • 500set Per Year
  • Available | Customized Request

Product Description

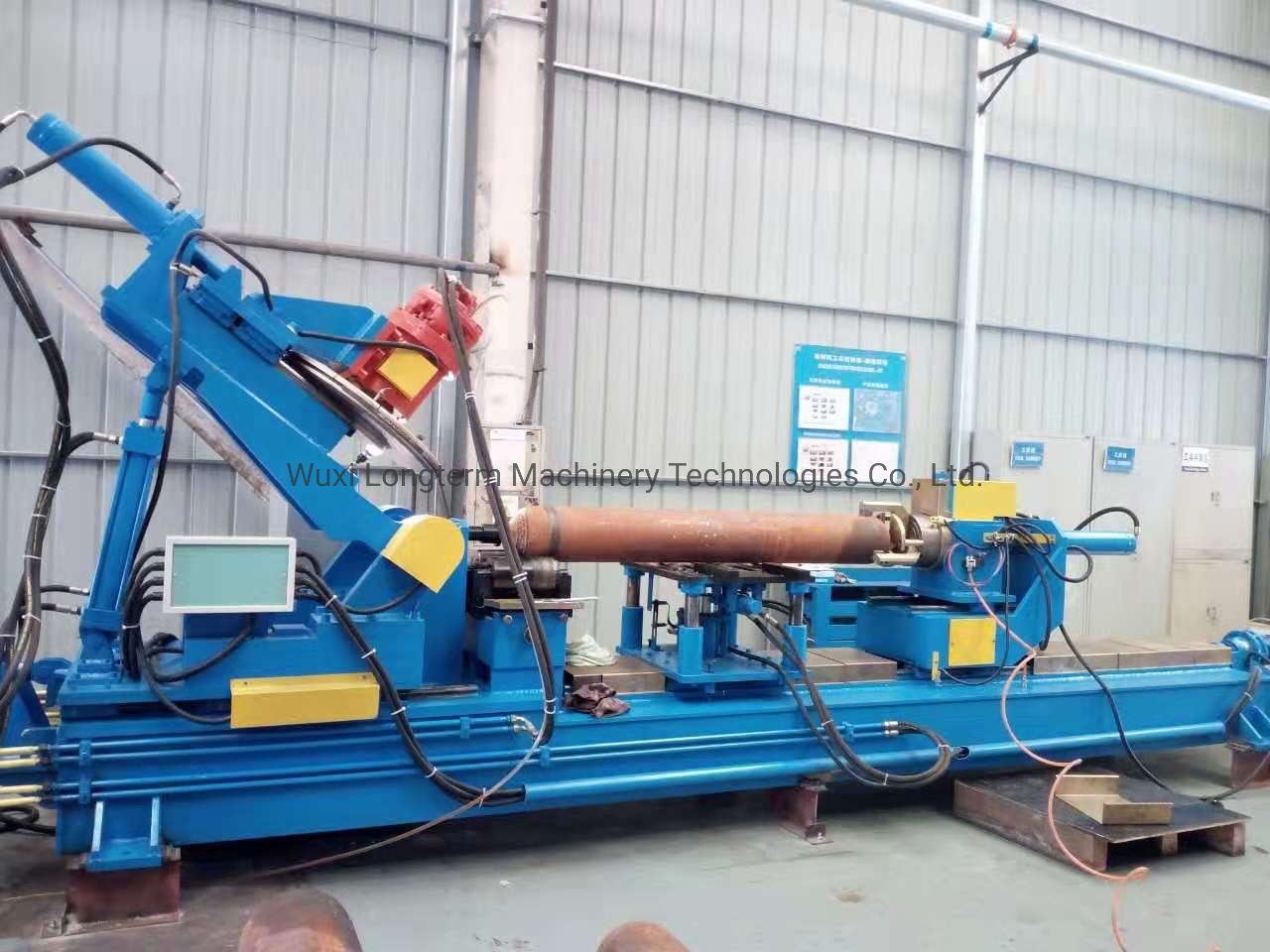

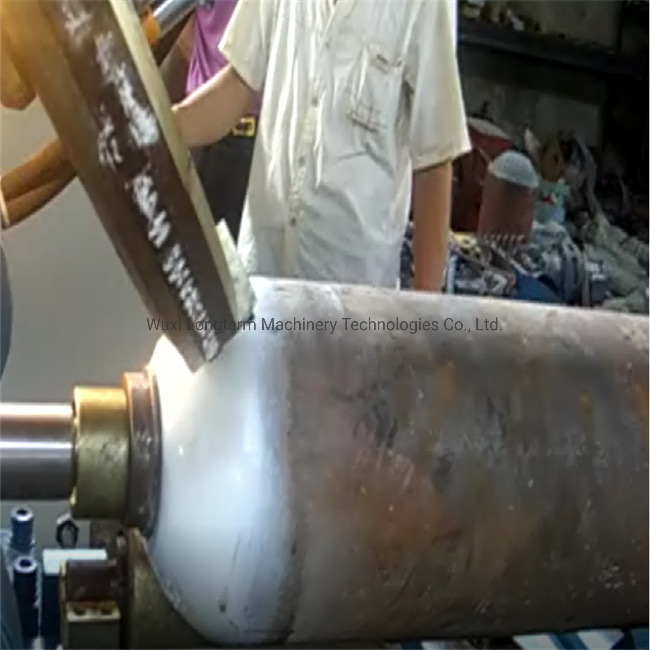

Machine Cylinder Embossing Heat Stamping Machine For Cylinder

Product Description

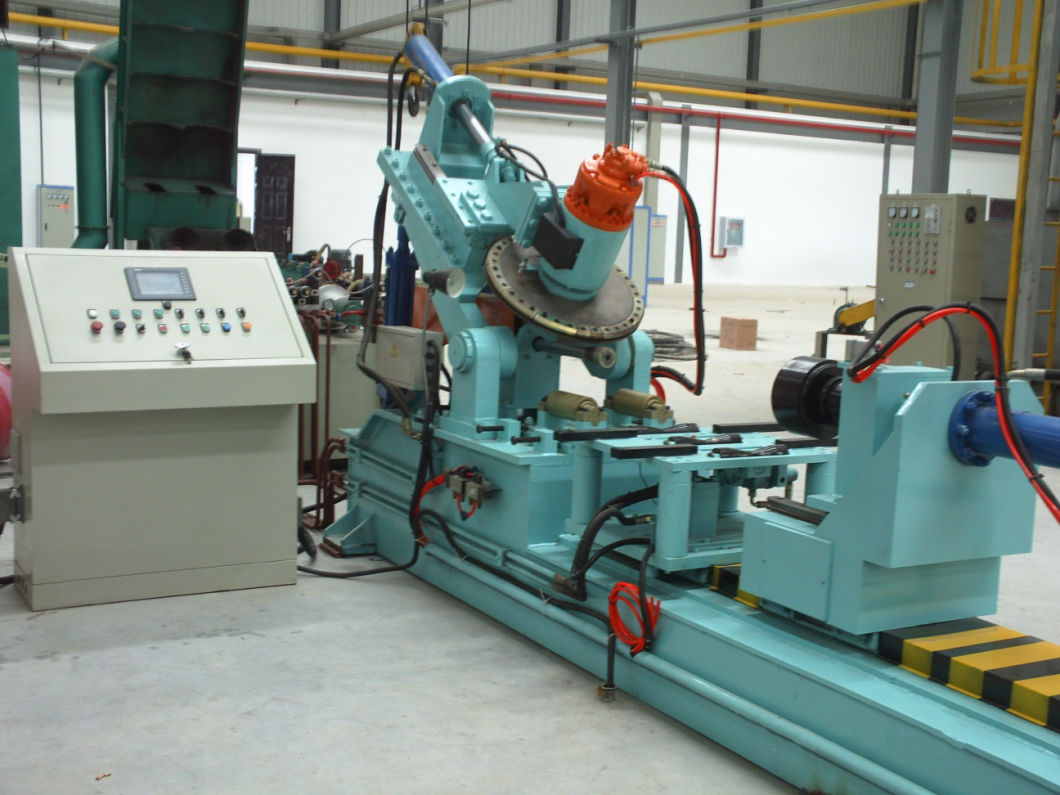

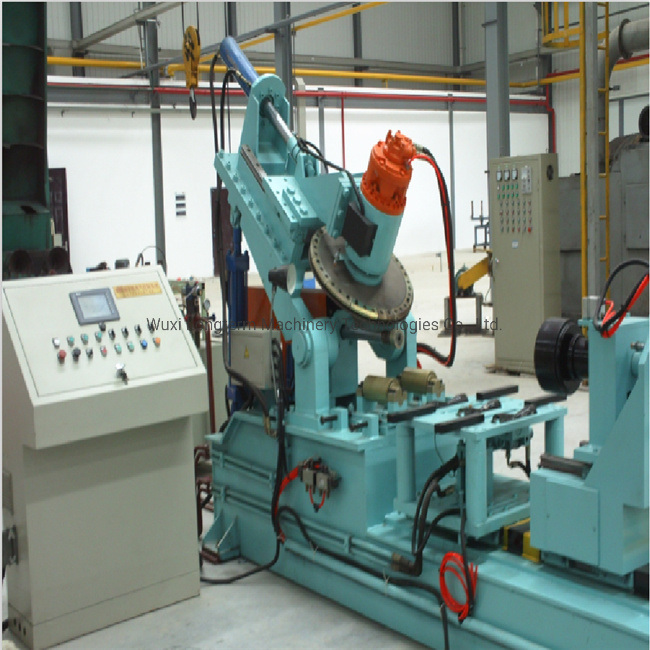

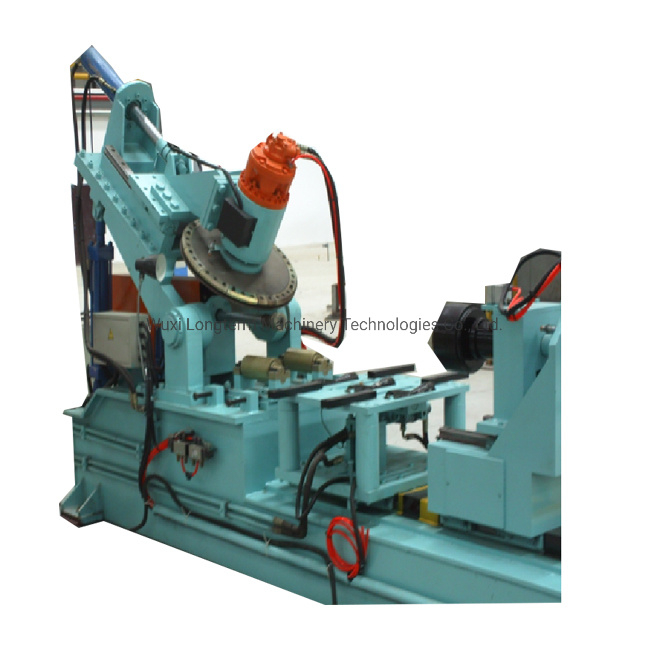

Machine Cylinder Embossing Heat Stamping Machine for Cylinder
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).

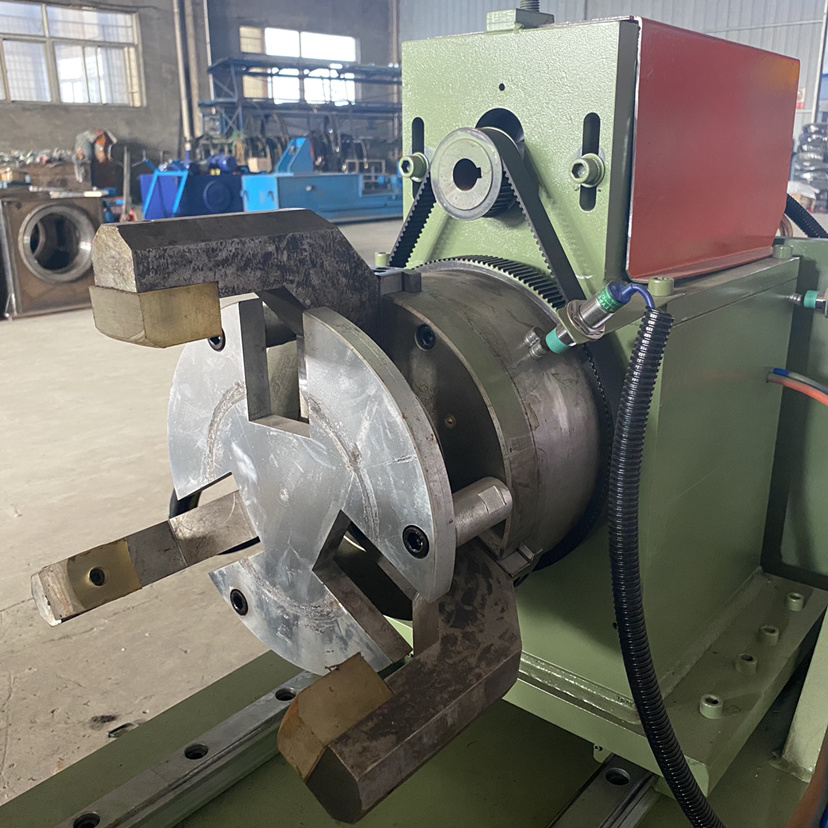

2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.
3. The sliding seat moves back and forth on the guide rail, with automatic loading and unloading functions.
4. The production of cylinder with different diameters can be achieved by adjusting the center distance of the cylinder supporting rollers and the height of the roller base. 5. The rollers installed on the cylinder tray can move back and forth. When the workpiece is used for typing, the rollers of the cylinder tray can move up and down to protect the bottle from scratches on the workpiece.
Specification Cylinder Main parameter
Material:
34CrMo4(35CrMo),37Mn,30CrMo
Hardness of CNG cylinder after quenching and tempering
HB248-300
Cylinder diameter range
φ219mm- φ406mm
Length range
600mm--2200mm
Thickness range
5-12 mm
Weight of cylinder
≤120Kg
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
1.Embossing production beat (including loading and unloading time):
1. First row of 70-90pcs/hour
2. Second row 50~70 pcs/hour
3. Three rows of 35~45 pcs/hour
4. Four rows of 30-40 pcs/hour

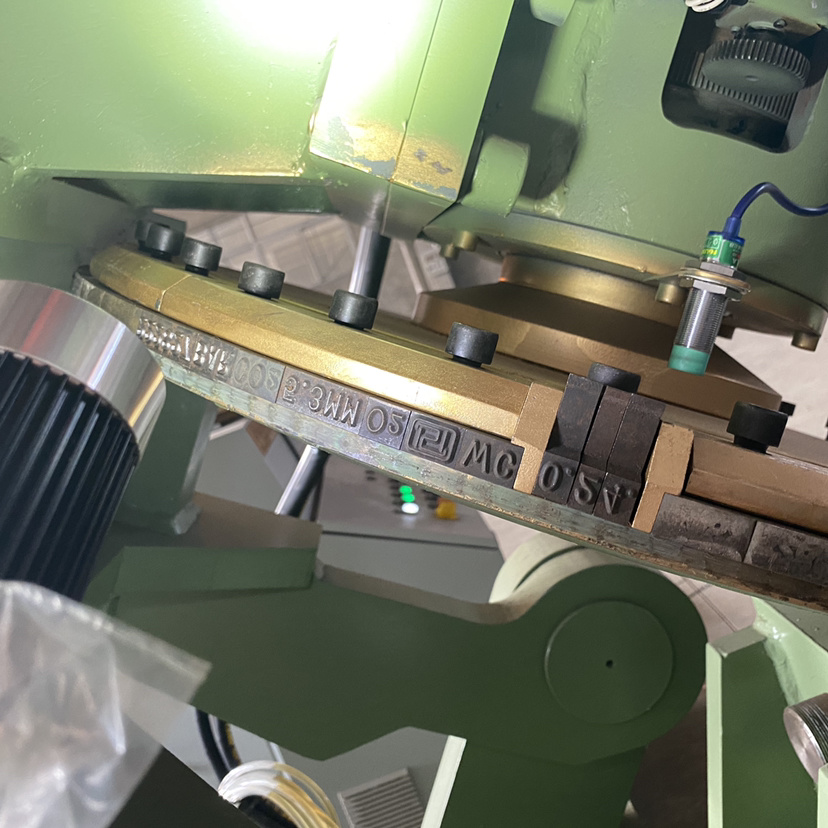

2.The diameter of WORD rolling wheel is 650mm,The word code is arranged in a row, 200 characters can be arranged without spaces
Machine Cylinder Embossing Heat Stamping Machine for Cylinder

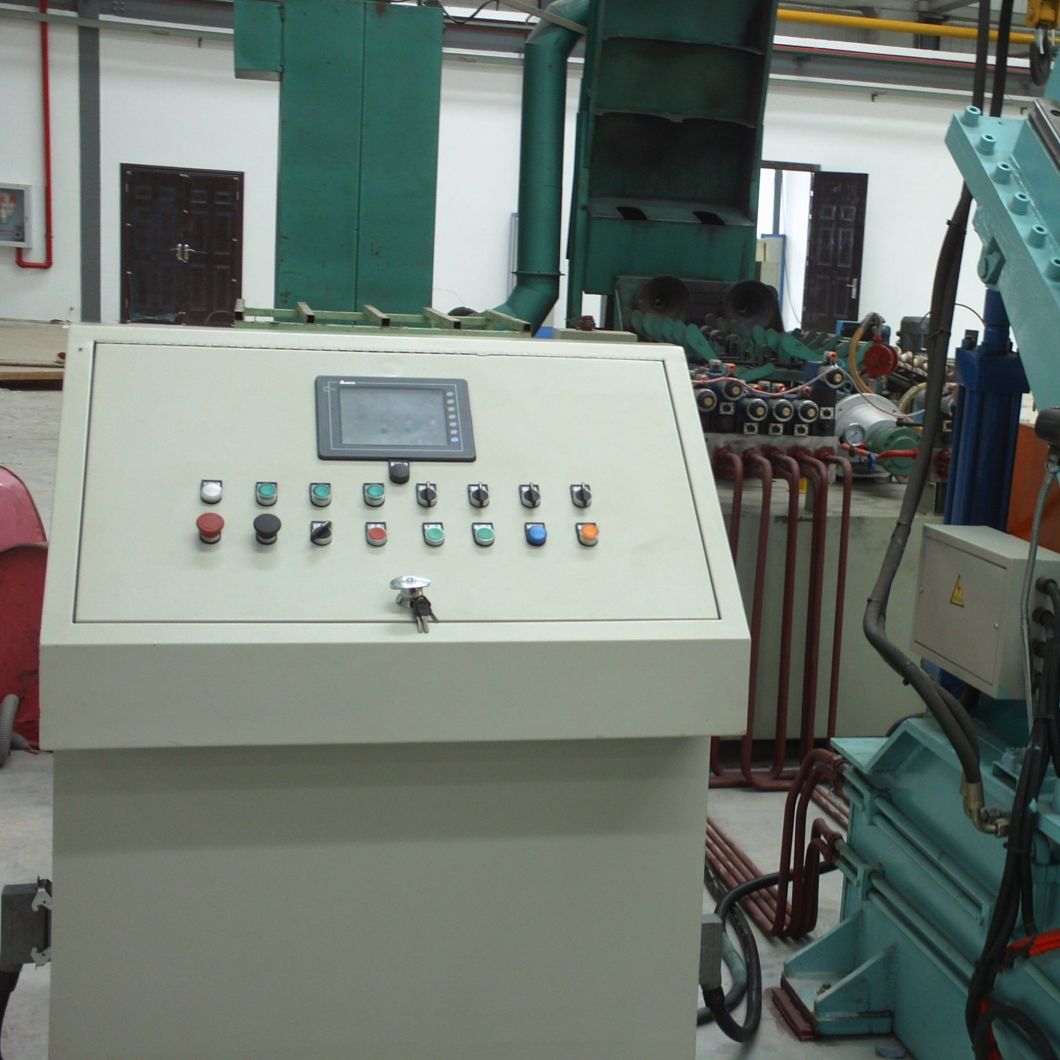

1.Mitsubishi system PLC control, LED display, can realize automatic positioning, position value can also be input through the
keyboard, can realize automatic counting of class output.
2. Electronic encoder automatic detection-signal transmission-automatic editing, the detection accuracy is ±0.25mm
(circumferential and radial), and the deviation of stamping line spacing is within 3mm.
3. The power supply is three-phase five-wire system, 415V, 50HZ
4. The total power of the equipment is about 15KW.

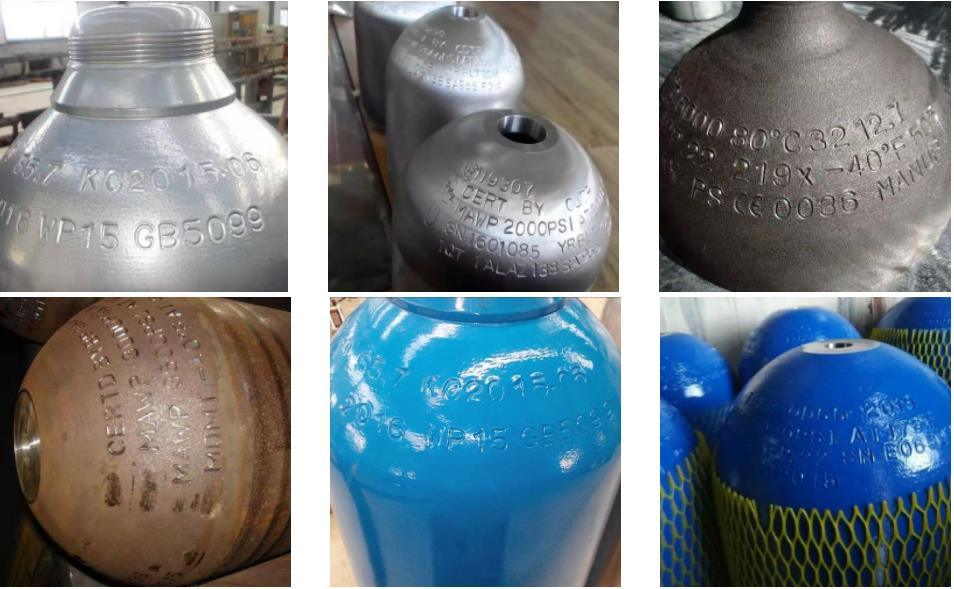

Finished product
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
Related Machine
Machine Cylinder Embossing Heat Stamping Machine for Cylinder

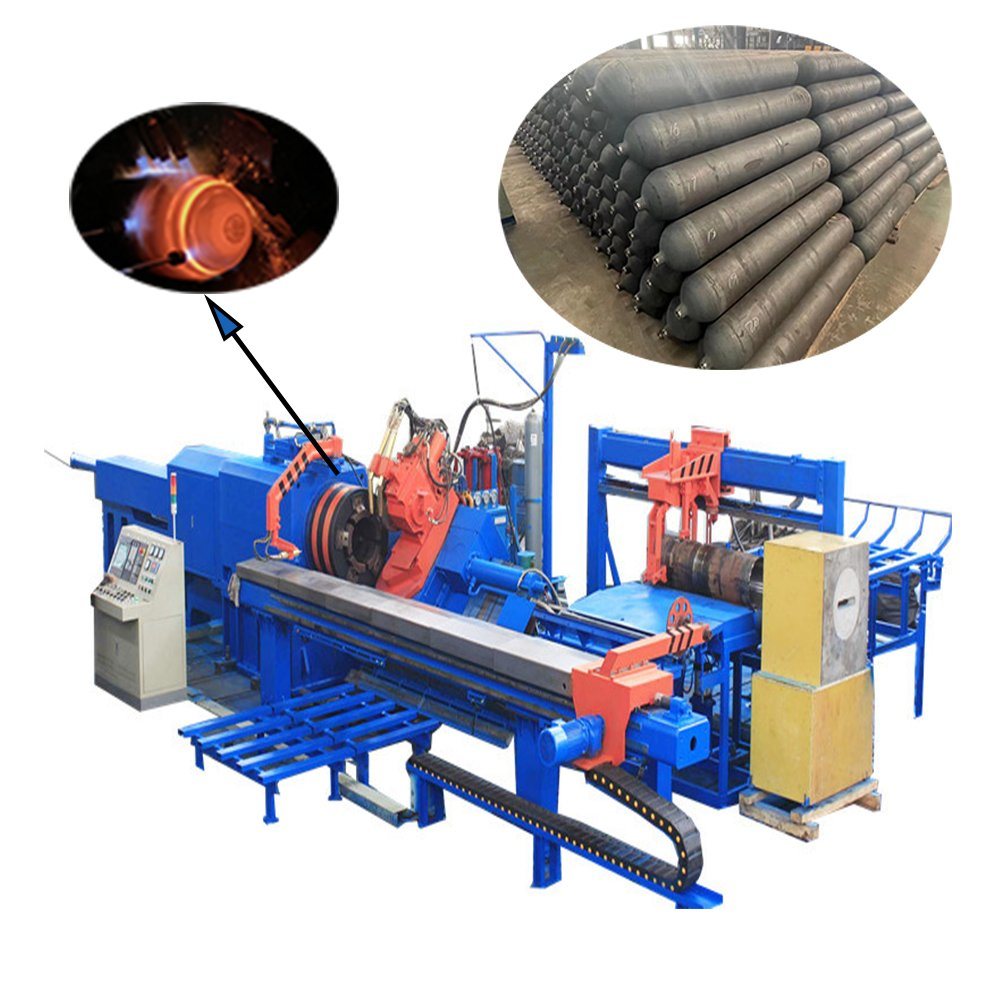

Hot Spinning Machine

Cylinder Hot Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm.
Machine Cylinder Embossing Heat Stamping Machine for Cylinder

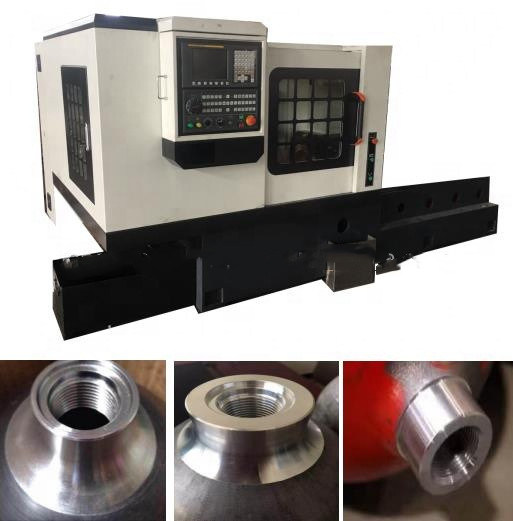

Threaded Screw Machine

The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming.
2.Single station device is adopted for input and output materials(semi-automatic);
3.The workpiece clamping adopts the front top bowl positioning.
Packing & Delivery
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Machine Cylinder Embossing Heat Stamping Machine for Cylinder
Wuxi Longterm Machinery Technologies is a professional manufacturer of solar water tank manufacturing line, LPG gas cylinder line,fire extinguisher manufacturing line, steel drum welding machine with more than 30years of history.
We are improving technologies all the time and developing welding machinery market. We provide customers with valued solutions including deep drawing, blanking, longitudinal seam welding, circumferential seam welding, nozzle welding, powder coating, hydro testing, shot blasting equipment, etc..Due to highly automatic, simple operation and reliable quality welding equipment, they are popular and well accepted in many industries: pressure cylinders, fire extinguishers, solar water tank, enamel water tank, stainless steel tanks, etc..Our machineries have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, Mexico, etc..
We can customize all our equipment according to different customers requirement, just let us know your requirement, we will give you perfect solutions! We are Longterm Company, we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.
