Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine

Quantity:
  • 2.7kg / 5kg
  • IP54
  • 13kg
  • 1 Set
  • Accept
  • 1 Year
  • Wooden Package
  • HLT
  • Jiangsu, China
  • 2000 Sets Per Year
  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Product Description
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine

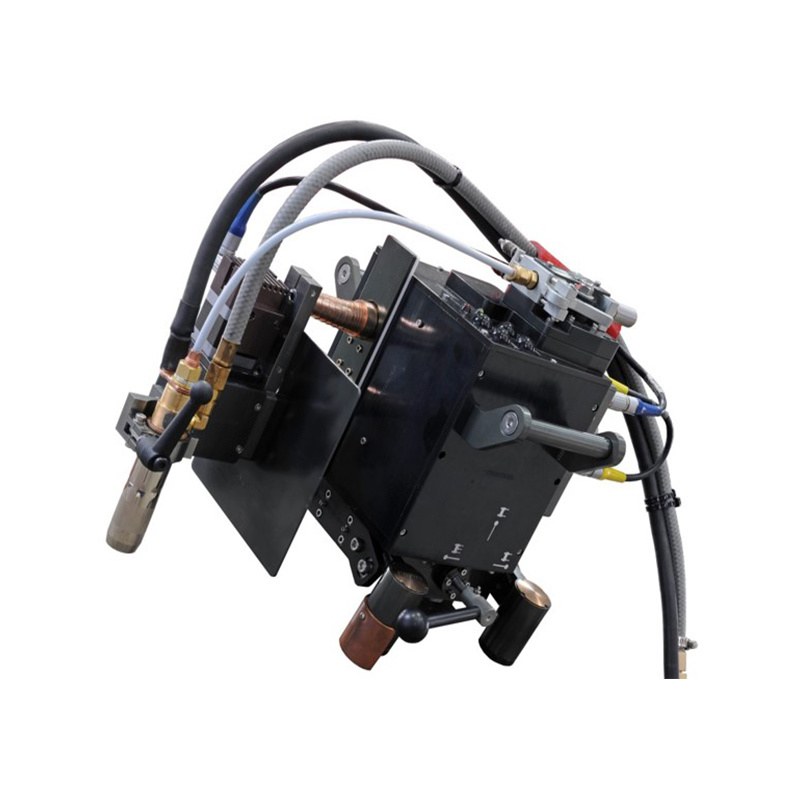

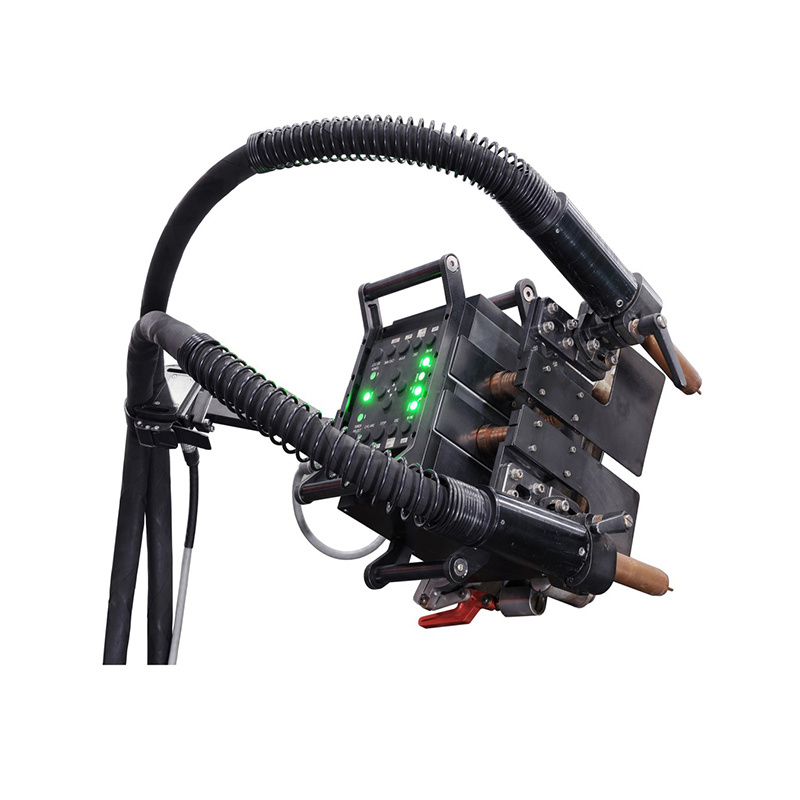

Production Detail

* Using an embedded fully digital control system
* The trolley is suitable for narrower space construction
* Unique car chassis design
* The equipment has remote management and data transmission functions
* Professional process software platform with invention patents
* At the same time has the function of flat pendulum and angle pendulum
* The same equipment can be used from heat welding to filling cover
* Many welding processes
* System IP55 protection level, with low temperature heating design

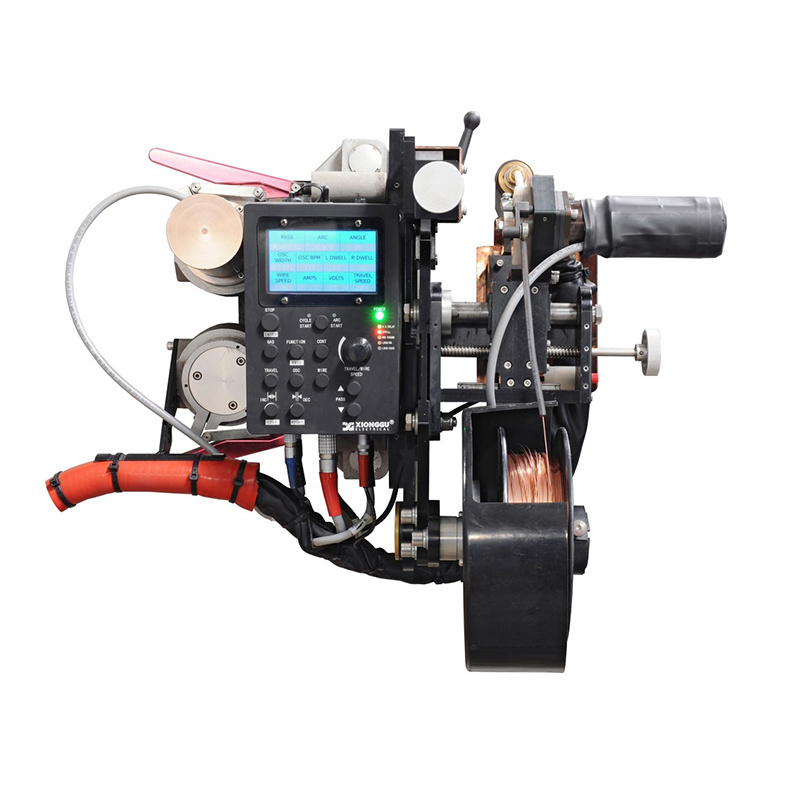

* Handheld LCD remote control
* Integrated wire drawing system and modular design of trolley

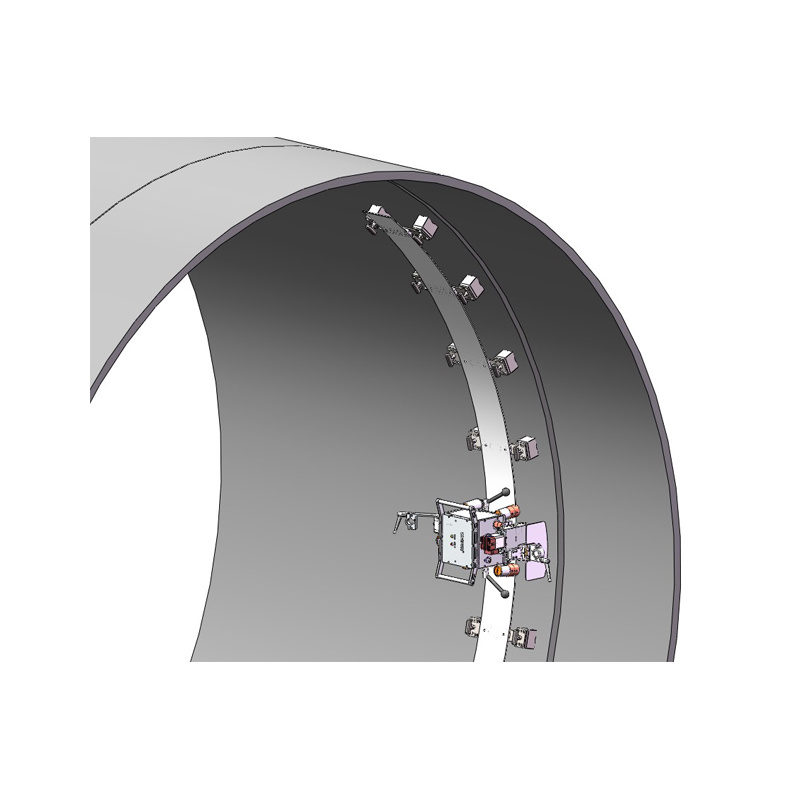

* Toothed circle and curved track design
* Provides 99 programmable weld passes

Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine
Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine

Model
A-300N
diameter
> Φ 168mm
speed
0.1~1.5 m/min
feeding wire speed
2.5~25 m/min
Number of segments per group
1~180 Sections
welding torch moving width
0~20 mm
welding torch moving type
Flat pendulum/angle pendulum
Linear oscillation/pendulum oscillation
wire weight
2.7kg/5kg
enviromet
-40~70ºC
level of height
4000m
protecting class
IP54
car weight
13kg
dimension
600mm×450mm×250mm

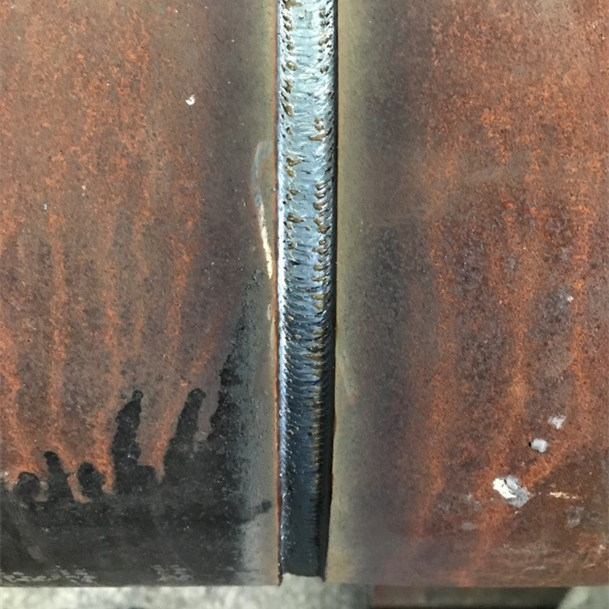

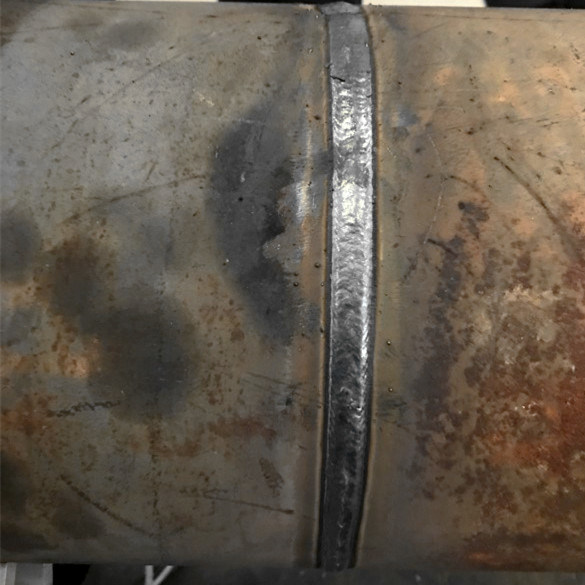

Groove welding process
1. Automatic welding, bottoming, filling and capping are integrated, there is a gap
between the counterparts, and gaskets are needed: ceramic or steel gaskets on the back; no gaps and gaskets are needed for the counterparts: a layer is welded after the back is cleaned: DPS-500A+A-300N
Welding wire: 1.2mm gas shielded solid core welding wire with bottom filling and covering surface, high efficiency and low cost.
Gas: 70%CO2+ 30%Ar
Process characteristics: simple equipment configuration, high welding efficiency, 3 times that of traditional welding rods
Groove processing requirements: relatively standardized
Suitable working conditions: automatic welding of lower pressure pipelines such as water pipelines and municipal pipelines

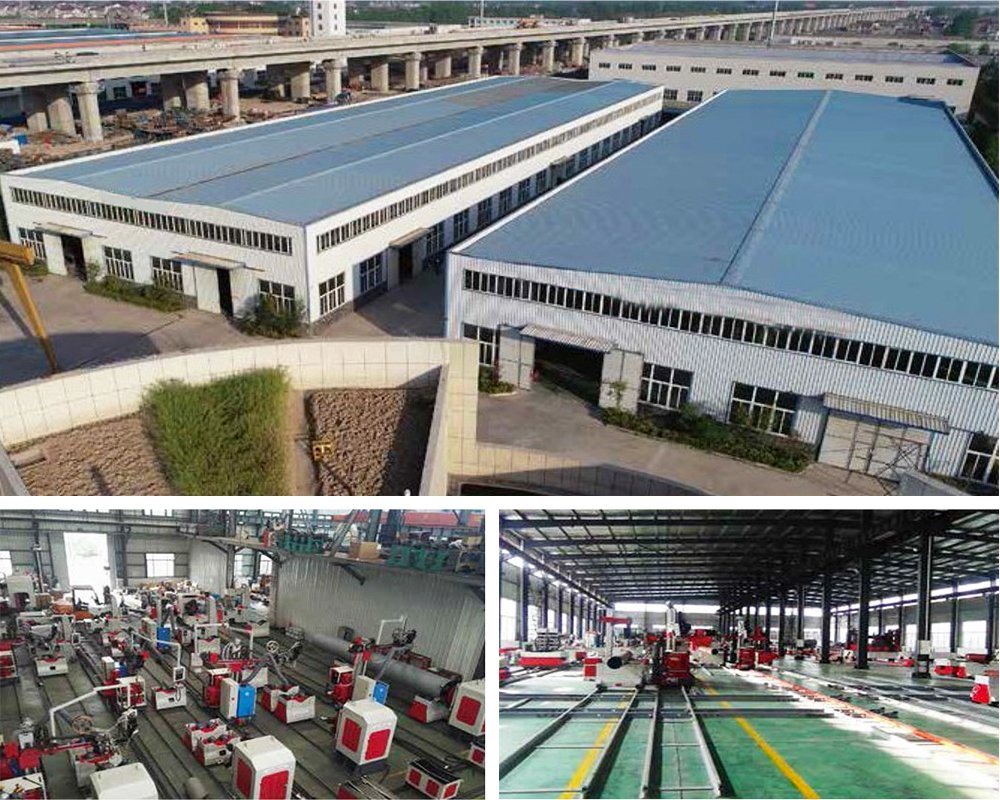

Company Profile

Fully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding MachineFully Automatic Handheld Oil Pipe Orbital Welder, Pipeline Orbital Welding Use Pulsed Arc Tracking Automatic Orbital Welding Machine

FAQ

1. who are we?
We are professional manufacturer of pipeline welding machine with more than 30 years experience.

2. how can we guarantee quality?
Always final Inspection before shipment

3.what can you buy from us?
Pipeline welding Equipment

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Russian

To enable us send you correct machine, would you please let me know following information
1. Diameter
2. Thickness
3. Material
4. Welding process
