Automatic Orbit Welding Machine for Oil Pipeline Welder for Pipeline Construction Equipment

Share to:

Automatic Orbit Welding Machine for Oil Pipeline Welder for Pipeline Construction Equipment

Quantity:



Inquire Add to Basket

Protecting Class:
IP54
Car Weight:
13kg
MOQ:
1 Set
Sample:
Accept
Warranty Period:
1 Year
Transport Package:
Wooden Package
Trademark:
HLT
Origin:
Jiangsu, China
Production Capacity:
2000 Sets Per Year
Samples:
US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

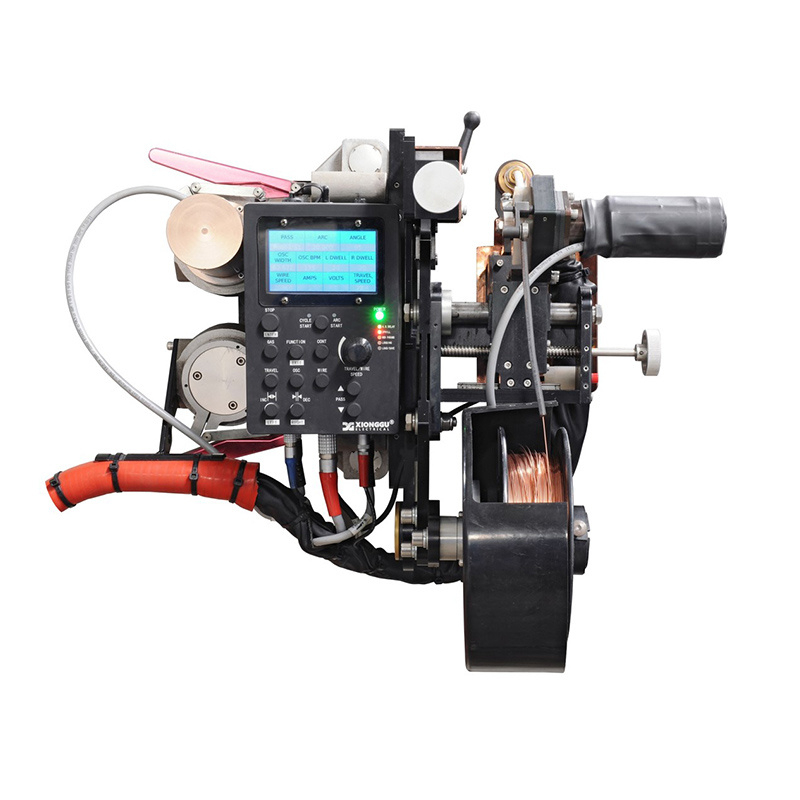

Automatic Orbit Welding Machine for Oil Pipeline Welder for Pipeline Construction Equipment

* Using an embedded fully digital control system
* The trolley is suitable for narrower space construction
* Unique car chassis design
* The equipment has remote management and data transmission functions
* Professional process software platform with invention patents
* At the same time has the function of flat pendulum and angle pendulum
* The same equipment can be used from heat welding to filling cover
* Many welding processes
* System IP55 protection level, with low temperature heating design
* Handheld LCD remote control
* Integrated wire drawing system and modular design of trolley

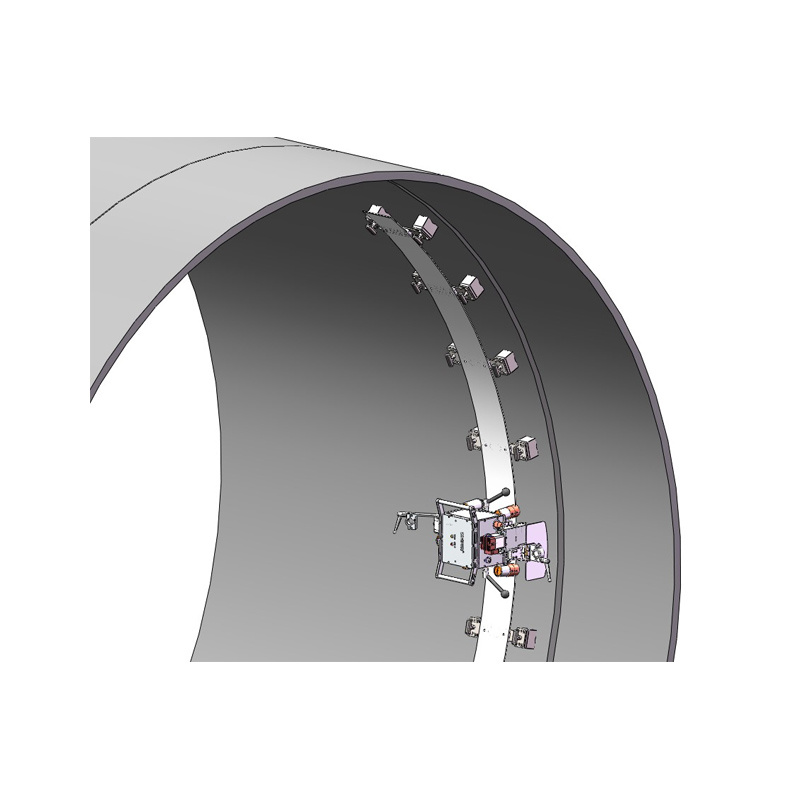

* Toothed circle and curved track design
* Provides 99 programmable weld passes

Model	A-300N
diameter	> Φ 168mm
speed	0.1~1.5 m/min
feeding wire speed	2.5~25 m/min
Number of segments per group	1~180 Sections
welding torch moving width	0~20 mm
welding torch moving type	Flat pendulum/angle pendulum

	Linear oscillation/pendulum oscillation
wire weight	2.7kg/5kg
enviromet	-40~70ºC
level of height	4000m
protecting class	IP54
car weight	13kg
dimension	600mm×450mm×250mm

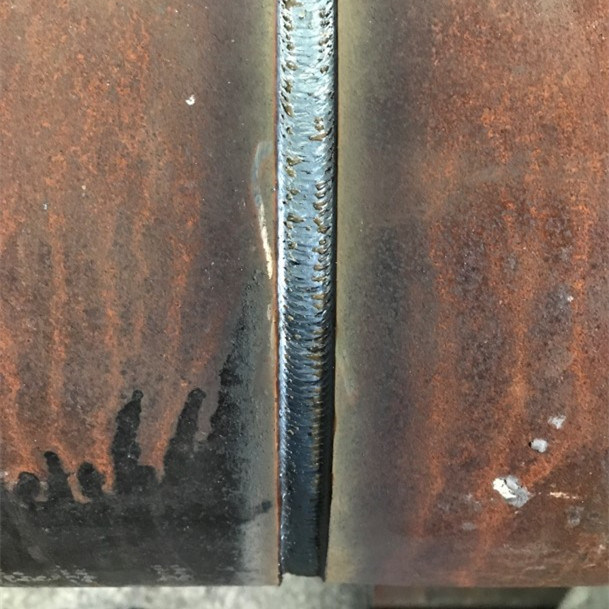

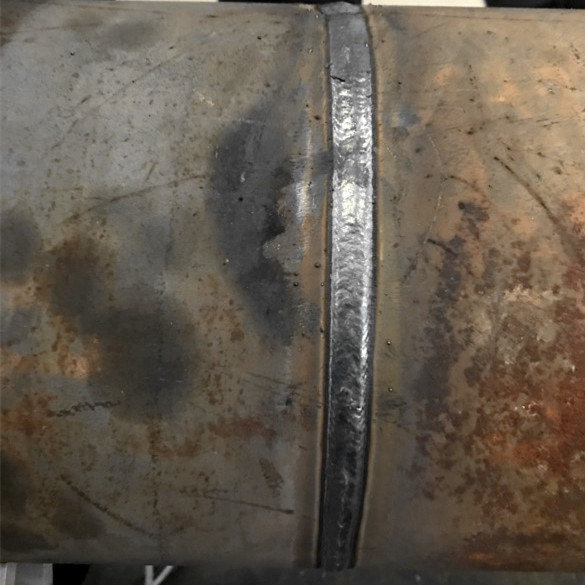

Groove welding process
1. Automatic welding, bottoming, filling and capping are integrated, there is a gap between the counterparts, and gaskets are needed: ceramic or steel gaskets on the back; no gaps and gaskets are needed for the counterparts: a layer is welded after the back is cleaned: DPS-500A+A-300N
Welding wire: 1.2mm gas shielded solid core welding wire with bottom filling and covering surface, high efficiency and low cost.
Gas: 70%CO2+ 30%Ar
Process characteristics: simple equipment configuration, high welding efficiency, 3 times that of traditional welding rods
Groove processing requirements: relatively standardized
Suitable working conditions: automatic welding of lower pressure pipelines such as water pipelines and municipal pipelines

Automatic Orbit Welding Machine for Oil Pipeline Welder for Pipeline Construction Equipment

1. who are we?

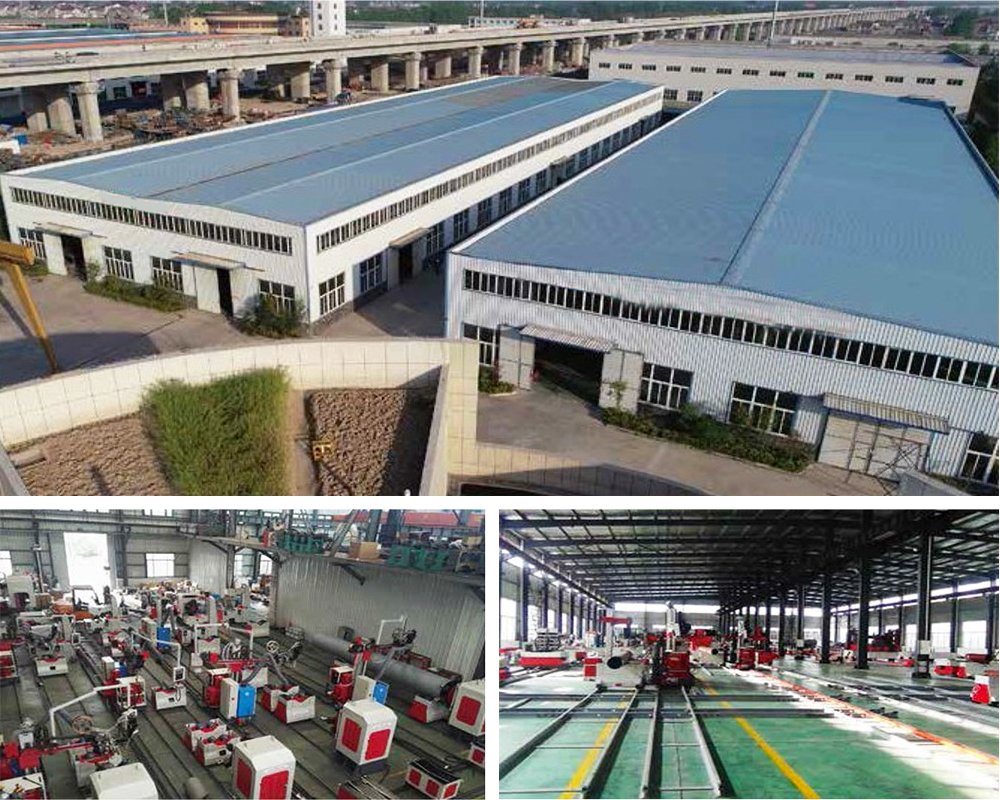

We are professional manufacturer of pipeline welding machine with more than 30 years experience.

2. how can we guarantee quality?

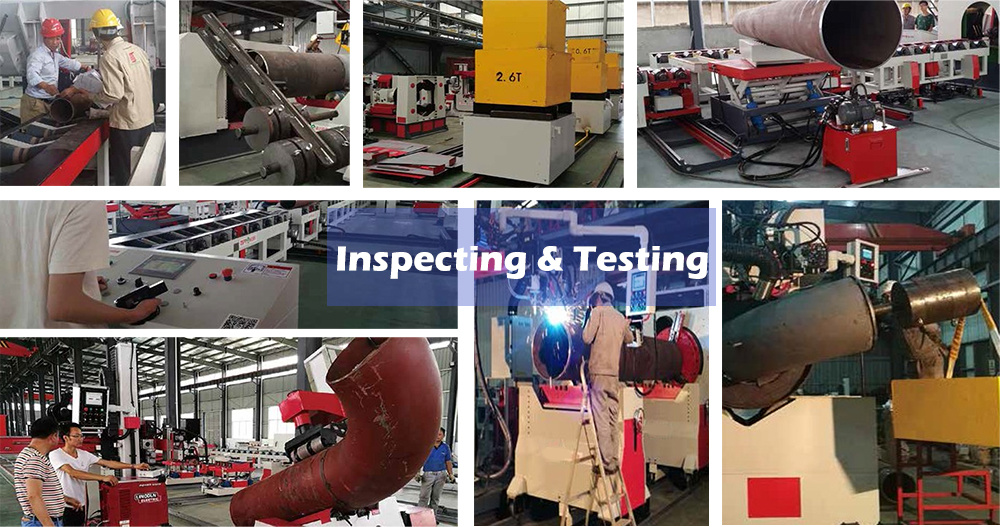

Always final Inspection before shipment

3.what can you buy from us?
Pipeline welding Equipment

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Russian

To enable us send you correct machine, would you please let me know following information
1. Diameter
2. Thickness
3. Material
4. Welding process
