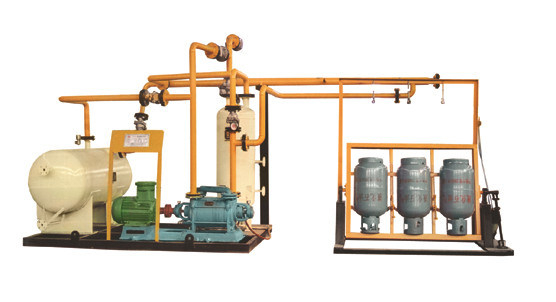

Full Automatic LPG Cylinder Refurbishment Line

Used for the recycling of residual gas and liquid in the LPG cylinder.

1. Power:7.5kw

2. Gas & liquid separator:0.4m³

3. Air source pressure:0.4-0.6Mpa

4. Turnover period:<30s/time

5. One time residual cleaning time:≥2min

6. Overall size:4700*1500*2050mm

7. Working efficiency: 125 cylinders/hour

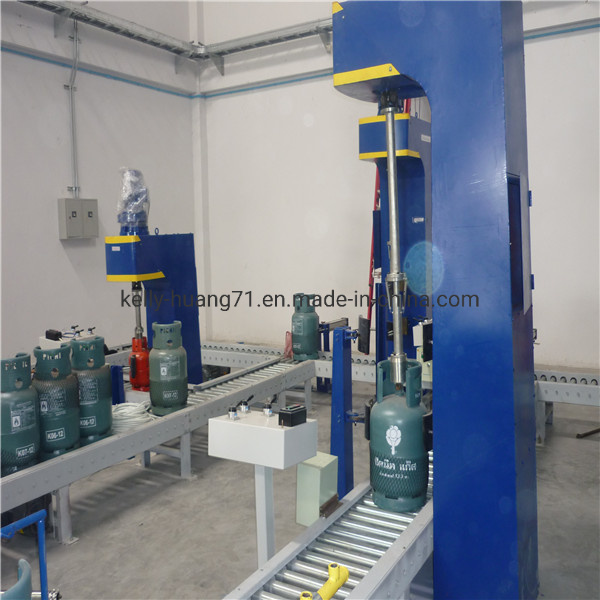

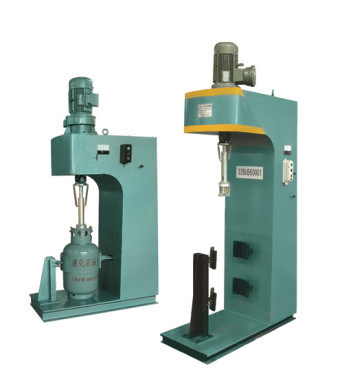

2. Valve mounting and dismantling machine

Suitable to mounting and dismantling the valves of model

YSP-10, 15 and 50 LPG cylinders.

1. Motor power:1.5kw

2. Drive speed ration:1:30

3. Main shaft speed ration:31r/min

4. Air source pressure:0.5-0.6MPa

7. Working efficiency: 125 cylinders/hour

8. Overall size:600*600*1800mm

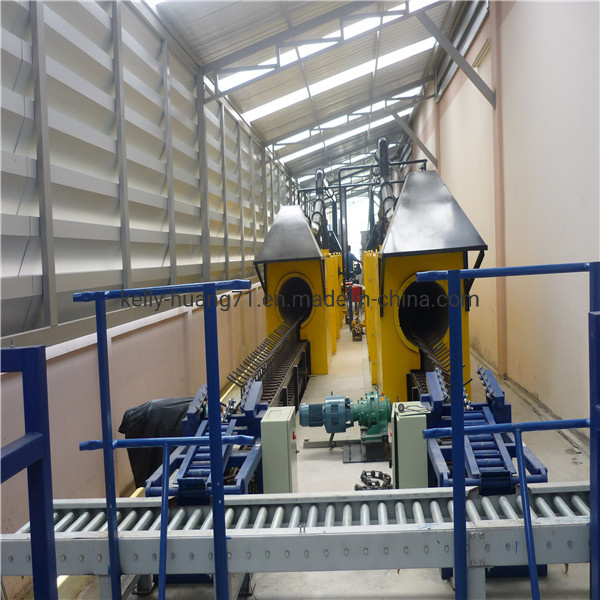

3. LPG Cylinder Incinerator furnace
Used for burning off the paint on the old cylinders and liquid inside the cylinder

1. Furnace chamber temperature setting: <400ºC

(On the basis of meeting the requirements of burning bottles)

2. Workpiece temperature: ≈400ºC

3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set

4. Power supply: 3.3Kw

5. Speed ratio: 493

6. Overall dimension: 15000 x 1500 x 1800mm

7. Working efficiency: 125 cylinders/hour

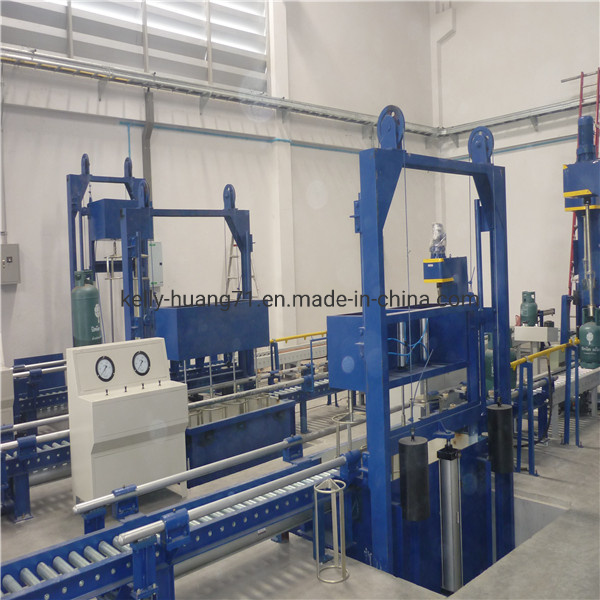

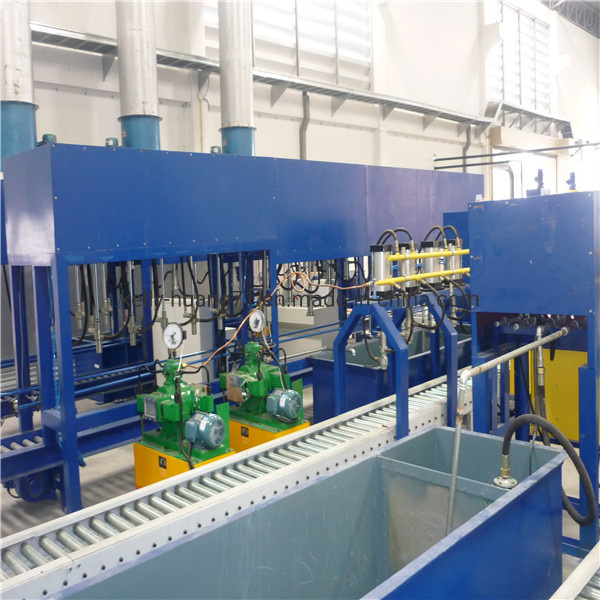

4. YS-4C Automatic Hydro pressure testing machine

Air pressure: 0.6Mpa

Water test pressure: 3.2Mpa (adjustable)

Holding time: 60s

Irrigation time: 90s

Dewatering time: 50s

Motor power: 3KW

Weight of machine: 4ton, 6ton

No. of stations: 6 station

Size of cylinder available: 320*700-420*1250mm

5. Shot blasting & derusting machine

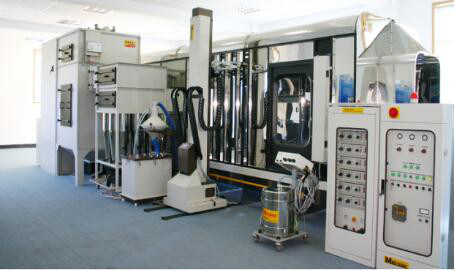

6. Fully-automatic powder coating line

7. Valve moutning and dismantling machine (mounting)

Parameter is similar as No.2. Valve mounting and dismantling machine

8. Air leakage testing machine

1. Working pressure testing: 2.1MPa

2. Air cylinder working pressure: 0.5~0.6MPa

3. Working efficiency: 150pcs/hour(on basis of YSP-15 standard), 6 stations

4. Weight: 3T

9. Vacuum machine

1. Pumping rate: 15L/S

2. Ultimate pressure: ≤6×10^-2 Pa

3. Motor power: 2.2Kw

4. Temperature rise: ≤80 ºC

5. Noise: ≤80 dB(A)

6. Inlet diameter: Φ40 mm

7. Pump revolution speed: 320 rmp

8. Oil consumption: 2.8L

9. Overall dimension: 790mm*530mm*540mm

10. Weight: 190kg

11. Working efficiency: 75pcs/per machine/per hour

10. The cylinder valve calibration table

The machine is used to align the LPG cylinder valve.

1. Medium pressure air pressure:>2.1MPa

2. Testing pressure: 2.1Mpa

3. Air cylinder working pressure: 0.4-0.5MPa

4. Test medium: Compressed air

5. Working efficiency:75pcs/h

11. Printing machine

The machine adopts the scraper printing principle, it is suitable

for cylinder inspection center and cylinder manufacturer.

It is ideal LPG cylinder printing equipment.

1. Working efficiency:150Pcs/h

2. Air source pressure:0.5-0.6Mpa

3. Printing cylinder specification: QGB50×400MF₂

Bottle cylinder specification: QGB50×200MP₂

Pressing cylinder specification: QGB50×100MF₁

4. Overall size:1200*800*1220mm

5. Weight: About 200kg


12. Automatic Zinc metalizing machine

1. Arc spraying zinc machine total power: 15KVA*N

2. Vacuum cleaner engine power: 5.5KW

3. The compressed air input pressure: 0.55~7Mpa

4. Diameter of the zinc wire: 2-3mm

5. Rated input voltage: 220V~280V

6. Productivity: Max. 90 pcs/hour

7. Zinc wire consumption: 93 kgs/hour

8. Full load power of zinc metalizing line: 50KW

Consumption of 0.5-0.7Mpa compressed air : 8m³/min

IV. Previous exhibitions we attend

We attend all relevant summit every year to promote our advanced machines to the world, such as:

2018 World LPG summit in Houston
2018 EURO LPG summit in Monaco
2019 Asian LPG summit in Bangladesh
2019 African LPG summit in Tanzania
2019 World LPG summit in Amsterdam
2019 Nigerian LPG summit in Logas

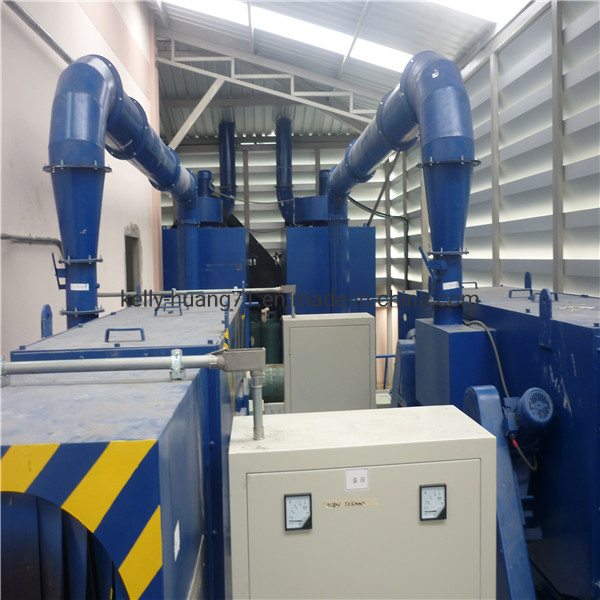

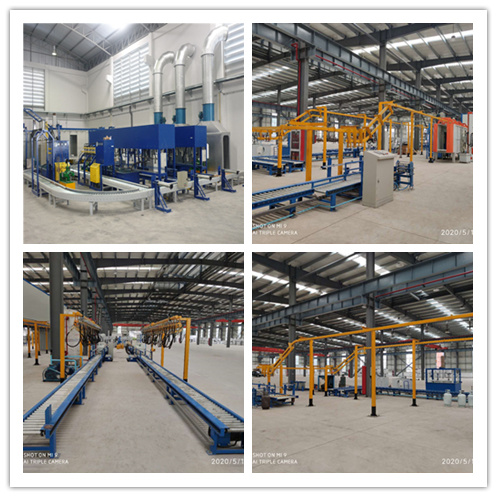

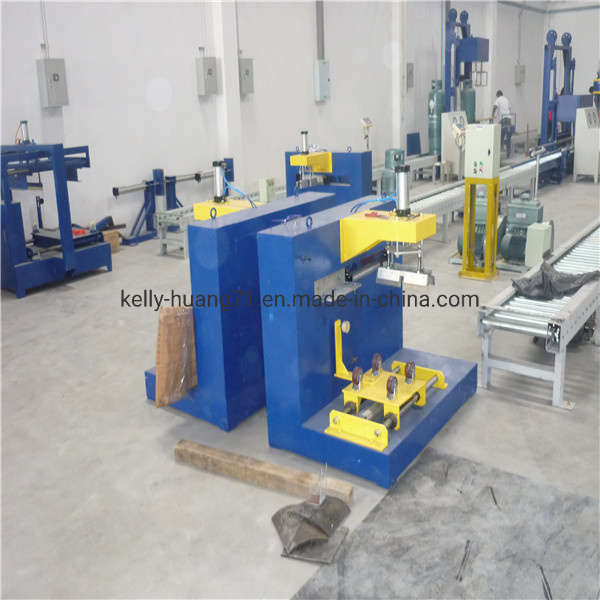

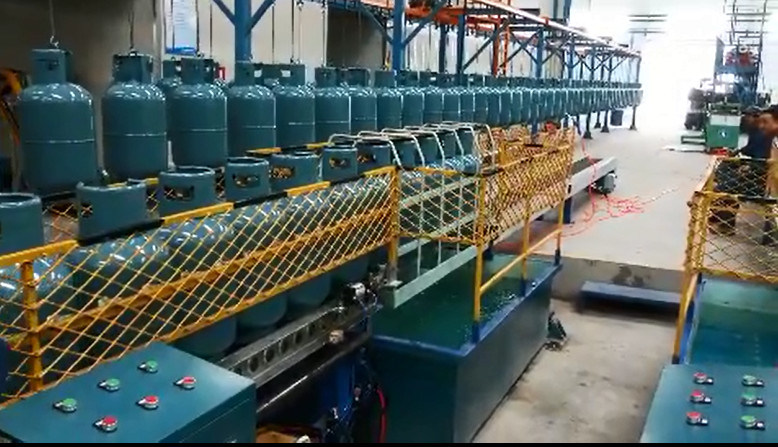

V. Cases show:

VI. What can we do:

8.Machine Maintaince and Installation, Commissioning Service



VII. FAQ

In order to recommend you the proper machine, we'd like to get the below info from you:

- What's the cylinder size you want to repair?
- It's better to provide the cylinder drawing and picture.
- What's the daily capacity you want to attain?

With high quality technology guarantee, our LPG cylinder quality can be guaranteed

You can get the best machine from LTM!

Looking forward to seeing you soon!
