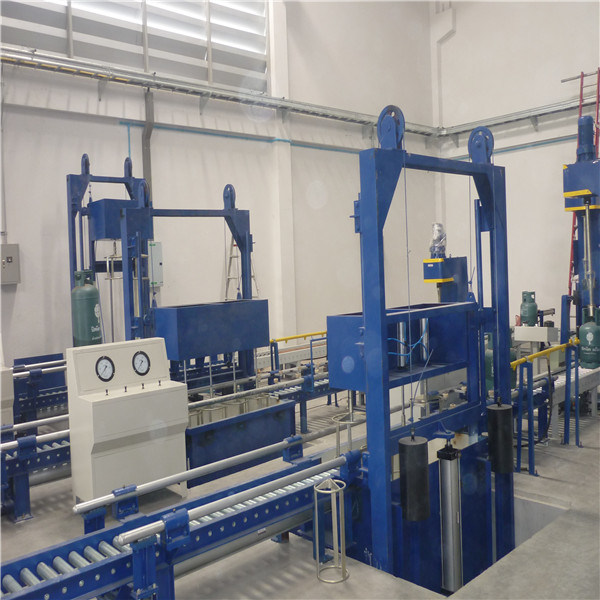

Automated LPG Cylinder Refurbishing Line

1. Residual liquid removal machine

Used for the recycling of residual gas and liquid in the LPG cylinder.

1. Power:7.5kw

2. Gas & liquid separator:0.4m³

3. Air source pressure:0.4-0.6Mpa

4. Turnover period:<30s/time

5. One time residual cleaning time:≥2min

6. Overall size:4700*1500*2050mm

7. Working efficiency: 125 cylinders/hour

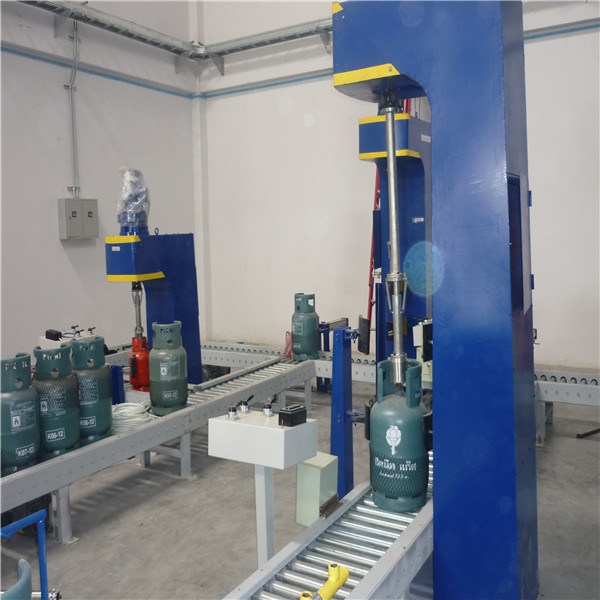

2. Valve mounting and dismantling machine

Suitable to mounting and dismantling the valves of model

YSP-10, 15 and 50 LPG cylinders.

1. Motor power:1.5kw

2. Drive speed ration:1:30

3. Main shaft speed ration:31r/min

4. Air source pressure:0.5-0.6MPa

7. Working efficiency: 125 cylinders/hour

8. Overall size:600*600*1800mm

3. LPG Cylinder Incinerator furnace
Used for burning off the paint on the old cylinders and liquid inside the cylinder

1. Furnace chamber temperature setting: <400ºC

(On the basis of meeting the requirements of burning bottles)

2. Workpiece temperature: ≈400ºC

3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set

4. Power supply: 3.3Kw

5. Speed ratio: 493

6. Overall dimension: 15000 x 1500 x 1800mm

7. Working efficiency: 125 cylinders/hour

4. YS-4C Automatic Hydro pressure testing machine

Air pressure: 0.6Mpa

Water test pressure: 3.2Mpa (adjustable)

Holding time: 60s

Irrigation time: 90s

Dewatering time: 50s

Motor power: 3KW

Weight of machine: 4ton, 6ton

No. of stations: 6 station

Size of cylinder available: 320*700-420*1250mm

5. Shot blasting & derusting machine




6. Fully-automatic powder coating line

7. Valve moutning and dismantling machine (mounting)

Parameter is similar as No.2. Valve mounting and dismantling machine

8. Air leakage testing machine

1. Working pressure testing: 2.1MPa

2. Air cylinder working pressure: 0.5~0.6MPa

3. Working efficiency: 150pcs/hour(on basis of YSP-15 standard), 6 stations

4. Weight: 3T

9. Vacuum machine

1. Pumping rate: 15L/S

2. Ultimate pressure: ≤6×10^-2 Pa

3. Motor power: 2.2Kw

4. Temperature rise: ≤80 ºC

5. Noise: ≤80 dB(A)

6. Inlet diameter: Φ40 mm

7. Pump revolution speed: 320 rmp

8. Oil consumption: 2.8L

9. Overall dimension: 790mm*530mm*540mm

10. Weight: 190kg

11. Working efficiency: 75pcs/per machine/per hour

10. The cylinder valve calibration table

The machine is used to align the LPG cylinder valve.

1. Medium pressure air pressure:>2.1MPa

2. Testing pressure: 2.1Mpa

3. Air cylinder working pressure: 0.4-0.5MPa

4. Test medium: Compressed air

5. Working efficiency:75pcs/h

11. Printing machine

The machine adopts the scraper printing principle, it is suitable

for cylinder inspection center and cylinder manufacturer.

It is ideal LPG cylinder printing equipment.

1. Working efficiency:150Pcs/h

2. Air source pressure:0.5-0.6Mpa

3. Printing cylinder specification: QGB50×400MF₂

Bottle cylinder specification: QGB50×200MP₂

Pressing cylinder specification: QGB50×100MF₁

4. Overall size:1200*800*1220mm

5. Weight: About 200kg


12. Automatic Zinc metalizing machine

1. Arc spraying zinc machine total power: 15KVA*N

2. Vacuum cleaner engine power: 5.5KW

3. The compressed air input pressure: 0.55~7Mpa

4. Diameter of the zinc wire: 2-3mm

5. Rated input voltage: 220V~280V

6. Productivity: Max. 90 pcs/hour

7. Zinc wire consumption: 93 kgs/hour

8. Full load power of zinc metalizing line: 50KW

Consumption of 0.5-0.7Mpa compressed air : 8m³/min
