Complete Hot Repair LPG Cylinders Reconditioning Equipment

Quantity:
  • LTM
  • LPG
  • Medium Pressure (1.6MPa≤p<10.0MPa)
  • New
  • 3~50kgs
  • PLC
  • Available
  • LPG Cylinders Reconditioning Equipment
  • Full Automatic
  • T/T, L/C
  • 500 PCS Per 8 Hours or Customized
  • 4 Months
  • 1 Year
  • Turnkey Project Service
  • CE, ISO, SGS
  • Standard Seaworthy Package
  • SGS, CE, BV
  • Standard Seaworthy & Strong Package
  • SGS, ISO, CE
  • Comflex
  • Wuxi, Jiangsu, China(Mainland)
  • 85152100
  • 50 Plants One Year
  • Available | Customized Request

Product Description

Complete hot repair LPG cylinders reconditioning equipment
Wuxi Longterm Machinery Technologies Co,Ltd is a professional LPG cylinder machinery manufacturer with more than 30 years' experience, we improve our machine technology all the time to satisfy the customers' requirements. Based on our good reputation in the market and the best service that praised by our clients, we establish the good cooperation with many clients from overall the world, such as Turkey, Vietnam, India, Bangladesh, Thailand, Ghana, Nigeria, Argentina

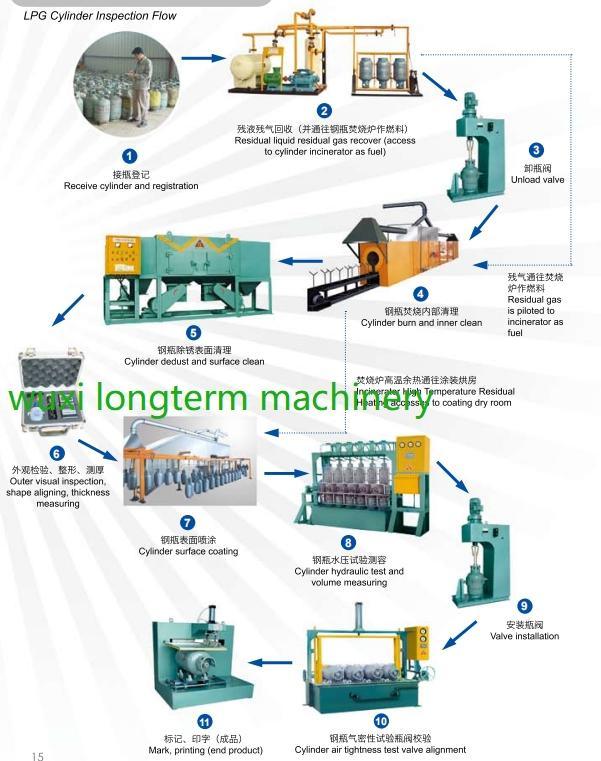

I. Production procedure

Complete Hot Repair LPG Cylinders Reconditioning Equipment

II. Technical specification:

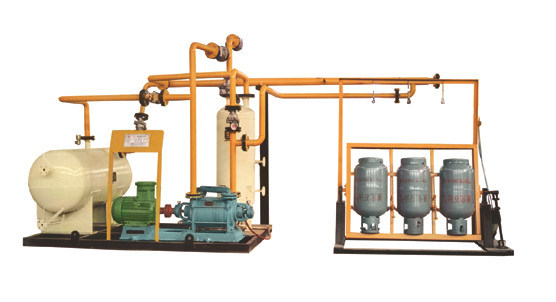

1. Residual liquid removal machine

Used for the recycling of residual gas and liquid in the LPG cylinder.

1. Power:7.5kw

2. Gas & liquid separator:0.4m³

3. Air source pressure:0.4-0.6Mpa

4. Turnover period:<30s/time

5. One time residual cleaning time:≥2min

6. Overall size:4700*1500*2050mm

7. Working efficiency: 125 cylinders/hour

Complete Hot Repair LPG Cylinders Reconditioning Equipment

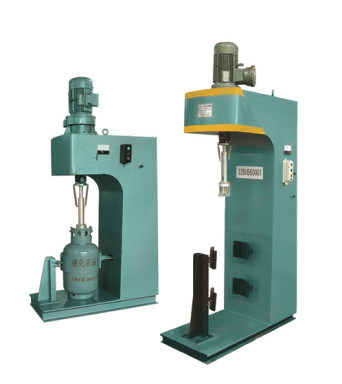

2. Valve mounting and dismantling machine

Suitable to mounting and dismantling the valves of model

YSP-10, 15 and 50 LPG cylinders.

1. Motor power:1.5kw

2. Drive speed ration:1:30

3. Main shaft speed ration:31r/min

4. Air source pressure:0.5-0.6MPa

7. Working efficiency: 125 cylinders/hour

8. Overall size:600*600*1800mm

Complete Hot Repair LPG Cylinders Reconditioning Equipment

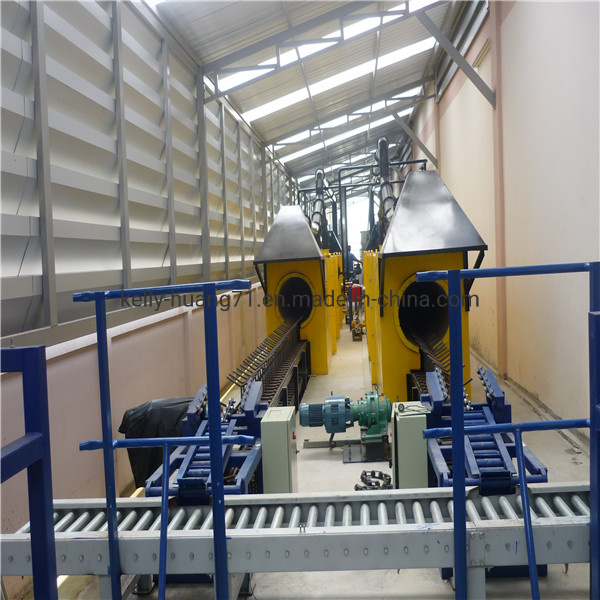

3. LPG Cylinder Incinerator furnace
Used for burning off the paint on the old cylinders and liquid inside the cylinder

1. Furnace chamber temperature setting: <400ºC

(On the basis of meeting the requirements of burning bottles)

2. Workpiece temperature: ≈400ºC

3. Consumption of gas and fuel: Fuel burner type(100,000kcal), 4~5Kg/h·set

4. Power supply: 3.3Kw

5. Speed ratio: 493

6. Overall dimension: 15000 x 1500 x 1800mm

7. Working efficiency: 125 cylinders/hour

4. YS-4C Automatic Hydro pressure testing machine

Air pressure: 0.6Mpa

Water test pressure: 3.2Mpa (adjustable)

Holding time: 60s

Irrigation time: 90s

Dewatering time: 50s

Motor power: 3KW

Weight of machine: 4ton, 6ton

No. of stations: 6 station

Size of cylinder available: 320*700-420*1250mm

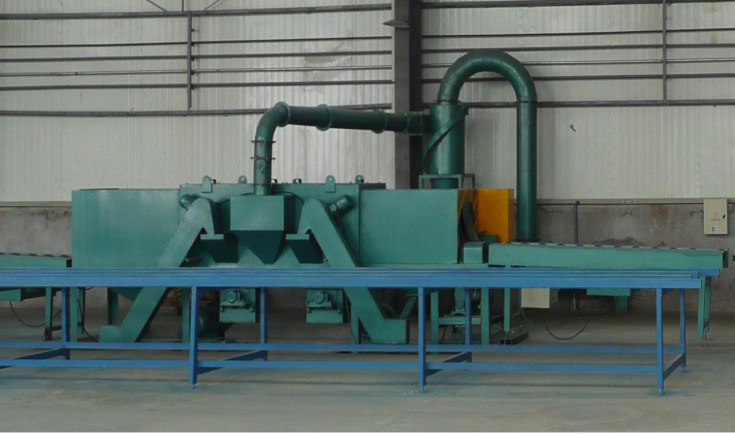

5. Shot blasting & derusting machine

Complete Hot Repair LPG Cylinders Reconditioning Equipment

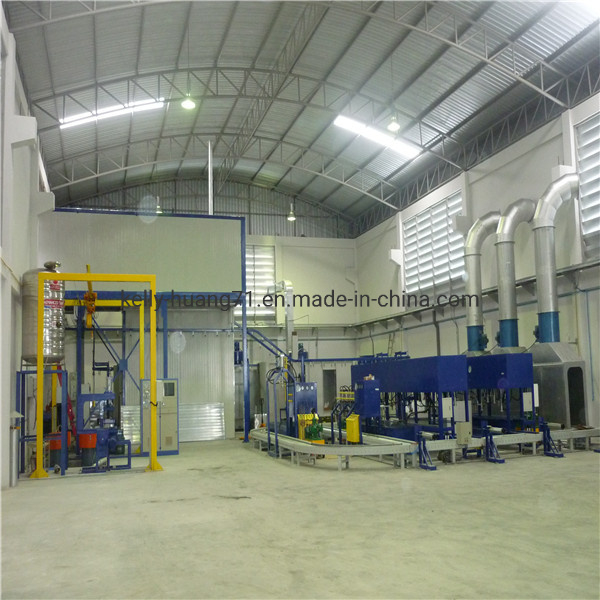

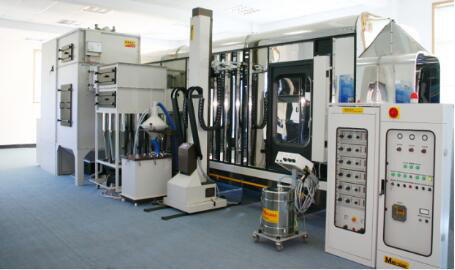

6. Fully-automatic powder coating line

Complete Hot Repair LPG Cylinders Reconditioning Equipment

7. Valve moutning and dismantling machine (mounting)

Parameter is similar as No.2. Valve mounting and dismantling machine

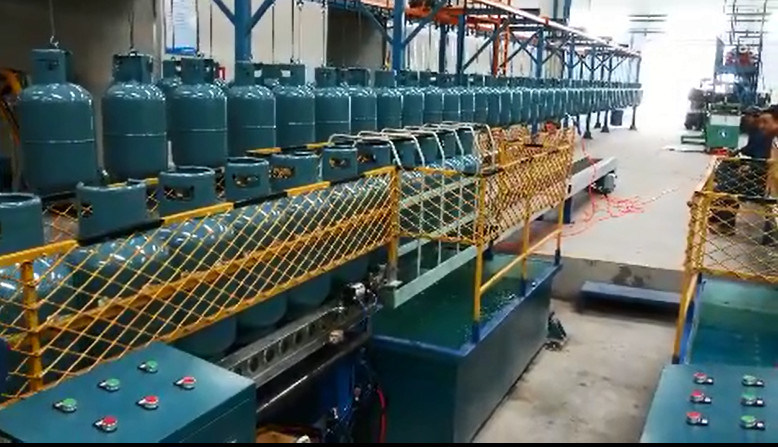

8. Air leakage testing machine

1. Working pressure testing: 2.1MPa

2. Air cylinder working pressure: 0.5~0.6MPa

3. Working efficiency: 150pcs/hour(on basis of YSP-15 standard), 6 stations

4. Weight: 3T

Complete Hot Repair LPG Cylinders Reconditioning Equipment

9. Vacuum machine

1. Pumping rate: 15L/S

2. Ultimate pressure: ≤6×10-2 Pa

3. Motor power: 2.2Kw

4. Temperature rise: ≤80 ºC

5. Noise: ≤80 dB(A)

6. Inlet diameter: Φ40 mm

7. Pump revolution speed: 320 rmp

8. Oil consumption: 2.8L

9. Overall dimension: 790mm*530mm*540mm

10. Weight: 190kg

11. Working efficiency: 75pcs/per machine/per hour

10. The cylinder valve calibration table

The machine is used to align the LPG cylinder valve.

1. Medium pressure air pressure:>2.1MPa

2. Testing pressure: 2.1Mpa

3. Air cylinder working pressure: 0.4-0.5MPa

4. Test medium: Compressed air

5. Working efficiency:75pcs/h

11. Printing machine

The machine adopts the scraper printing principle, it is suitable

for cylinder inspection center and cylinder manufacturer.

It is ideal LPG cylinder printing equipment.

1. Working efficiency:150Pcs/h

2. Air source pressure:0.5-0.6Mpa

3. Printing cylinder specification: QGB50×400MF2

Bottle cylinder specification: QGB50×200MP2

Pressing cylinder specification: QGB50×100MF1

4. Overall size:1200*800*1220mm

5. Weight: About 200kg


12. Automatic Zinc metalizing machine

1. Arc spraying zinc machine total power: 15KVA*N

2. Vacuum cleaner engine power: 5.5KW

3. The compressed air input pressure: 0.55~7Mpa

4. Diameter of the zinc wire: 2-3mm

5. Rated input voltage: 220V~280V

6. Productivity: Max. 90 pcs/hour

7. Zinc wire consumption: 93 kgs/hour

8. Full load power of zinc metalizing line: 50KW

Consumption of 0.5-0.7Mpa compressed air : 8m³/min


III. Client's comment

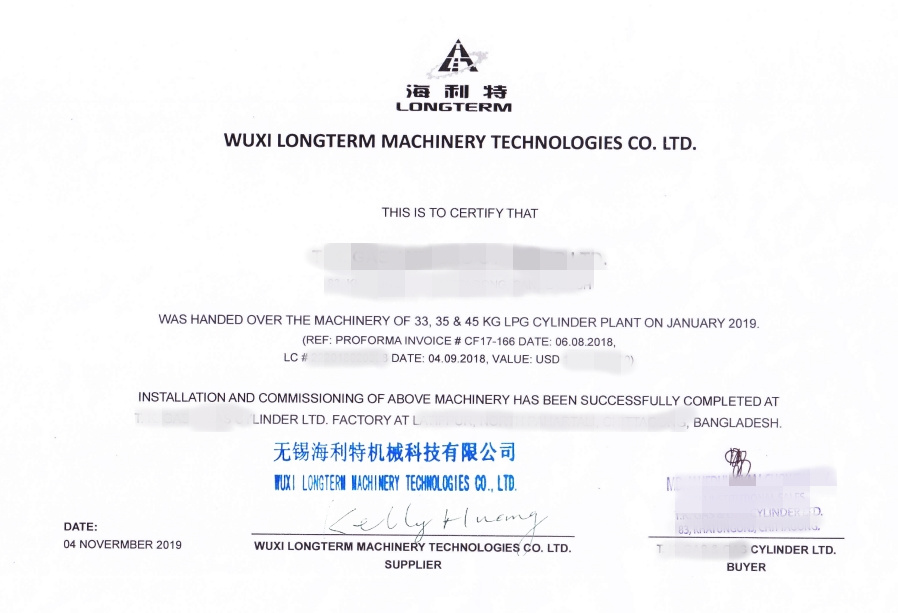

Below is the project handover certificate from our client, they praise our machine performance and our service a lot. Through our effort, now their new factory is running pretty well and step into the cylinder business smoothly.

Complete Hot Repair LPG Cylinders Reconditioning Equipment

IV. Previous exhibitions we attend

We attend all relevant summit every year to promote our advanced machines to the world, such as:

2018 World LPG summit in Houston
2018 EURO LPG summit in Monaco
2019 Asian LPG summit in Bangladesh
2019 African LPG summit in Tanzania
2019 World LPG summit in Amsterdam
2019 Nigerian LPG summit in Logas

Complete Hot Repair LPG Cylinders Reconditioning Equipment

Complete Hot Repair LPG Cylinders Reconditioning Equipment

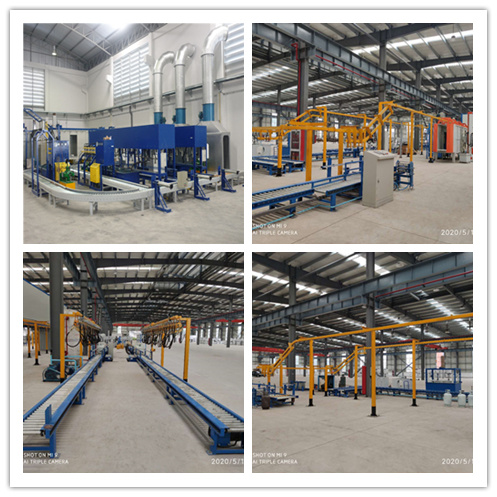

V. Cases show:
Complete Hot Repair LPG Cylinders Reconditioning Equipment
VI. What can we do:

we can provide you
1.Detailed Proposal and Price List
2.Technical Specification
3.Technical Drawing
4.Production Flow Design
5.Production Line Layout
6.Technical Support for Factory Operation
7.Thorough Spare Parts
8.Machine Maintaince and Installation, Commissioning Service

Complete Hot Repair LPG Cylinders Reconditioning Equipment


VII. FAQ

In order to recommend you the proper machine, we'd like to get the below info from you:

- What's the cylinder size you want to repair?
- It's better to provide the cylinder drawing and picture.
- What's the daily capacity you want to attain?
With high quality technology guarantee, our LPG cylinder quality can be guaranteed
You can get the best machine from LTM!
Looking forward to seeing you soon!
Complete Hot Repair LPG Cylinders Reconditioning Equipment
