Decoiler, Straightening & Blanking Line for Steel Drum Production Line

Quantity:
  • HLT

  • Decoiler, Straightening & Blanking Line for Barrel

  • 1 Year

  • 30 Days After Receving Your Advance Payment

  • Conveyor

  • 208L, 210L, 55gallon

  • 0.8-1.2mm

  • 660~1250mm

  • 1650mm

  • 5-50m/Minutes

  • PLC, Servo Motor Driving Control

  • Standard Seaworthy Packaging

  • HLT

  • HLT

  • Jiangsu, China

  • 730799000

  • 5000 -20000sets / Per Year

  • Available | Customized Request

Product Description

Product Description

Automatic steel drum production line

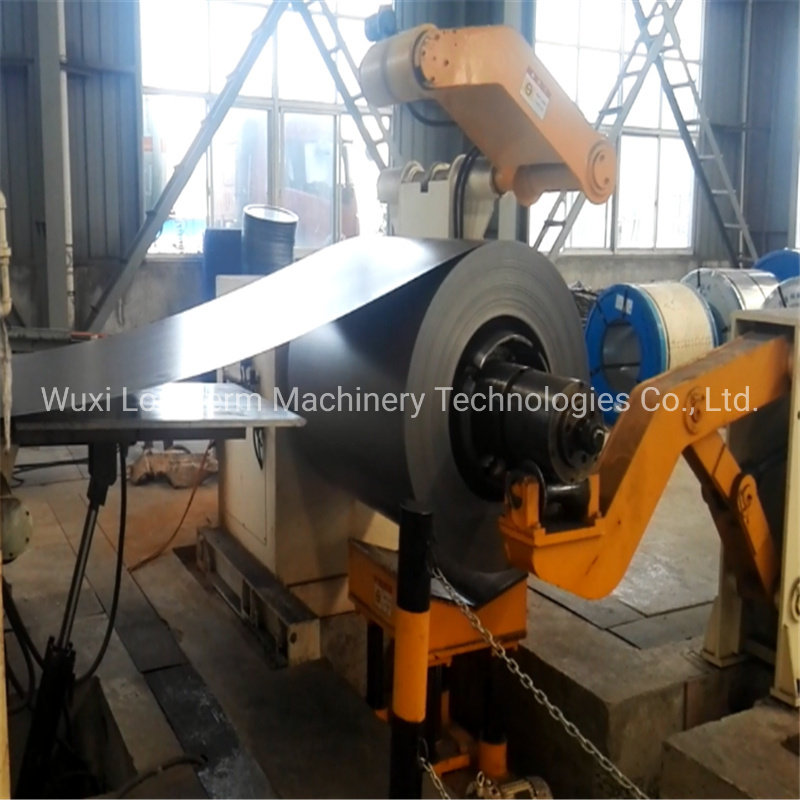

1. Drum body straightening & blanking line(Cap straightening line)
Sheet thickness:0.8~1.2mm, Sheet coil width:660~1250mm
Max coil diameter:1650mm, Coil ID:φ508/φ610
Coil weight≤10T, Decoiler speed: 5-50m/min
Mitsubishi PLC, Servo motor driving control


Decoiler, Straightening & Blanking Line for Steel Drum Production Line


2. Automatic cap folding machine(with glue), speed: 6pcs/min
Decoiler, Straightening & Blanking Line for Steel Drum Production Line


3. Drum body flanging and expanding machine, speed: > 6pcs/min
The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs
Power: 18KW
Capacity:>6pcs/min



Decoiler, Straightening & Blanking Line for Steel Drum Production Line



4.Drum assembly machine, speed: >6pcs/min
Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min



Decoiler, Straightening & Blanking Line for Steel Drum Production Line


5.Painting booth
4 sets pray pump(Chongqing Changjiang)
13 sets pray nozzle(American Nordson)
4500*3400*2500mm painting booth
Stainless steel sink and paint pipe line
Edge curl and paint repair device
Three-jaw painting rotation clamping device


Decoiler, Straightening & Blanking Line for Steel Drum Production Line


6. Finished product

Decoiler, Straightening & Blanking Line for Steel Drum Production Line



Company Introduction
Wuxi Longterm Machinery Technologies Co., Ltd We are a professional manufacturer of steel drum welding machine and LPG cylinder manufacturing machine with more than 30 years of history. We are improving technologies all the time and developing welding machinery market. Due to highly automatic, simple operation and reliable quality welding equipment, they are popular and well accepted by many customers.
Our machineries have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, Mexico, etc..


We are Longterm Company, we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.


Customer visiting

Decoiler, Straightening & Blanking Line for Steel Drum Production Line

Packaging &Shipping

Packaging Details

Standard seaworthy packing for Fully automatic high speed steel drum production line drum body straightening & blanking, cap straightening(share)

Delivery Time

6 months after receving your advance payment.

Our services

Engineers available to service machinery overseas.

FAQ

To enable me give you correct proposal for correct machines, please tell me following details:

A: Technical drawing/Size of the steel drum you want to manufacture

B: What's the capacity per shift/day?
