Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine

Quantity:
  • HLT
  • Multi-Room Feeding
  • Capacity Cup
  • Pressure
  • Pneumatic Lifting
  • Rotary
  • Bottle
  • Plastic
  • Cream, Paste, Liquid Filling Machine
  • 5-100ml 10-300ml 50-500ml 100-1000ml 500-3000ml 10
  • 2 Heads/ 4 Heads/ 6 Heads
  • Bottle Filling Machine
  • Bottle Jar Liquid Filling Machine
  • Full Automatic with 6 Heads Filling Machine
  • 1 Liter Juice Filling Machine
  • Bottle Filling Machine for Liquid
  • Automatic Filling Machine for Liquid
  • ±1%
  • Customized Packaging
  • customized
  • HLT
  • China Jiangsu
  • 500 Sets Per Year
  • Available | Customized Request

Product Description

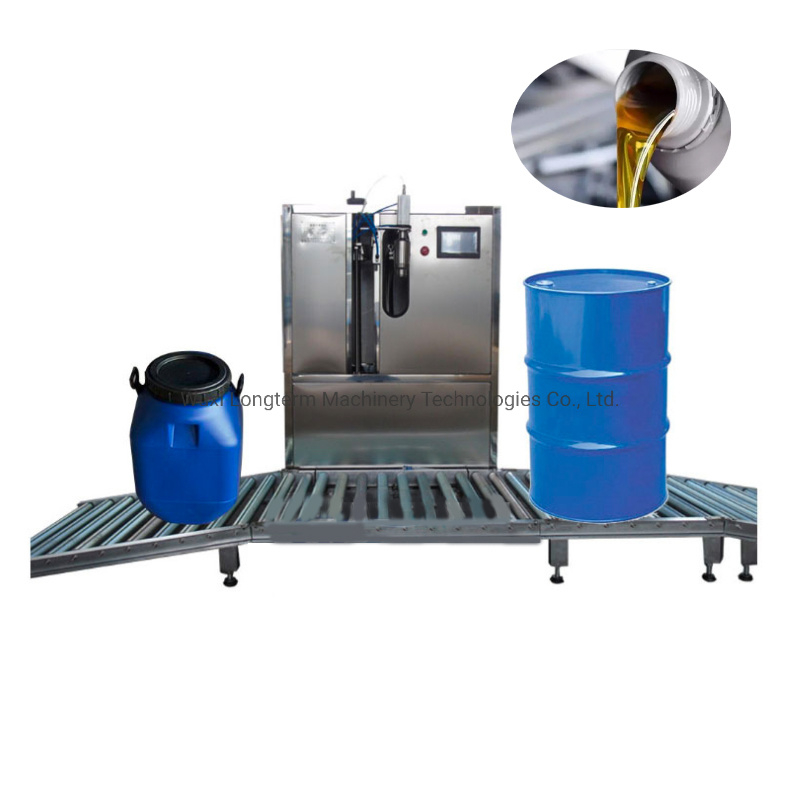

Automatic pneumatic small bottle Juice cream oil manual Liquid filling machine
Product Description
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine

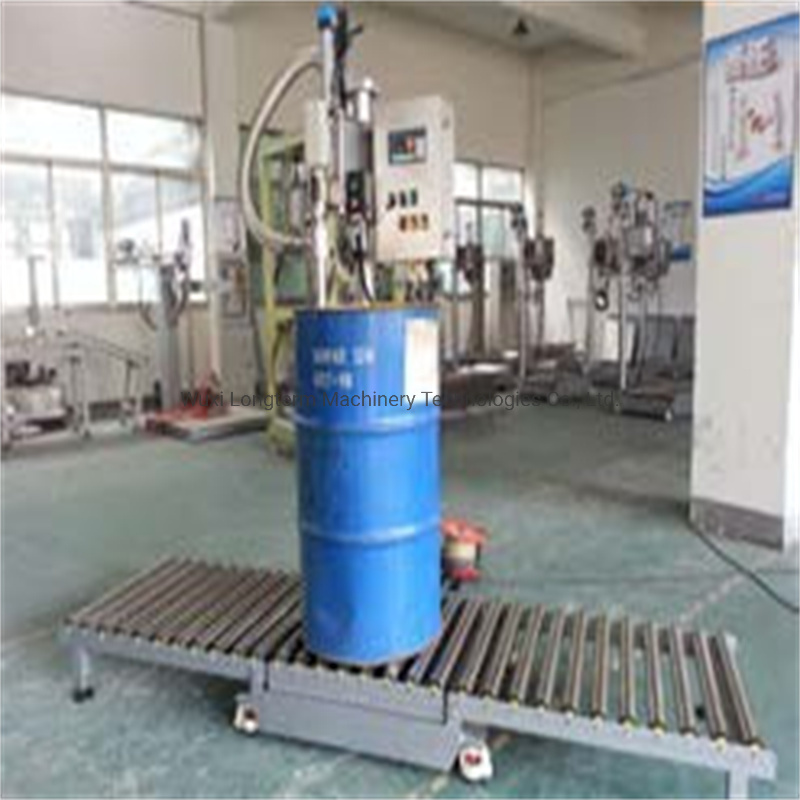

The filling department of this machine realizes fast filling and slow filling through a double cylinder. At the beginning of filling, after the double-section cylinder is converted to stroke 1, it is quickly converted to stroke 2 for fast filling. After filling to the set amount of fast filling, the submerged cylinder rises to the barrel opening position, and the double-section cylinder is converted to Stroke 1 continues slow filling until the set overall filling volume. The filling machine and the feed pump are controlled by multi-stage frequency conversion, and the control system of the feed pump is installed in the seller's control cabinet.
This machine is suitable for the metering and filling of 1-5 liters of fluid, and it can automatically complete a series of operations such as counting into the bottle, counting the weight and filling, and conveying the bottle. It is especially suitable for quantitative filling of water, paint and lubricants. It is an ideal packaging machine for automobile maintenance, petrochemical, coating, medicine, cosmetics and fine chemical industries.
Specification
Maximum measurement:
1-5 liters
Filling accuracy
0.2%FS, X(0.5) level
Filling material
lubricating oil
Container
1-5L plastic bucket
Filling speed
800-1000 barrels/hour
Number of filling heads
8 sets
Filling method
liquid level in the barrel
Filling head form
upper filling type
Equipment contact material material
SUS304
Power supply
380V(50Hz)
Air source
0.5Mpa ±0.1Mpa
Compressed air consumption
0.1m3/min
Working environment temperature
-5ºC~+40ºC
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine

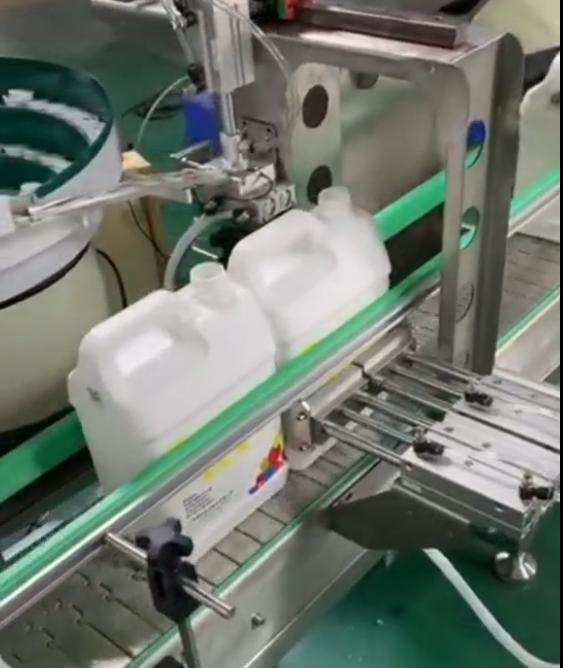

Automatic cap sorting machine
The structure of the whole machine is exquisite and concise. This machine can be conveniently set up on various conveyor belts or various work surfaces. It is an ideal packaging model for supporting assembly lines or stand-alone production.
During operation, you only need to place the bottle cap on the bottle mouth, and the machine will automatically tighten the bottle cap (this machine is an integrated machine for capping and capping), thereby reducing labor intensity and ensuring the consistency of tightening.
Automatic capping machine
System: electronic-pneumatic/computer (PLC) control
Speed: Adjustable to match the speed of the filling machine
Operation: manual capping, automatic machine positioning, automatic capping/capping, automatic conveying
Conveying: stainless steel frame, engineering plastic plate chain automatic conveyor belt

*Main features and technical description:
1) "No cover or missing cover without screwing" automatic control system:
2) Automatic control system of "photoelectric sensor, mechatronics capping and cap screwing linkage":
3) "Safe operation" protective device
4) After the cap is screwed, it has a detection and alarm function for the unscrew and uncapped barrels.
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine

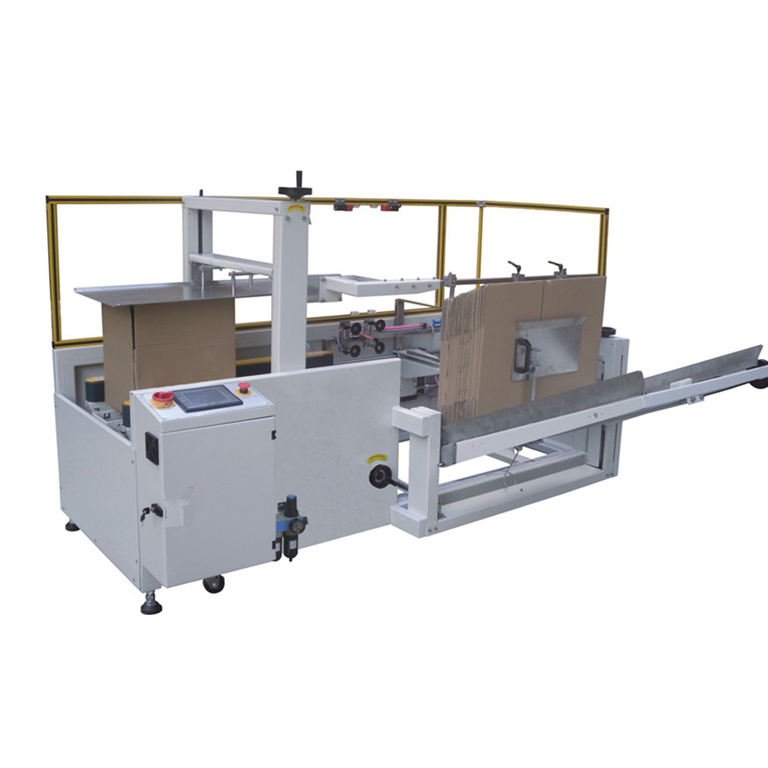

Automatic opening and sealing machine
Equipment features:
It is suitable for cartons of different specifications, and can be adjusted according to the size of the cartons. The vertical storage cartons are used, and the cartons can be refilled at any time without stopping the machine to add. Reasonable design, simultaneous absorption and forming, simultaneous forming of unpacking/folding bottom/back cover at one time. In the absence of tape and cartons, an automatic alarm will prompt. This machine can be operated as a stand-alone machine, or it can be used in combination with a filling/packing production line.
Grab Packing Machine
This machine has a wide range of applications and can be used as a stand-alone machine. It is suitable for automatic packing of various specifications of bottled and barreled products. This machine can automatically arrange the products according to the requirements of the product packing quantity
and pack them into the box, filling the box The products are automatically sent to the conveyor roller to enter the sealing machine. This machine is widely used in petrochemical, lubricating oil, automobile maintenance products and other industries.
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine

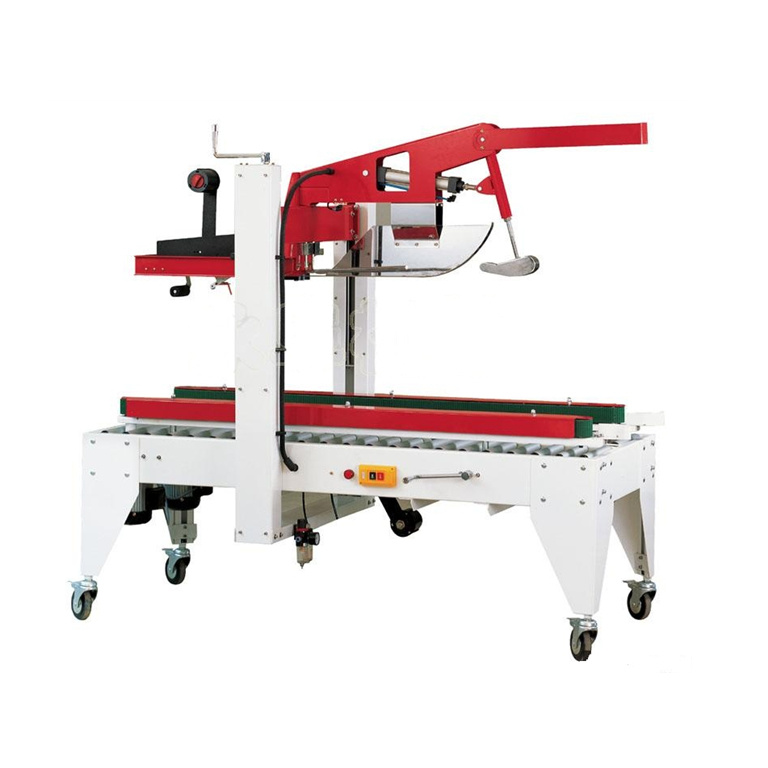

Automatic Folding and Sealing Machine
This machine has the function of automatic lid folding/automatic sealing, economical, fast, balanced and beautiful. According to the specifications of the carton, the width and height of the carton can be manually adjusted, and the operation is simple. The conveyor belt feeds the carton, which is automatically driven, saving labor and effort. The carton size standard can be customized according to
customer needs. It can be operated on a stand-alone machine or combined with an automated packaging equipment production line.
Packing & Delivery
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

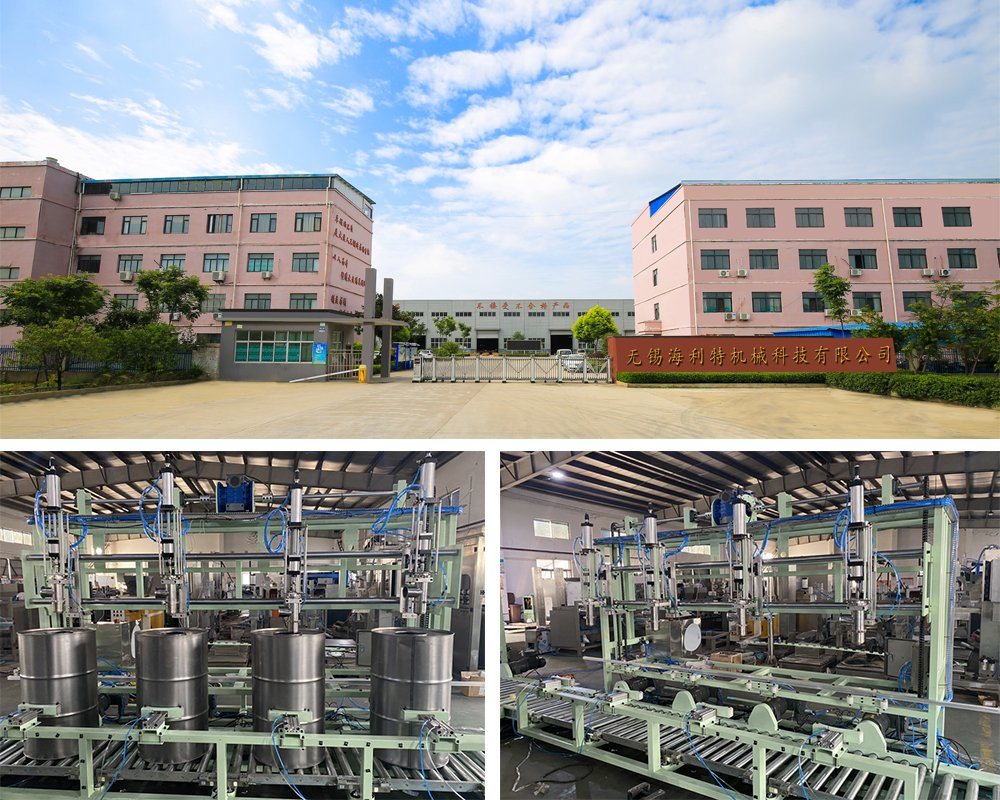

Company Profile
Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine
We are professional manufacturer of filling machines with more than 30 years of history.
We are improving technologies all the time and developing welding machinery market. We provide customers with valued solutions.
Due to highly automatic, simple operation and reliable quality equipments, Our machineries have been exported to many countries,
such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, Mexico, etc..
FAQ
Q1: Are you a Manufacturer or Trading company?
A1: We are the manufacturer from Jiang Su,so we can offer the best quality and price of the machine to you.

Q2: How can I install this Filling Machine when it arrives?
A2:We will send the instruction manual and some video to help you install the machine.You can talk with our engineer by video chat or we will arrange site engineers to install and commissioning machine.

Q3: What is the cost to send installation/training staff? How many staff do you need to send?
A3: Whole installation/traning process needs 3 engineers. Around 15 days. Round-air ticket, local
transpotation, accomodation, food, and 100USD/day/person.
