Automatic Distilled 20 Liter Bottle Mineral Water Filling Machine 5 Gallon Bottling Line

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Feed Cylinder Structure:
Multi-Room Feeding
Dosing Device:
Capacity Cup
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Rotary
Packaging:
Bottle
Packaging Material:
Plastic
Filling Products:
Cream, Paste, Liquid Filling Machine
Filling Range:
5-100ml 10-300ml 50-500ml 100-1000ml 500-3000ml 10
Nozzles Options:
2 Heads/ 4 Heads/ 6 Heads
Keywords1:
Bottle Filling Machine
Keywords2:
Bottle Jar Liquid Filling Machine
Keywords3:
Full Automatic with 6 Heads Filling Machine
Keywords4:
1 Liter Juice Filling Machine
Keywords5:
Bottle Filling Machine for Liquid
Keywords6:
Automatic Filling Machine for Liquid
Filling Accuracy:
±1%
Transport Package:
Customized Packaging
Specification:
customized
Trademark:
HLT
Origin:
China Jiangsu
Production Capacity:
500 Sets Per Year
Customization:
Available | Customized Request

Product Description

Product Description

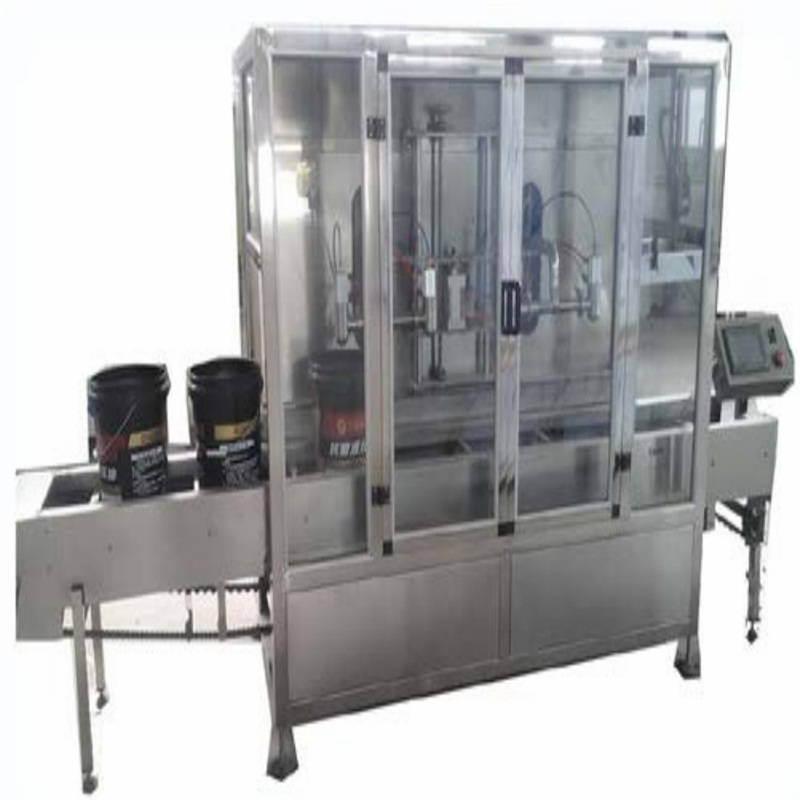

Automatic Distilled 20 Liter bottle mineral Water Filling Machine 5 Gallon bottling Line

Product Description

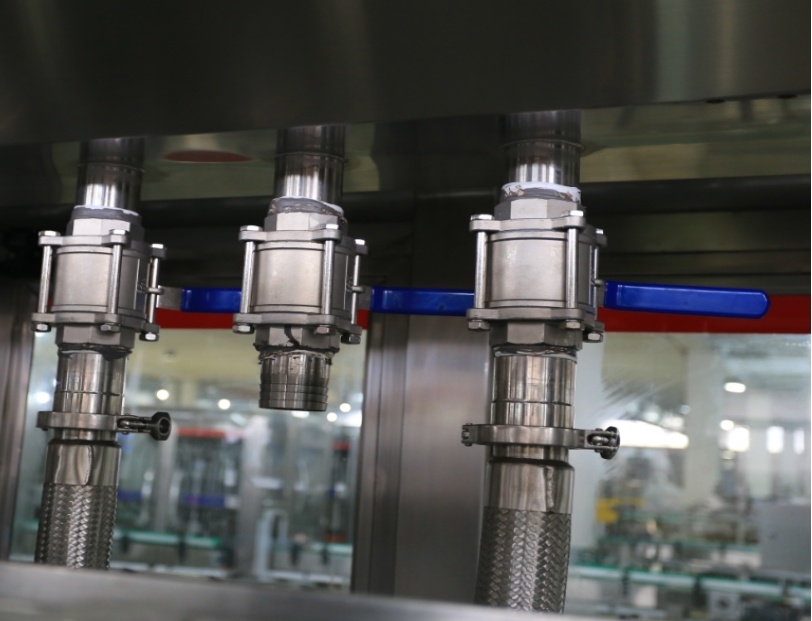

The filling department of this machine realizes fast filling and slow filling through a double cylinder. At the beginning of filling, after the double-section cylinder is converted to stroke 1, it is quickly converted to stroke 2 for fast filling. After filling to the set amount of fast filling, the submerged cylinder rises to the barrel opening position, and the double-section cylinder is converted to Stroke 1 continues slow filling until the set overall filling volume. The filling machine and the feed pump are controlled by multi-stage frequency conversion, and the control system of the feed pump is installed in the seller's control cabinet.

This machine is suitable for the metering and filling of 1-5 liters of fluid, and it can automatically complete a series of operations such as counting into the bottle, counting the weight and filling, and conveying the bottle. It is especially suitable for quantitative filling of water, paint and lubricants. It is an ideal packaging machine for automobile maintenance, petrochemical, coating, medicine, cosmetics and fine chemical industries.

Specification

Maximum measurement:	1-5 liters
Filling accuracy	0.2%FS, X(0.5) level
Filling material	lubricating oil
Container	1-5L plastic bucket
Filling speed	800-1000 barrels/hour
Number of filling heads	8 sets
Filling method	liquid level in the barrel
Filling head form	upper filling type
Equipment contact material material	SUS304
Power supply	380V(50Hz)
Air source	0.5Mpa ±0.1Mpa
Compressed air consumption	0.1m3/min
Working environment temperature	-5ºC~+40ºC

Automatic cap sorting machine

The structure of the whole machine is exquisite and concise. This machine can be conveniently set up on various conveyor belts or various work surfaces. It is an ideal packaging model for supporting assembly lines or stand-alone production.
During operation, you only need to place the bottle cap on the bottle mouth, and the machine will automatically tighten the bottle cap (this machine is an integrated machine for capping and capping), thereby reducing labor intensity and ensuring the consistency of tightening.

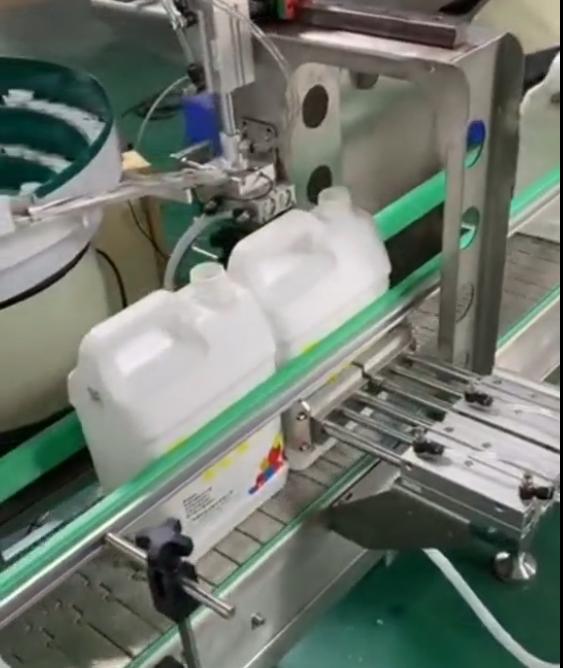

Automatic capping machine

System: electronic-pneumatic/computer (PLC) control
Speed: Adjustable to match the speed of the filling machine
Operation: manual capping, automatic machine positioning, automatic capping/capping, automatic conveying
Conveying: stainless steel frame, engineering plastic plate chain automatic conveyor belt

*Main features and technical description:
1) "No cover or missing cover without screwing" automatic control system:
2) Automatic control system of "photoelectric sensor, mechatronics capping and cap screwing linkage":
3) "Safe operation" protective device
4) After the cap is screwed, it has a detection and alarm function for the unscrew and uncapped barrels.

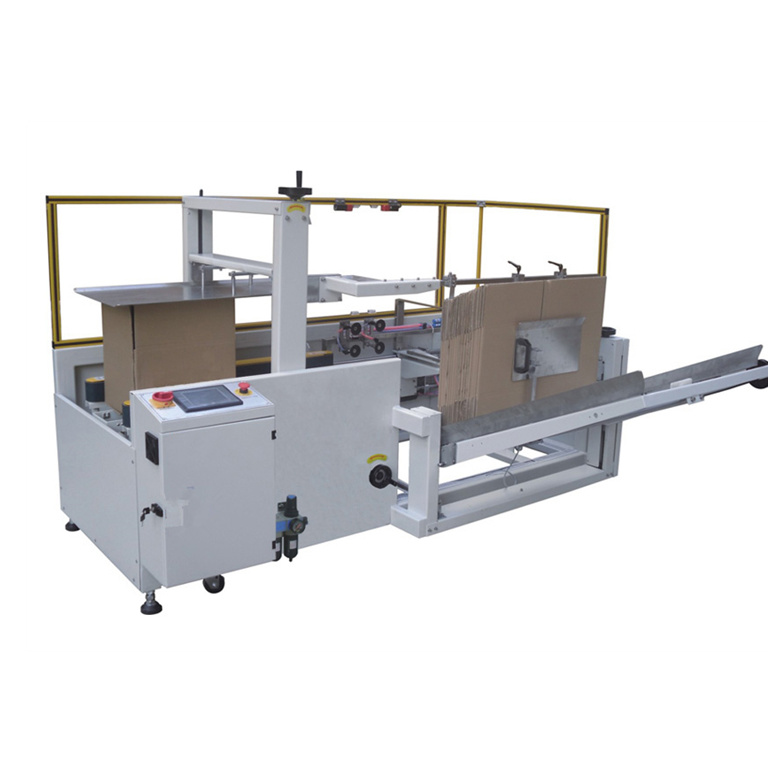

Automatic opening and sealing machine

Equipment features:
It is suitable for cartons of different specifications, and can be adjusted according to the size of the cartons. The vertical storage cartons are used, and the cartons can be refilled at any time without stopping the machine to add. Reasonable design, simultaneous absorption and forming, simultaneous forming of unpacking/folding bottom/back cover at one time. In the absence of tape and cartons, an automatic alarm will prompt. This machine can be operated as a stand-alone machine, or it can be used in combination with a filling/packing production line.

Grab Packing Machine

This machine has a wide range of applications and can be used as a stand-alone machine. It is suitable for automatic packing of various specifications of bottled and barreled products. This machine can automatically arrange the products according to the requirements of the product packing quantity
and pack them into the box, filling the box The products are automatically sent to the conveyor roller to enter the sealing machine. This machine is widely used in petrochemical, lubricating oil, automobile maintenance products and other industries.

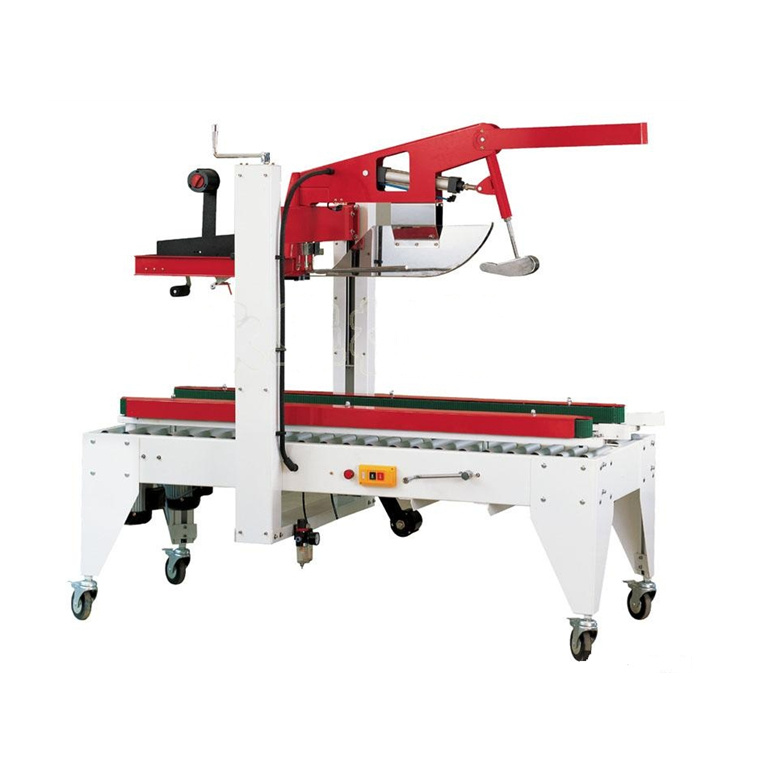

Automatic Folding and Sealing Machine

This machine has the function of automatic lid folding/automatic sealing, economical, fast, balanced and beautiful. According to the specifications of the carton, the width and height of the carton can be manually adjusted, and the operation is simple. The conveyor belt feeds the carton, which is automatically driven, saving labor and effort. The carton size standard can be customized according to
customer needs. It can be operated on a stand-alone machine or combined with an automated packaging equipment production line.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

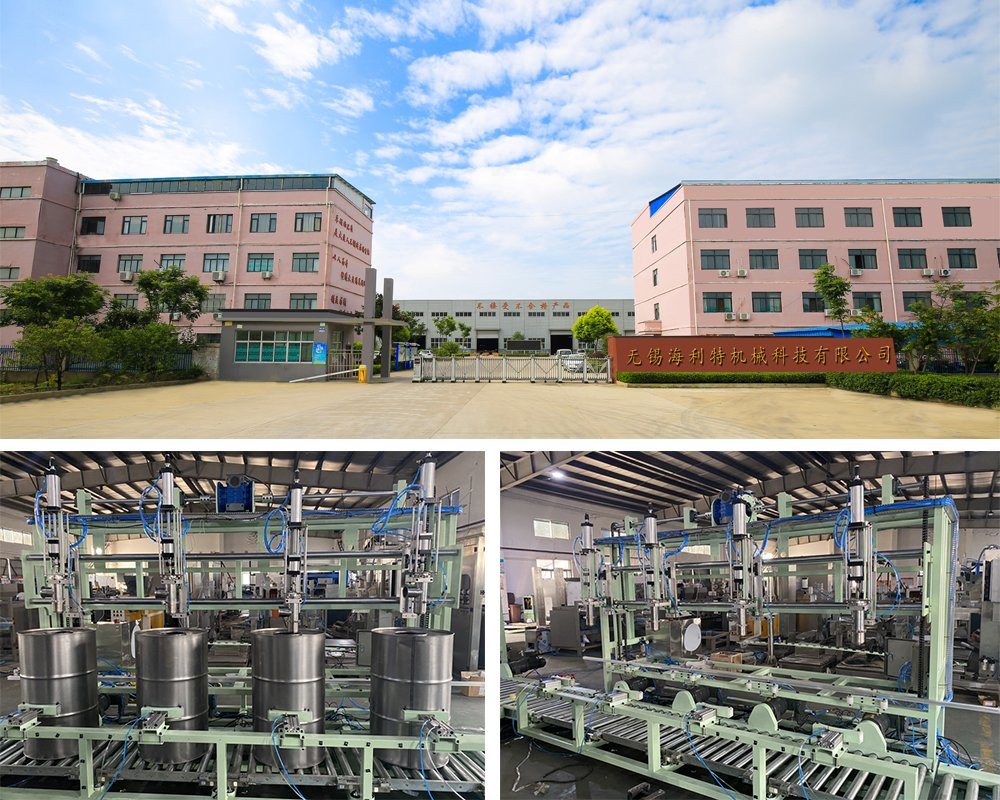

Company Profile

We are professional manufacturer of filling machines with more than 30 years of history.
We are improving technologies all the time and developing welding machinery market. We provide customers with valued solutions.
Due to highly automatic, simple operation and reliable quality equipments, Our machineries have been exported to many countries,
such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, Mexico, etc..

FAQ

Q1: Are you a Manufacturer or Trading company?
A1: We are the manufacturer from Jiang Su,so we can offer the best quality and price of the machine to you.

Q2: How can I install this Filling Machine when it arrives?
A2:We will send the instruction manual and some video to help you install the machine.You can talk with our engineer by video chat or we will arrange site engineers to install and commissioning machine.

Q3: What is the cost to send installation/training staff? How many staff do you need to send?
A3: Whole installation/traning process needs 3 engineers. Around 15 days. Round-air ticket, local
transpotation, accomodation, food, and 100USD/day/person.
