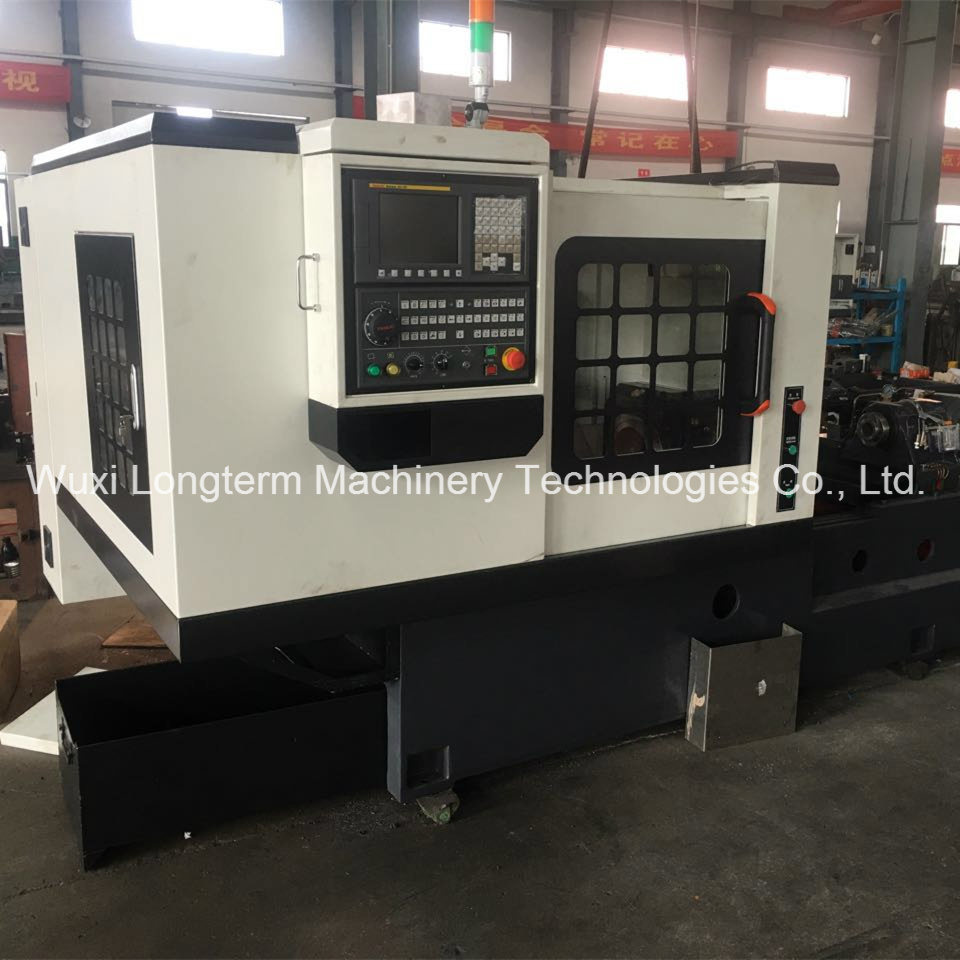

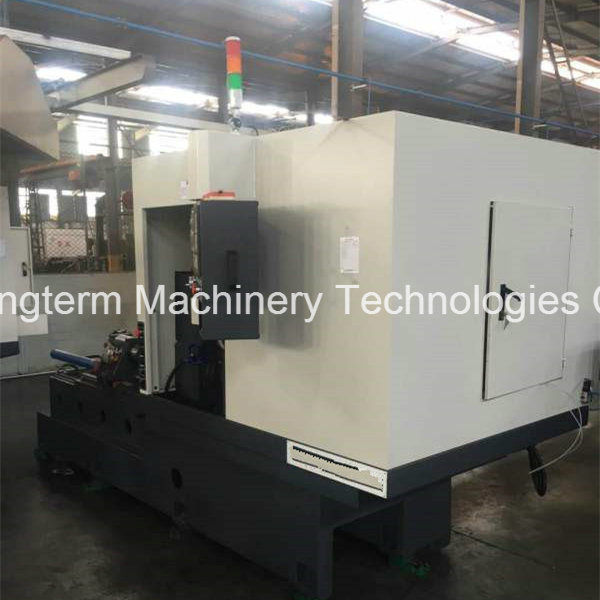

Automatic CNC Gas Cylinder machine Neck threading
Application:

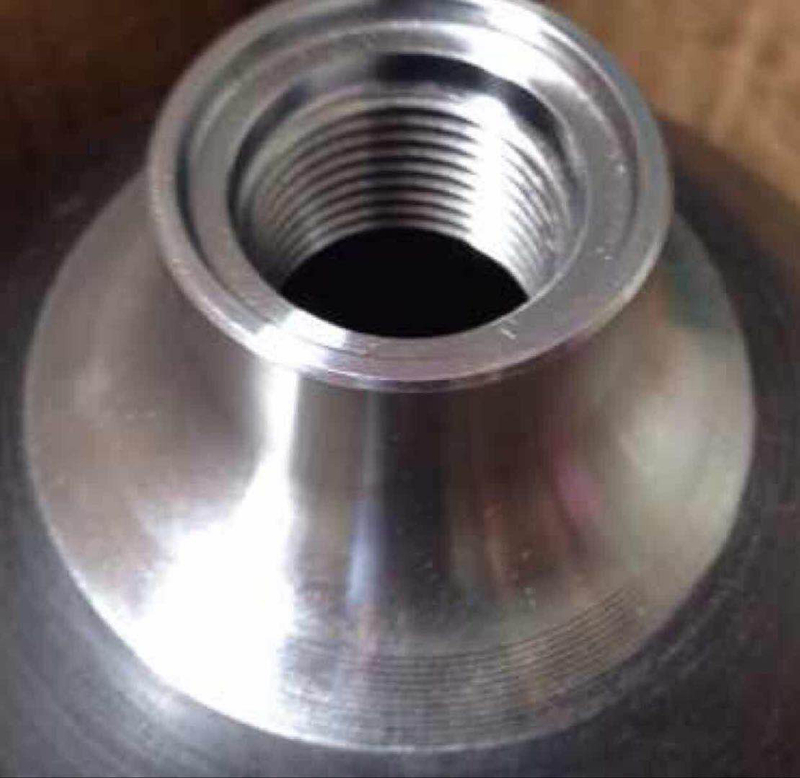

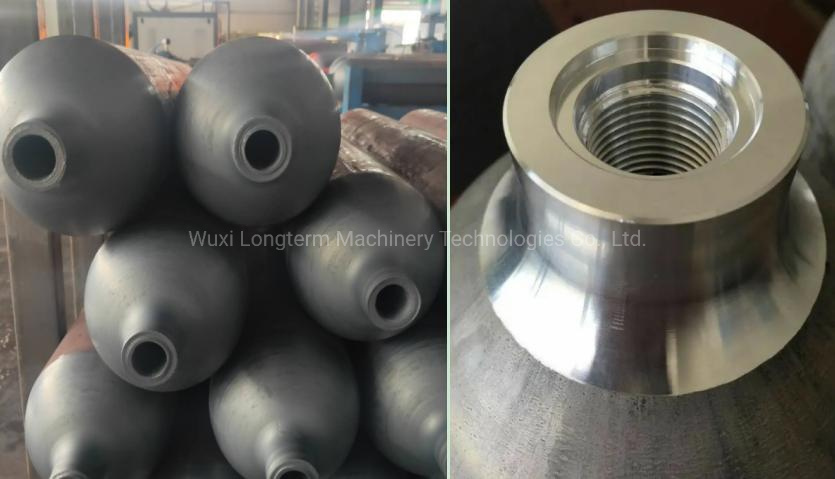

The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The workpiece clamping adopts the front top bowl positioning. Machine processing : Step 1.Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer Step 2.Inside hole--adopts lathe processing of inner hole of inner hole cutter Step 3.Threading --adopts thread tool Equipment Technical Parameter 1.Parameter of workpiece (1) Diameter range:φ104mm--φ159mm (2) Length range:300mm-1150mm 2.Standard configuration of Machine tool and main Technical parameters of each component: (1)CNC system adopts GSK 980TB3 domestic famous brands Two-axis servo control (2)Other configurations: 2.1 Main motor power:5.5KWconverter motor 2.2 Converter motor:z-axis :10M/MIN X Stroke:10M/MIN 2.3 Tool holder: horizontal structure 2.4 Maximum clamping workpiece:159 2.5 Range of spindle speeds :100-1000r/min 2.6 Trailing plate cylinder with bearing and axial feed top tightening workpiece 2.7 With dispensing cylinder (includes manual and semi-automatic functions). After processing, push the workpiece out of the inner hole of the main shaft. 2.8 The workpiece clamping adopts the front arc surface positioning and the rear arc positioning top tight. 2.9 Equipped with automatic centralized lubrication device. 2.10 Schneider is used for gas components of strong electric box. 2.11 Equipped with chip box (standard) 2.12 Equipped with atomization cooling device, the cooling effect of workpiece is good ( 2 sets) 2.13 The processing area is fully closed and protected. 2.14 The machine tool is equipped with a three-color lamp. 2.15 The color of the machine tool shall be carried out in accordance with the manufacturer's standard. Products made on machine

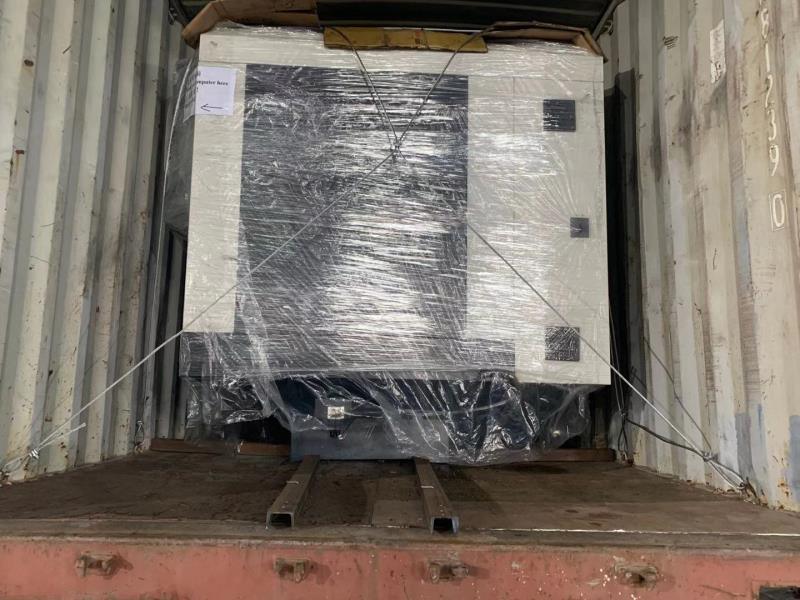

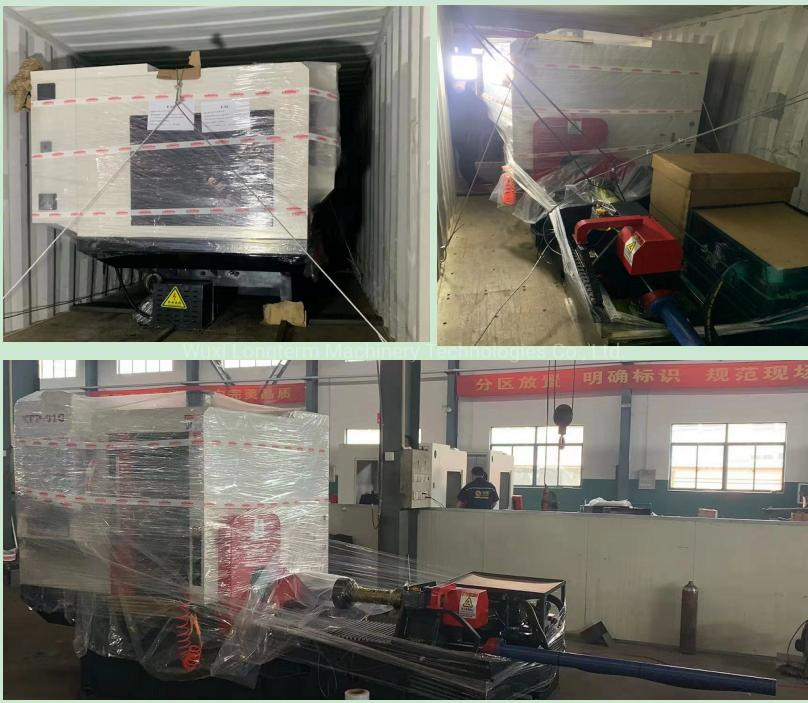

Ready to loading

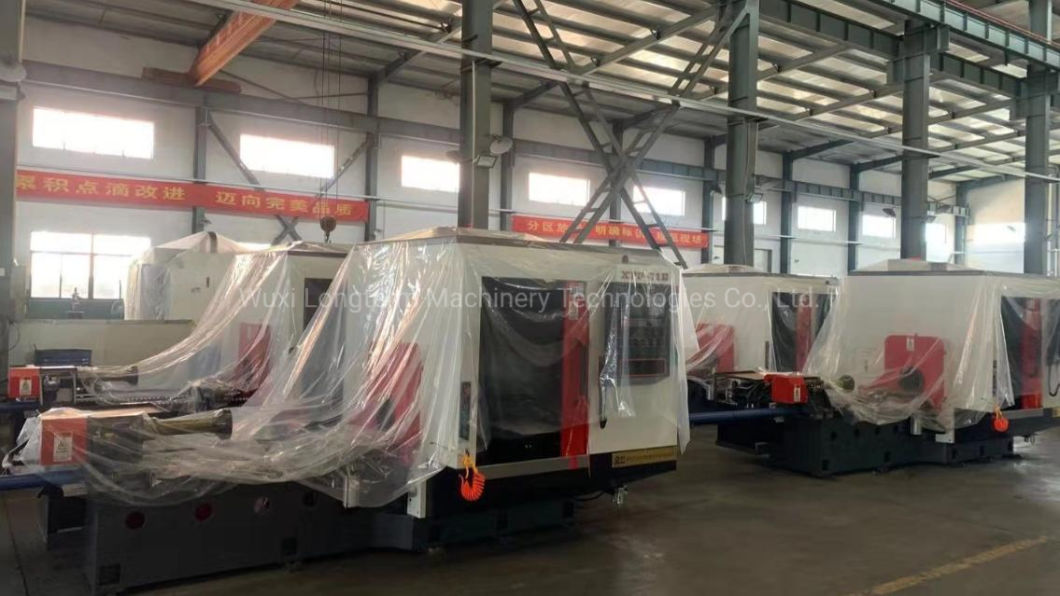

Ready to loading

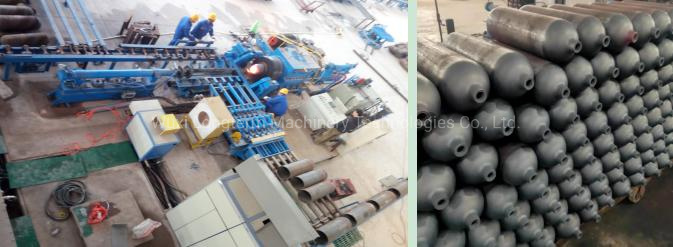

Related machine

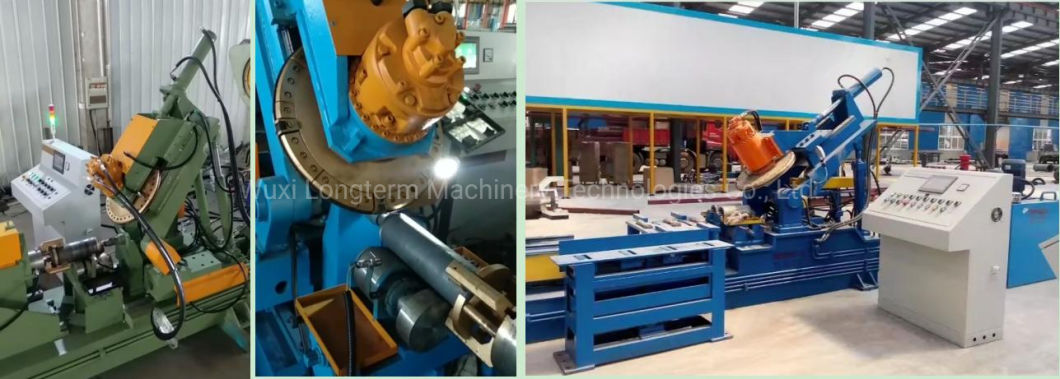

Hot spinning machine

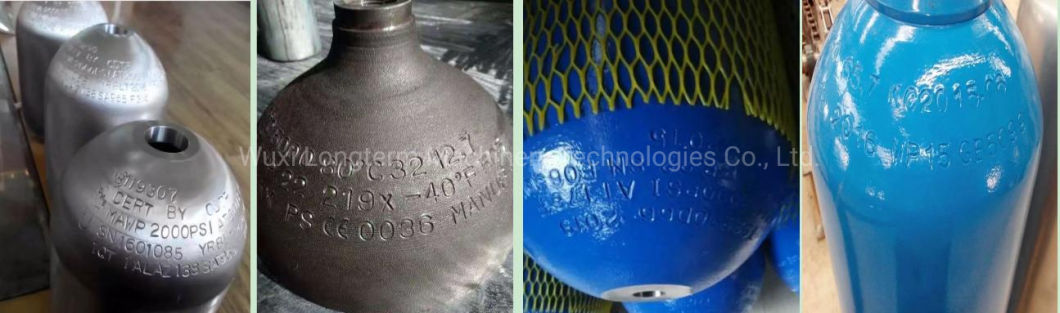

Automatic oxygen cylinder embossing machine
FAQ for CNC screw threading machine Q: What size of seamless cylinder your machine can print?
A: 108-189,232-406 and other size according customers' requirement.
Q: Can you design machines according technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
To enable me give you correct proposal for correct machines, please tell me following details:
1.Technical Drawing of the cylinders you want to print?
2.How many pcs you want to print each day?
