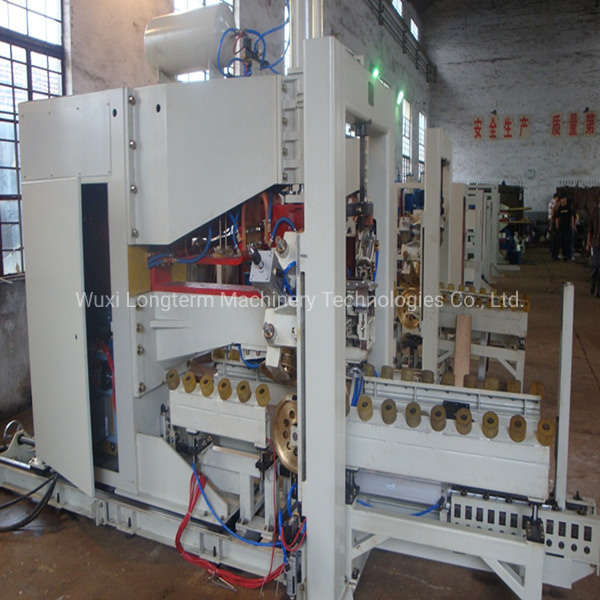

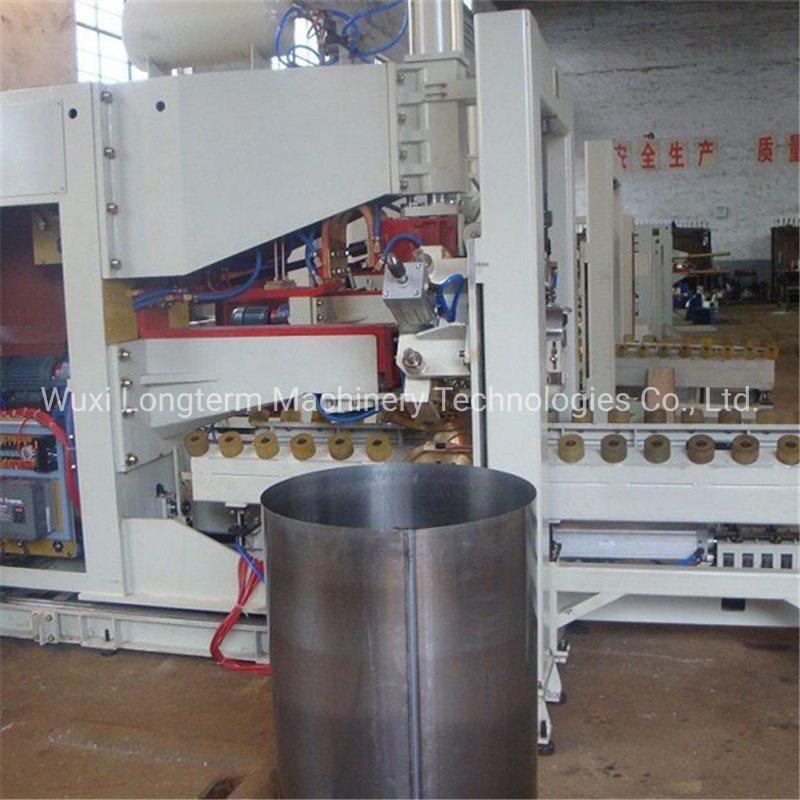

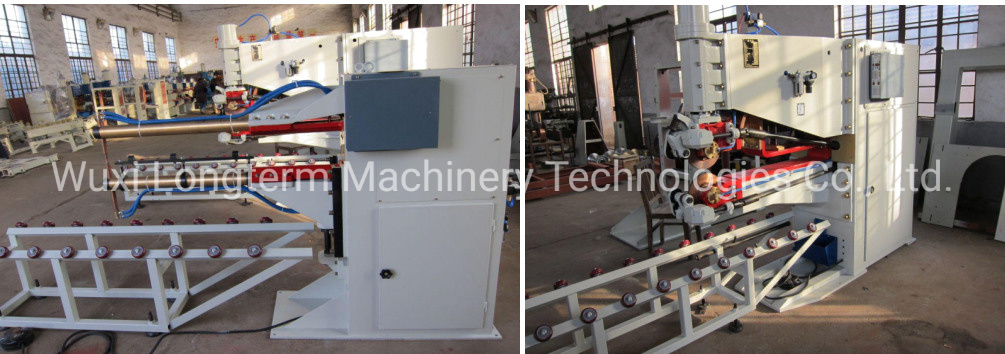

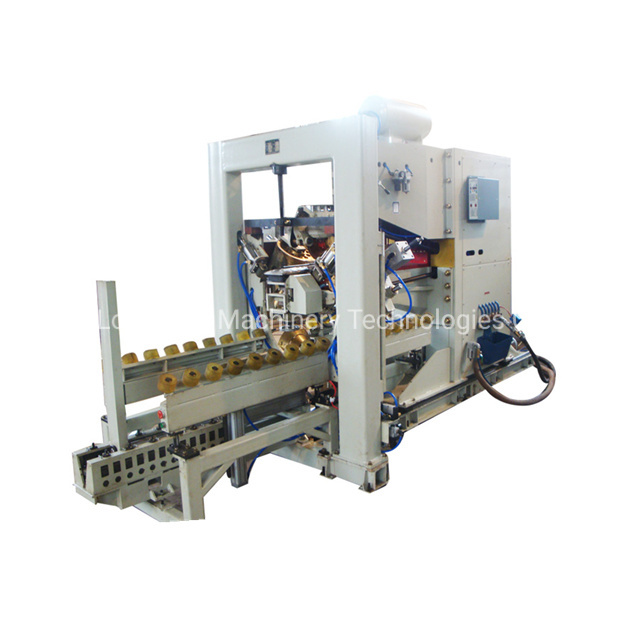

55 Gallon Steel Drum Resistance Seam Welding Machine, Barrel Seam Welder Unit^

Option 1: Seam welding machine

1. Introduction

1. Machine name: Drum seam welding machine

1. Rated power: 200KVA

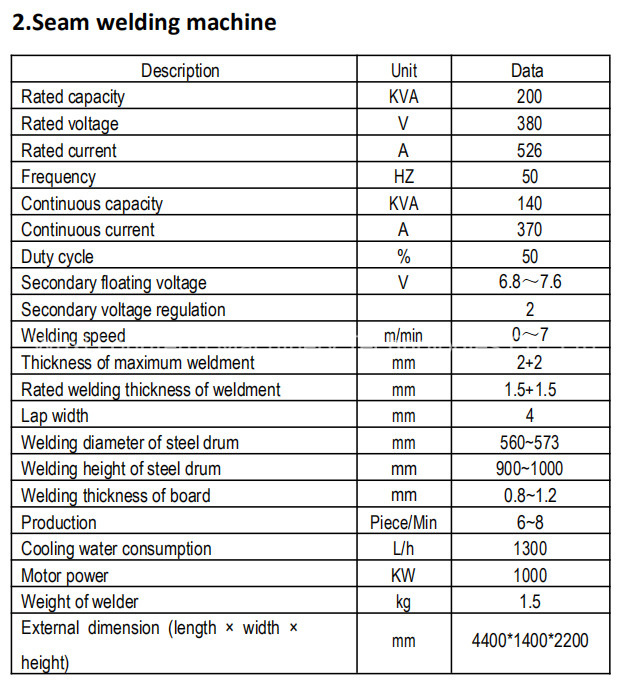

2. Main Technical Specification

1. Main parameter description	Measure unit	Value
   Rated power	KVA	200
   Rated Input voltage	V	380
   Rated current	A	526
   Frequency	Hz	50
   Continuous Power	KVA	140
   Continuous Current	A	370
   Load Cycle	%	50
   Subprime no-load voltage	V	6.8~7.6
   Secondary voltage regulating series		2
   Adjustable welding speed	m/min	0.5~8
   Rated welding thickness of weldment	mm	1.5+1.5
   Overlap Width	mm	3.5~4
   Extension elongation of electrode arm	mm	1100
   Adjustable top electrode strode	mm	135
   Maximum working pressure	N	6000
   Air pressure	MPa	0.5
   Cooling water consumption	L/h	1300
   Motor power	KW	1.5
   Weight of welder	kg	2700
   External dimension (length × width × height)	mm	4400*1400*2200




   Remark: Input voltage can be designed to suit the foreign country standard

2. Structure Characteristic
3. Before drum seam welding, there is no need to do spot welding first, after sheet rolling can do Resistance seam welding directory

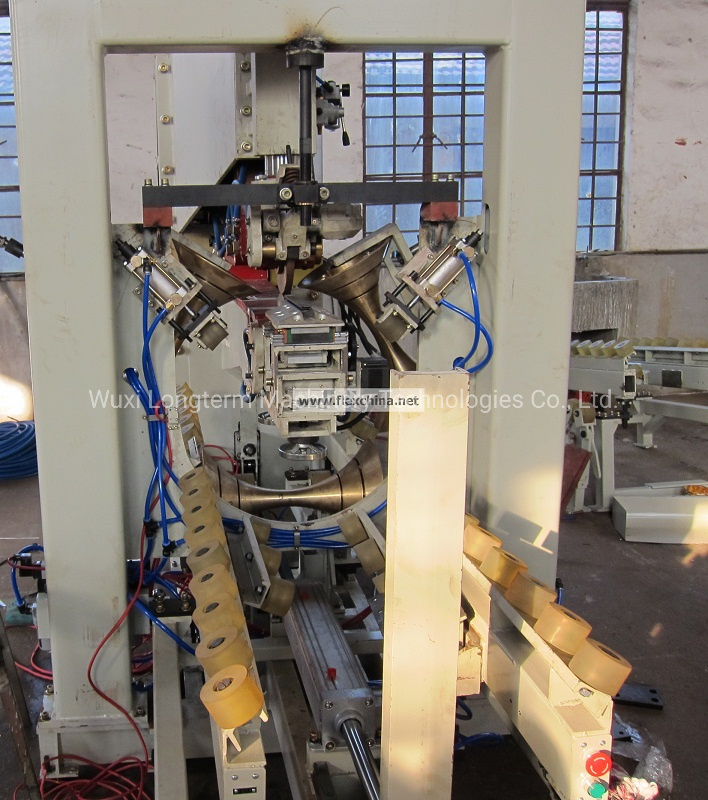

4. The operator only needs put the drum into the specific welding spot, the air cylinder will push the drum into the welding wheel to weld, after welding the air cylinder will push it out automatically into the turnover device, then automatically into the next stage production.
5. Every step is programmed through PLC, complete automatically.
6. The welder is programmed by PLC, set up 3 welding line, the welding wheel will change position precisely after finish 5 drums welding, 5 drums a cycle, the welding wheel in high usage and move precisely.
7. Manual wheel adjust is available, easy to adjust the distance between two welding wheels after the welding wheel abrasion.
8. The machine is using inside cooling system, the upside and downside welding wheel water input are using rotating joint, hard to leak.
9. The transmission parts for fixing wheel are using bearing structure.

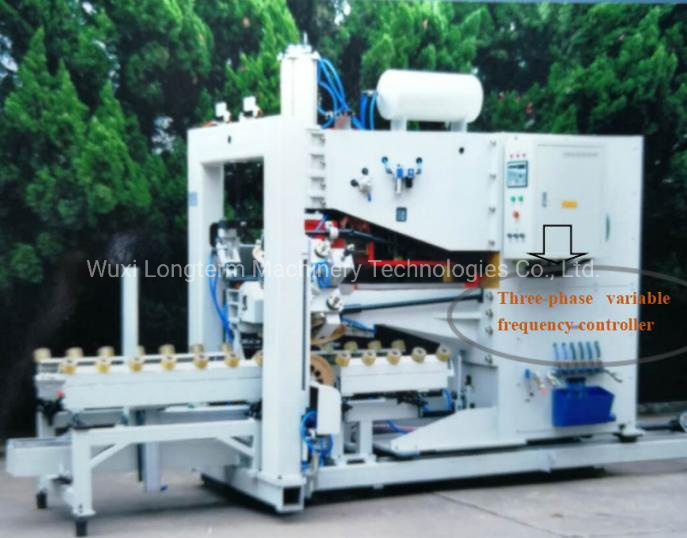

10. Allocate Three phase variable frequency controller(optional)
11. Able to save 16 welding standards for user, pre-set up then use it directory.
12. Every welding standard can set up 2 welding technique, to achieve the various requirements for different spot on the same weldment.
13. Including the function for current Slow Decrease and Increase, suitable for different requirements of welding technique.
14. Auto-counter technology, easy to summarise the production capacity and availability
15. Fault self-diagnosis and self-protection function, for instance: overcurrent, overheat, short current and etc. The machine will stop automatically and advise the operator.
16. Energy-saving function, three phase power input using the three-phase all controls bridge rectification, increase the power factor, Circuit three phase equilibrium, save 20% energy consumption.
17. In the welding process, the current can change be changed, to achieve the requirement for different welding technique.
18. Advantages: high control precision, output stable current, small affection, less splash, quick response for current adjust, good welding quality and so on.
19. Also can allocate miro-computer controller
20. Function

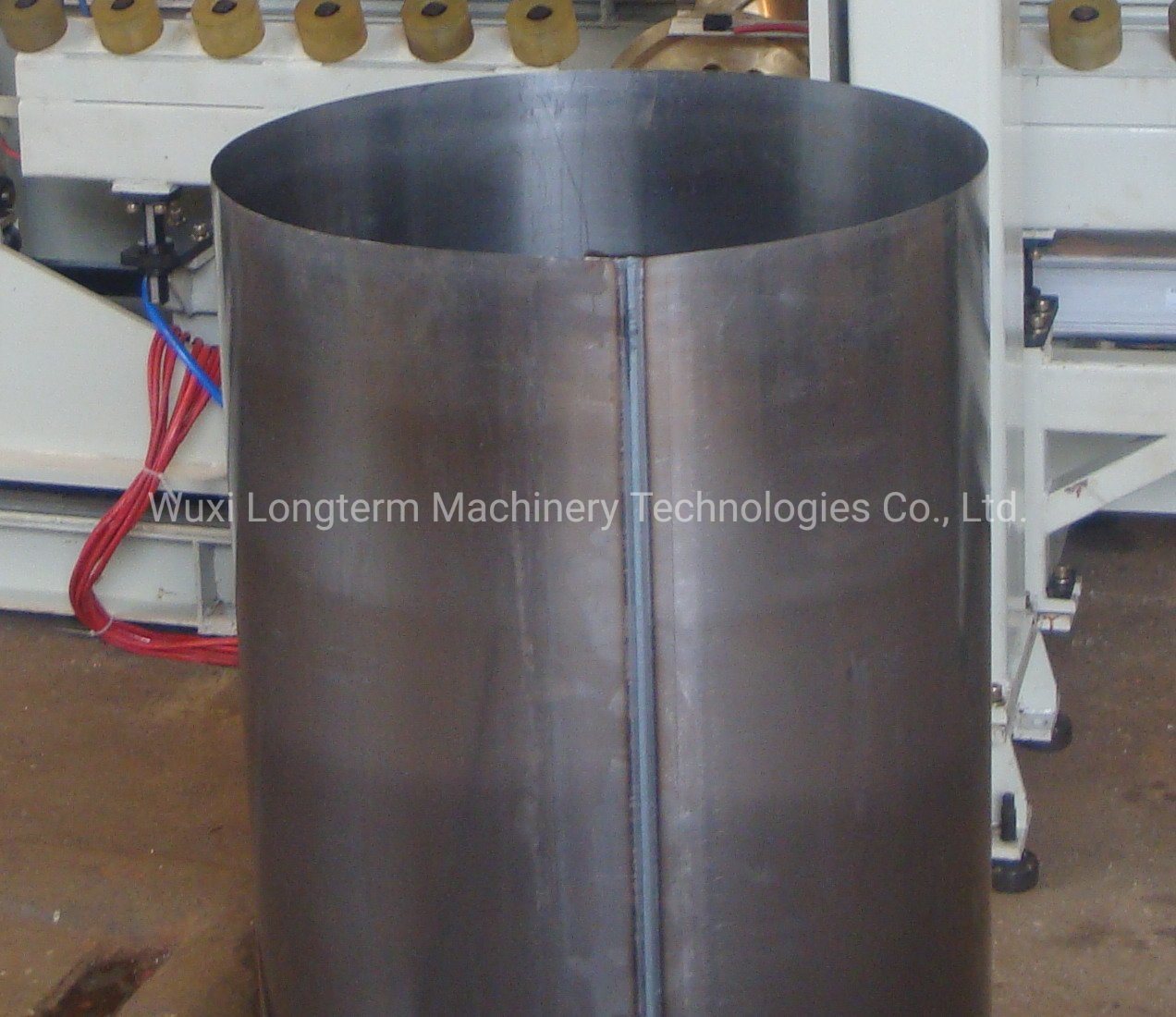

21. Able to weld 200L, 208L and 210L drums (can be customized)

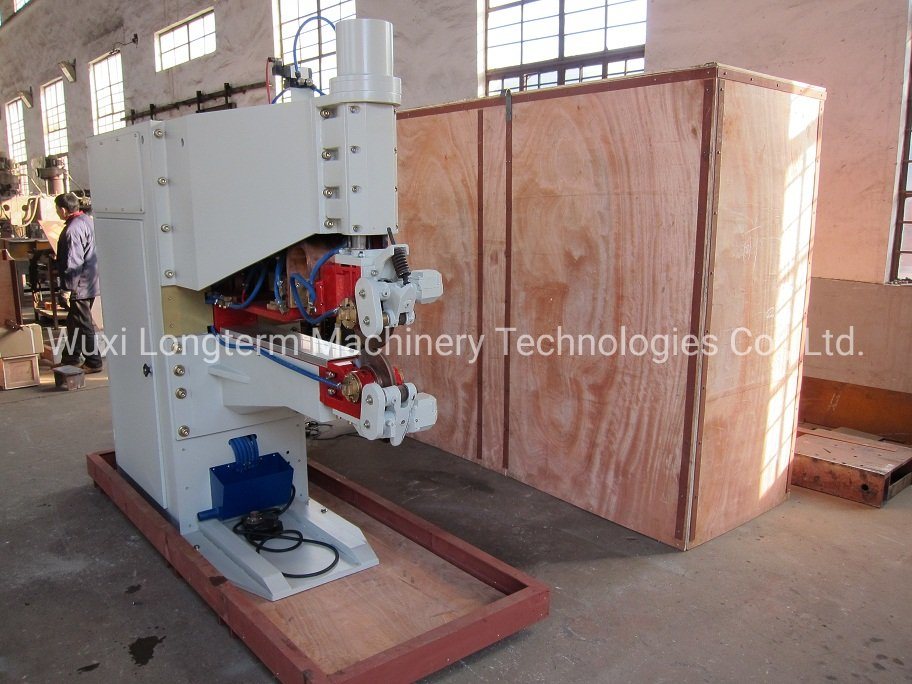

Packaging Details

Standard seaworthy packing for Fully automatic high speed steel drum production line drum body straightening & blanking, cap straightening(share)

Delivery Time

2 months after receving your advance payment.

Our services

Engineers available to service machinery overseas.

FAQ

To enable me give you correct proposal for correct machines, please tell me following

details:

A: Technical drawing/Size of the steel drum you want to manufacture

B: What's the capacity per shift/day?
