55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^

Quantity:
  • HLT
  • Drum Body Auto Resistance Seam Welding Machine
  • 1 Year
  • 3 Month After Receiving Deposit
  • 0.7-1.2mm
  • 900-1025mm
  • 560/571mm
  • 360-420PCS Per Hour
  • Customized
  • Engineers Are Available to Overseas
  • Standard Searworthy Package
  • ISO9001
  • HLT
  • Jiangsu, China
  • 84369900
  • 5000-10000 Sets Per Year
  • Available | Customized Request

Product Description

55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery,
Bitumen Barrel Seam Welder^

55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^

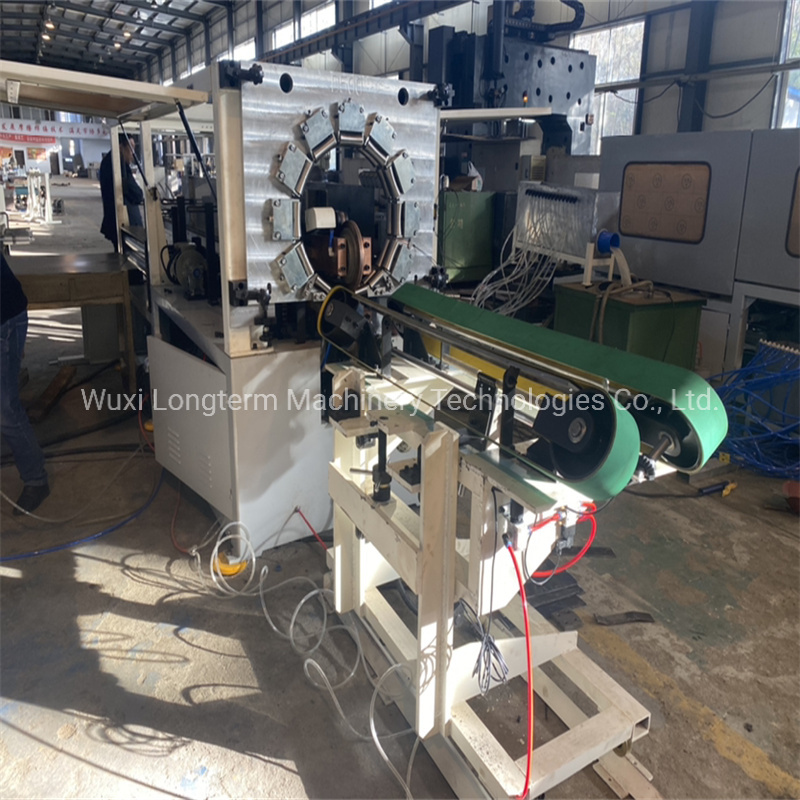

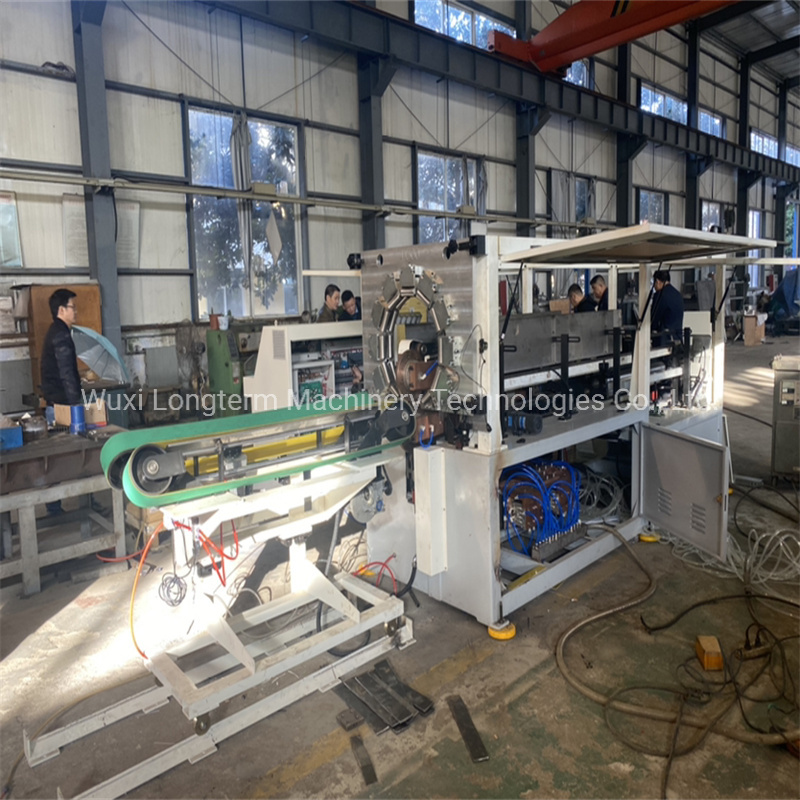

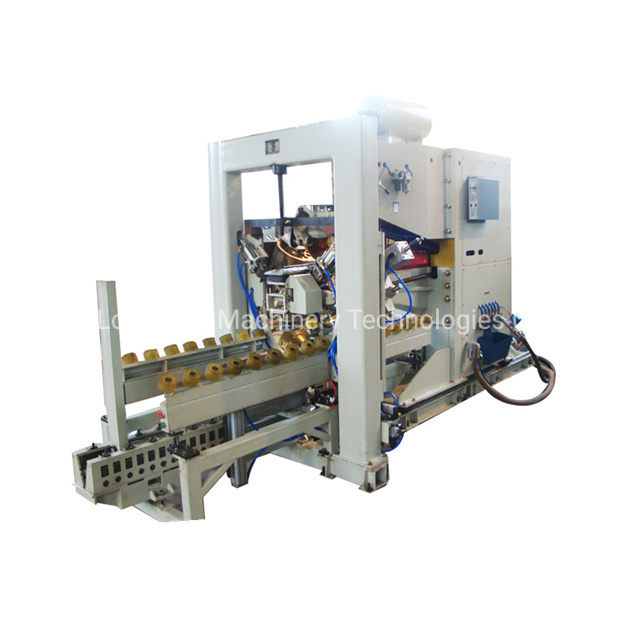

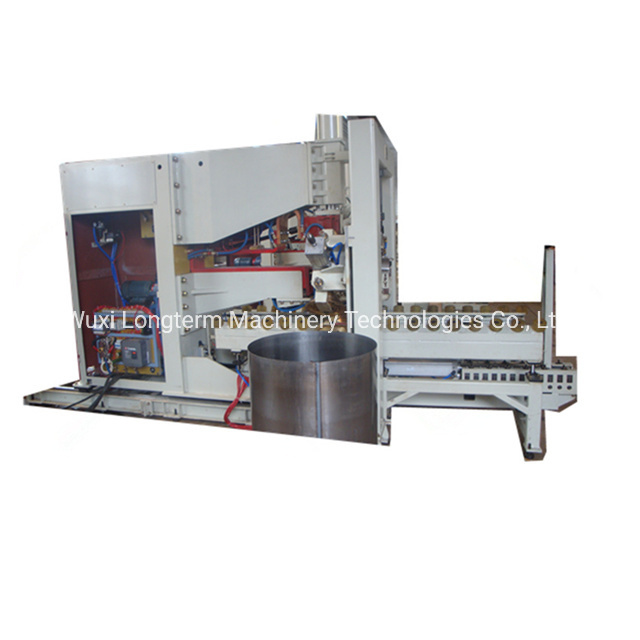

Option 1: Seam welding machine
  1. Introduction
Resistance seam welding machine is the key equipment in drum production, according to the demand of the drum industry, FN1-200-5 has been developed. This spot-welder free resistance drum seam welding machine includes two different options, the micro-computer controller model and the three-phase variable frequency controller model. This machine has a few advantages: less investment and easy to maintain.
  1. Machine name: Drum seam welding machine

Model: FN1- 200-5
  1. Rated power: 200KVA
  2. Main Technical Specification
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^
  1. Main parameter description Measure unit Value
    Rated power KVA 200
    Rated Input voltage V 380
    Rated current A 526
    Frequency Hz 50
    Continuous Power KVA 140
    Continuous Current A 370
    Load Cycle % 50
    Subprime no-load voltage V 6.8~7.6
    Secondary voltage regulating series 2
    Adjustable welding speed m/min 0.5~8
    Rated welding thickness of weldment mm 1.5+1.5
    Overlap Width mm 3.5~4
    Extension elongation of electrode arm mm 1100
    Adjustable top electrode strode mm 135
    Maximum working pressure N 6000
    Air pressure MPa 0.5
    Cooling water consumption L/h 1300
    Motor power KW 1.5
    Weight of welder kg 2700
    External dimension (length × width × height) mm 4400*1400*2200

    55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^

    Remark: Input voltage can be designed to suit the foreign country standard

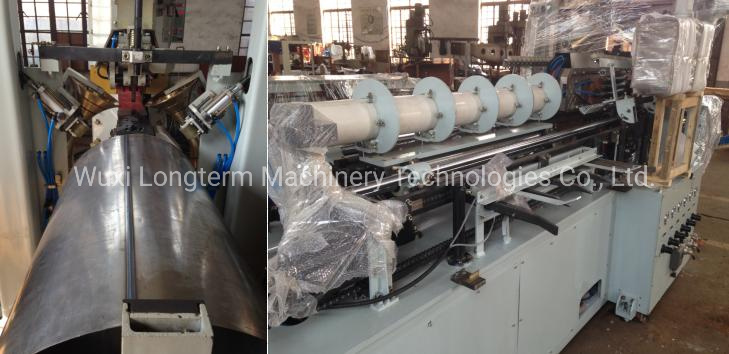

  2. Structure Characteristic
  3. Before drum seam welding, there is no need to do spot welding first, after sheet rolling can do Resistance seam welding directory

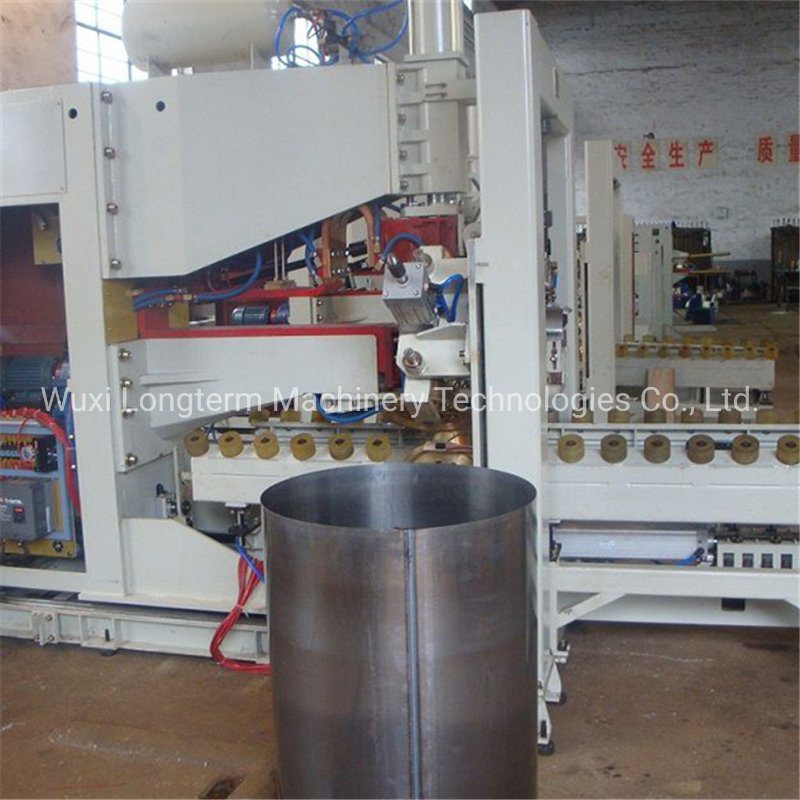

  4. The operator only needs put the drum into the specific welding spot, the air cylinder will push the drum into the welding wheel to weld, after welding the air cylinder will push it out automatically into the turnover device, then automatically into the next stage production.
  5. Every step is programmed through PLC, complete automatically.
  6. The welder is programmed by PLC, set up 3 welding line, the welding wheel will change position precisely after finish 5 drums welding, 5 drums a cycle, the welding wheel in high usage and move precisely.
  7. Manual wheel adjust is available, easy to adjust the distance between two welding wheels after the welding wheel abrasion.
  8. The machine is using inside cooling system, the upside and downside welding wheel water input are using rotating joint, hard to leak.
  9. The transmission parts for fixing wheel are using bearing structure.
  10. Allocate Three phase variable frequency controller(optional)
  11. Able to save 16 welding standards for user, pre-set up then use it directory.
  12. Every welding standard can set up 2 welding technique, to achieve the various requirements for different spot on the same weldment.
  13. Including the function for current Slow Decrease and Increase, suitable for different requirements of welding technique.
  14. Auto-counter technology, easy to summarise the production capacity and availability
  15. Fault self-diagnosis and self-protection function, for instance: overcurrent, overheat, short current and etc. The machine will stop automatically and advise the operator.
  16. Energy-saving function, three phase power input using the three-phase all controls bridge rectification, increase the power factor, Circuit three phase equilibrium, save 20% energy consumption.
  17. In the welding process, the current can change be changed, to achieve the requirement for different welding technique.
  18. Advantages: high control precision, output stable current, small affection, less splash, quick response for current adjust, good welding quality and so on.
  19. Also can allocate miro-computer controller
  20. Function
  21. Able to weld 200L, 208L and 210L drums (can be customized)

55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^



EQUIPMENT INFORMATION:

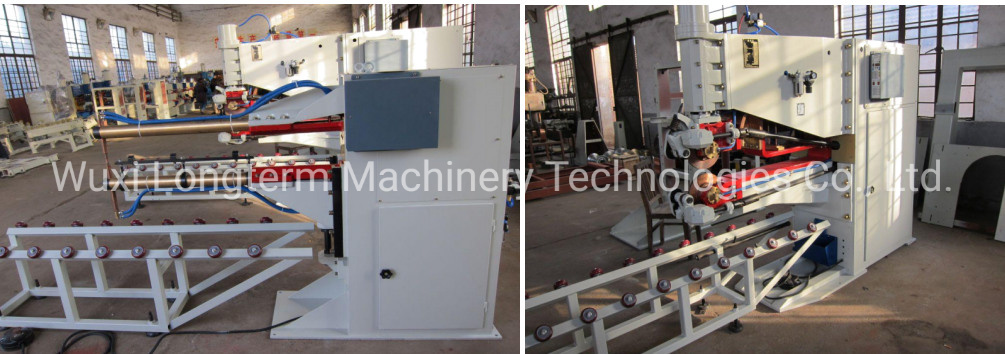

Option 2: Spot Welding+ Seam Welding Machine
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^
1.Spot Welding

Description Unit Data
Rated capacity KVA 35
Rated voltage V 380
Rated current A 92
Frequency HZ 50
Continuous capacity KVA 25
Continuous current A 65
Duty cycle % 50
Secondary floating voltage V 6
Secondary voltage regulation no
Welding speed m/min
Thickness of maximum weldment mm 3+3
Rated welding thickness of weldment mm 2+2
Extension elongation of electrode arm mm 950
Adjustable top electrode strode mm 0-60
Maximum working pressure N 12265
Air pressure MPa 0.5
Cooling water consumption L/h 160
Weight of welder kg 180
External dimension (length × width × height) mm 1120*520*1480
Innstallation diameter(length*width*diameter) mm 740*280*O.D 14

2. Seam Welding Machine
Description Unit Data
Rated capacity KVA 200
Rated voltage V 380
Rated current A 526
Frequency HZ 50
Continuous capacity KVA 140
Continuous current A 370
Duty cycle % 50
Secondary floating voltage V 6.8~7.6
Secondary voltage regulation 2
Welding speed m/min 0~7
Thickness of maximum weldment mm 2+2
Rated welding thickness of weldment mm 1.5+1.5
Extension elongation of electrode arm mm 1100
Adjustable top electrode strode mm 135
Maximum working pressure N 7500
Compressed air consumption m3/h 2.5
Air pressure MPa 0.5
Cooling water consumption L/h 1300
Motor power KW 1.5
Weight of welder kg 2200
External dimension (length × width × height) mm 4400*1400*2200

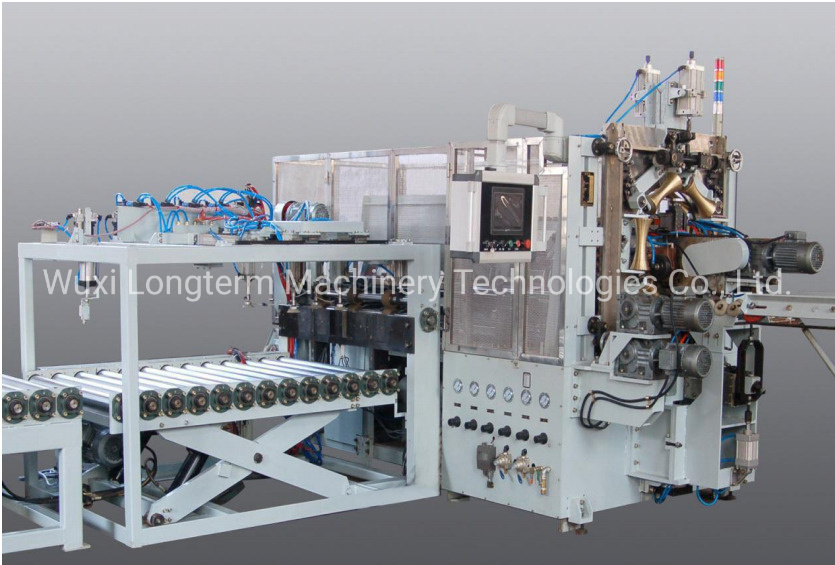

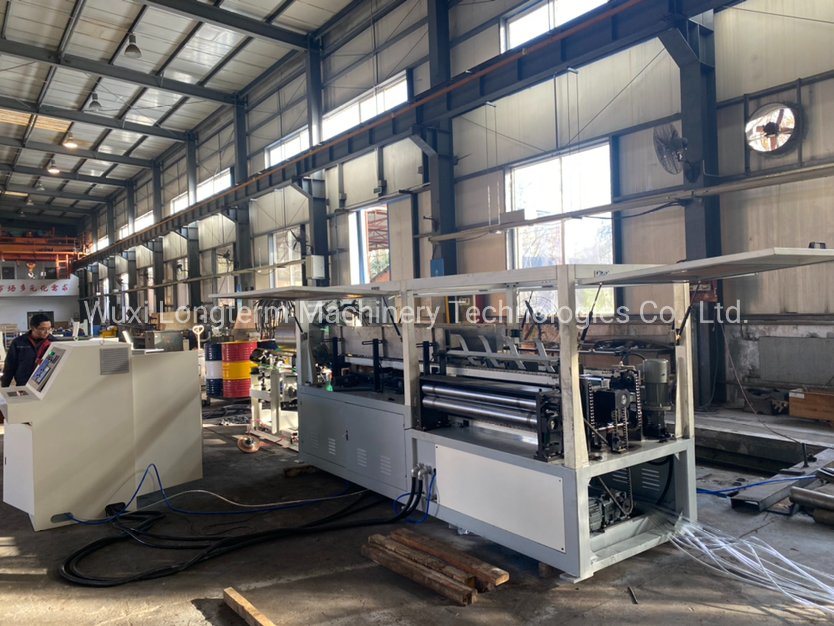

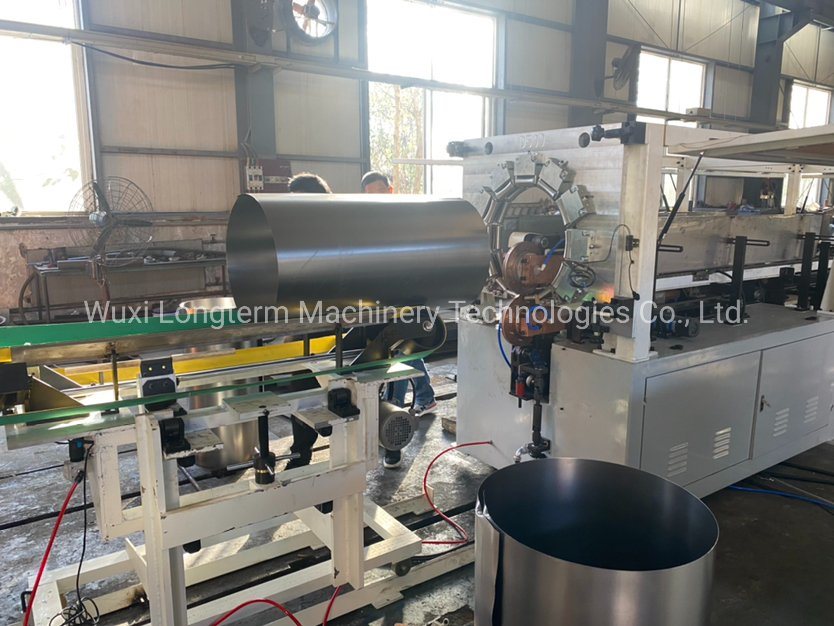

Option 3. Automatic sheet rolling and resistance seam welding - with automatic sheet loading/unloading device

Working efficiency: 360-420pcs per hour
Diameter range: 560/571mm, customized accept
Length range: 900-1025mm
Material thickness range: 0.7-1.2mm

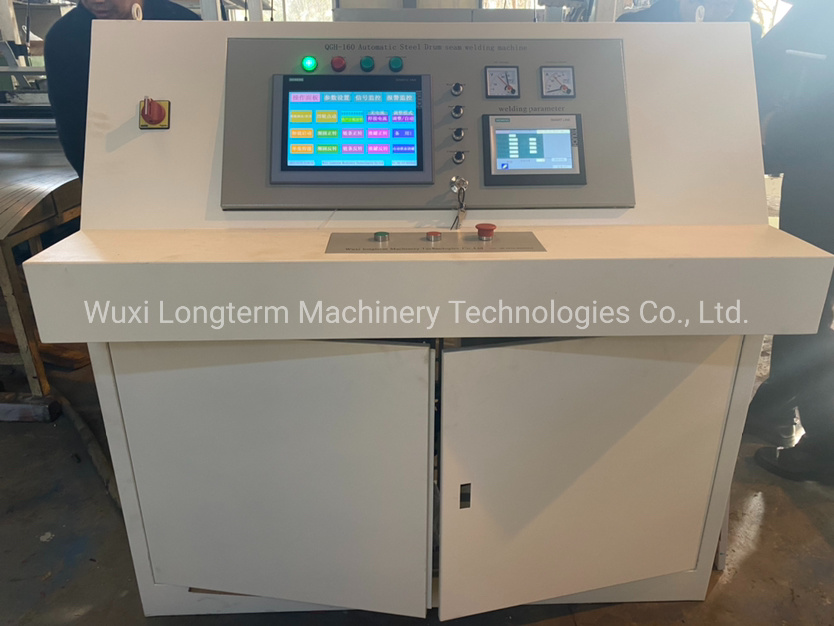

Digital panel control, easy for operation.
Automatic electrode adjustment
Automatically loading/unloading the workpiece, automatically rolling and seam welding.

55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^

Company Introduction

Wuxi Longterm Machinery Technologies Co., Ltd is a professional manufacturer of steel drum,bitumen drum, open drum manufacturing machine with more than 30 years of history.

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling ≷uing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &sealing machine,drum painting spray booth,drying oven,silk printing machine etc..

Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Qatar, Australia, Bangladesh, Vietnam, India, Ukraine, Mexico, etc..

We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.





Customers Visiting

Our Columbia customer is very interested in our welding machine

55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^





Packaging &Shipping

Packaging Details

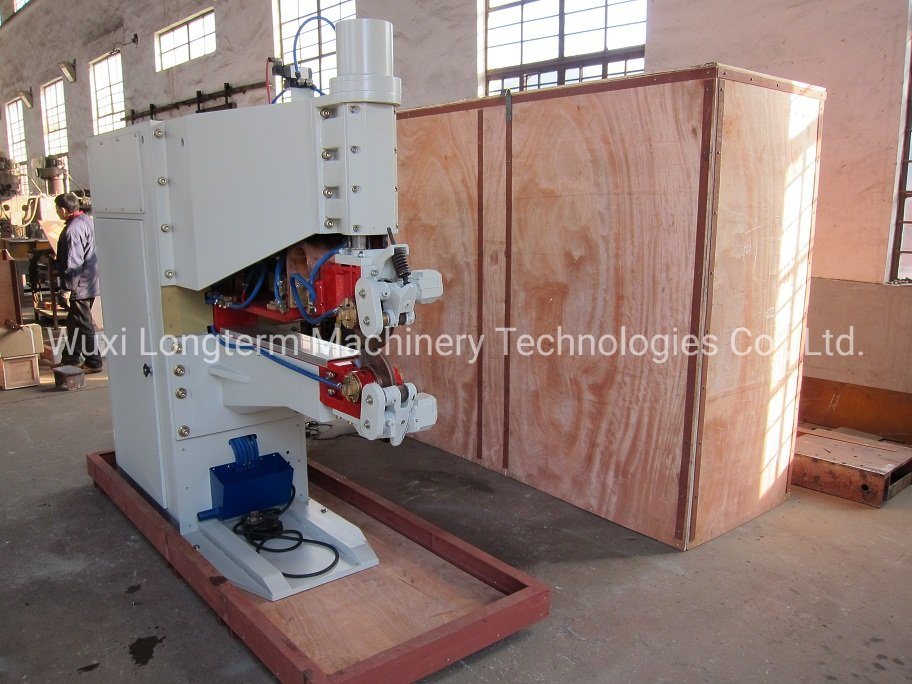

Standard seaworthy plywood box package
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^
55 Gallon Steel Drum Body Auto Resistance Seam Welding Machinery, Bitumen Barrel Seam Welder^


Delivery Time

2 months after receving your advance payment.

Our services

Engineers available to service machinery overseas.

FAQ

To enable me give you correct proposal for correct machines, please tell me following

details:

A: Technical drawing/Size of the steel drum you want to manufacture

B: What's the capacity per shift/day?
