| Quantity: | |
|---|---|
HLT
0-8m/Min
1.5mm+1.5mm
400-1100mm
360-600mm
380V/50Hz/3pH
135mm
0.5MPa
1300L/H

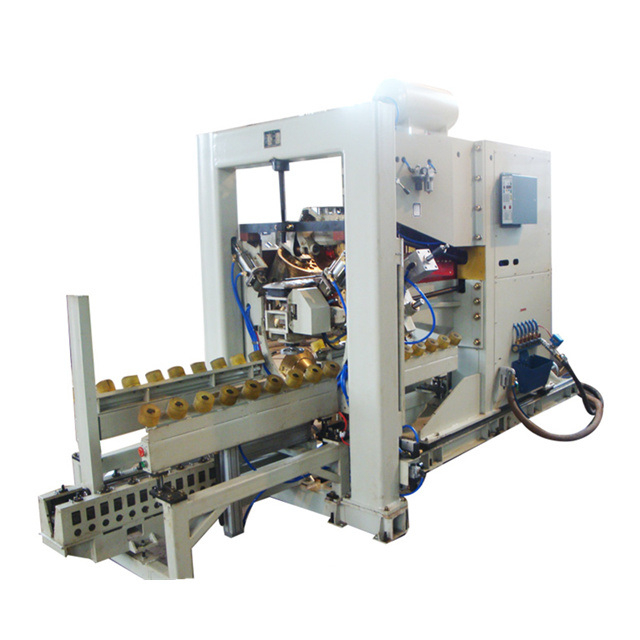

208L Steel Drum Resistance Seam Welding Machine
100PCS/8hrs
Standard Seaworthy Package
ISO9001
HLT
Jiangsu, China
844790900
1500sets/Year
Available | Customized Request
Product Description
| No. | Description | Capacity (power) | Remarks | Efficiency (pcs/min.) | Outer dimensions (Lmm*Wmm*Hmm) | Weight (tons) |
| 1 | Flatting the steel coil into sheet | 2.2kw | 11-roll, to flat the roll into flat sheet | |||
| 2 | roll the sheet into cylinder for longitude seam welding | 1.5KW | to roll the sheet into cylinder for welding | 3 | 2000*400*1200 | 0.25 |
| 3 | Hydraulic double ends folding and reinforced ring making machine | 7.5KW | to fold the both ends of the cyliner and also the reinforcement rings | 3 | 4100*1200*1400 | 3 |
| 4 | open drum folding moulds | |||||
| 5 | hydraulic wave making and W-type reinforced ring making machine | 4.0KW | To form wave and W-type reinforcement rings | 2.5 | 3600*900*1800 | 3 |
| 6 | hydraulic double ends seaming machine | Main motor:22KW hydraulical system:7.5KW | to seam the both bottom and top cover | 2.5 | 3600*900*2100 | 3.5 |
| 7 | Jel injection machine on bottom cover | 3.0KW | to inject the sealing adhesive before seaming to stop leakage | 2.5 | 1600*1200*1400 | 0.8 |
| 8 | Leakage testing machine | 70W | Cover the drum and input air to check whether there is leakage or not. | 3 | 2100*1000*1400 | 0.5 |
| 9 | Shearing machine | Cut the sheet into the size you need | ||||

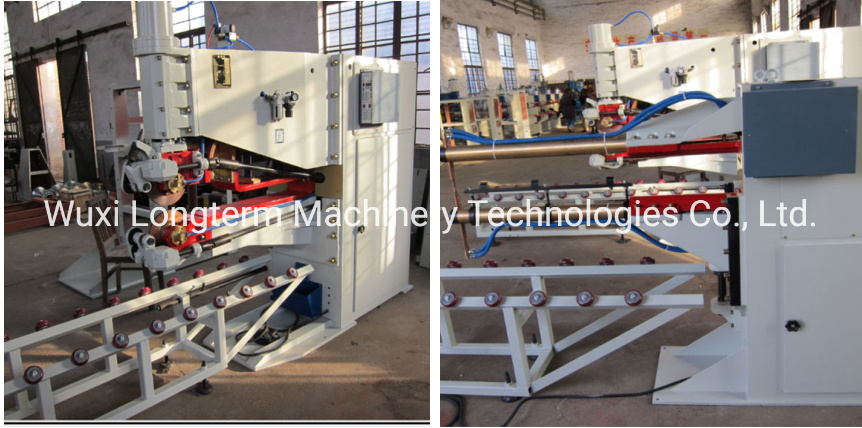

| 10 | Longitude seam welding machine | seam weld the tube for the size 200,208 and 210L | 100pcs/8hrs | 2670*970*2170 | 3 | |
| 11 | pneumatic control spot welding machine | spot weld the tube before seam welding for the size 160L till 225L | 1 | 2300*870*1780 | 0.8 | |
| 12 | The conveyor between equipment | |||||
| 13 | lip+bottom+clamp ring for open drum |
| Model | FN1 200-5z | FN1-150-5 |
| Description | Semi-automatic seam welding machine | Seam welding machine |
| Drum diameter range | 360-600mm | 360-600mm |
| Drum length range | 400-1100mm | 400-1100mm |
| Max.welding thickness | 2+2mm | 1.2+1.2mm |
| Welding speed | 0-7m/min | 5m/min |
| Rated capacity | 200KVA | 150KVA |
| Rated voltage | 380V | 380V |
| Rated current | 526A | 395A |
| Frequency | 50HZ | 50HZ |
| Continuous capacity | 140KVA | 106KVA |
| Continuous current | 370A | 279A |
| Adjustable top electrode strode | 135mm | 135mm |
| Dimension(L*W*H) | 4400*1400*2200mm | 2600*730*2100mm |
| Air pressure | 0.5Mpa | 0.5Mpa |
| Maximum working pressure | 7500N | 6000N |
| Cooling water consumption | 1300L/H | 1300L/H |
