Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~

Quantity:
  • WLT
  • Liquid Nitrogen Argon Oxygen
  • Low Pressure (0.1MPa≤p<1.6MPa)
  • New
  • Welded Insulated Cylinder
  • GB24159-2009
  • 506
  • 121`182kg
  • 1507~1727mm
  • T/T
  • Available
  • 175L, 195L, 210L
  • Standard Seaworthy Package
  • DPL210
  • HLT
  • China Anhui
  • 1009000
  • 1000000/Year
  • US$ 1050/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/EN Standard Cryogenic Storage Dewar Tank~
Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~
Description

What't the advantage of Dewai bottle?

1,The weight of the gas cylinder is about 116Kg, and the total weight after being filled with liquid gas is about 300Kg, while the total weight of the compressed gas in 30 cylinders with the same amount of gas is nearly 2000 Kg. Therefore, the auxiliary cost oftransportation and manual handling can be greatly reduced.
With automatic pressurization control, saving circuit, built-in vaporizer, pressure and liquid level indicating device, high
integration.

2,The storage pressure is low, and the multi-level safety protection device is installed, which has better safety and simple and reliable operation.

3,Large storage capacity, the gas storage capacity of a cylinder is equivalent to nearly 30 cylinders of cylinder gas (oxygen,nitrogen). Therefore, the storage space can be reduced, and the bottle changing operation can be reduced. 195L Dewar manufacturers can improve work efficiency. For centralized gas supply in pipelines, bus investment can be reduced.

Types of cylinder

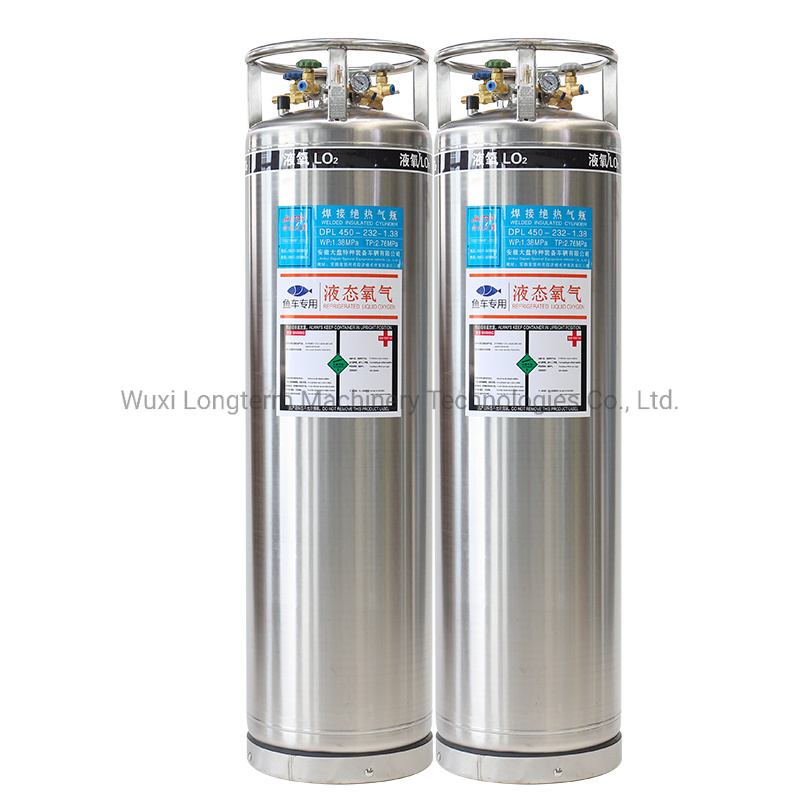

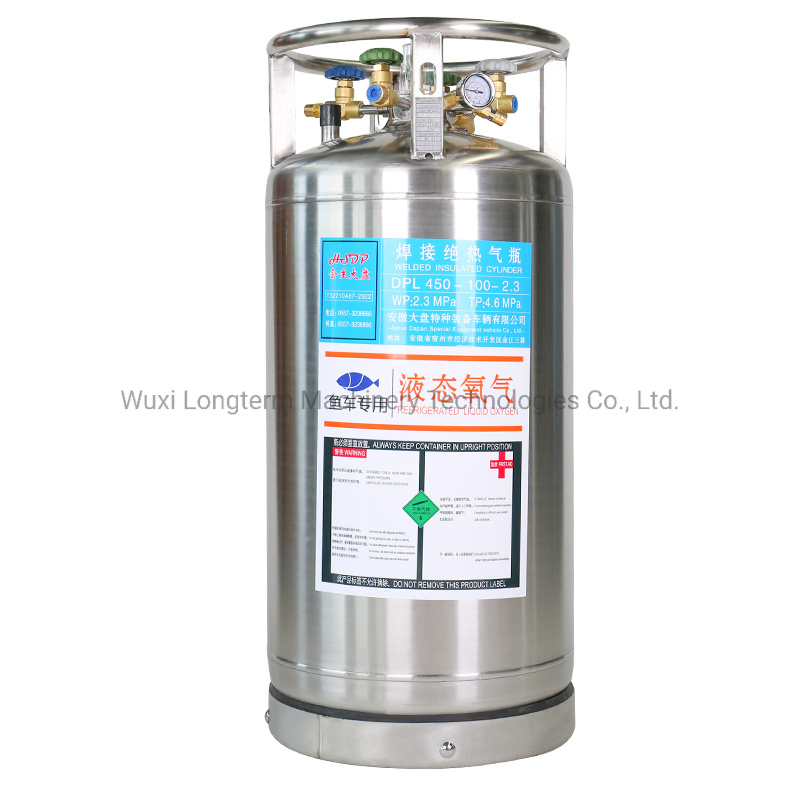

Vertical type
Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~

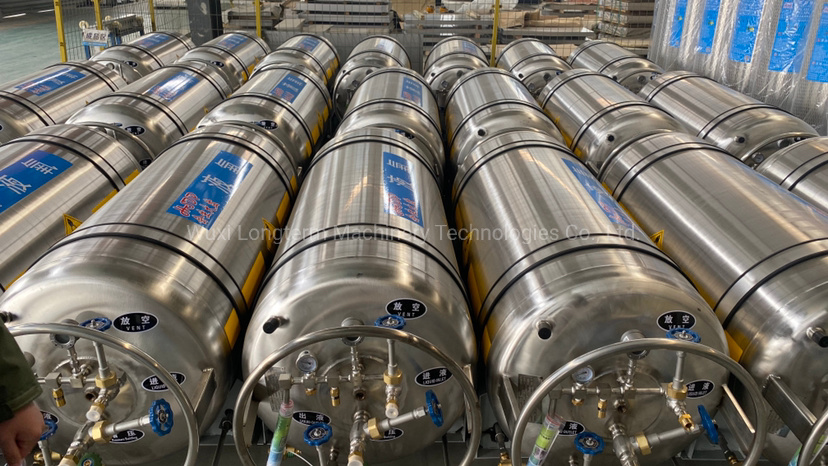

Horizontal type
Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~

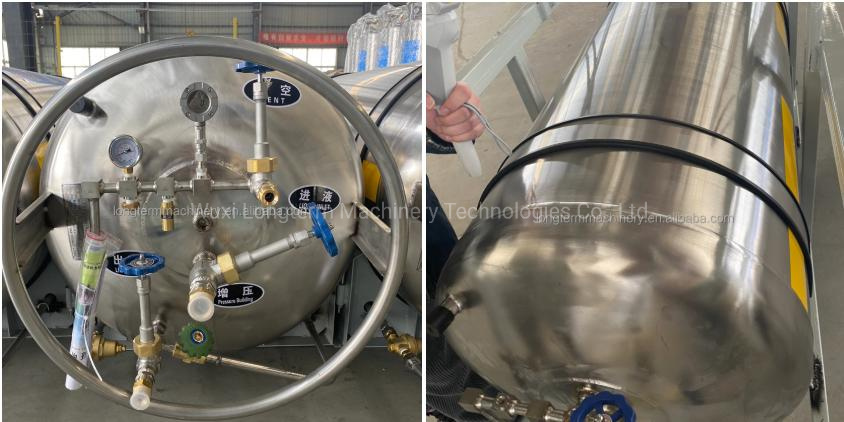

Details of cylinder
Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~
Technical Parameters
Product No. LNG Cylinder for vehicle
CDPW500
-150-1.59
CDPW500
-160-1.59
CDPW500
-170-1.59
CDPW500
-175-1.59
CDPW500
-180-1.59
CDPW500
-185-1.59
CDPW500
-190-1.59
CDPW500
-200-1.59
CDPW500
-205-1.59
CDPW500
-210-1.59
Dimension mm Φ556x1159 Φ556x 1209 Φ556x 1259 Φ556x 1284 Φ556x 1309 Φ556x 1334 Φ556x 1361 Φ556x 1412 Φ556x 1439 Φ556x 1464
Norminal Volume L 150 160 170 175 180 185 190 200 205 210
Effective Volume L 135 144 153 157.5 162 166.5 171 180 184.5 189
Net Weight Kg 131 136 141 143 145 148 150 155 158 160
Maximum filling capacity Kg 49 52 56 57 59 61 62 66 67 69
Weight with gas Kg 180 188 196 200 204 208 213 221 225 229
Static evaporation rate%/d ≤2.90 ≤2.70 ≤2.50 ≤2.40 ≤2.38 ≤2.36 ≤234 ≤2.30 ≤2.30 ≤2.29
Working pressure MPa 1.59
Testing Pressure MPa 3.18
Design temperatureºC -196
Opening pressure of main relief valve MPa 1.6
Opening pressure of auxiliary safety valve MPa 2.41
Filling medium LNG(liquified natural gas)
Air flow volume Nm3/h 60~120
Economic regulator setting value MPa 0.965
Pressure display method Pressure gauge and pressure sensor
Surface treatment Polishing
Level gauge form Capacitance level gauge
Base structure Saddle support
Material Austenitic stainless steel (06Cr19Ni10 or 304)

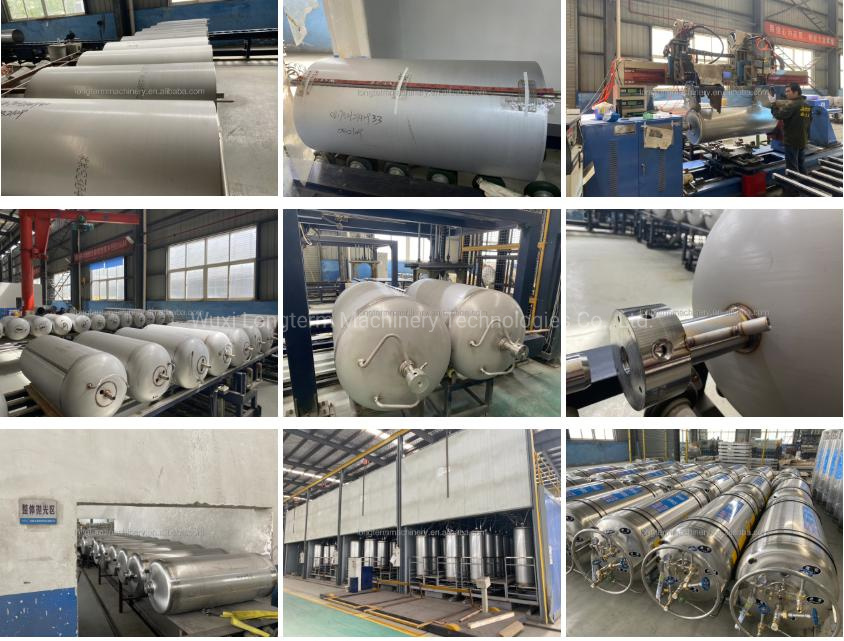

Production process

Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~

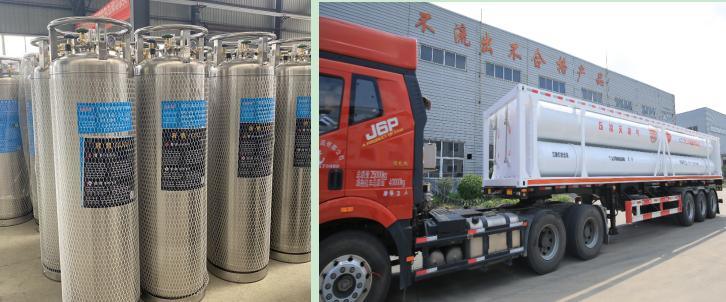

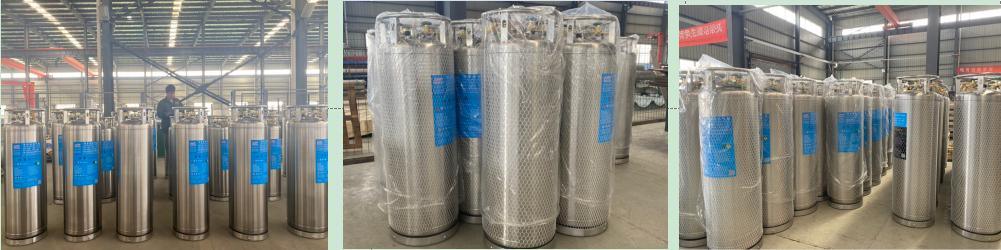

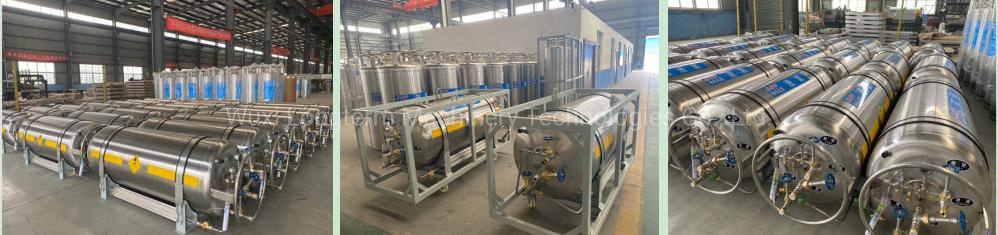

More cylinders to choose

Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~ Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~

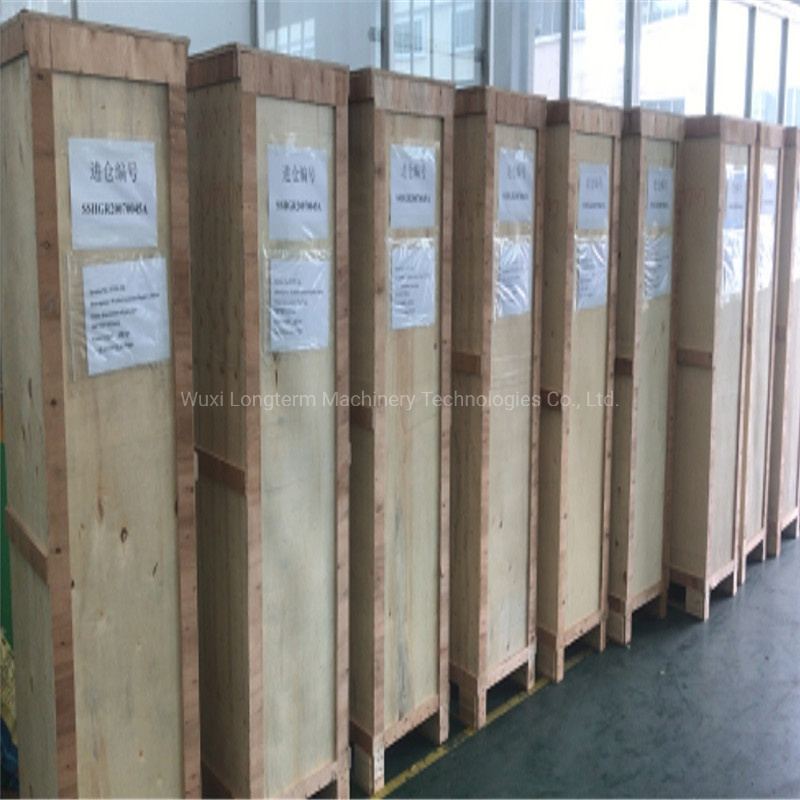

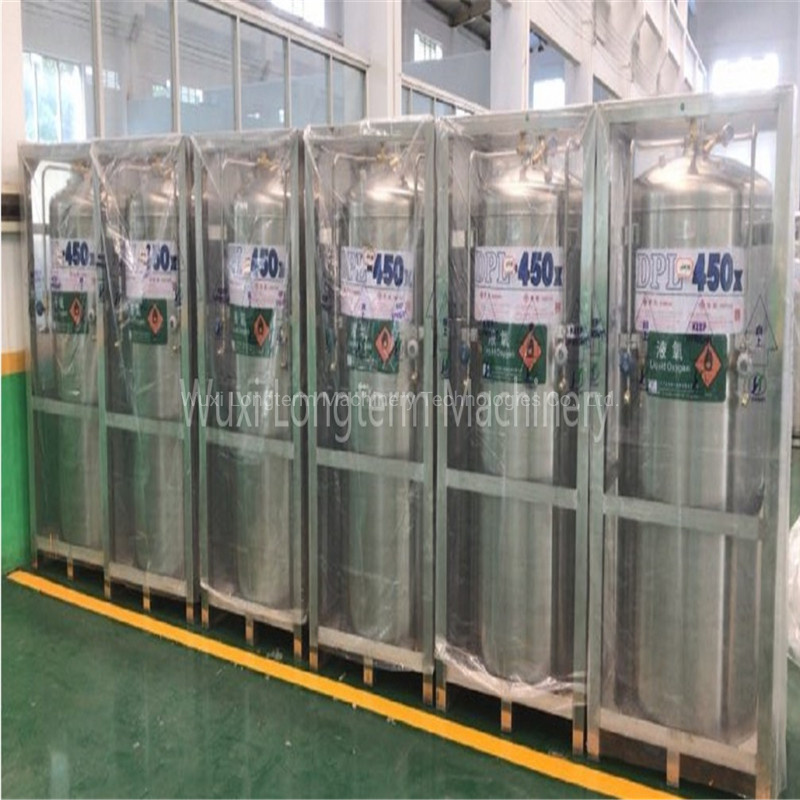

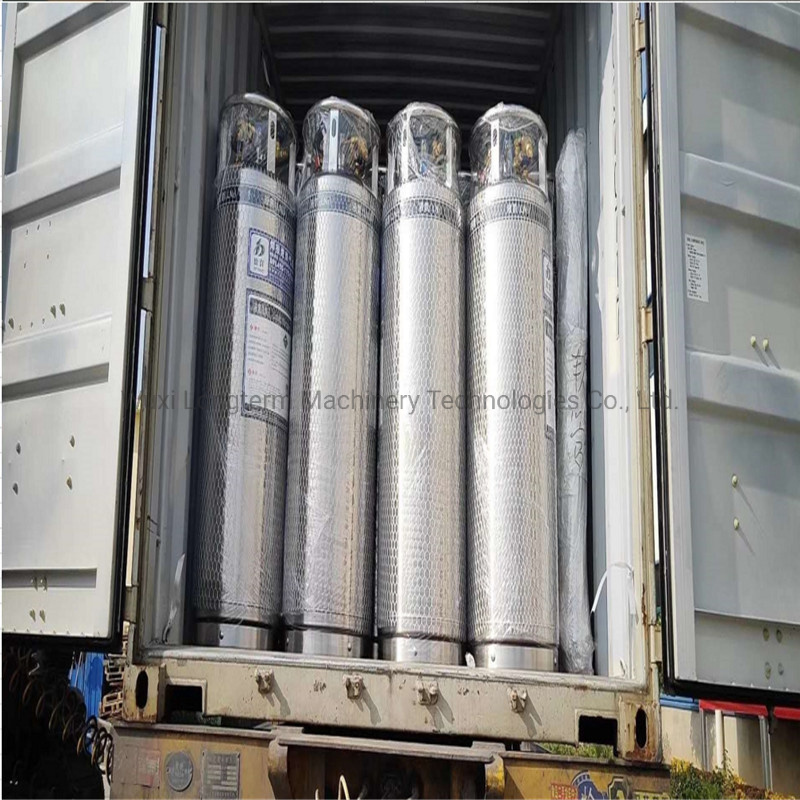

Package of welded insulated cylinder

Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~Vertical/Horizontal Welded Heat Insulated Liquid Gas Cylinders, CE/En Standard Cryogenic Storage Dewar Tank~


FAQ for welded insulated cylinder


Q: What products you can provide ?
A : We specialize in producing LPG cylinder, LNG cylinder, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), etc. Any interests you can feel to contact us for details. Thanks.
Q: What is your production standard?
A: Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates.
Q: Have you supplied cylinders to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank.
Q: What can you gurantee?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first.
