Cryogenic Cylinder for Truck Vehicle LNG Pressure Vessel

Quantity:



Inquire Add to Basket

Model NO.:
HS
Storage Medium:
Gas
Pressure Level:
Low Pressure (0.1MPa≤p<1.6MPa)
Condition:
New
Model Number:
Cpdw
Use:
Vehicle
Product Name:
Welded Insulated Cylinders
Dimension:
1368*500*500
Design Standard:
GB, EU
Key Selling Point:
Energy Saving
Max. Working Pressure:
1.59MPa
Certification:
Asem, Eac
Design Pressure:
0.3-1.0 MPa
After-Sale Service:
Video Technical Support
Transport Package:
Standard Seaworthy Package
Specification:
1400X550X550 cm
Trademark:
HS
Origin:
China Jiangsu
Production Capacity:
3500PCS/Month
Customization:
Available | Customized Request

Product Description

Product Description

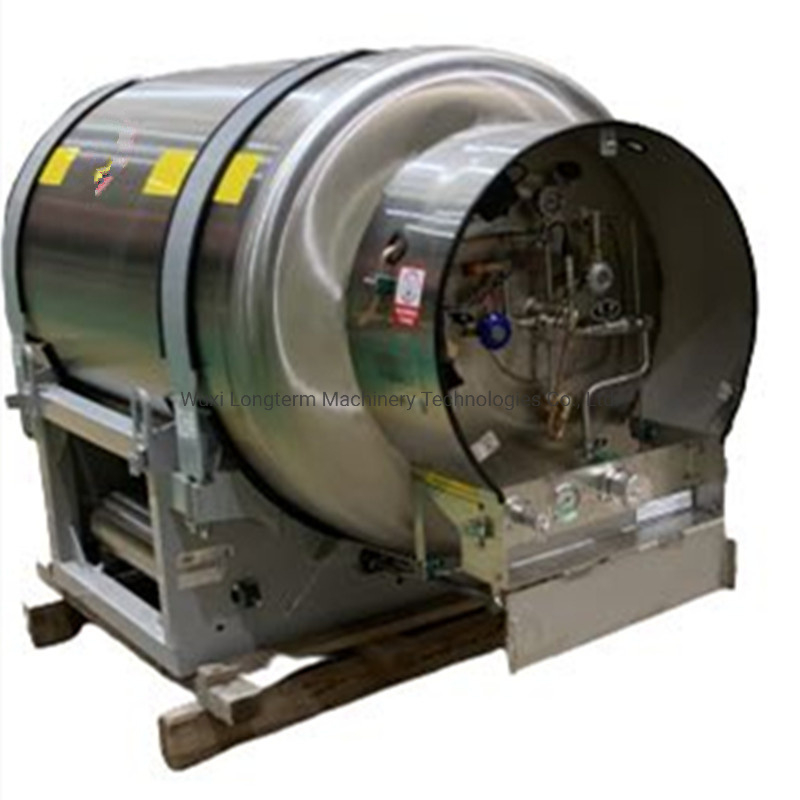

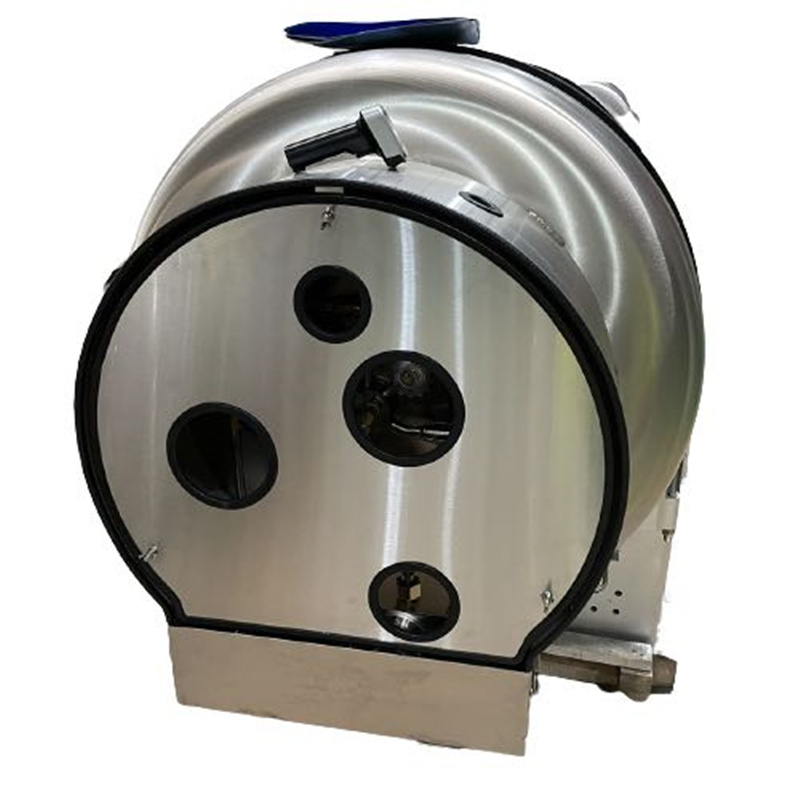

Cryogenic Cylinder for Truck Vehicle LNG Pressure Vessel

product name	Stand Industrial Welded Insulated Cylinders LNG cylinder LNG vehicle tank
Material	100% stainless steel
Color	Stainless steel color without painting
Certificate	ASME, GB, EAC

Product number	Volume/L	Diameter/mm	Length/mm	N.W/KG	Filling weight/KG	Evaporation rate
CDPW450-175-1.4	175	500	1368	111	67	2.4
CDPW450-200-1.4	200	500	1507	121	77	2.3
CPDW450-245-1.4	245	500	1788	140	94	2.23
CDPW450-275-1.4	275	500	1993	154	106	2.26
CDPW450-300-1.4	300	500	2149	165	115	2.2
CDPW450-330-1.4	330	500	2338	177	127	2.18
CDPW600-350-1.4	350	650	1548	174	135	2.17
CDPW600-380-1.4	380	650	1636	185	146	2.15
CDPW600-400-1.4	400	650	1725	193	154	2.13
CDPW600-450-1.4	450	650	1902	211	173	2.1
CDPW600-500-1.4	500	650	2060	228	193	2.01
CDPW650-350-1.4	350	700	1375	172	135	2.17
CDPW650-380-1.4	380	700	1465	183	146	2.15
CDPW650-400-1.4	400	700	1526	190	154	2.13
CDPW650-450-1.4	450	700	1676	207	173	2.1
CDPW650-500-1.4	600	700	1826	223	193	2
CDPW650-750-1.4	750	900	1749	384	249	2.4
CDPW650-800-1.4	800	900	1837	401	266	2.4
CDPW650-850-1.4	850	900	1925	419	283	2.4
CDPW650-900-1.4	900	900	2013	436	299	2.4
CDPW650-950-1.4	950	900	2101	453	316	2.4
CDPW650-1000-1.4	1000	900	2189	477	333	2.4

Cryogenic Cylinder for Truck Vehicle LNG Pressure Vessel

Q: What products you can provide ? A: We specialize in producing LPG cylinder, LNG cylinder, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), etc. Any interests you can feel to contact us for details. Thanks.

Q: What is your production standard?
A: Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates.

Q: Have you supplied cylinders to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank.

Q: What can you gurantee?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first. Generally speaking, our cryogenic storage tanks can work normally for 15-20 years.
