Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

Share to:

Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

Quantity:



Inquire Add to Basket

Model NO.:
LTM-LPG-001
Motor Power:
2.2 Kw
Voltage:
Customized
Motor Speed:
1400 R/Min
Working Air Pressure:
0.5-0.6MPa
Clamping Cylinder Stroke:
120 mm
Speed:
2 PCS/Min
Rotation Speed Ration:
1:59
Transport Package:
Seaworthy Package
Specification:
customized
Trademark:
HLT
Origin:
Jiangsu, China
HS Code:
84798900
Production Capacity:
600 Set/Year
Customization:
Available | Customized Request

Product Description

Product Description

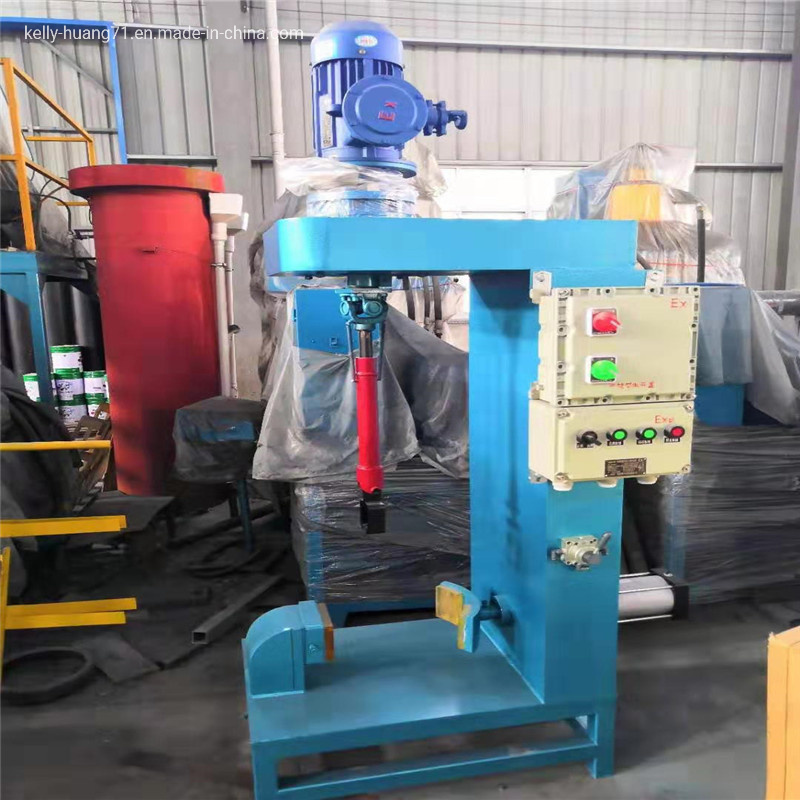

Valve Mounting Machine For LPG Gas Cylinder

Specification

item	value
Place of Origin	Jiangsu,China
Brand Name	Hansheng
Condition	New
Weight (KG)	150
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Engine, Motor, Pressure vessel, Pump
Warranty	1 Year
Applicable Industries	Manufacturing Plant
Showroom Location	United States, Viet Nam, Brazil, Thailand, Bangladesh, Tunisia
Power supply	380V, 50HZ
Air source pressure	0.5~0.7Mpa
Power	2.2KW
Efficiency	2-6/min
Motor	Servo motor control torque
Pneumatic pressure	0.8Mpa
Hydrostatic test pressure	4.0Mpa

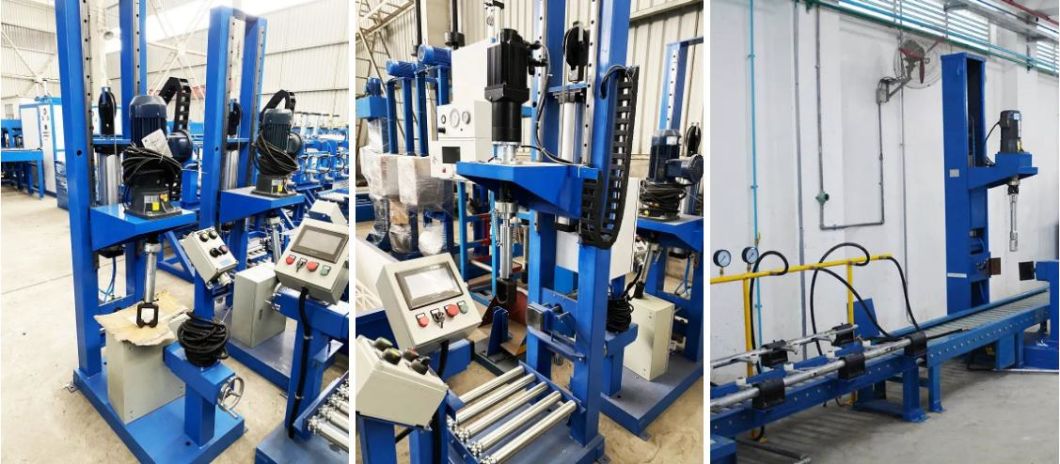

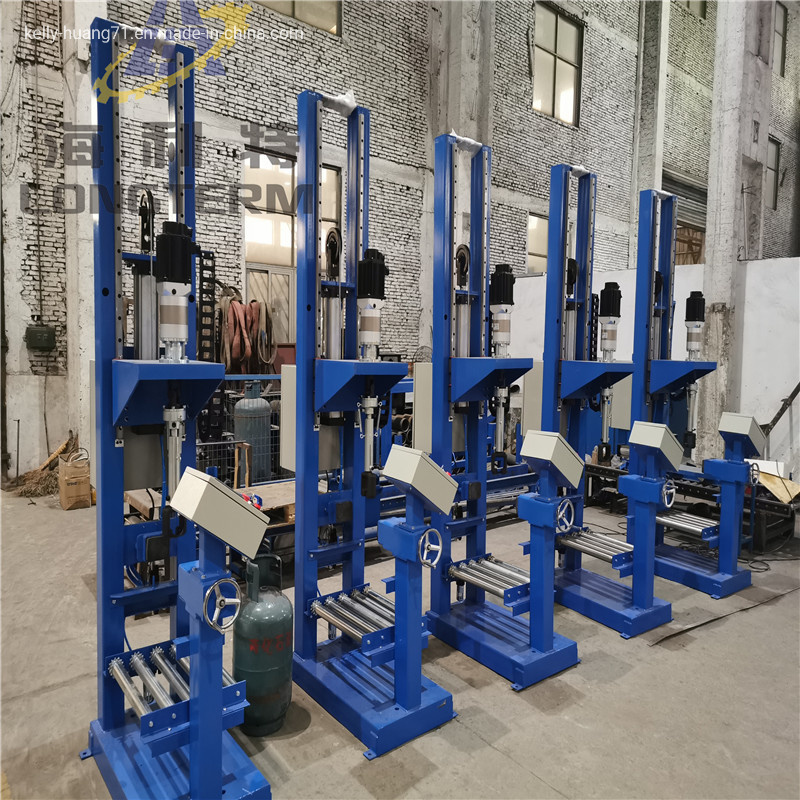

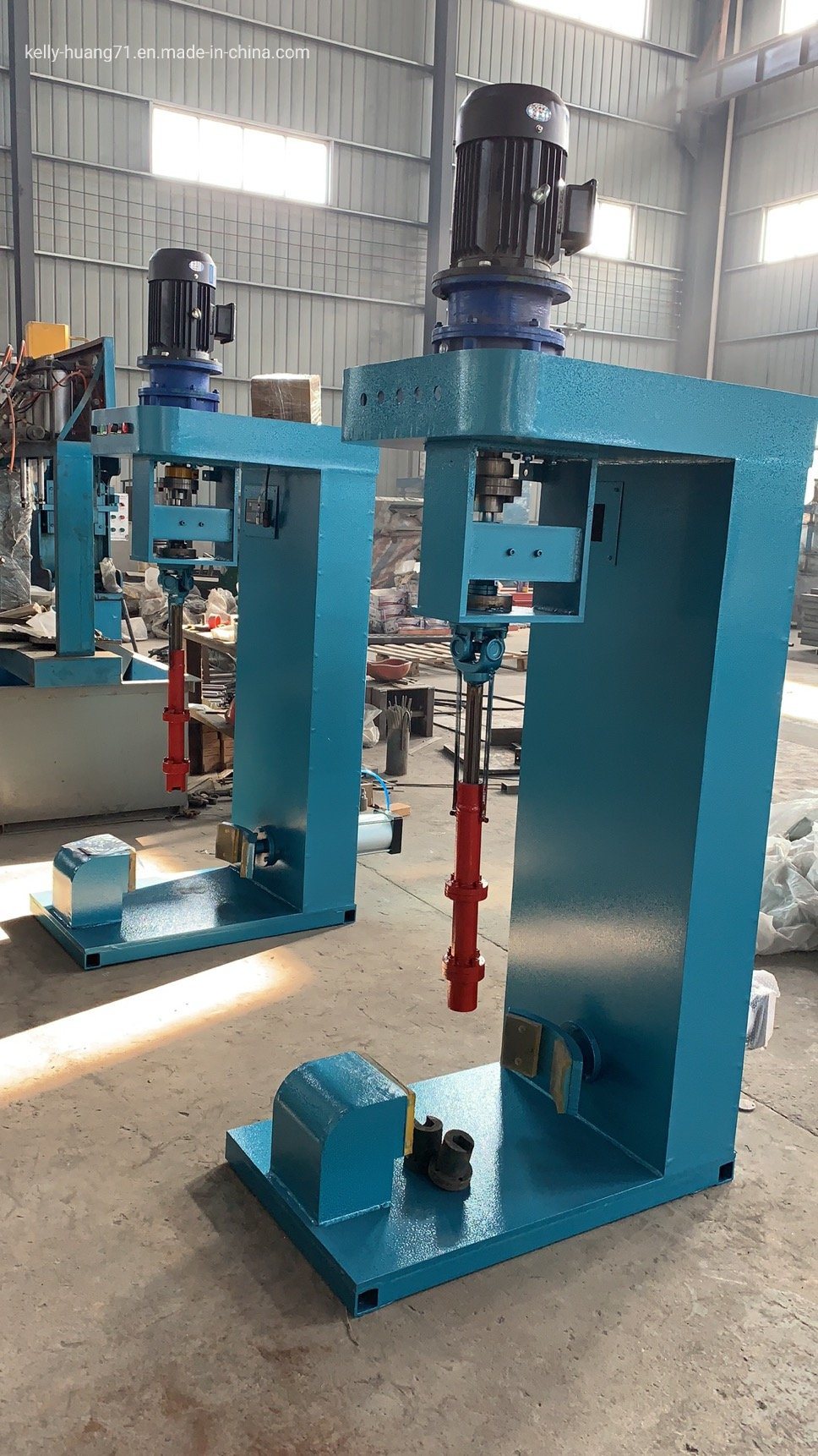

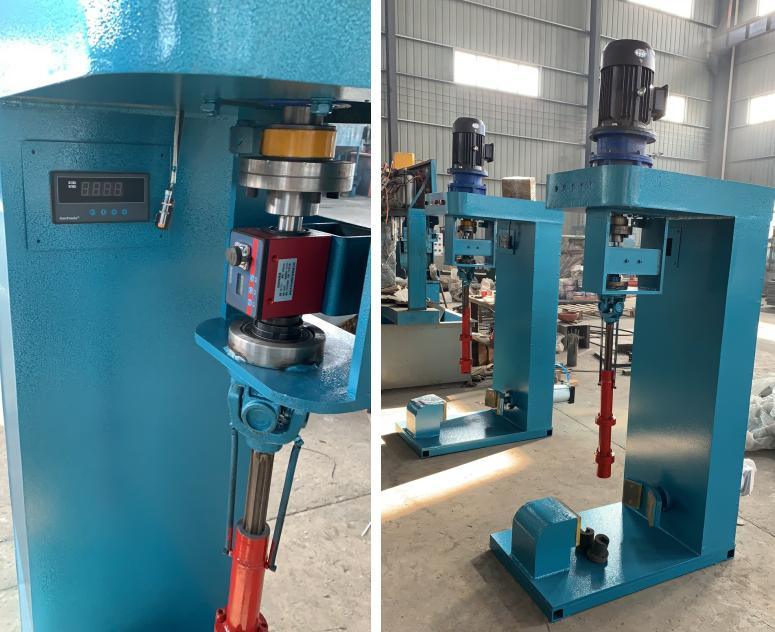

OPTION 1: Valve mounting machine with torque sensor (Digital display)
Main Parameters:

Motor power	2.2KW
Motor speed	1400r/min
Work spindle speed	15.5r/min
Working air pressure	0.5-0.6Mpa
Consumption per hour	1.14m3
Clamping cylinder stroke	120mm
Rotation speed ration	1:59
Weight	0.9T

Torque parameters can be seen by using a torque sensor (Digital display) Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

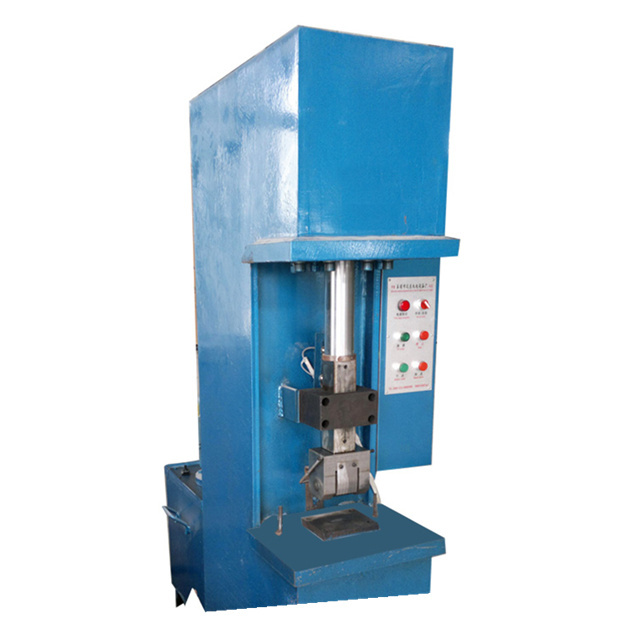

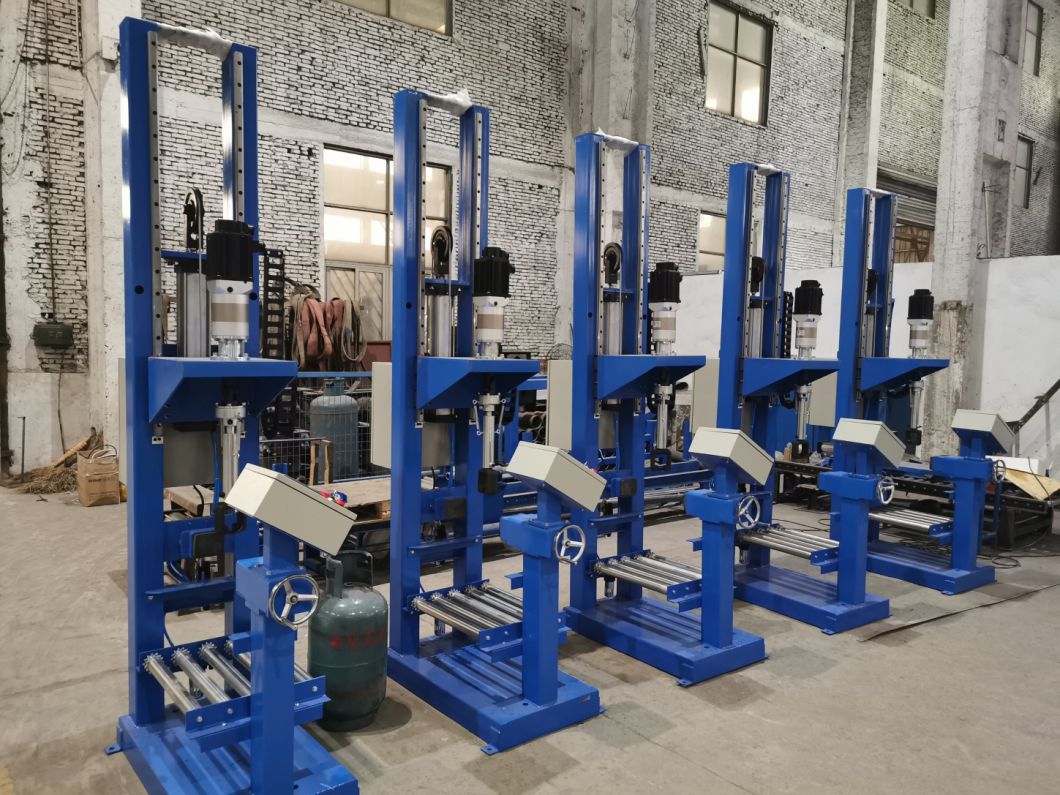

OPTION 2: QFL-3S Type Valve Mounting & Dismounting Machine

Main parameters:

Power:2KW.
For 6kg&13kg LPG cylinders
Compressed air pressure: 0.6MPa; Flow:0.1 cube/min
High-precision servo system to control torque and automatically stop when it is up to setting torque.
With two types of chucks.
With PLC and touch screen control, after the valve is installed, the valve outlet is automatically aligned with the shroud opening.

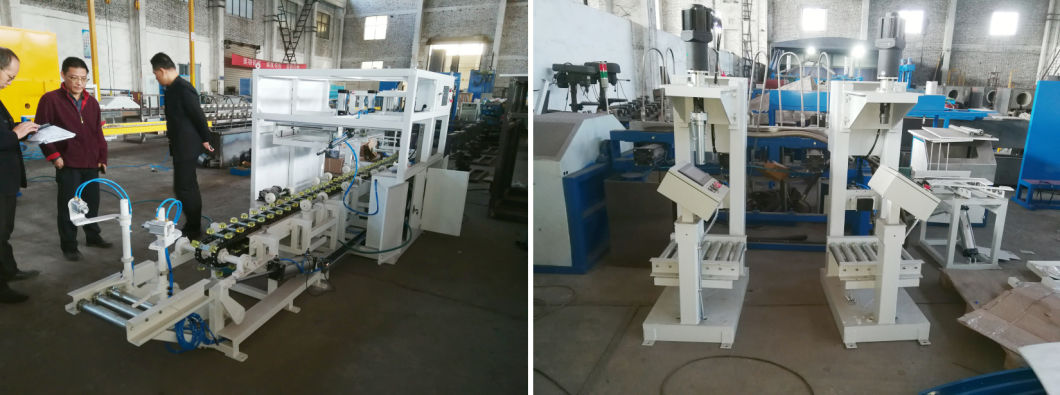

Machine Inspection

Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

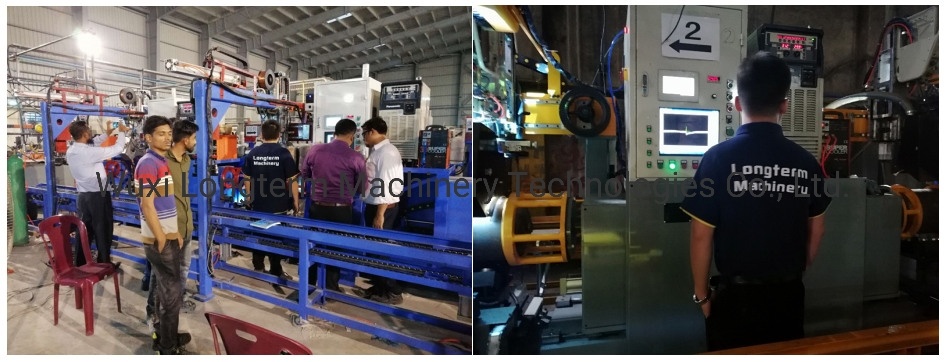

After Sale Service

Timely & Satisfied oversea installation service

We have rich experience for oversea installation and commissioning work, we always send the skilled engineers for assisting our clients to run the machine smoothly and quickly.

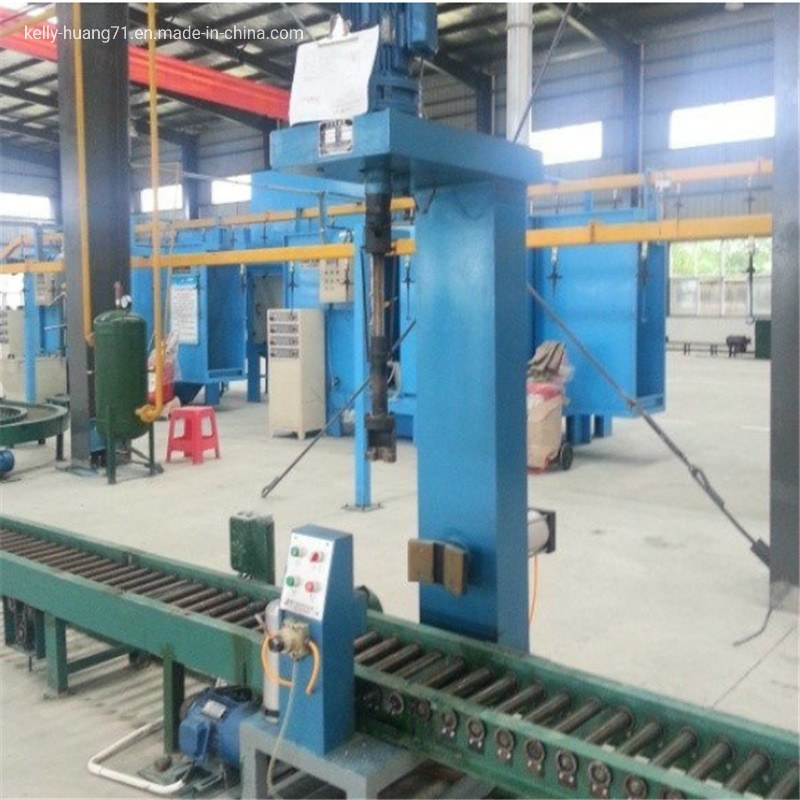

LPG Gas Cylinder Angle Valve Mounting Machine

LPG Gas Cylinder Angle Valve Mounting Machine

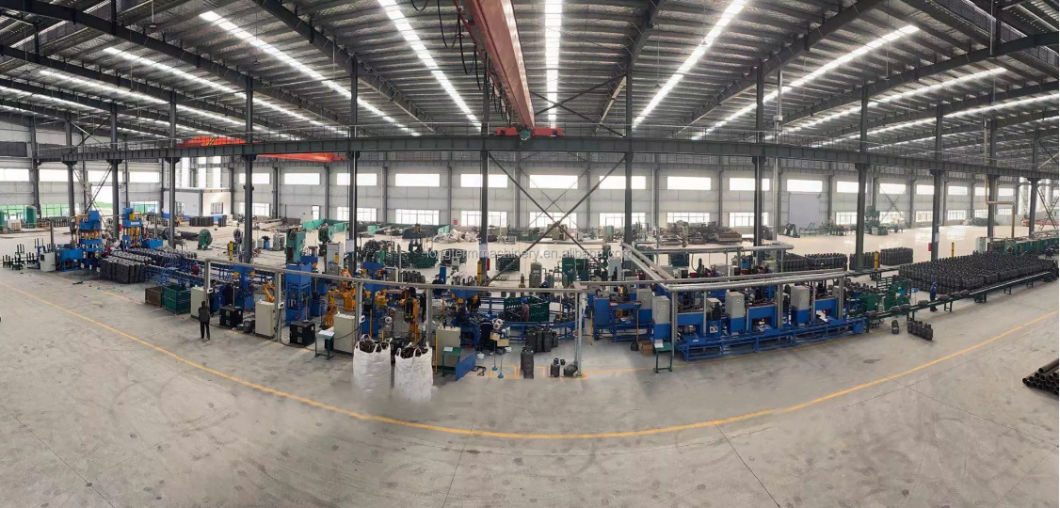

Our Factory Site

Our strong machining ability

Our hired employees are over 100 for different working process, such as milling lathe, punching machine, heat treatment, grinding machine, cause we make all machine parts by ourselves, we can ensure the parts quality by 100%.

Additionally, with strong manufacuting ability, we can delivery every order on time.

Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

Company Introduction Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

Wuxi Longterm Machinery Technologies Co.,Ltd specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time.

Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh,
Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya,Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the manpower and increasing the productivity.

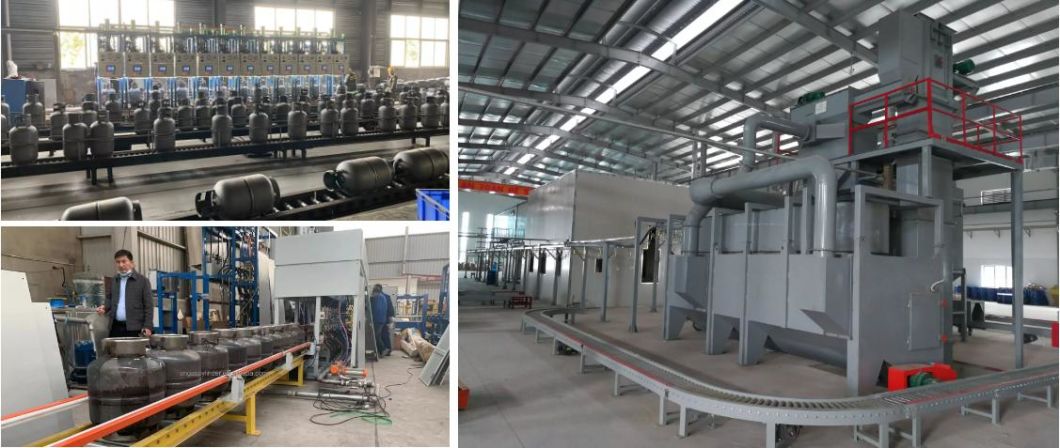

Main Machine Components of the LPG Gas Cylinder Production Line

For production line, we have manual type, semi-auto type, fully automatic type.
Following is the brief introduction of the Key Process of the production line.
*All the machine can be customized, also the specification.

Packing & Delivery

Valve Mounting Automatic Servo Motor Torque Controlled Screwing Machine Valve Screwing Machine

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Exhibition

FAQ

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

Q: Can the machine be customized?
A: Can be customized according to customer needs

Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Turnkey project LPG gas cylinder production line for new plant

Enable us provide the most suitable proposal for you, please tell me following details:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?

WELCOME TO INQUIRY!
