1.Application

The machine is used for stranding insulated cable core of control cable and steel wire armoring for cable.

• Control Cables Assembly with Back Twist
• Signal Cables Assembly with Back Twist
• Insulated Cables Assembly such as Robot Cables with Back Twist

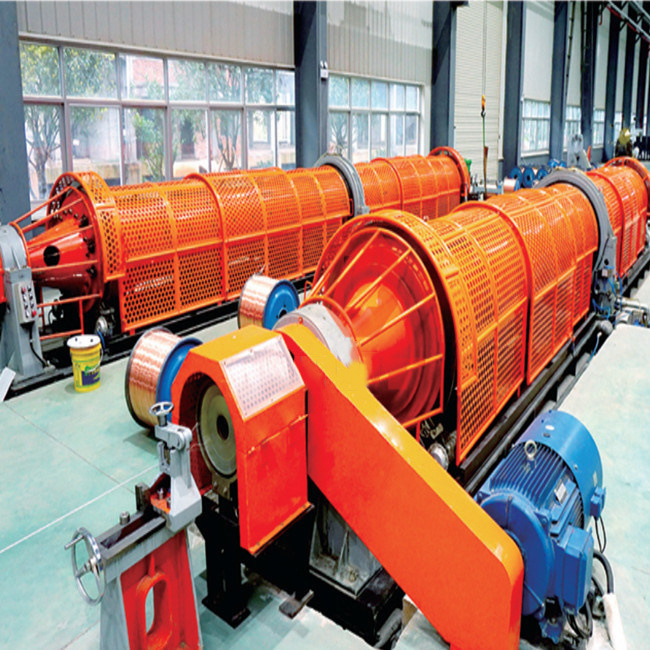

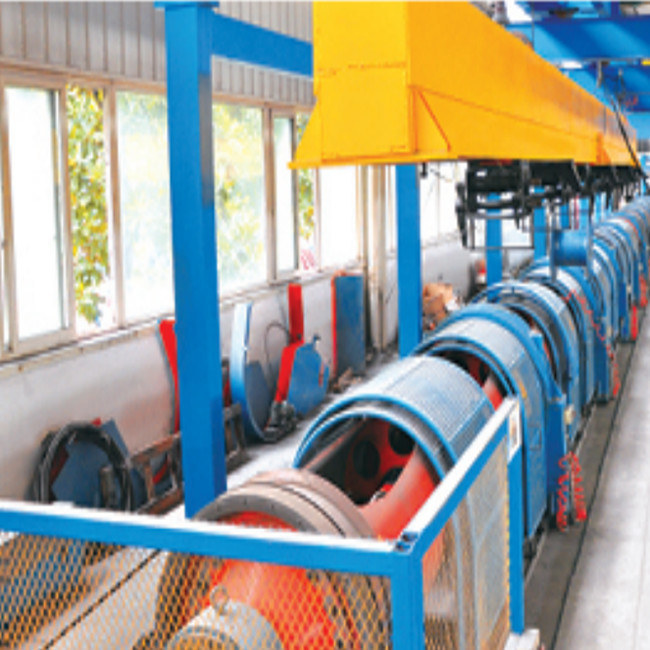

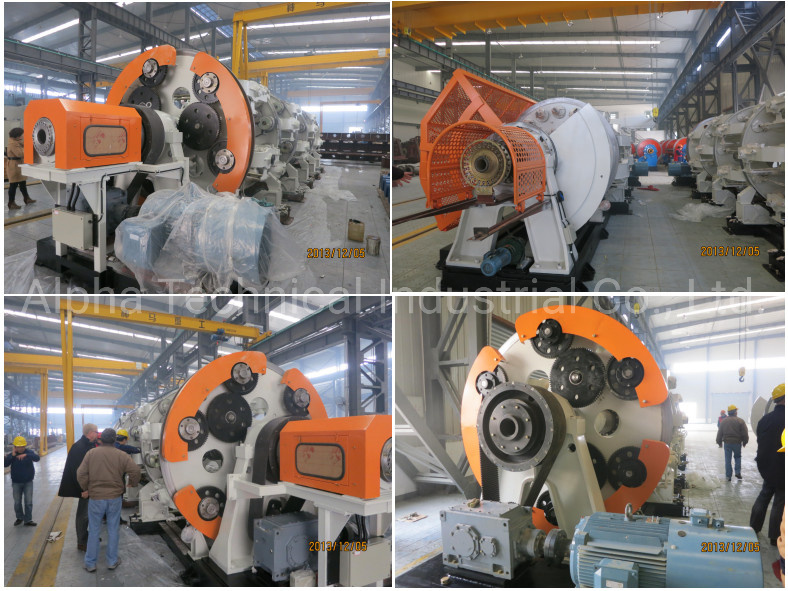

Machine pictures in our customer's plant and related finished products:

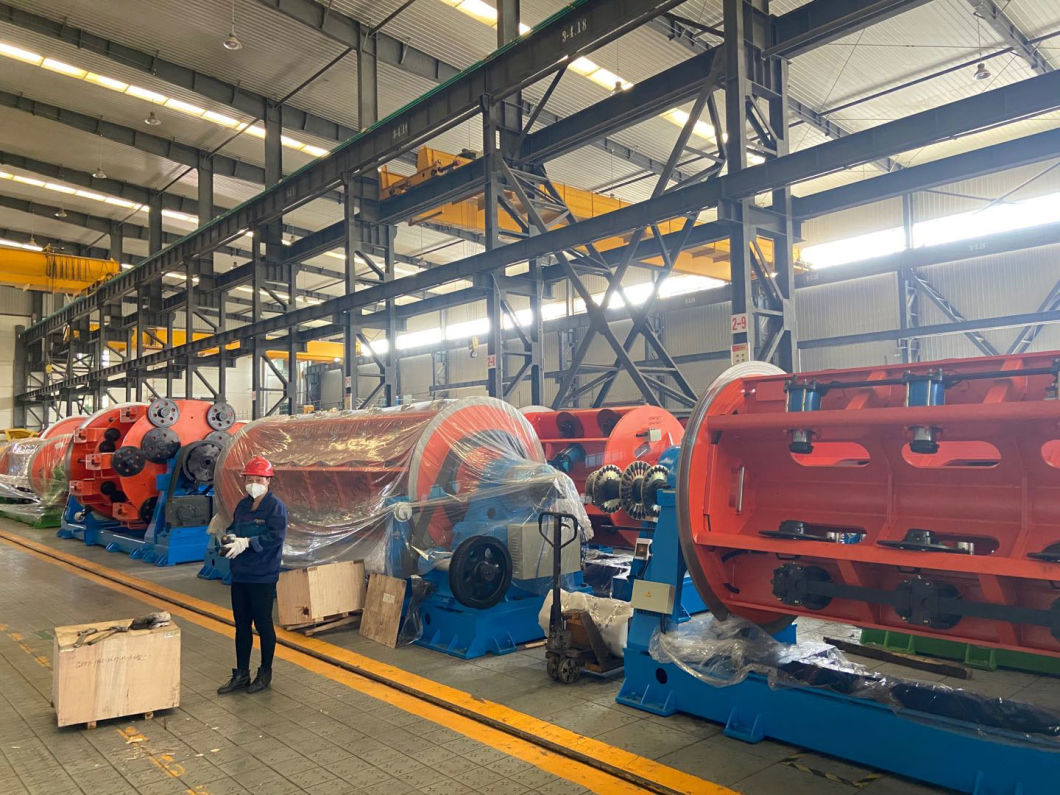

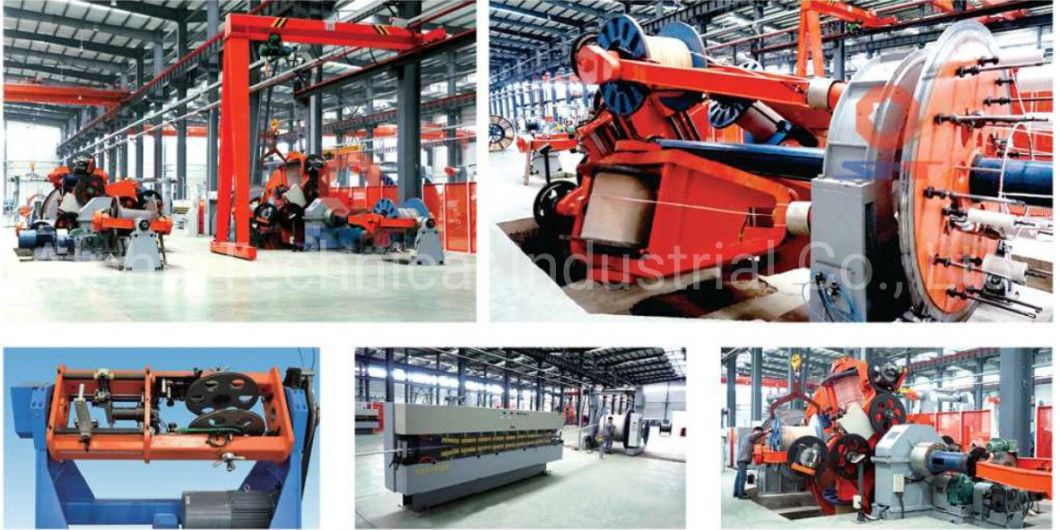

Our workshop:


2.Machine Technical Parameter 3.Equipment Pictures

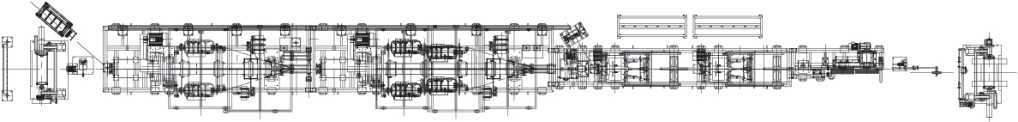

4.JLY F800/6+F400/9 Planetary Strander

1. Main parts
   1. Φ800 stationary pay-off 1 set
   2. Wire guiding stand 1 set
   3. F800/6+F400/9 cage 1 set
   4. Die holder 1 set
   5. F400/4 taping head 1 set
   6. Mechanical meter counter 1 set
   7. F2000 Dual wheel capstan 1 set
   8. F1600 Portal type take-up 1 set
   9. Mechanical transmission system 1 set
   10. Electrical control system 1 set
   11. Safety fence 1 set

5.Mechanical and electrical components
5.1 The bearings are from Ha Erbin, Wa Fangdian and Luoyang brand.
5.2 Motors are from Chinese famous products.
5.3 AC driver is from Danfoss brand.
5.4 DC driver is from SSD Parker 590 series brand.
5.5 PLC is from Siemens.
5.6 Touch screen is from Siemens.
5.7 Main low voltage electric components are from high quality and well-known Chinese brand.

Series of stranding line:

---Tubular stranding machine:
Copper/Aluminum/Steel wire stranding
Steel rope stranding
OPGW cables stranding

---Skip type stranding machine:
Aluminum wire sranding
Copper wire stranding
Steel wire stranding
ACSR stranding

---Rigid stranding machine:
Sector conductor stranding and compacting
Round conductor stranding and closing
Pre-spiral sector/milliken segment compacting
Sofe/Semi-hard Aluminum trapezoid wire strander (T/S/Z)
Carbon fiber reinforced core stranding
Expanded diameter conductor stranding

---Concentric stranding machine:
Compacting round or sector copper or aluminum conductors
Making overhead conductors
Stranding copper flexible conductors
Cable screening
Cable armoring

---Planetary stranding machine:
Copper/aluminum wire stranding
OPGW cable stranding

---Roll form double twister:
Rolling and forming the round AI wire into trapezoid wire, then, stranding TW as conductor

---Double twister with double pitch:
Copper wire stranding
Aluminum wire stranding
Copper wire/aluminum wire compacting

Series of stranding line for cable core:

---Drum twister with caterpillar:
LV/MV(MV/HV) power cables assembly
HV(Extra HV) power cables assembly
Steel wire armoring cables
Copper wire screening cables

---Combined type drum twister
Communication cables assembly
Control cables assembly
Mine cables assembly

---Vertical laying up machine
MV,HV or EHV subsea power cables assembly
Subsea electro-optic compound cables assembly
Umbilical cables assembly

---Planetary laying up machine / Planetary high speed laying up machine
LV power cables assembly
Communication cables assembly
Control cables assembly
Mine cables assembly

---Skip type strander
Control cables assembly
LV cables assembly
Arial bundle cables assembly







6.Our Team
Alpha Technical Industrial Co.,Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.

Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.

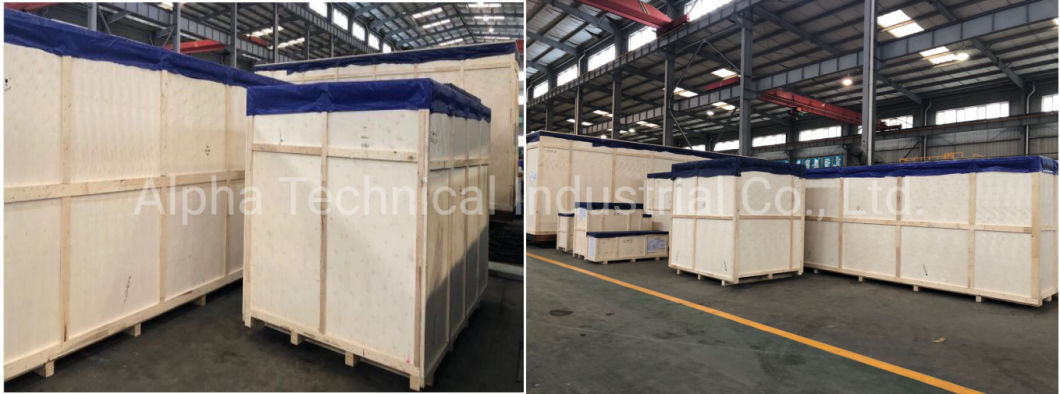

7.Package



8. FAQ
− Q: What can we offer our customers?

A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
