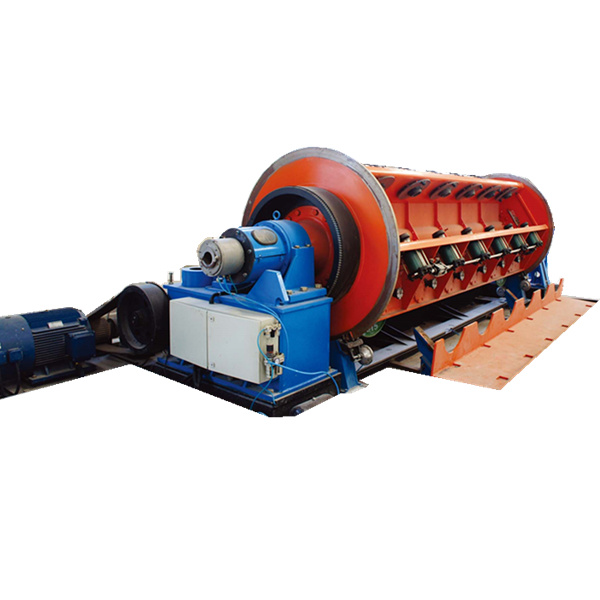

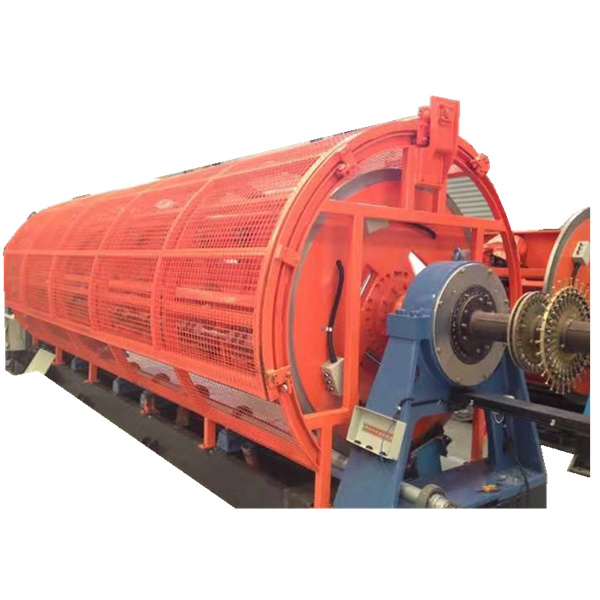

High Performance Wire Twisting Machine,Cable Stranding Machine&Cable Equipment
1.Application This kind of machine is used to make copper stranded wire,steel-core aluminium stranding wire and steel rope. It also can be used to stranded steel wire and insuated wire. - Copper/Aluminum/Steel Wire Stranding

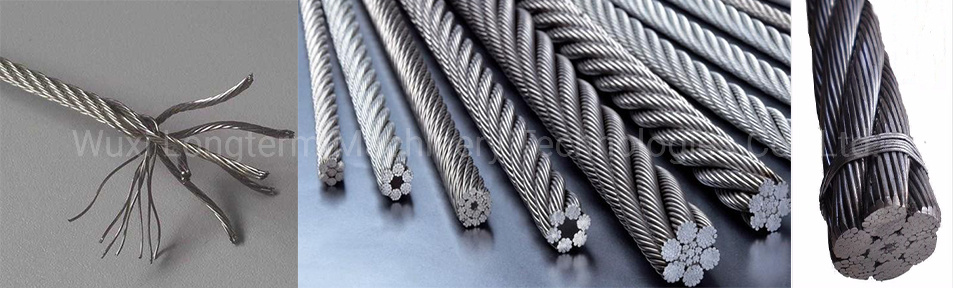

- Steel Rope Stranding
- OPGW Cables Stranding
2.Machine Technical Parameter Reel Size
(mm) | Max. Rotation Speed(rmp) | Max. Rotation Speed of Cage(with Stranding Bow)(rmp) | Single Wire Diameter(mm) |
| 6B | 12B | 18B | 24B | 36B | Bow Cradle | Max. Rotation Speed | Aluminum | Copper | Steel |
| φ200 | 1500 | 1400 | 1300 | 1100 | 900 | | | φ0.8-φ1.5 | φ0.6-φ1.5 | φ0.2-φ0.8 |
| φ315 | 1400 | 1300 | 1200 | 1000 | 800 | | | φ1.2-φ2.0 | φ1.0-φ2.0 | φ0.4-φ1.0 |
| φ400 | 1300 | 1200 | 1100 | 900 | 800 | φ800 | 500 | φ1.5-φ3.0 | φ1.2-φ3.0 | φ0.6-φ2.0 |
| φ500 | 1100 | 1000 | 850 | 750 | 700 | φ1000 | 400 | φ1.5-φ4.0 | φ1.5-φ4.0 | φ0.75-φ3.0 |
| φ560 | 900 | 800 | 700 | 650 | 600 | φ1250 | 350 | φ1.5-φ5.0 | φ1.5-φ5.0 | φ0.85-φ3.5 |
| φ630 | 900 | 800 | 700 | 650 | 600 | φ1250 | 350 | φ1.5-φ5.0 | φ1.5-φ5.0 | φ0.85-φ3.5 |
| φ710 | 600 | 500 | 450 | 400 | 350 | φ1600 | 300 | φ1.5-φ6.6 | φ1.5-φ6.6 | φ0.85-φ4.5 |
| φ760 | 500 | 450 | 400 | 350 | 300 | φ1600 | 300 | φ2.0-φ7.0 | φ2.0-φ7.0 | φ1.2-φ4.5 |
| φ800 | 450 | 400 | 300 | 300 | 220 | φ1600 | 300 | φ2.0-φ7.0 | φ2.0-φ7.0 | φ1.2-φ4.5 |

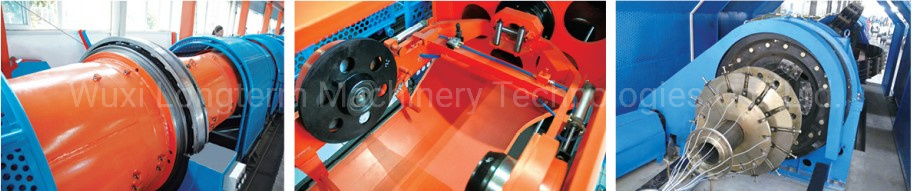

3.Equipment Details Series of stranding line:

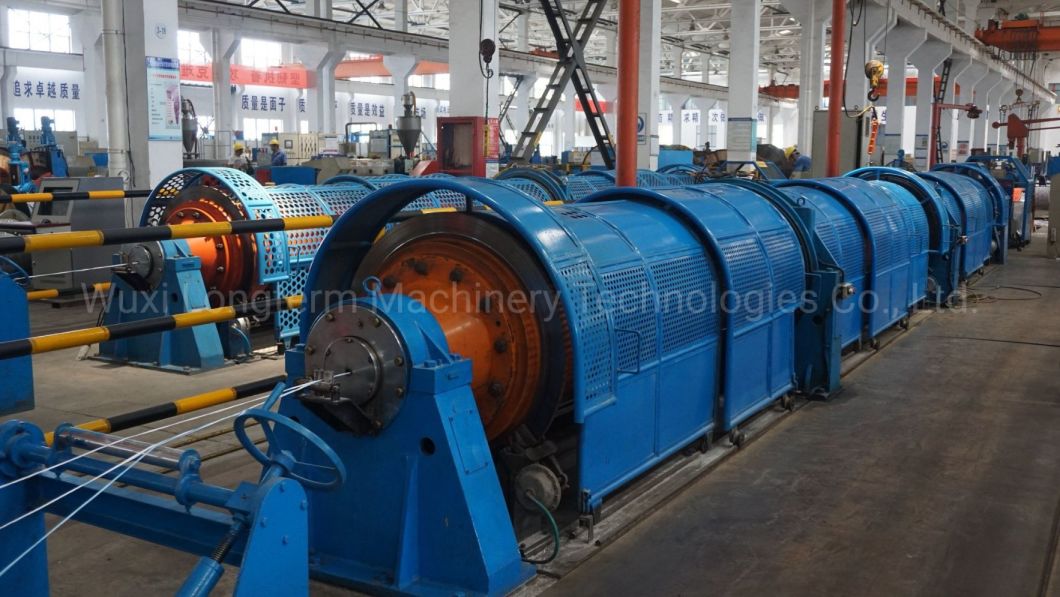

---Tubular stranding machine:
Copper/Aluminum/Steel wire stranding
Steel rope stranding
OPGW cables stranding
---Skip type stranding machine:
Aluminum wire sranding
Copper wire stranding
Steel wire stranding
ACSR stranding

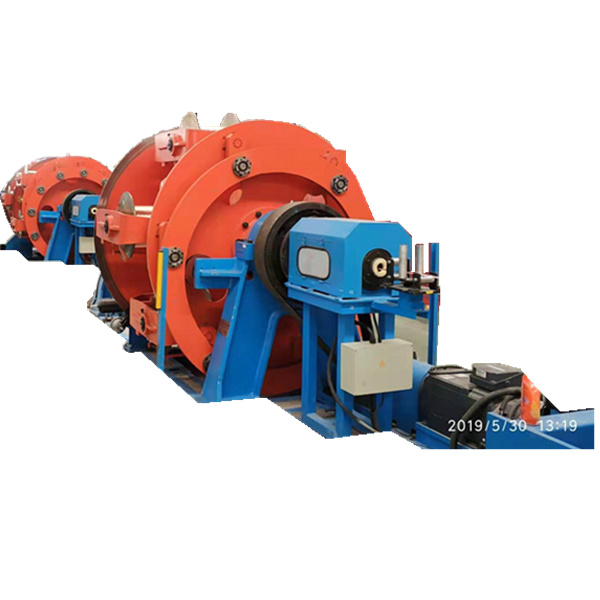

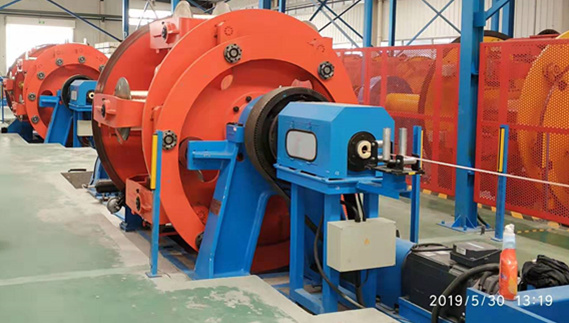

---Rigid stranding machine:
Sector conductor stranding and compacting
Round conductor stranding and closing
Pre-spiral sector/milliken segment compacting
Sofe/Semi-hard Aluminum trapezoid wire strander (T/S/Z)
Carbon fiber reinforced core stranding
Expanded diameter conductor stranding
---Concentric stranding machine:
Compacting round or sector copper or aluminum conductors
Making overhead conductors
Stranding copper flexible conductors
Cable screening
Cable armoring
---Planetary stranding machine:
Copper/aluminum wire stranding
OPGW cable stranding
---Roll form double twister:
Rolling and forming the round AI wire into trapezoid wire, then, stranding TW as conductor
---Double twister with double pitch:
Copper wire stranding
Aluminum wire stranding
Copper wire/aluminum wire compacting
Series of stranding line for cable core:

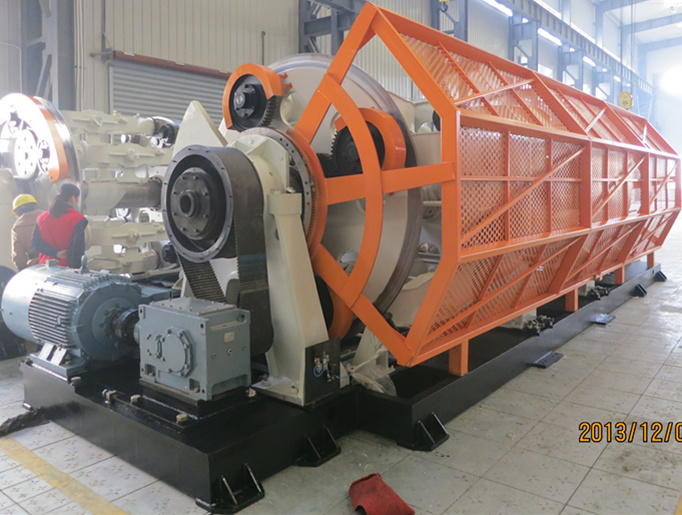

---Drum twister with cater-pillar:
LV/MV(MV/HV) power cables assembly
HV(Extra HV) power cables assembly
Steel wire armoring cables
Copper wire screening cables
---Combined type drum twister
Communication cables assembly
Control cables assembly
Mine cables assembly
---Vertical laying up machine
MV,HV or EHV subsea power cables assembly
Subsea electro-optic compound cables assembly
Umbilical cables assembly
---Planetary laying up machine / Planetary high speed laying up machine
LV power cables assembly
Communication cables assembly
Control cables assembly
Mine cables assembly
---Skip type strander
Control cables assembly
LV cables assembly
Arial bundle cables assembly 4. Company Alpha Technical Industrial Co.,Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Cater-pillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.
Our Team

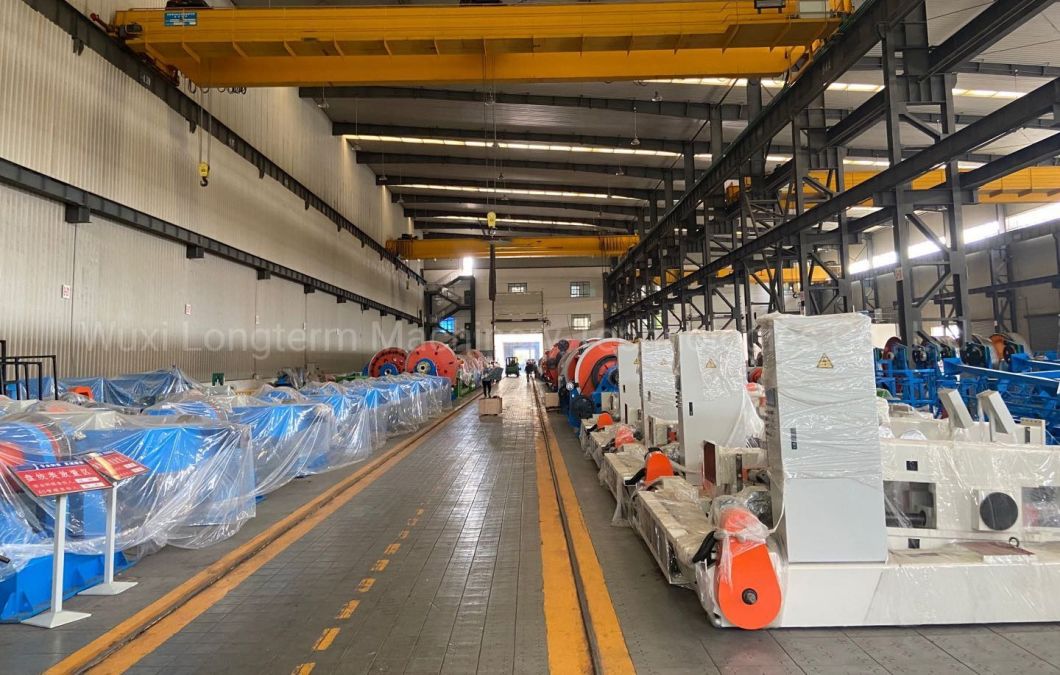

5.Package

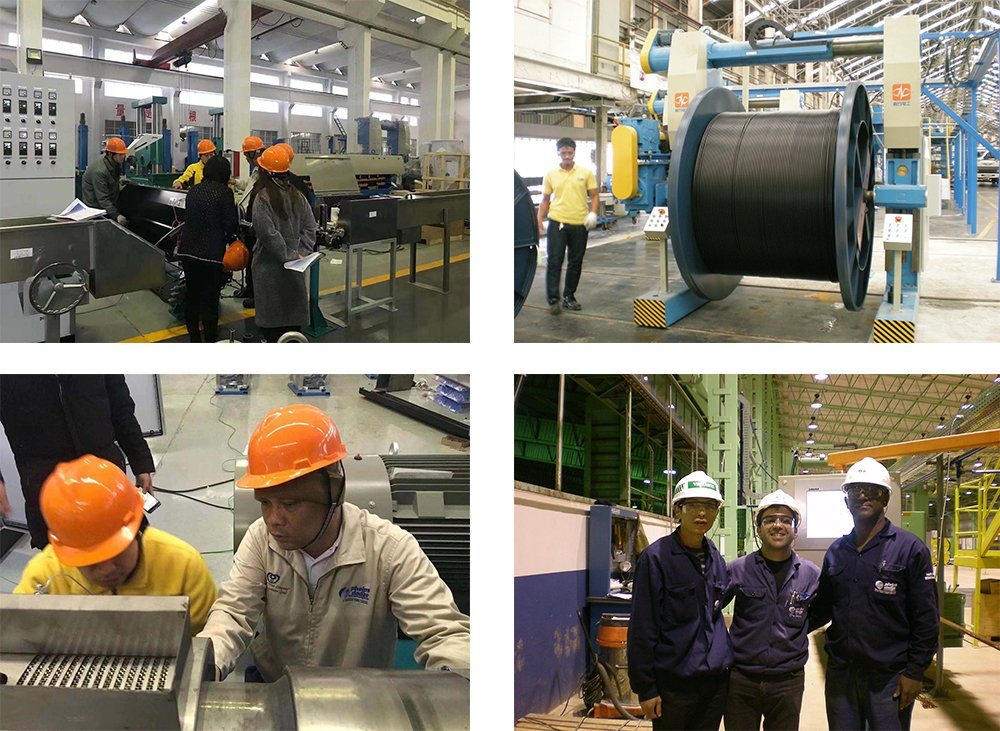

6. Customers & Services
7. FAQ − Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service. Enable to give you a quotation for the cable stander, there is some necessary information that we need to know:
