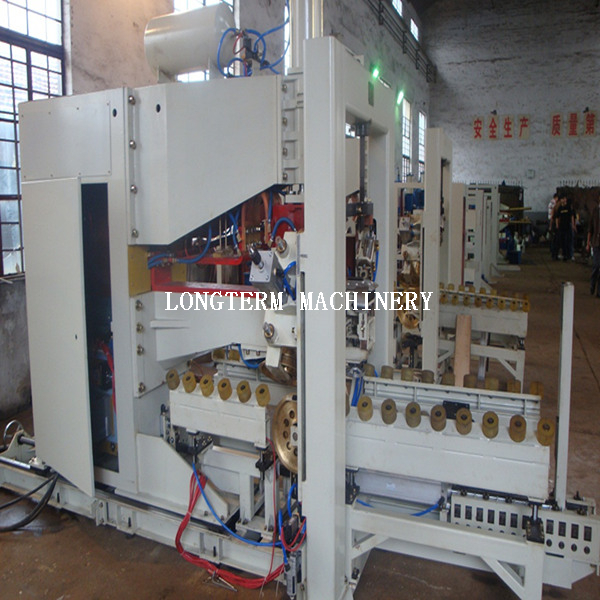

Semi-automatic drum body welding machine

The welder has the following functions:

1. Adjust welding pressure evenly.

2. Stepless adjusting the welding speed

3. Freely adjust the current and heat

When upper and lower weld rollers wear out, adjust the hand wheel above the pneumatic cylinder to keep the original distance.

Quantity:
  • HLT-001
  • HLT
  • 73079900

Product Description

Semi-automatic drum body welding machine



I.Function

The working principle of the welder are as follows:

The sheet is put between two welding rollers (the ends of the sheet will be lapped), with pressure, the welding rollers turn. With low voltage, big current and resistance radiation, the two short-cut poles generate heat which connect the working piece.

With special fixture, the FN1-200-5 seam welder can weld steel drum directly without spot-welding.

II.Feature

The welder has the following functions:

1. Adjust welding pressure evenly.

2. Stepless adjusting the welding speed

3. Freely adjust the current and heat

When upper and lower weld rollers wear out, adjust the hand wheel above the pneumatic cylinder to keep the original distance.



III. Technical Data

Description Unit Data
Rated capacity KVA 200
Rated voltage V 380
Rated current A 526
Frequency HZ 50
Continuous capacity KVA 140
Continuous current A 370
Duty cycle % 50
Secondary floating voltage V 6.8~7.6
Secondary voltage regulation
2
Welding speed m/min 0~7
Thickness of maximum weldment mm 2+2
Rated welding thickness of weldment mm 1.5+1.5
Extension elongation of electrode arm mm 1100
Adjustable top electrode strode mm 135
Maximum working pressure N 6000
Compressed air consumption m3/h 2.5
Air pressure MPa 0.5
Cooling water consumption L/h 4000
Motor power KW 1.5
Weight of welder kg 2700
External dimension (length × width × height) mm 4300×1550×2570

Steel Drum Automatic Spot Welding& Seam Welding Machine



Option 2: Spot welding+ resistance seam welding machine—with automatic sheet loading/unloading device

Steel Drum Automatic Spot Welding& Seam Welding Machine

Steel Drum Automatic Spot Welding& Seam Welding Machine

Model NO: HLT
Warranty: 1 Year
Lead Time: 45 days after receiving deposit
Trademark: HLT
Transport Package: Standard Searworthy Package
Specification: ISO9001
Origin: Jiangsu, China



Steel Drum Automatic Spot Welding& Seam Welding Machine
Steel Drum Automatic Spot Welding& Seam Welding Machine

Steel Drum Automatic Spot Welding& Seam Welding Machine


Customer Visiting



Packaging &Shipping

Packaging Details: Standard seaworthy packing

Delivery Time: 1 month after receving your advance payment

Our services

Engineers available to service machinery overseas.



FAQ

To enable me give you correct proposal for correct machines, please tell me following details:

A: Technical drawing of steel drum
B: Size of the steel drum you want to manufacture
C: What’s the capacity per shift/day?
