PTFE Gland Packing Seal Making/Braiding Machine
Technical Specification

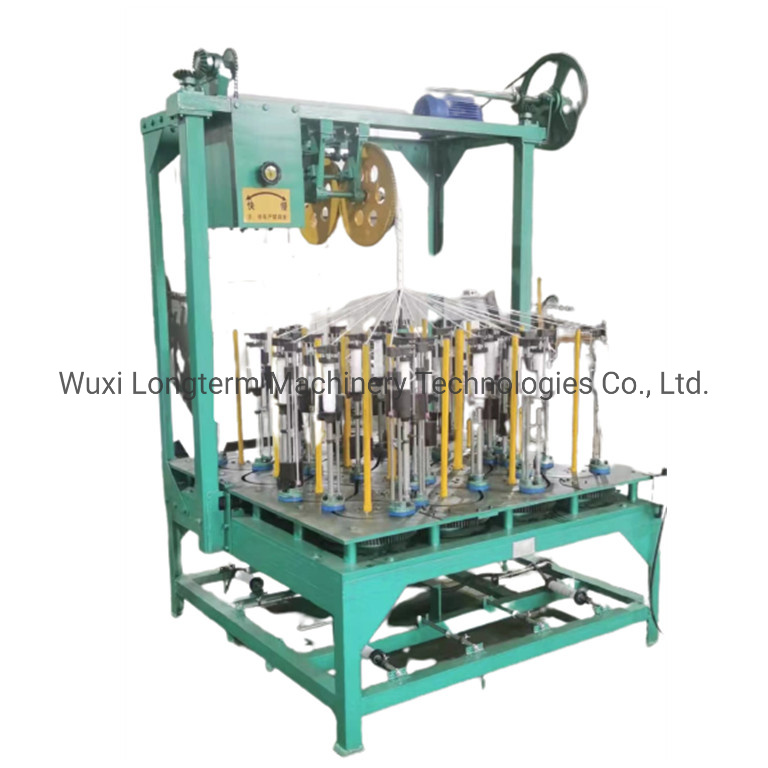

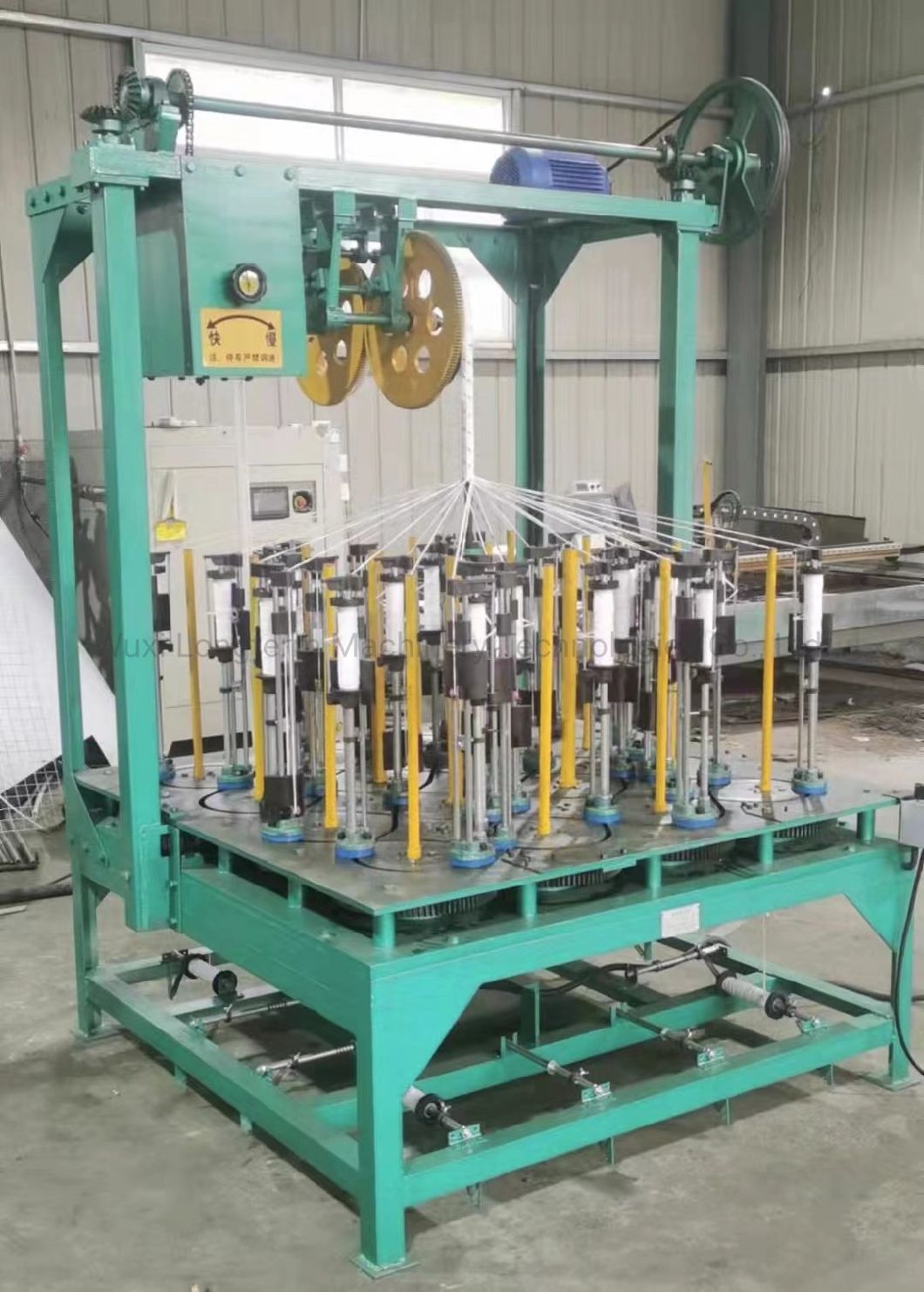

- 1 Vertical square two-track 8-spindle braiding machine (universal)
| Dimensions | 900x900x1850 |
| Weight | 300kg |
| Power | 0.75kw |
| Weaving range | between 3x3mm-8x8mm, determined according to the requirements and the thickness of the wire |
| Braided tube | Length | 190mm |
| Diameter | 70mm |
| Fiber tension | 0.5-0.8kg ,according to different materials |
| Weaving speed | 0.2-0.4 meters per minute, determined according to product size and tightness |
| Weaving density | change gear adjustment |
1.2.Vertical square three-track 18-spindle braiding machine (universal)
| Dimensions | 1100x1100x1950 |
| Weight | 600kg |
| Power | 0.75kw |
| Weaving range | between 6x6mm-15x15mm, determined according to the requirements and the thickness of the wire.
|
| Braided tube | Length | 190mm |
| Diameter | 70mm |
| Fiber tension | 0.8-1.1kg,according to different materials |
| Weaving speed | 0.2-0.4 meters per minute, determined according to product size and tightness. |
| Weaving density | change gear adjustment |
- 3. Vertical square four-track 24-spindle braiding machine (universal)
| Dimensions | 1450x1400x2250 |
| Weight | 1200kg |
| Power | 1.5kw |
| Weaving range | between 10x10mm-35x35mm, determined according to the requirements and the thickness of the wire.
|
| Braided tube | Length | 190mm |
| Diameter | 70mm |
| Fiber tension | 0.8-1.3kg, according to different materials |
| Weaving speed | 0.2-0.4 meters per minute, determined according to product size and tightness. |
| Weaving density | mechanical stepless adjustment |
- 4 Vertical square four-track 32-spindle braiding machine (universal)
| Dimensions | 1650x1700x2300 |
| Weight | 1600kg |
| Power | 1.5kw |
| Weaving range | between 16x16mm-50x50mm, determined according to the requirements and the thickness of the wire. |
| Braided tube | Length | 190mm |
| Diameter | 70mm |
| Fiber tension | 1.0-1.3kg,according to different materials |
| Weaving speed | 0.2-0.4 meters per minute, determined according to product size and tightness. |
| Weaving density | mechanical stepless adjustment |
- 5 Single-spindle high-speed variable frequency winding machine
*One winding machine can be used for 4 braiding machines. | Dimensions | 500x700x1200mm |
| Weight | 200kg |
| Power | 0.55kw |
| Winding speed | frequency conversion adjustable,
1-3 minutes to wind a bobbin |
- 6 Four stick forming machine
*A machine for the final forming of packing, a machine for pressing the packing into a square size | Dimensions | 550x750x1500mm |
| Weight | 550kg |
| Power | 1.5kw |
| Molding speed | 15 meters per minute,
molding range 3x3mm-50x50mm |

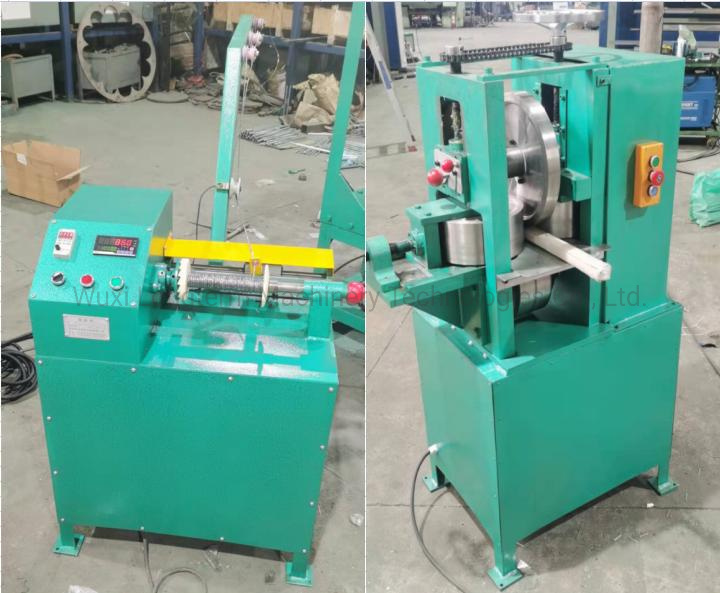

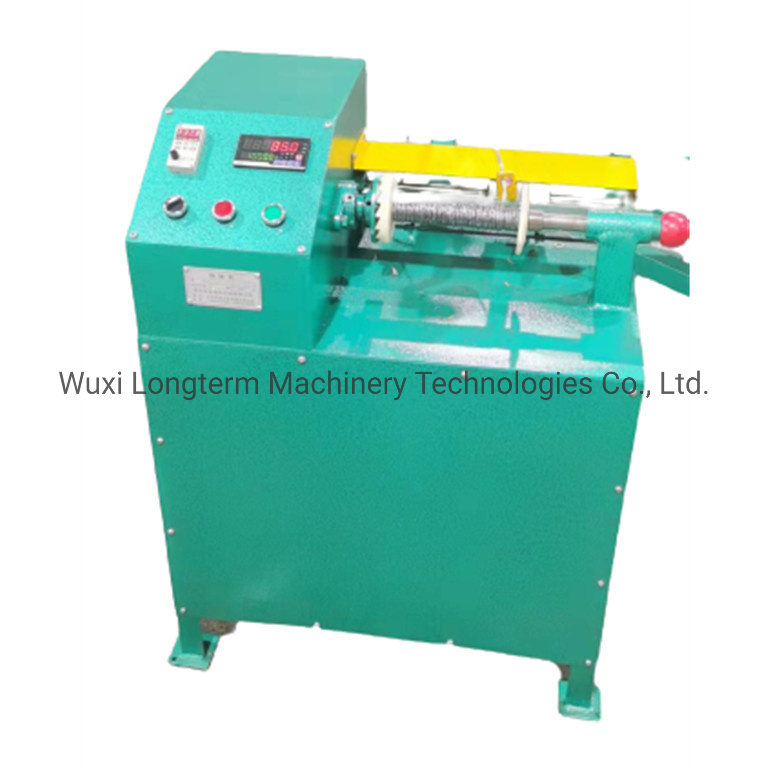

Product Display Single-spindle high-speed variable frequency
winding machine |

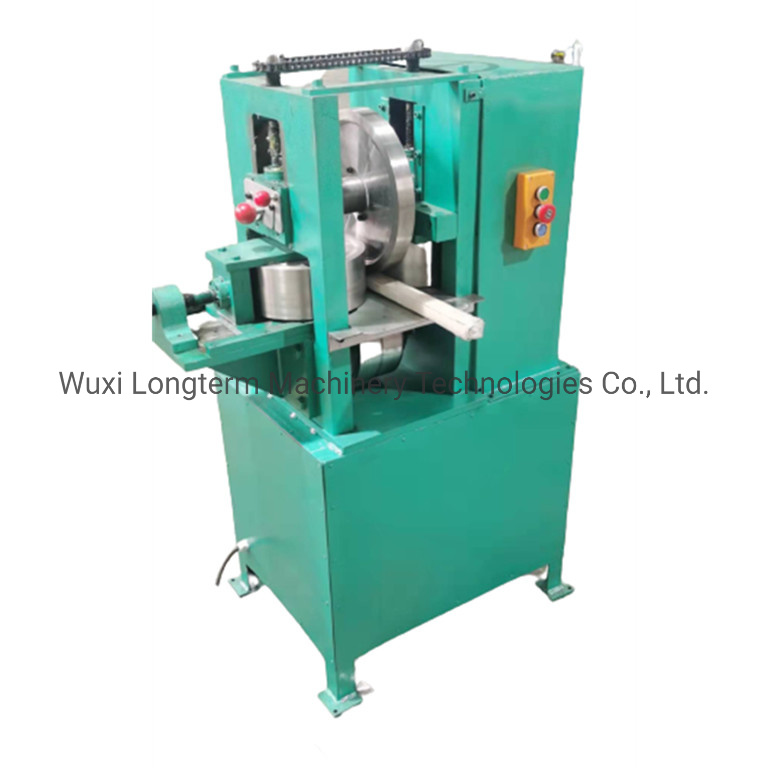

Four stick forming machine
|

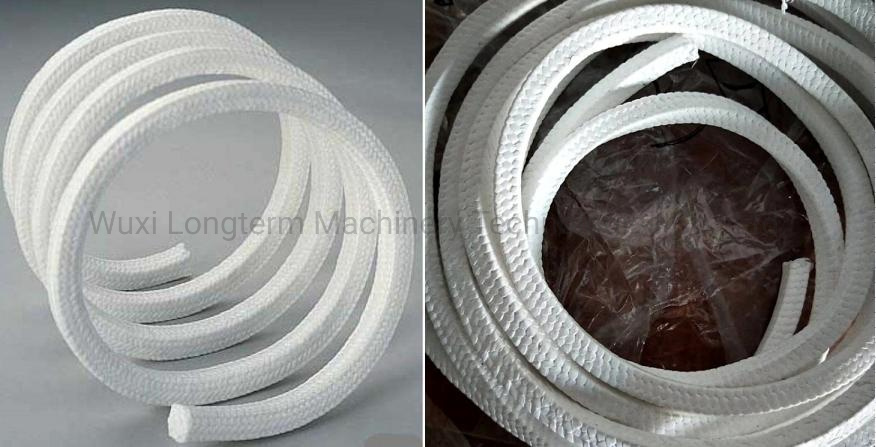

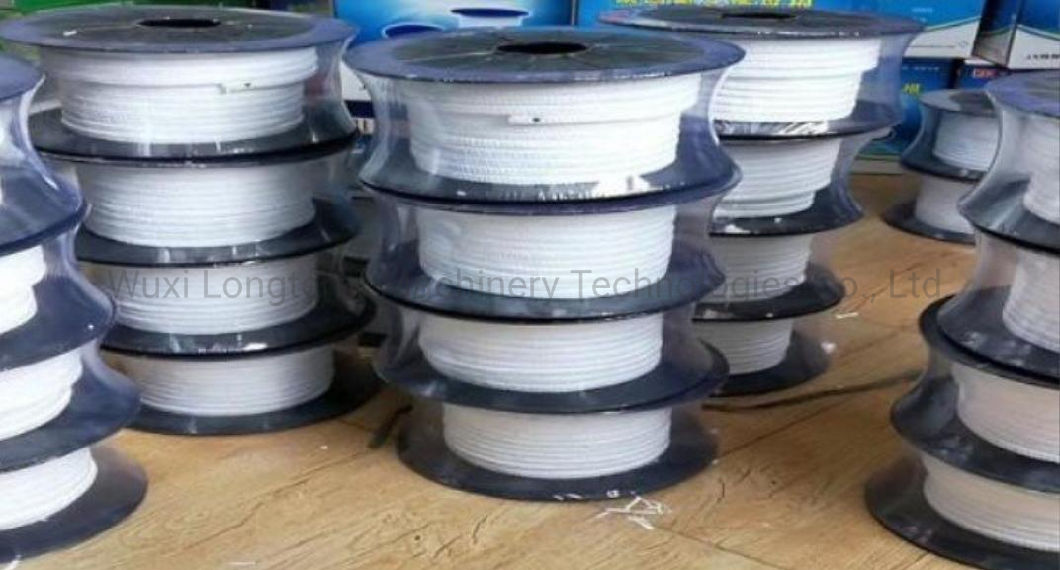

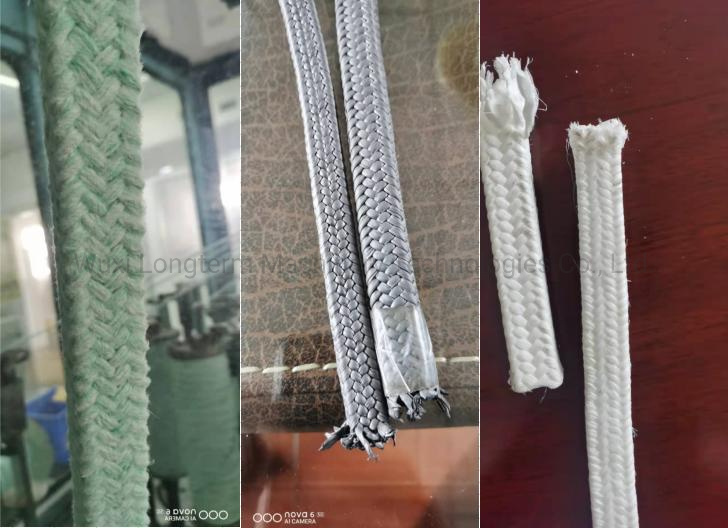

White pure packing seal
