18 Carriers White Pure PTFE Gland Packing Seal Making Braiding Braider Machine with 3 Orbits

Share to:

18 Carriers White Pure PTFE Gland Packing Seal Making Braiding Braider Machine with 3 Orbits

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Customized:
Customized
Condition:
New
After-sales Service:
Available
Braided Tube Length:
190mm
Braided Tube Dia.:
70mm
Fiber Tension:
0.5-0.8kg ,According to Different Materials
Weaving Speed:
0.2-0.4 Meters Per Minute
Weaving Density:
Change Gear Adjustment
Weaving Range:
Between 3X3mm-8X8mm
Winding Speed:
1-3 Minutes to Wind a Bobbin
Molding Speed:
15 Meters Per Minute,
Product Name:
PTFE Packing Seal Braiding Machine
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
HLT
Origin:
Jiangsu, China
HS Code:
8447909000
Production Capacity:
600 Sets Per Year
Samples:
US$ 20/Meter 1 Meter(Min.Order) | Request Sample

Product Description

Product Description

18 Carriers White Pure PTFE Packing Seal Making Braiding Braider Machine with 3 Orbits

18 Carriers White Pure PTFE Gland Packing Seal Making Braiding Braider Machine with 3 Orbits

Technical Specification

1 Vertical square two-track 8-spindle braiding machine (universal)

Dimensions	900x900x1850
Weight	300kg
Power	0.75kw
Weaving range	between 3x3mm-8x8mm, determined according to the requirements and the thickness of the wire
Braided tube	Length	190mm
	Diameter	70mm
	Fiber tension	0.5-0.8kg ,according to different materials
Weaving speed	0.2-0.4 meters per minute, determined according to product size and tightness
Weaving density	change gear adjustment

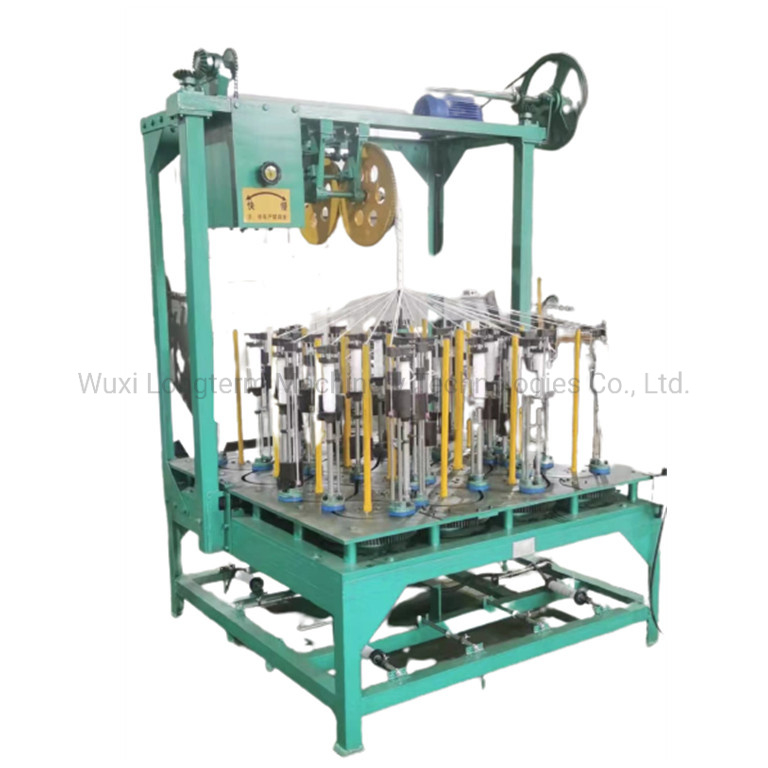

1.2.Vertical square three-track 18-spindle braiding machine (universal)

Dimensions	1100x1100x1950
Weight	600kg
Power	0.75kw
Weaving range	between 6x6mm-15x15mm, determined according to the requirements and the thickness of the wire.
Braided tube	Length	190mm
	Diameter	70mm
	Fiber tension	0.8-1.1kg,according to different materials
Weaving speed	0.2-0.4 meters per minute, determined according to product size and tightness.
Weaving density	change gear adjustment

3. Vertical square four-track 24-spindle braiding machine (universal)

Dimensions	1450x1400x2250
Weight	1200kg
Power	1.5kw
Weaving range	between 10x10mm-35x35mm, determined according to the requirements and the thickness of the wire.
Braided tube	Length	190mm
	Diameter	70mm
	Fiber tension	0.8-1.3kg, according to different materials
Weaving speed	0.2-0.4 meters per minute, determined according to product size and tightness.
Weaving density	mechanical stepless adjustment

4 Vertical square four-track 32-spindle braiding machine (universal)

Dimensions	1650x1700x2300
Weight	1600kg
Power	1.5kw
Weaving range	between 16x16mm-50x50mm, determined according to the requirements and the thickness of the wire.
Braided tube	Length	190mm
	Diameter	70mm
	Fiber tension	1.0-1.3kg,according to different materials
Weaving speed	0.2-0.4 meters per minute, determined according to product size and tightness.
Weaving density	mechanical stepless adjustment

5 Single-spindle high-speed variable frequency winding machine

*One winding machine can be used for 4 braiding machines.

Dimensions	500x700x1200mm
Weight	200kg
Power	0.55kw
Winding speed	frequency conversion adjustable, 1-3 minutes to wind a bobbin

6 Four stick forming machine

*A machine for the final forming of packing, a machine for pressing the packing into a square size

Dimensions	550x750x1500mm
Weight	550kg
Power	1.5kw
Molding speed	15 meters per minute, molding range 3x3mm-50x50mm

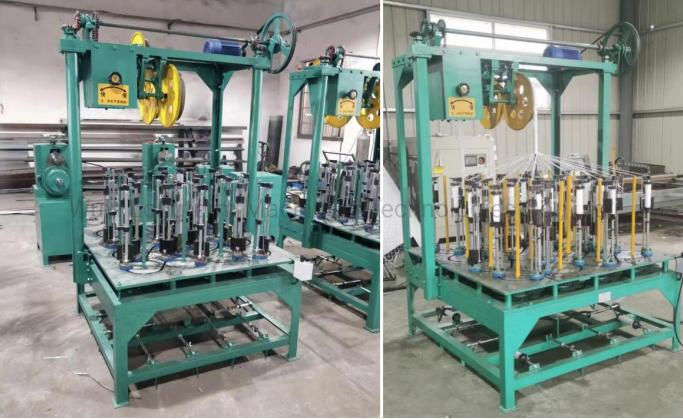

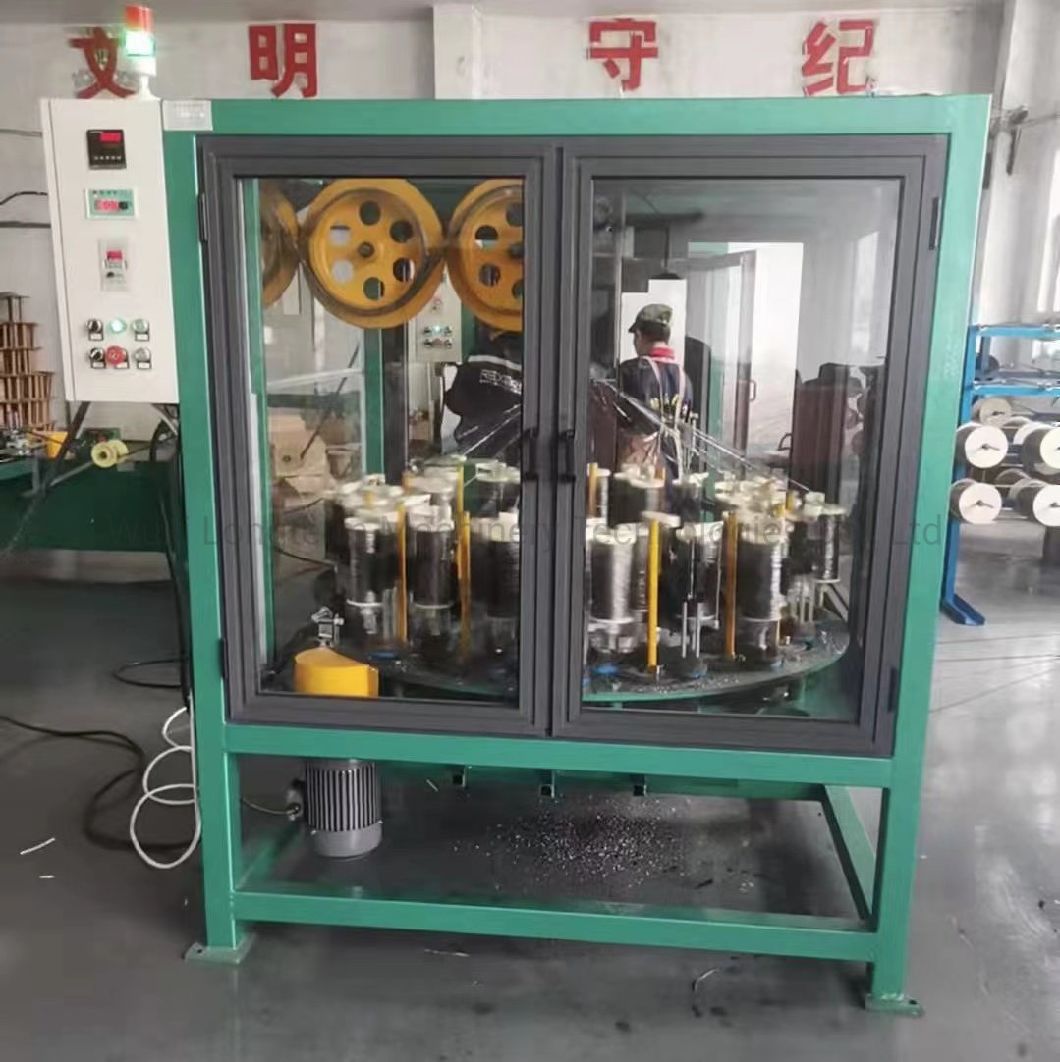

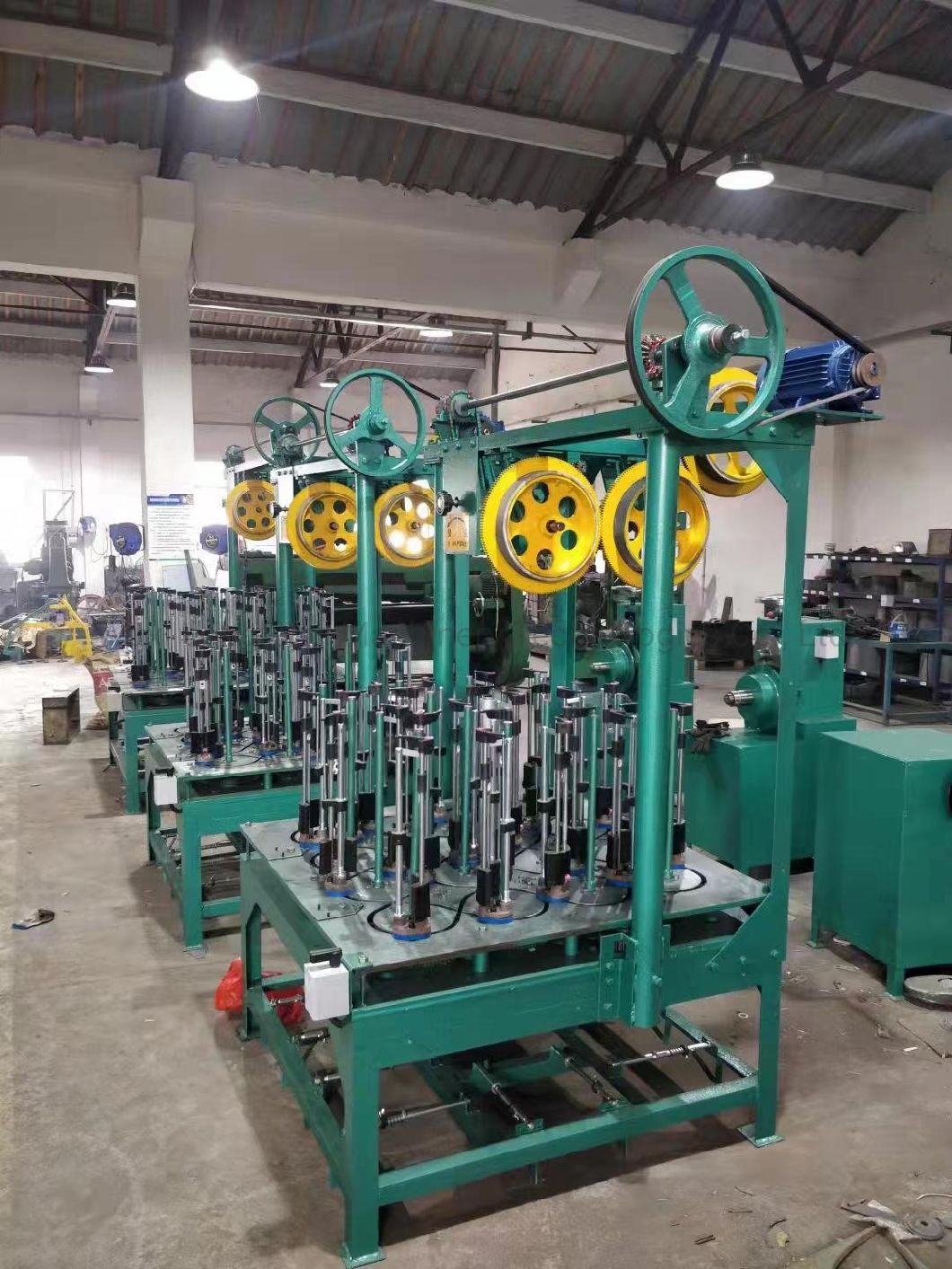

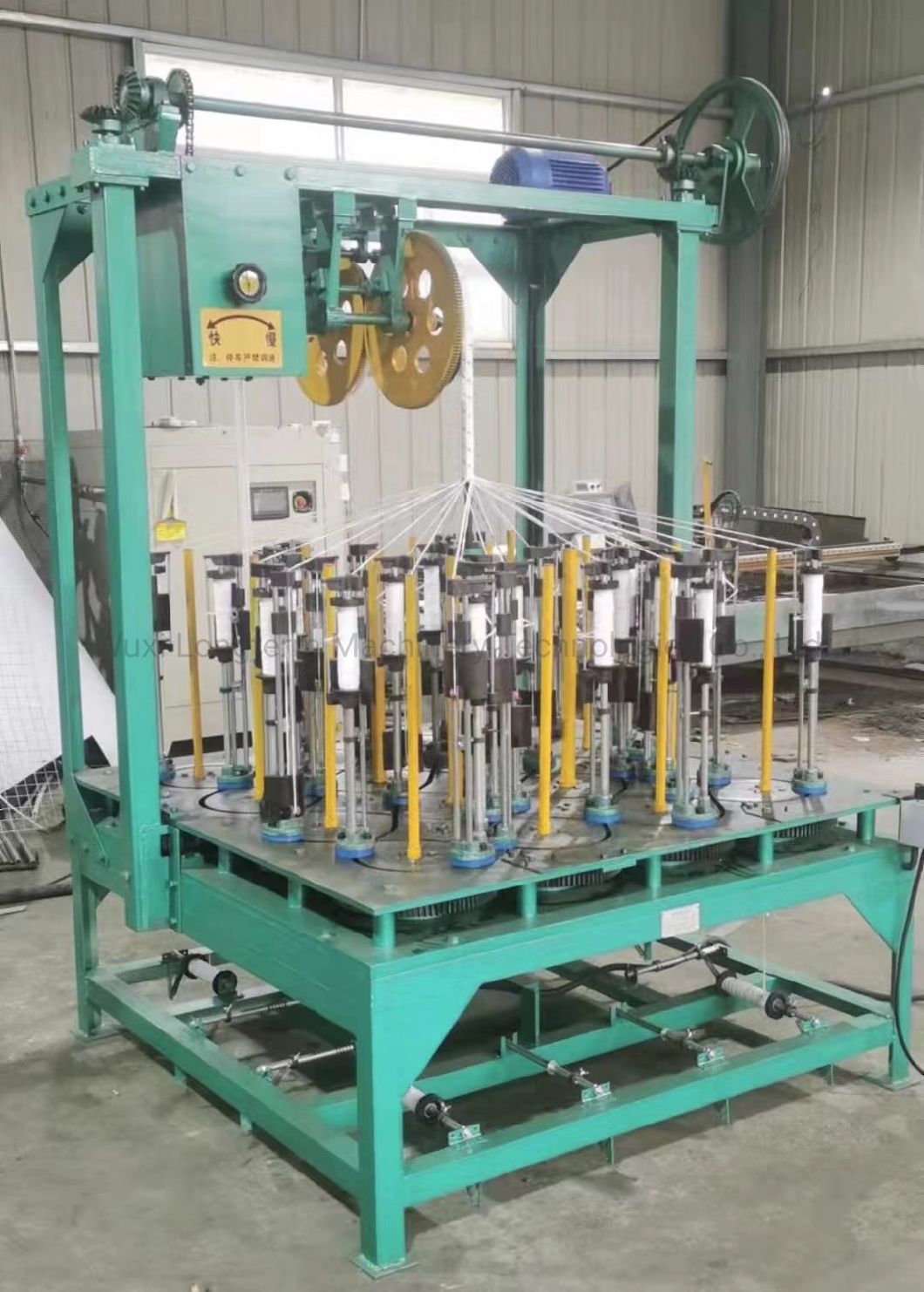

Product Display

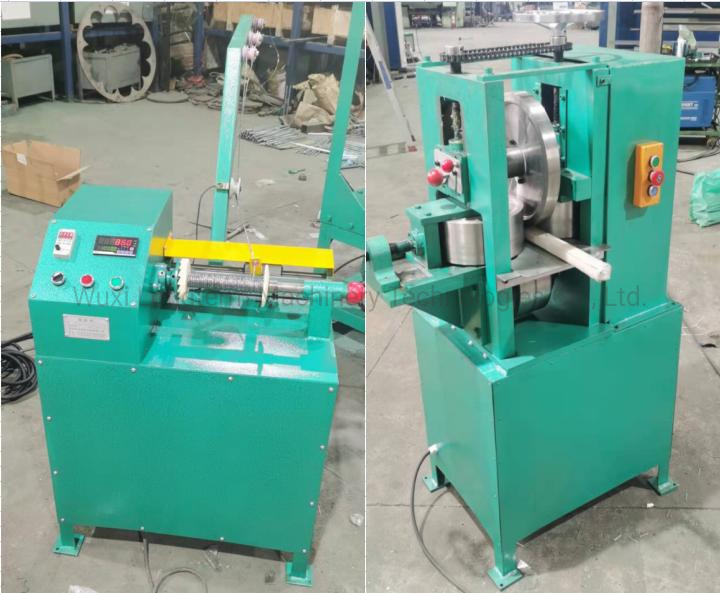

Single-spindle high-speed variable frequency
winding machine

Four stick forming machine

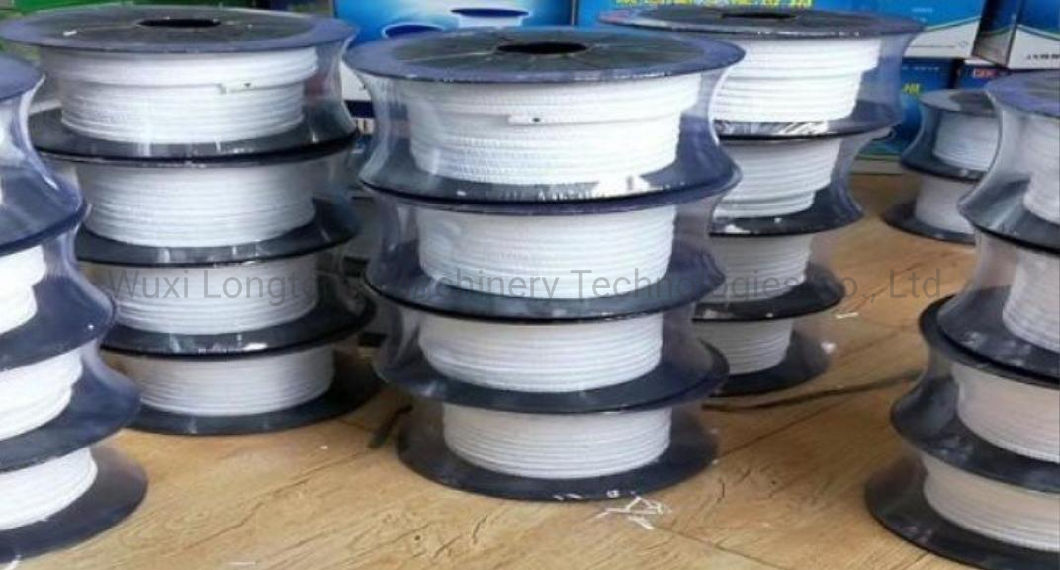

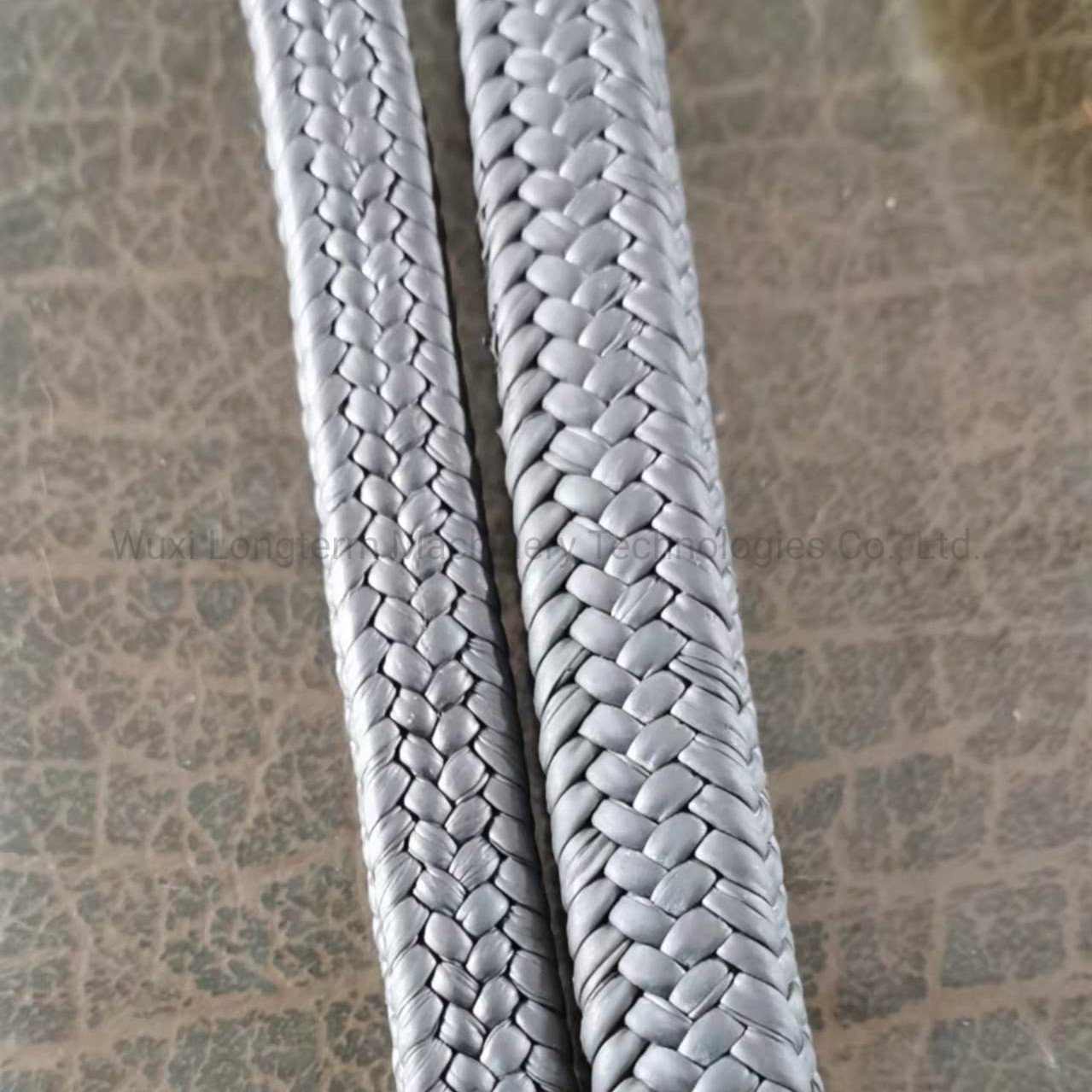

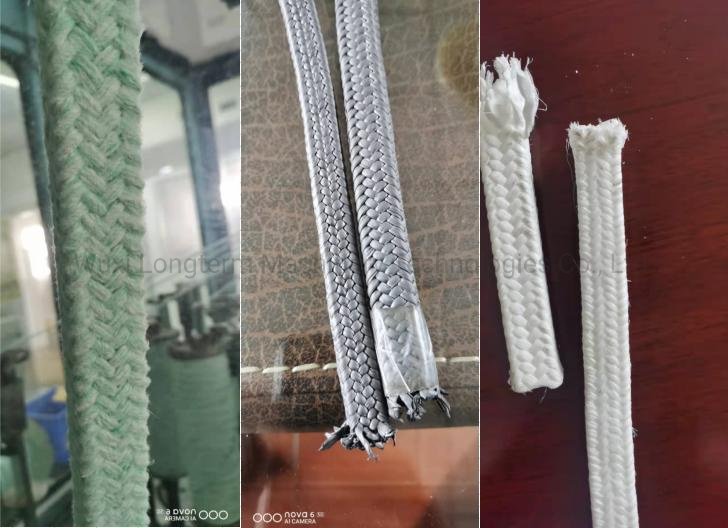

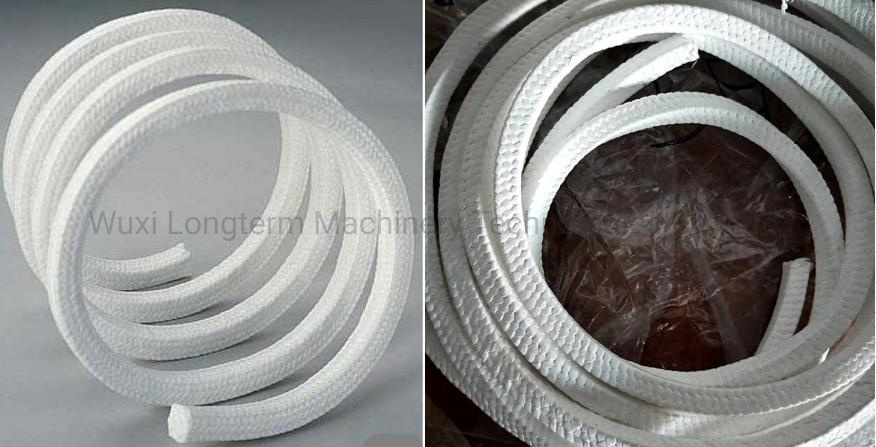

White pure packing seal

Company Introduction

Our company is professional manufacturer of packing sealing making machines, mainly for braidig sealing gasket sheet, sealing braided packing etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.

Machine package-plywood package for standard seaworthy package
18 Carriers White Pure PTFE Gland Packing Seal Making Braiding Braider Machine with 3 Orbits

FAQ

1. How can we guarantee quality?
Provide the sample before machine production;
With final Inspection before shipment;

2. Why should you buy from us not from other suppliers?
High quality control for machine quality, Superior after-sales service.

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union
Language Spoken: English,Russian
