LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

Quantity:
  • HLT
  • Old Cylinder Repairing Line
  • LPG Gas Cylinder Refurbishment Line
  • Customized
  • CE
  • 1 Pass
  • 1.2mm
  • Panasonic
  • MIG Welding
  • 1 Year
  • Handle and Footring Removal Machine
  • 7.5kw
  • 25MPa
  • 250kn
  • 30s / PC
  • Machine:1200*1000*2000
  • 800*1000*1200
  • Seaworthy Package
  • apply for all sizes cylindes
  • WLT
  • Wuxi, Jiangsu, China(Mainland)
  • 85153900
  • 300 Sets/Per Year
  • US$ 5/Piece 1 Piece(Min.Order) | Request Sample

Product Description

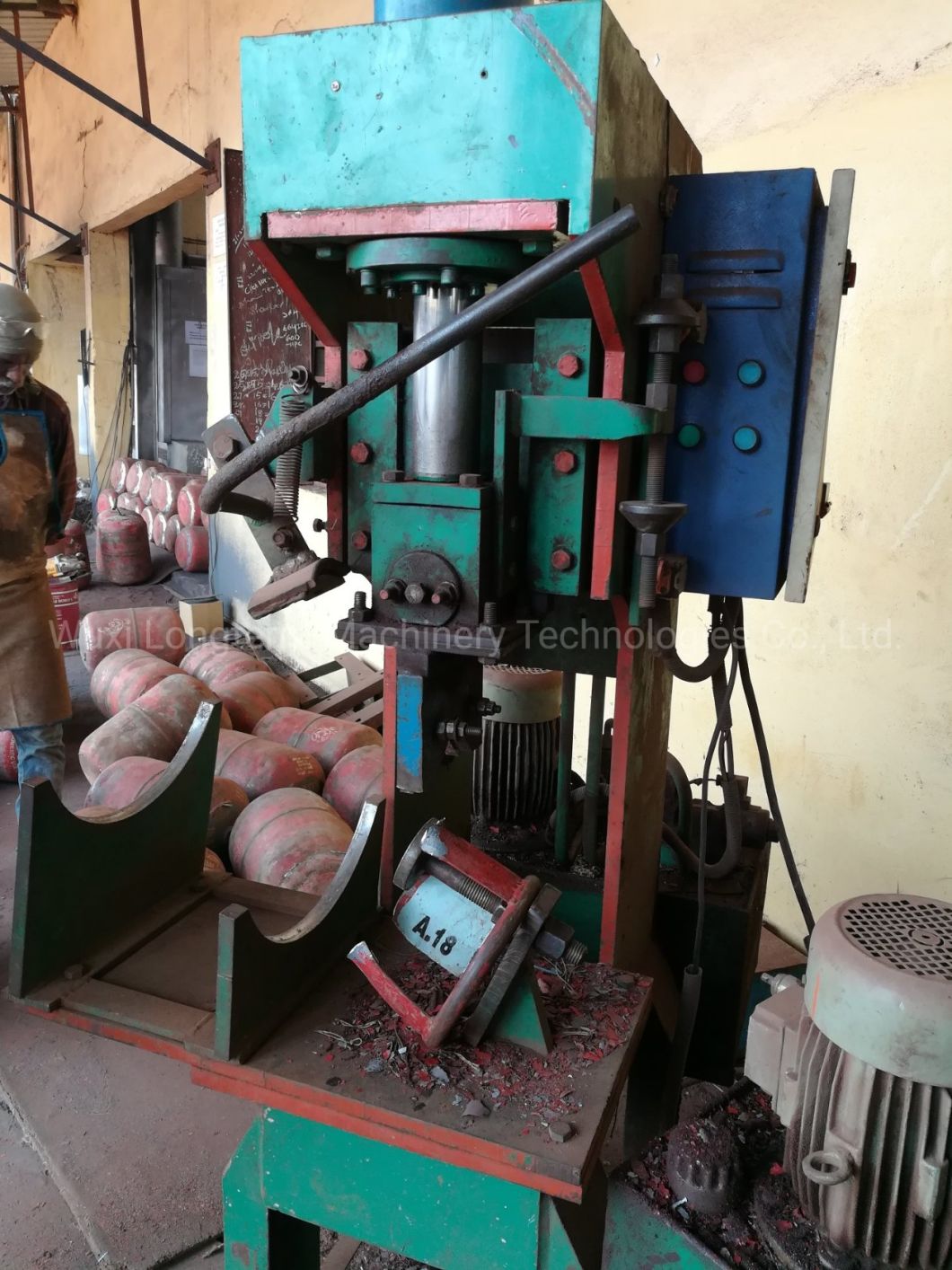

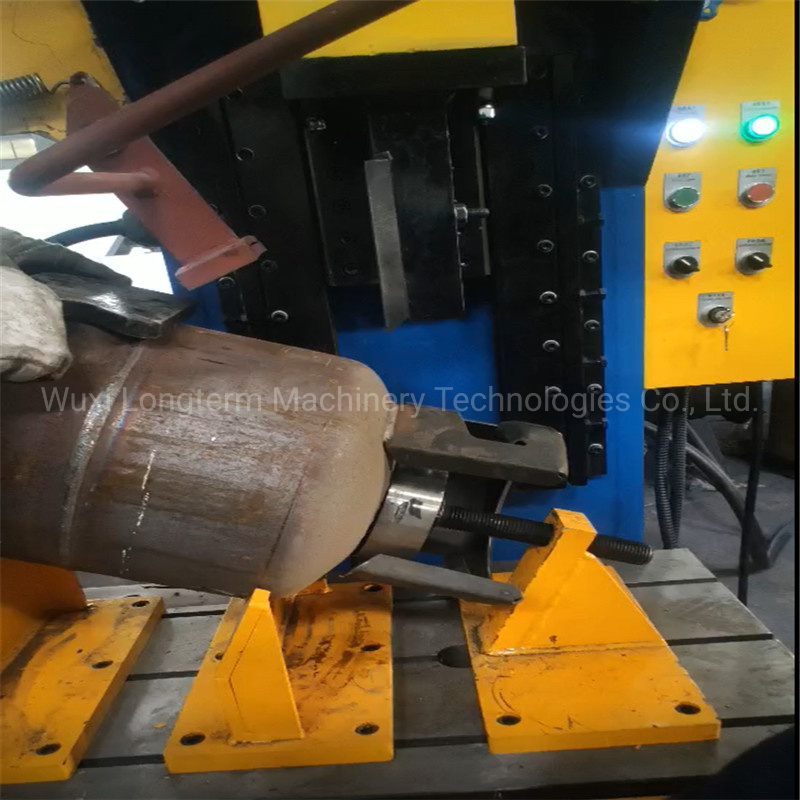

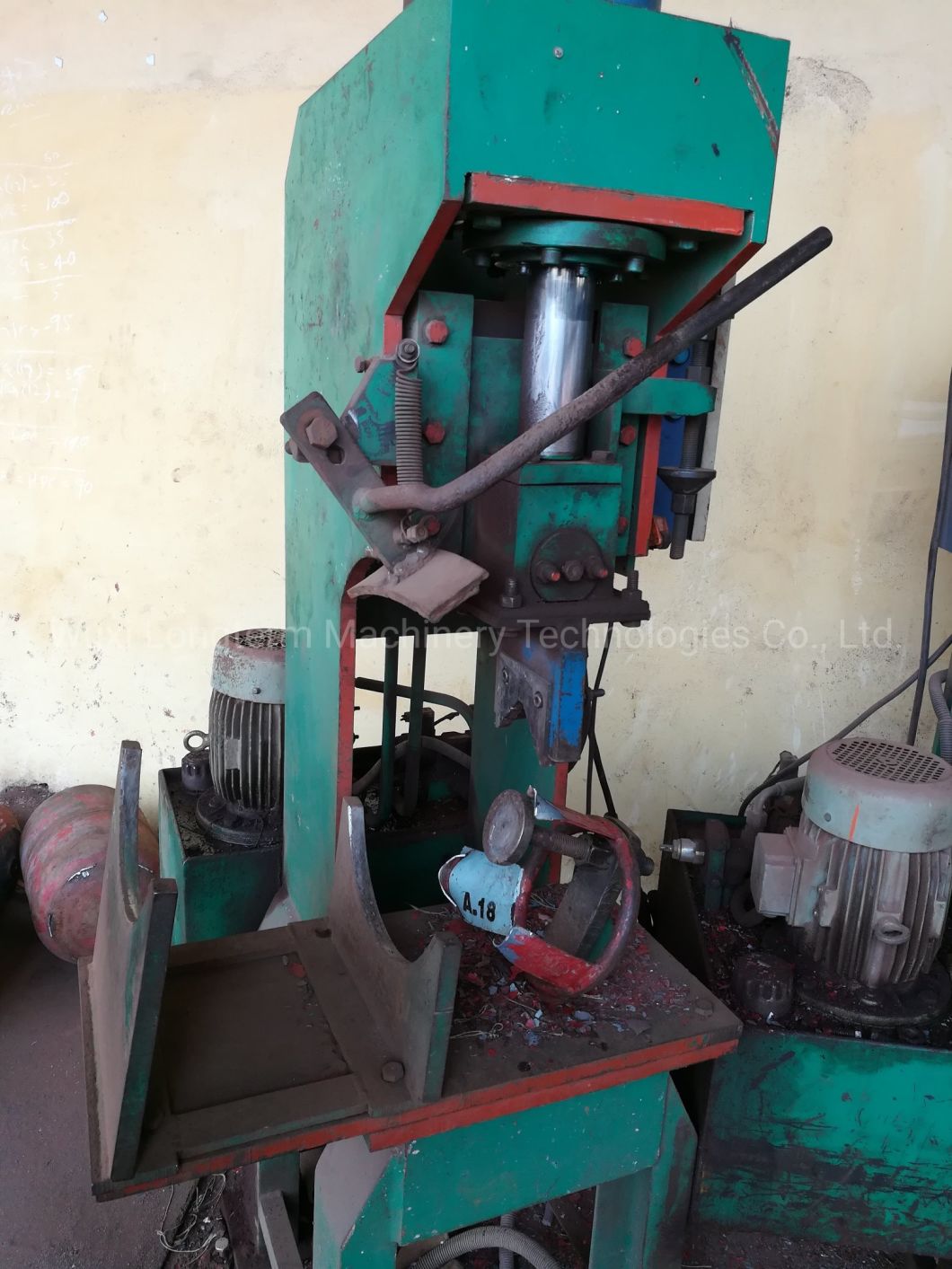

LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^


------ Product Description

We supply the complete refurbishment line machinerie for LPG old cylinders, such as Residual liquid removal machine, Valve dismantling machine, Incinerator furnace handle&footing removal machine, handle/collar welding machine, Hydro testing machine,Shot blasting machine,Powder coating line,Zinc metallizing machine.silk printing machine etc...

Main Parameters
Description MIG welding
Capacity about 30s / pcs (one handle or footing per time)
Motor power 7.5KW
Max. working pressure of liquid 25Mpa
Max. output pressure of oil cylinder 250KN
Machine dimensions 1200*1000*2000
Hydro station 800*1000*1200
Each capacity cylinder cut footing or handles can be shared
LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^
LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

------ Company Introduction
Wuxi Longterm Machinery Technologies Co.,Ltd
Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-welding equipment (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related old cylinder refurbishment line equipments. Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.

Other LPG gas cylinder reconditioning line machineries.

1. Powder coating line design
No Name Details
1 Workpiece Gas cylinder
2 Workpiece material Metal
3 Max. workpiece size Φ300×H570(mm)
4 Workpiece weight ≤30kg
5 Braced chain QXT250/50Kg light common chain
6 Machine capacity 2000pcs/12hours
7 Hanging type One cylinder every two pitch, that means one cylinder per 500mm.
8 Linear speed 2000pcs÷12h÷60min×0.5m/hang=1.4m/min
9 Heating source Nature gas(LPG)
10 Location area See layout drawing, beam bottom height 8.5 meters
LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^


Semi auto welding machine feature
Semi auto welding machines adopt more operators for loading and unloading cylinder halves purpose, whereas this option is economy if the budget is tight.
LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^ LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

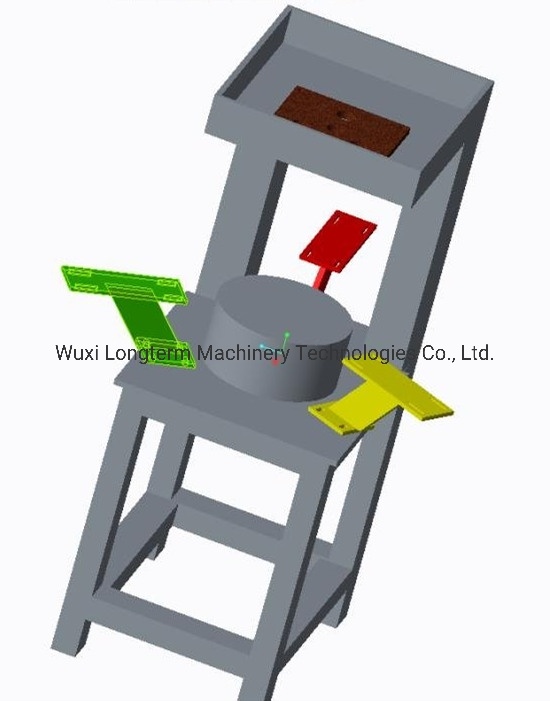

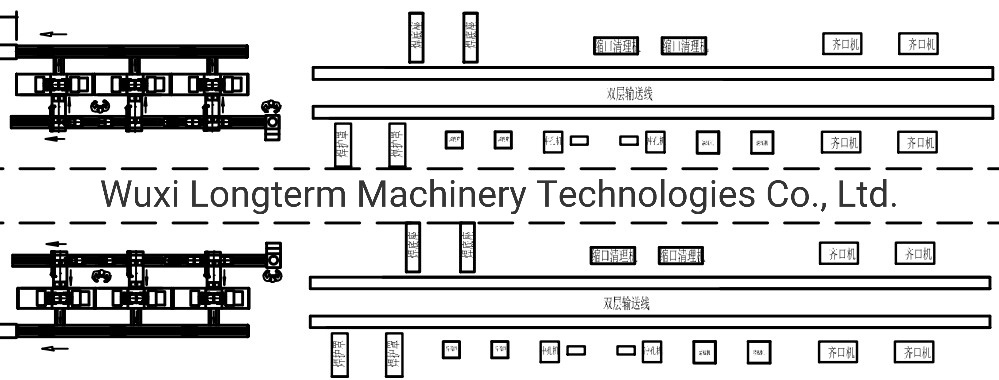

PART A:Template semi auto welding machine layout


LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

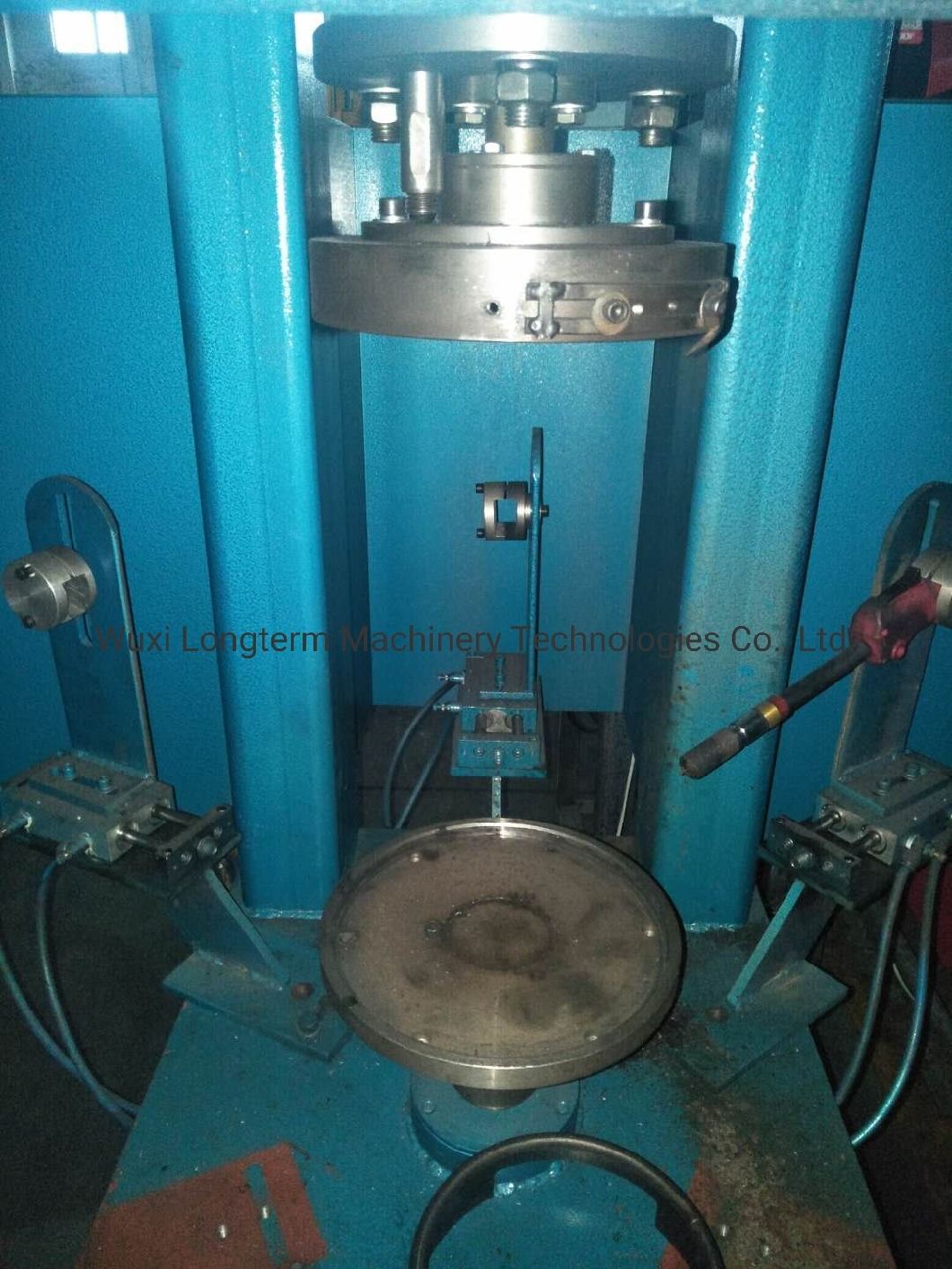

PART B:Semi auto welding machine detailed introduction

LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

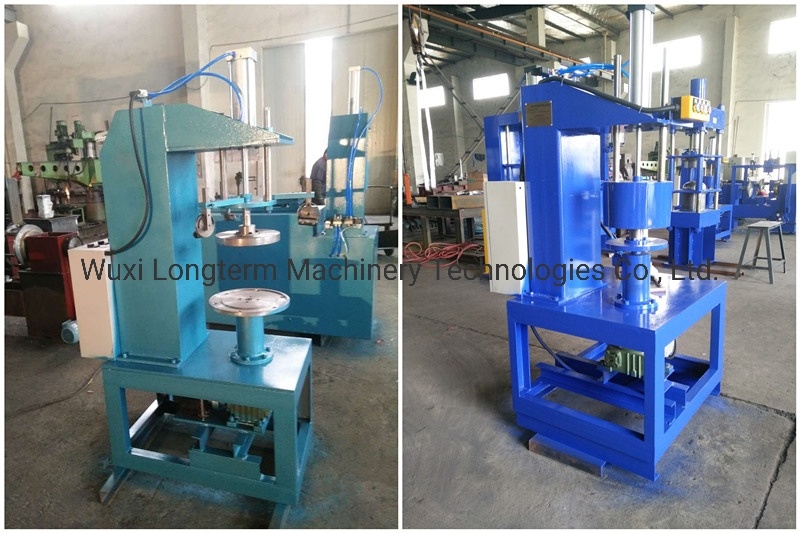

Semi-auto handle&base ring welding machine Semi-auto socket welding machine
Motor power: 0.75KW Motor power: 0.75KW
Air pressure: 0.4-0.8 MPa Air pressure: 0.4-0.8 MPa
Welding torch adjusting range: Welding torch adjusting range:
X: 0-100mm X: 0-100mm
Y: 0-50mm Y: 0-50mm
Welding torch angle adjusting range: ±45° Welding torch angle adjusting range: ±45°
Speed: 60S/pcs Speed: 60S/pcs
Machine weight: 600KG Machine weight: 600KG
Machine dimension: 900x500x2150mm Machine dimension: 900x500x2150mm

------After Sale Service

Timely & Satisfied oversea installation service

We have rich experience for oversea installation and commissioning work, we always send the skilled engineers for assisting our clients to run the machine smoothly and quickly.

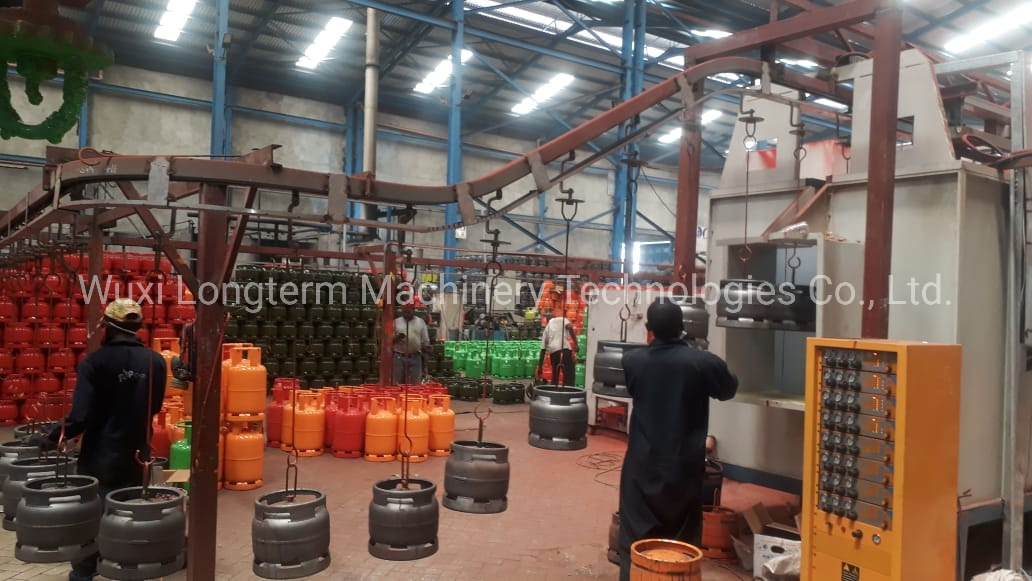

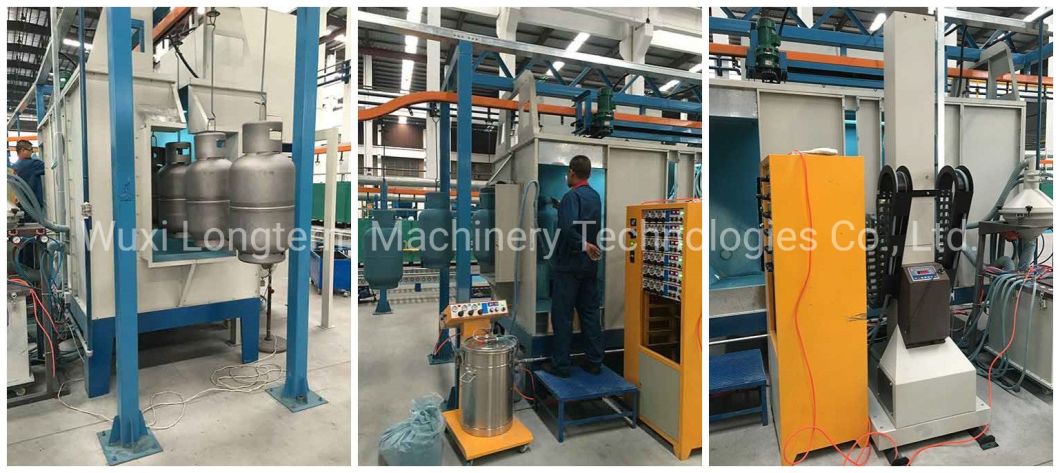

3kg, 6kg, 12kg LPG cylinder powder coating line in Kenya
LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^

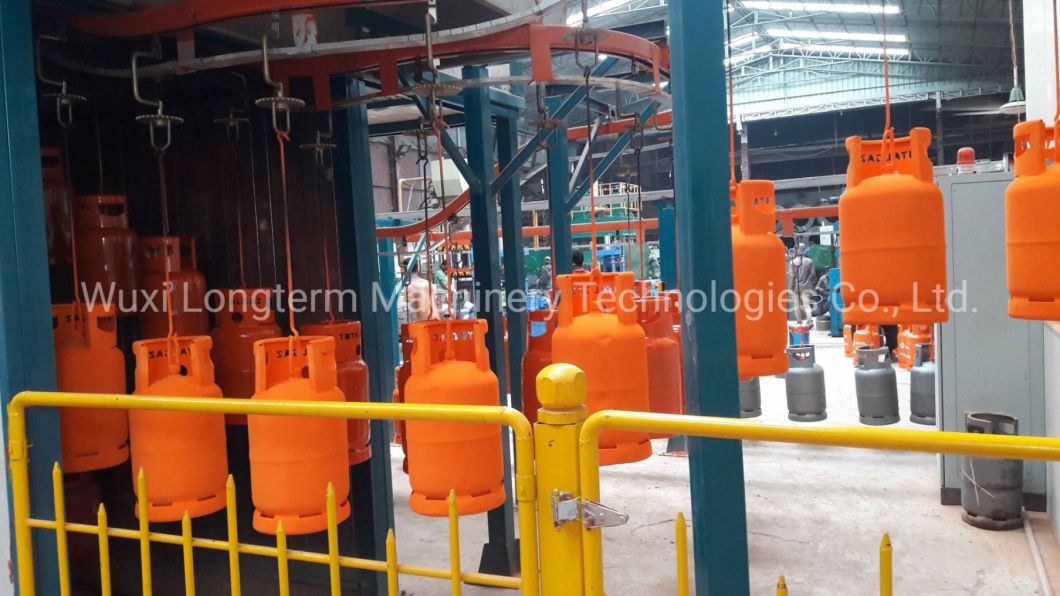

12kg LPG cylinder powder coating line in Bangaladesh

LPG Gas Cylinder Refurbishment/ Recondition Handle and Footring Removal Machine^


------ Our Factory Site

Our strong machining ability

Our hired employees are over 100 for different working process, such asResidual liquid removal machine, Valve dismantling machine, Incinerator furnace handle&footing removal machine, handle/collar welding machine, Hydro testing machine,Shot blasting machine,Powder coating line,Zinc metallizing machine.silk printing machine by ourselves, we can ensure the parts quality by 100%.

Additionally, with strong manufacuting ability, we can delivery every order on time.


------ FAQ

In order to recommend you the proper machine, we'd like to get the below from you:


- What's the cylinder size you want to recondition?
- It's better to provide the cylinder drawing.
- What's the daily capacity per 8hrs?
