LPG Gas Cylinder Polishing Joggling Trimming Making Machine

  • Product Line

  • Trimming, Joggling, Polishing Machine

  • Max.2000mm

  • 250-400mm

  • 2.5-6mm

  • 6kg/12kg/15kg/50kg

  • 0.5-0.8mm

  • 250~800mm

  • 5-400A

  • 17s / PC

  • Standard Seaworthy Package

  • SGS, ISO9001

  • HLT

  • Wuxi, China

  • 85158000

  • 50000PCS/Year

  • Available | Customized Request

Product Description

LPG Gas Cylinder Polishing Joggling Trimming making machine
LPG Gas Cylinder Polishing Joggling Trimming Making Machine

1. Introduction

The cylinder trimming and cleaning machine adopts pneumatic positioning to tighten, the shell rotates automatically, the aligning hob automatically feeds and cuts, and the welding groove is formed naturally with the hob cutting. The bevel angle is adjustable and connected to the production line, which can realize automatic feeding in and out of the shell. This machine integrates machine, electricity, gas, and has a reasonable structure, reliable performance, simple and convenient operation, and high production efficiency.

2. Application

Application cylinder size: 6kg/12kg/15kg/50kg and customrized
Producing line machine list

3. Technical data
a. Trimming Machine
Item No. HLT-12.5KG
Features Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas
Standard Assessories water cooling welding torch
automatic cycling water tank
Panasonic welding machines
Packing Details Plywood cases/boxes
MOQ 1set
Warranty 1 year after delivery
Payment T/T,L/C,D/P, Western Union

b. Polishing Machine
Main parameter
head plate rotation speed 38.6r/m
polish rotation speed 1068r/m
in/out polish power 1.5KW×2
main axis motor power 0.55KW
polish specification Φ160×20mm
gas pressure 0.4~0.6MPa
polish adjustable range 0.2~20mm
wastage of gas 0.3m3/h

c. Joggling Machine
Rotation speed of shell 38.6rPm
Speed of polish 1068rPm
Inner/outer polish power 1.5KW×2
Main axis power required 0.55KW
Specification of polisher Φ160×20mm
Pressure of air compress 0.4-0.6MPa
Adjustable range of polisher 0.2-20mm
Rate of air supply 0.3m3/h
Production rate 20 seconds per piece
Body dimension 1050×960×2050mm
Weight 1200KG

4. Machine showing

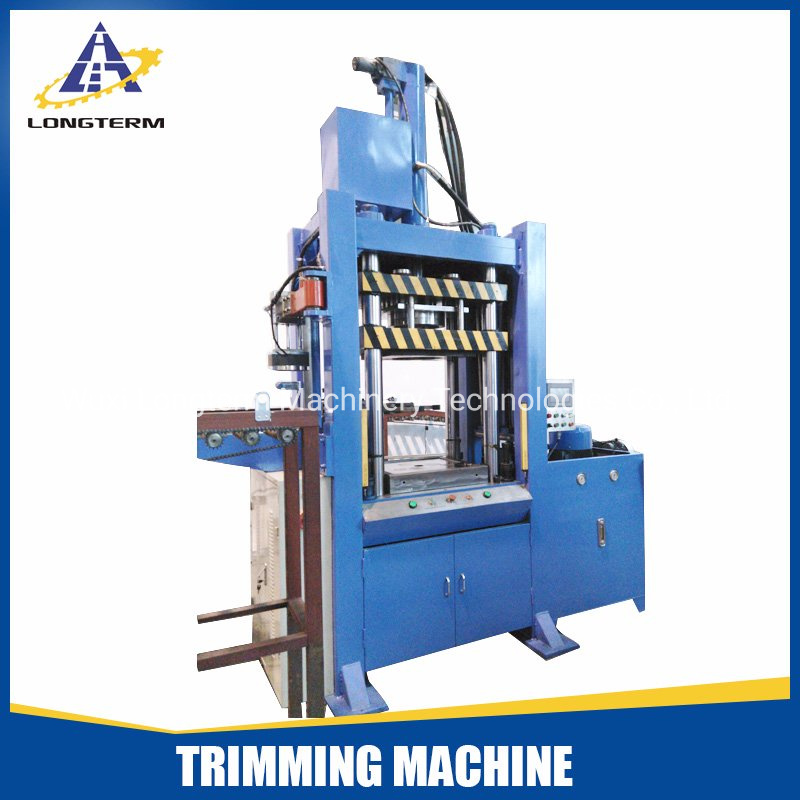

a. Trimming machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line
LPG Gas Cylinder Polishing Joggling Trimming Making Machine

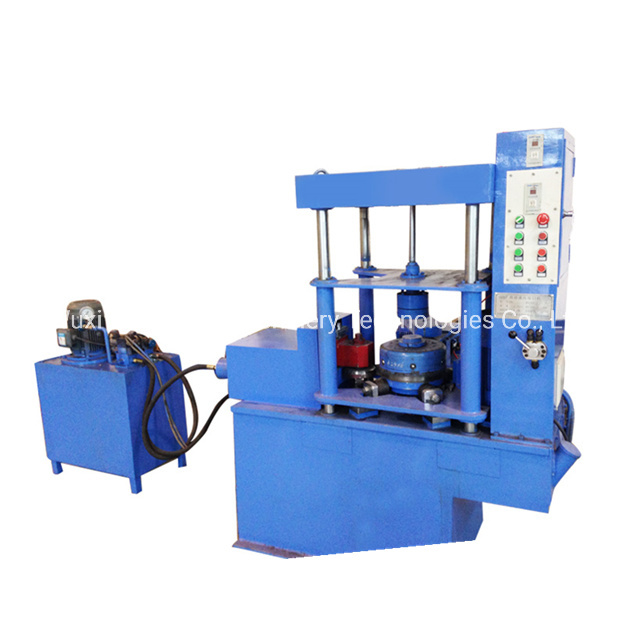

b. Joggling Machine

This machine is designed for removing the burrs by polishing the inner and outer wall of the top and
bottom shell at their welding-joint-area.
LPG Gas Cylinder Polishing Joggling Trimming Making Machine

c. Polishing Machine

This machine is used for Auto.double-head TIG circumferential welding of Duta-Cyi and LNG inner cylinder.

LPG Gas Cylinder Polishing Joggling Trimming Making Machine

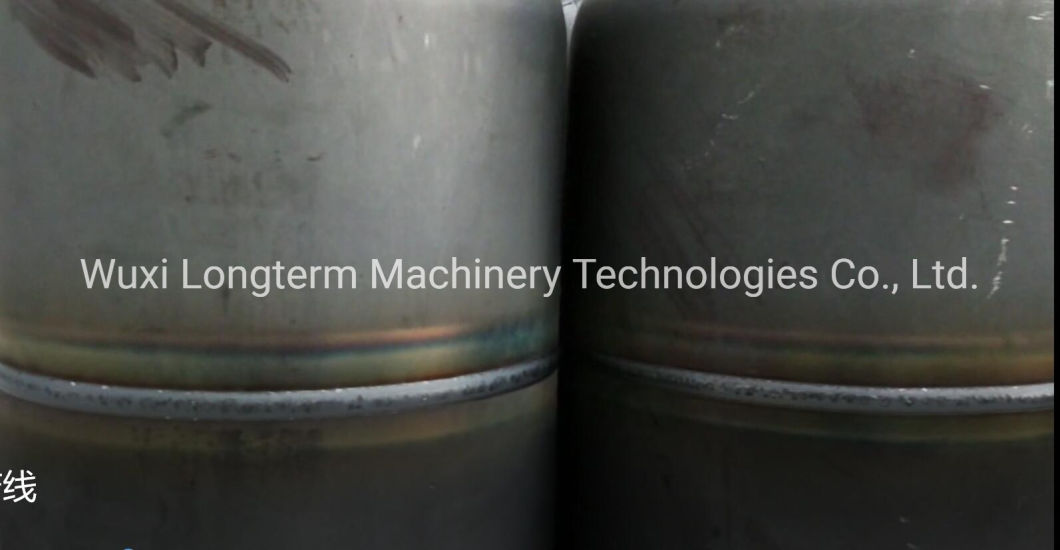

5. Details Show

LPG Gas Cylinder Polishing Joggling Trimming Making Machine

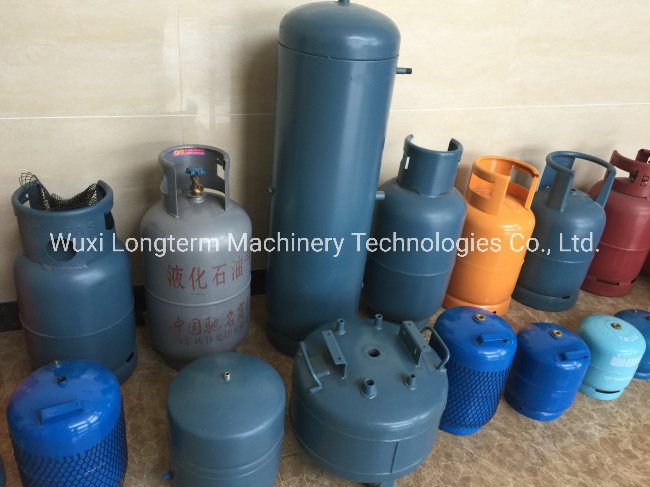

LPG Product showing

LPG Gas Cylinder Polishing Joggling Trimming Making Machine

6. About us
LPG Gas Cylinder Polishing Joggling Trimming Making Machine

We are professional manufacturer of LPG gas cylinder production machinery for more than 30 years experience, and we own an all-sided technical team to research and improve the technology all the time. With good reputation and qualified machines, we have supplied several high standard LPG cylinder production lines to the world markets, such as Nigeria, Kenya Ghana ,India, Turkey, Bangladesh, Vietnam,Thailand etc.

7. Certificate and Patent
LPG Gas Cylinder Polishing Joggling Trimming Making Machine


LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
