Good Performance LPG cylinder Auto Trimming Machine
1. Introduction The cylinder trimming and cleaning machine adopts pneumatic positioning to tighten, the shell rotates automatically, the aligning hob automatically feeds and cuts, and the welding groove is formed naturally with the hob cutting. The bevel angle is adjustable and connected to the production line, which can realize automatic feeding in and out of the shell. This machine integrates machine, electricity, gas, and has a reasonable structure, reliable performance, simple and convenient operation, and high production efficiency.
2. Application Application cylinder size: 6kg/12kg/15kg/50kg and customrized

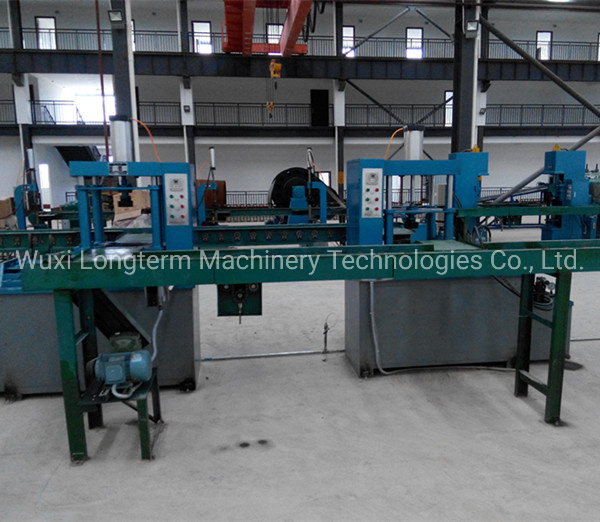

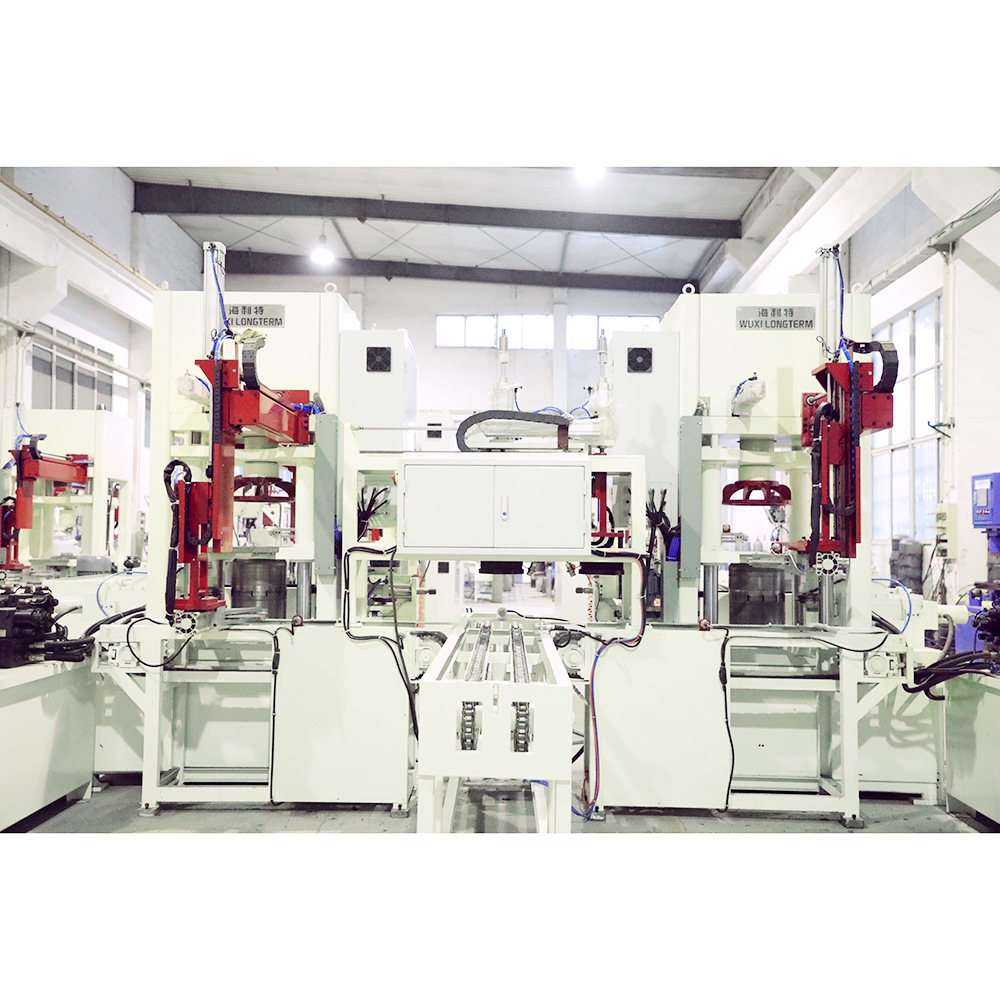

Producing line machine list
3. Technical data a. Trimming Machine
| Item No. | HLT-12.5KG |
| Features | Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas |
| Standard Assessories | water cooling welding torch
automatic cycling water tank
Panasonic welding machines |
| Packing Details | Plywood cases/boxes |
| MOQ | 1set |
| Warranty | 1 year after delivery |
| Payment | T/T,L/C,D/P, Western Union |
| OEM & OEM | OK |
b. Polishing Machine
| Main parameter |
| head plate rotation speed | 38.6r/m |
| polish rotation speed | 1068r/m |
| in/out polish power | 1.5KW×2 |
| main axis motor power | 0.55KW |
| polish specification | Φ160×20mm |
| gas pressure | 0.4~0.6MPa |
| polish adjustable range | 0.2~20mm |
| wastage of gas | 0.3m3/h |
c. Joggling Machine
| Rotation speed of shell | 38.6rPm |
| Speed of polish | 1068rPm |
| Inner/outer polish power | 1.5KW×2 |
| Main axis power required | 0.55KW |
| Specification of polisher | Φ160×20mm |
| Pressure of air compress | 0.4-0.6MPa |
| Adjustable range of polisher | 0.2-20mm |
| Rate of air supply | 0.3m3/h |
| Production rate | 20 seconds per piece |
| Body dimension | 1050×960×2050mm |
| Weight | 1200KG |

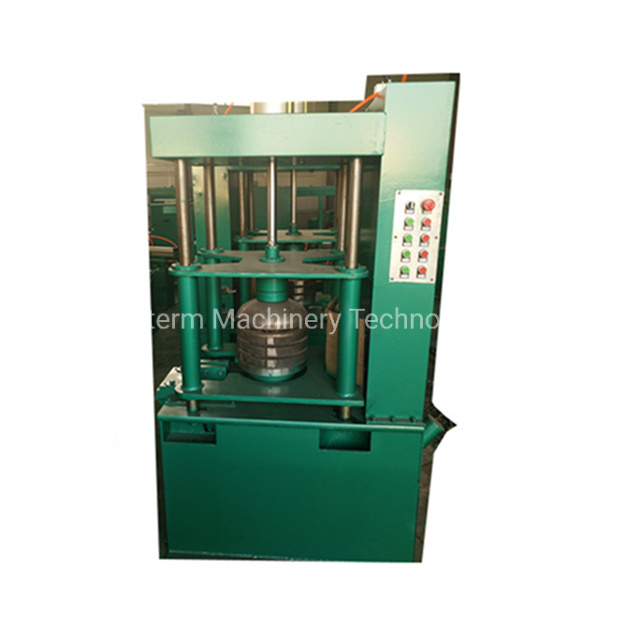

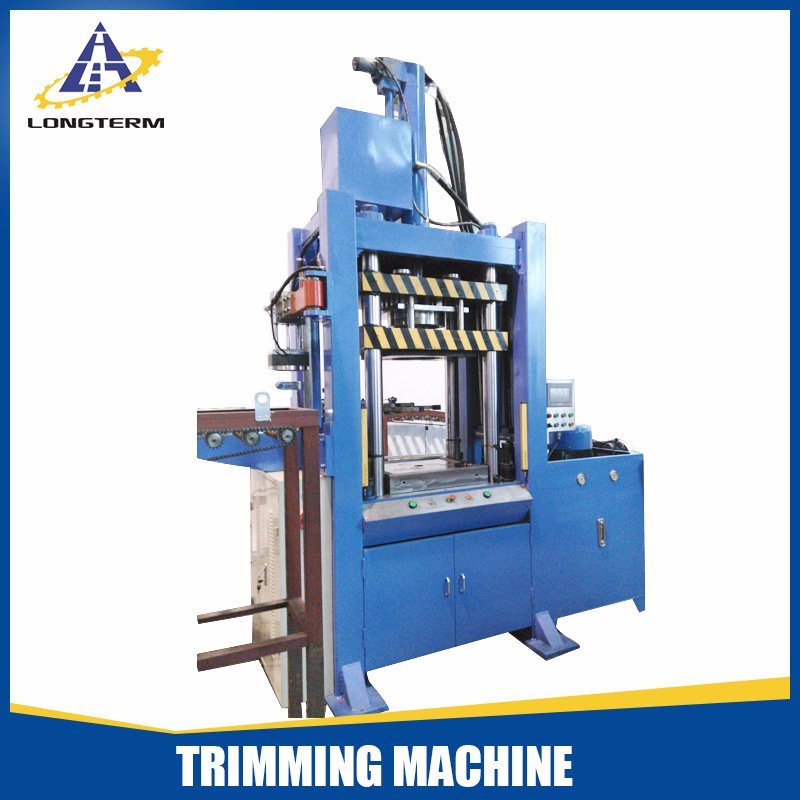

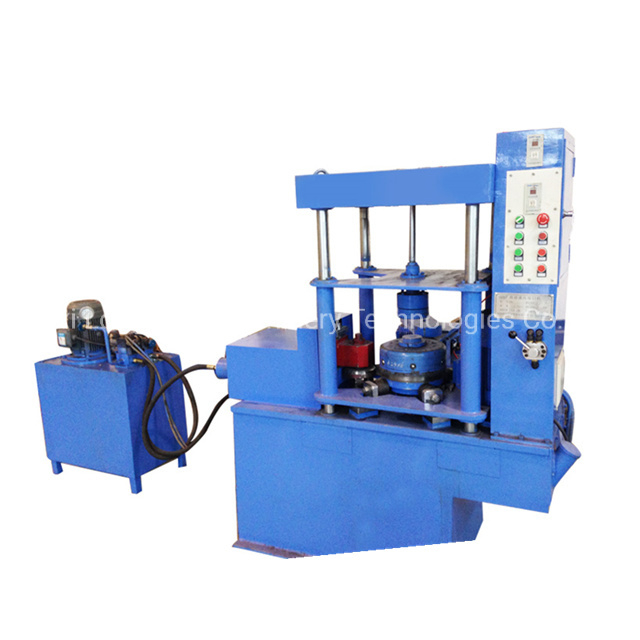

4. Machine showing a. Trimming machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line

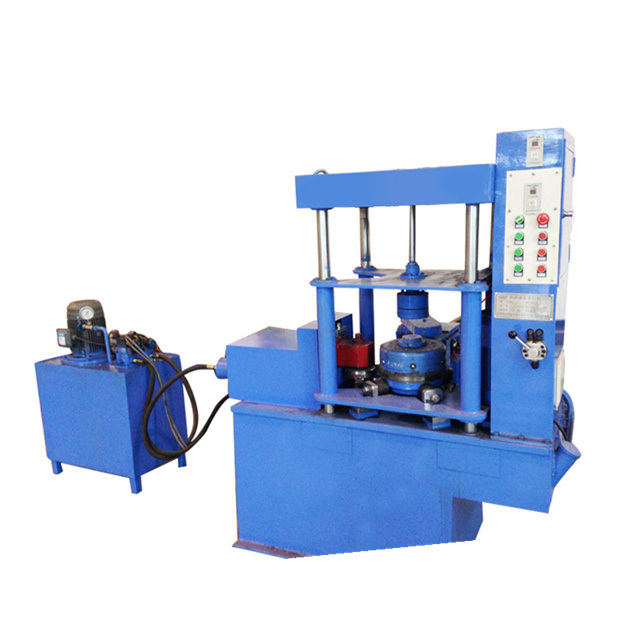

b. Joggling Machine This machine is designed for removing the burrs by polishing the inner and outer wall of the top and
bottom shell at their welding-joint-area.
c. Polishing Machine This machine is used for Auto.double-head TIG circumferential welding of Duta-Cyi and LNG inner cylinder.

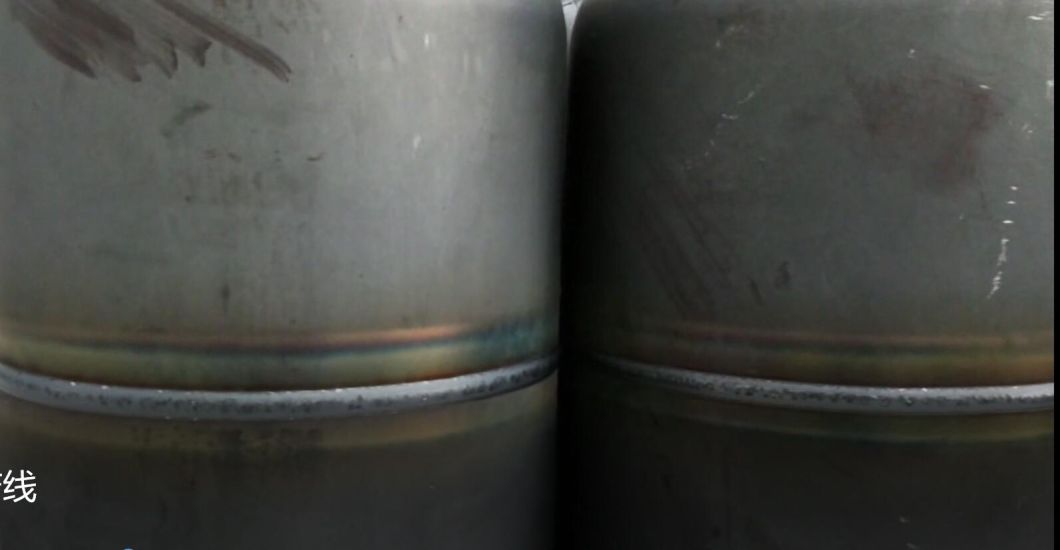

5. Details Show

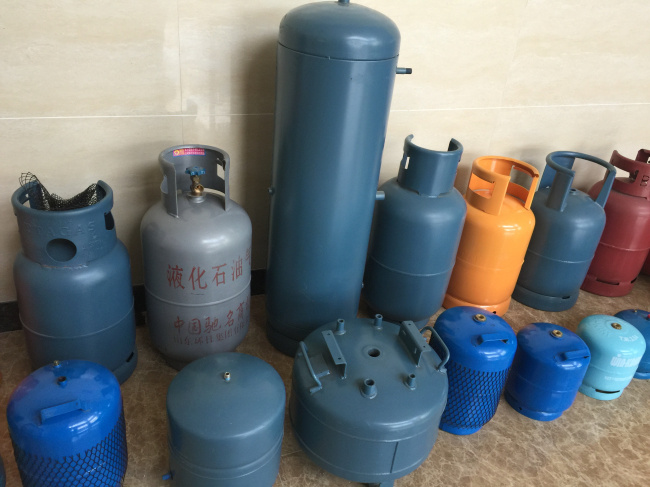

LPG Product showing 6. About us We are professional manufacturer of LPG gas cylinder production machinery for more than 30 years experience, and we own an all-sided technical team to research and improve the technology all the time. With good reputation and qualified machines, we have supplied several high standard LPG cylinder production lines to the world markets, such as
Nigeria, Kenya Ghana ,India, Turkey, Bangladesh, Vietnam,Thailand etc.
7. Certificate and Patent
FAQ LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
