Hot Sale LPG Gas Cylinder Zinc Metalizing Machine

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Production Scope:
Product Line
Capacity:
90 PCS/Hour
Total Power:
15kVA*N
Engine Power:
5.5kw
Air Input Pressure:
0.55~7MPa
Input Voltage:
220V~280V
Consumption of Compressed Air:
8m³/Min
Cylinder Diameter:
250~800mm or Customized
Cylinder Size:
6kg, 12kg, 25kg, 48kg, or Customized
Cylinder Thickness:
2.65-4mm
Diameter of The Zinc Wire:
2-3mm
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
LONGTERM
Origin:
China
HS Code:
84819010
Production Capacity:
50/Year
Customization:
Available | Customized Request

Product Description

Product Description

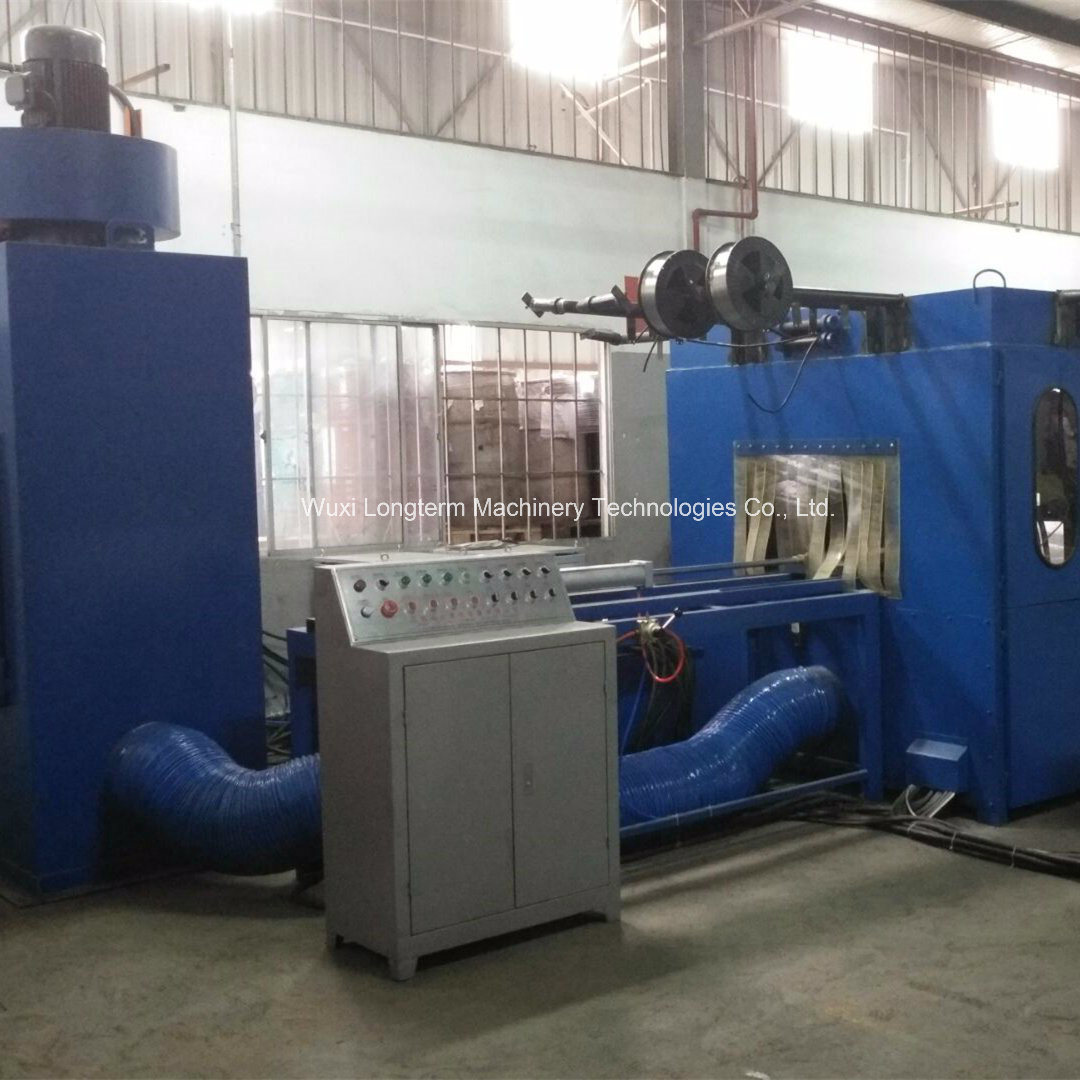

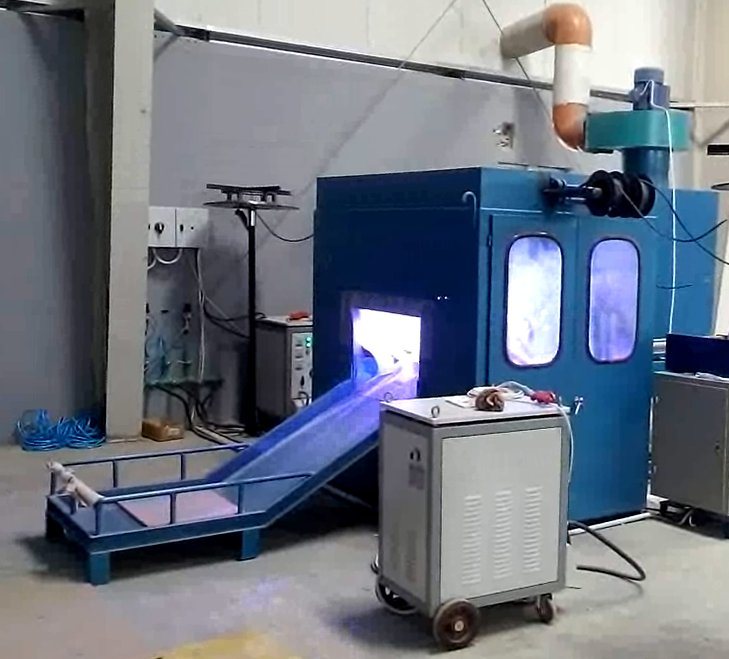

Zinc metalizing line

A. Product Description

Arc spraying zinc machine total power	15KVA*N
Vacuum cleaner engine power	5.5KW
The compressed air input pressure	0.55~7Mpa
Diameter of the zinc wire	2-3mm
Rated input voltage	220V~280V
Productivity	Max. 90 pcs/hour2-3mm
Full load power of zinc metalizing line	50KW
Consumption of 0.5-0.7Mpa compressed air	8m³/min

B. Automatic lpg gas cylinder production line
Machine list:

No	Machine name
1	Mechanical decoiler,straightening and blanking line(with scrap shearing machine)
2	Deep drawing machine
3	Auto flushing machine for deep drawn heads
4	Automatic trimming &polishing machine
5	Automatic hole punching &logo making machine
6	Automatic socket welding machine
7	Automatic handle welding machine
8	Lower end dish trimming and polishing machine
9	Lower end dish automatic joggling machine
10	Automatic bottom base welding machine
11	Assembly and spot welding machine
12	Circumferential welding machine
13	LPG gas furnace(heat treatment)
14	Automatic online hydro testing machine
15	Drying oven
16	Shot blasting machine
17	Zinc metalizing machine
18	Powder coating line or Liquid Painting Line
19	Valve mounting machine
20	Air leakage testing machine
21	Printing machine
22	Handle decoiler &straightening and cutting line
23	Handle hole punching machine
24	Hydraulic Presser-letter stamping(Optional)
25	Handle end bending machine(Optional)
26	Hydraulic coding machine
27	Handle rolling machine
28	Handle top R forming machine
29	Handle low R forming machine
30	Vertical Bottom base rolling machine
31	Double welding position welding fixture
32	Base forming machine
33	Hydraulic Precision sheet shearing machine(33KG only)
34	Sheet rolling machine(33KG only)
35	Automatic Seam Welder(33KG only)

Production Process
Hot Sale LPG Gas Cylinder Zinc Metalizing Machine

Automatic trimming & polishing machine with arms for both end dishes
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line

Automatic hole punching & logo making machine with arms for female half/top half
Punch the hole on top of the cylinder& stamp the logo
Hot Sale LPG Gas Cylinder Zinc Metalizing Machine

Double head Circumferential welding machine
fully automatic welding and monitoring.
Hot Sale LPG Gas Cylinder Zinc Metalizing Machine

C. FAQ:
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:

We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
