12kg LPG Gas Cylinder Zinc Metalizing Machine

Quantity:



Inquire Add to Basket

Model NO.:
12kg
Condition:
New
Cylinder Size:
3~50kgs
Brand:
Comflex
Control:
PLC
Overseas Installation:
Available
Warranty:
1 Year
Product Name:
LPG Gas Cylinder Refurbishing Line
Automatic:
Full Automatic
Payment:
Tt
Turnkey Project:
Available
Customized:
Available
Transport Package:
Standard Seaworthy & Strong Package
Specification:
SGS, ISO
Trademark:
Comflex
Origin:
Wuxi, Jiangsu, China(Mainland)
HS Code:
85152100
Production Capacity:
50 Plants One Year
Customization:
Available | Customized Request

Product Description

Product Description

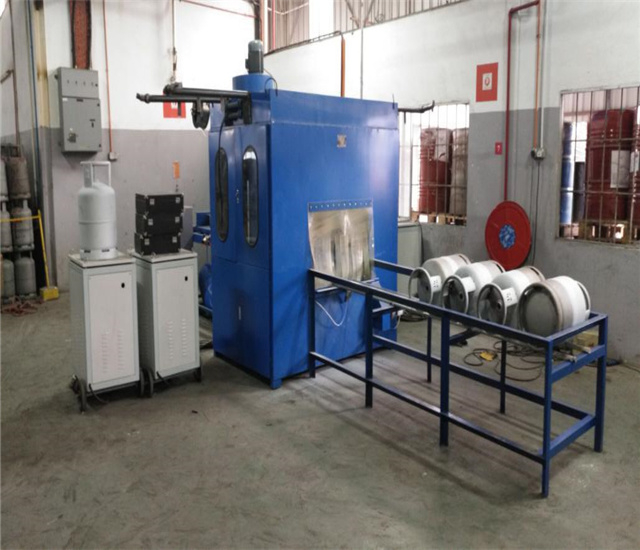

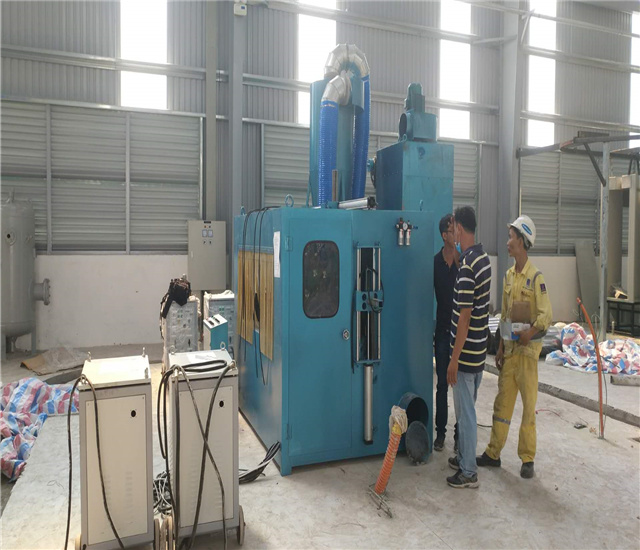

12kg LPG Gas Cylinder Zinc Metalizing Machine

I. Description
Zinc metalizing line consists of arc spraying zinc machine, spray gun automatic mechanism, automatic transmission and the workpiece rotation speed change mechanism, spraying room, vacuum cleaners, electrical control parts. It is especially used for LPG cylinders' surface. With arc as the heat source, using the high speed gas atomize the melting zinc wire, then high speed spraying to coating the surface of the cylinder. This line combined four arc spraying zinc machines, using four or a plurality spray gun at the same time from different sides of the cylinders.

II. Main technical parameters:
1.Arc spraying zinc machine total power: 15KVA*N
2.Vacuum cleaner engine power: 5.5KW
3.The compressed air input pressure: 0.55~7Mpa
4.Diameter of the zinc wire: 2-3mm
5.Rated input voltage: 220V~280V
6.Productivity: Max. 90 pcs/hour
7.Zinc wire consumption: 93 kgs/hour
8.Full load power of zinc metalizing line: 50KW
9.Consumption of 0.5-0.7Mpa compressed air : 8m³/min

III. Main structure and function
1.Oven(1 room)
2.Arc spraying zinc machine(4 sets)
3.Hydraulic pressure station(1 set)
4.Vacuum cleaner and fan(1 set)
5.Spraying gun clamp
6.Oil cylinder
