| Quantity: | |
|---|---|
Comflex

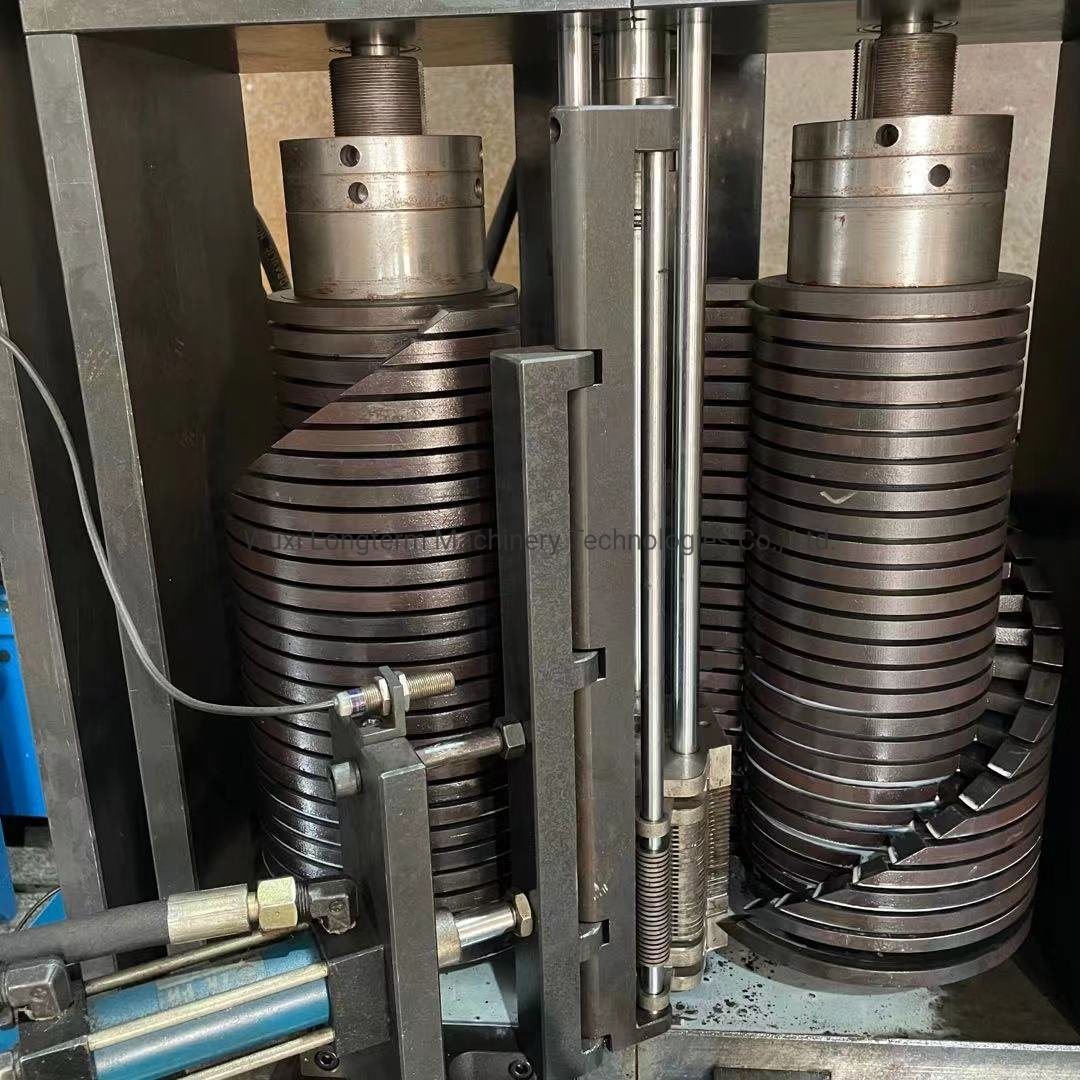

Intergrated Cassette Type Mould
Fully Automatic
CE, ISO, CSA etc..
6-25mm, 32-50 mm, 50-80 mm, 80-100 mm
Single or Double Layers
0.3mm Per Layer
Valve Bellow, Instrument Bellow, Vacuum Bellow, FL

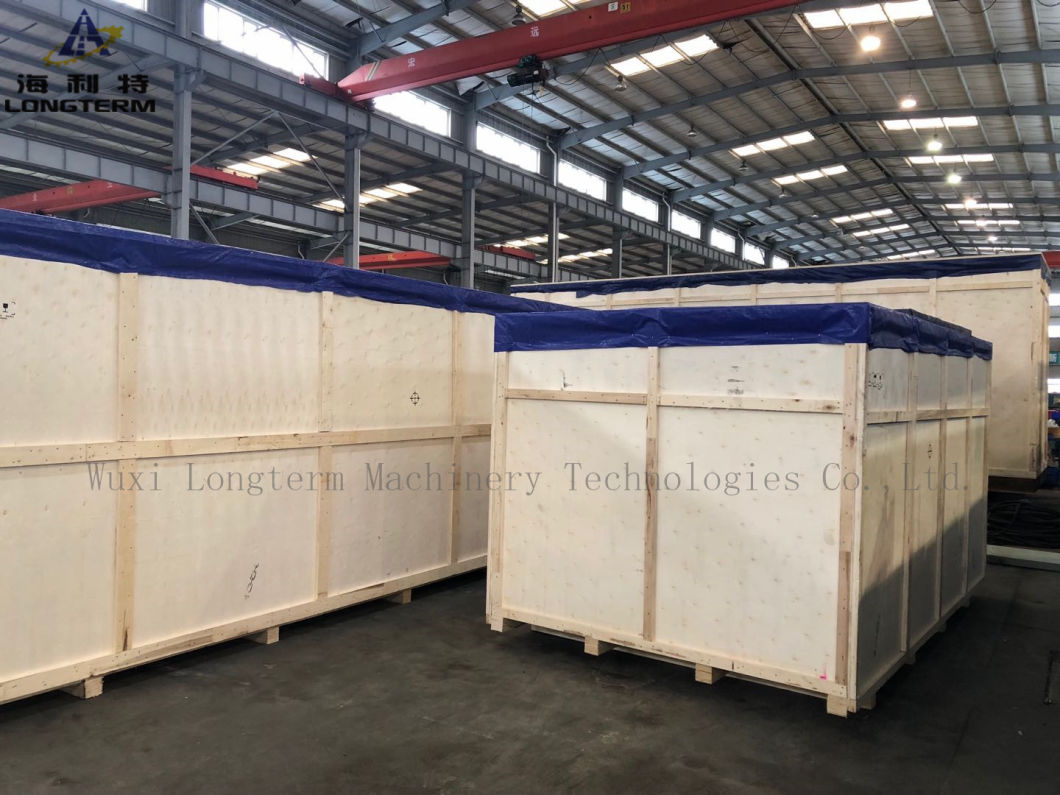

Standard Sea Package
Customized
HLT
Jiangsu, China
844790900
500 Sets/Year
US$ 40000/Piece 1 Piece(Min.Order) | Request Sample

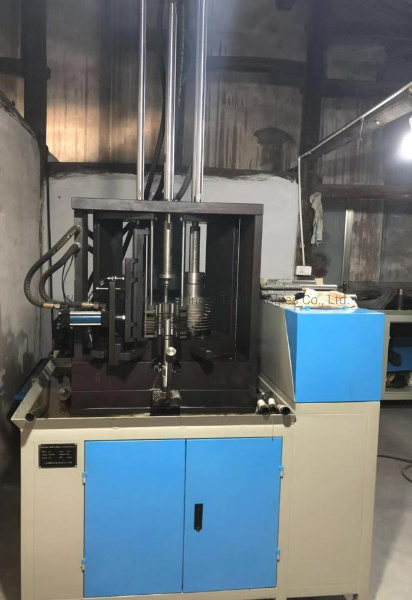

Product Description
Application:

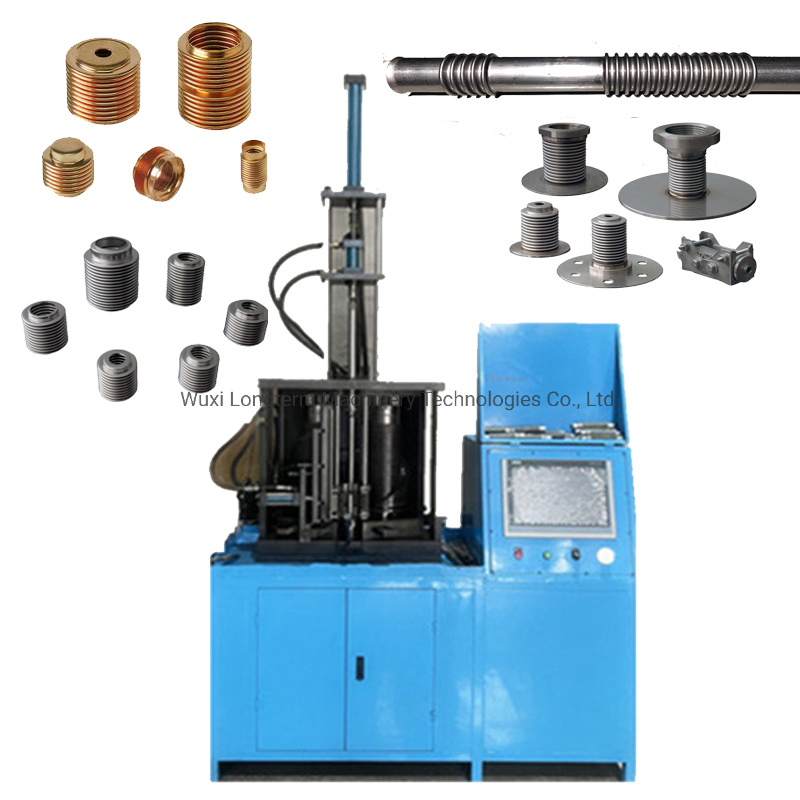

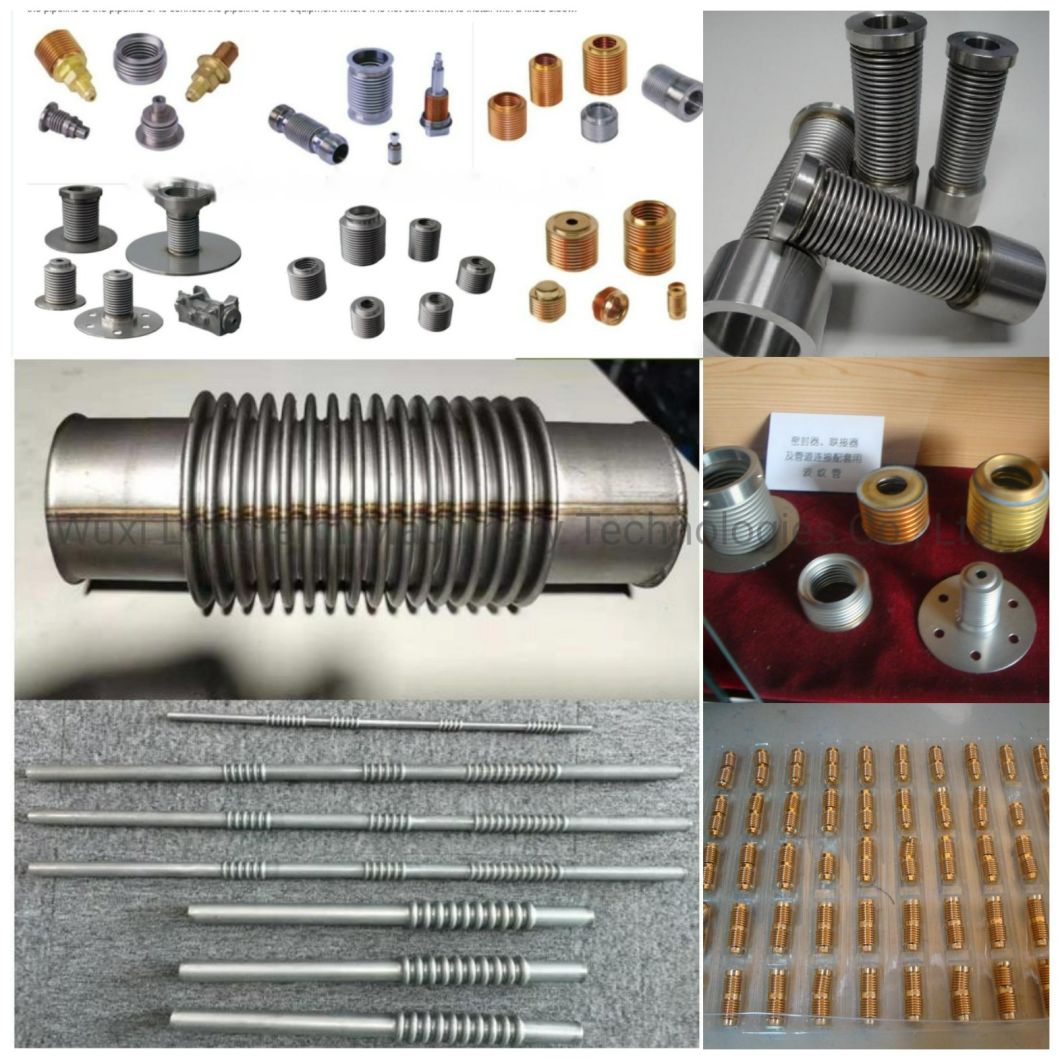

For valve bellow, instrument bellow, vacuum bellow, flexible element forming.
| Machine Model | 6-25 mm | 32-50 mm | 50-80 mm | 80-100 mm |
| Thickness | Max. 0.5 mm * 2 plies Max. 1 mm * 1 ply | Max. 0.5 mm * 2 plies Max. 1 mm * 1 ply | Max. 0.5 mm * 2 plies Max. 1 mm * 1 ply | Max. 0.5 mm * 2 plies Max. 1 mm * 1 ply |
| Expanding Time | <20S | <30S | <30S | <40S |
| Corrugation Height | ≤165mm | Can be Customized | Can be Customized | Can be Customized |
| Tube Length Before Forming | ≤165mm | ≤360mm | ≤360mm | ≤460mm |
| Total Power | 6KW | 6KW | 6-8kw | 6-8KW |
Advantage in technology:

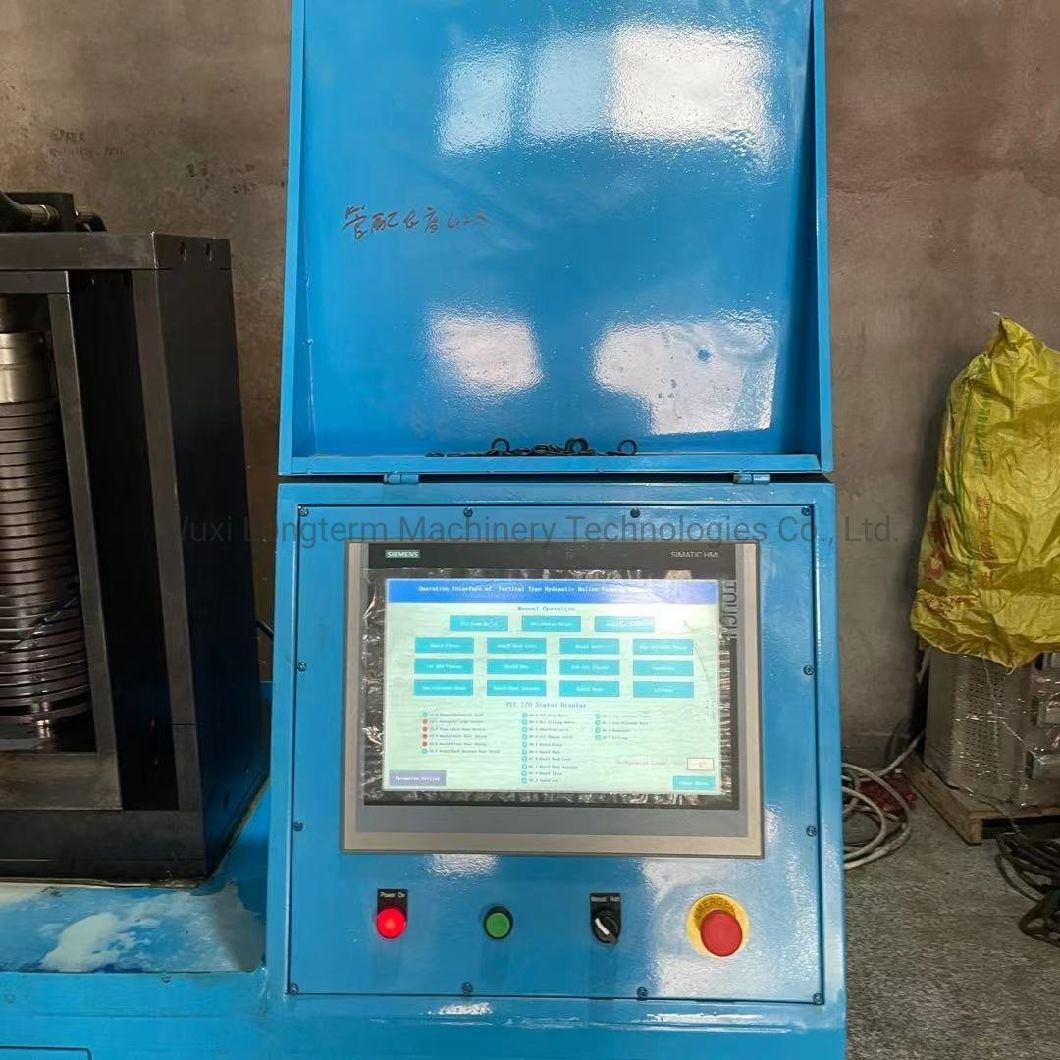

• Adopting advanced bellow making technology, Siemens controller controlled, fully automated production.

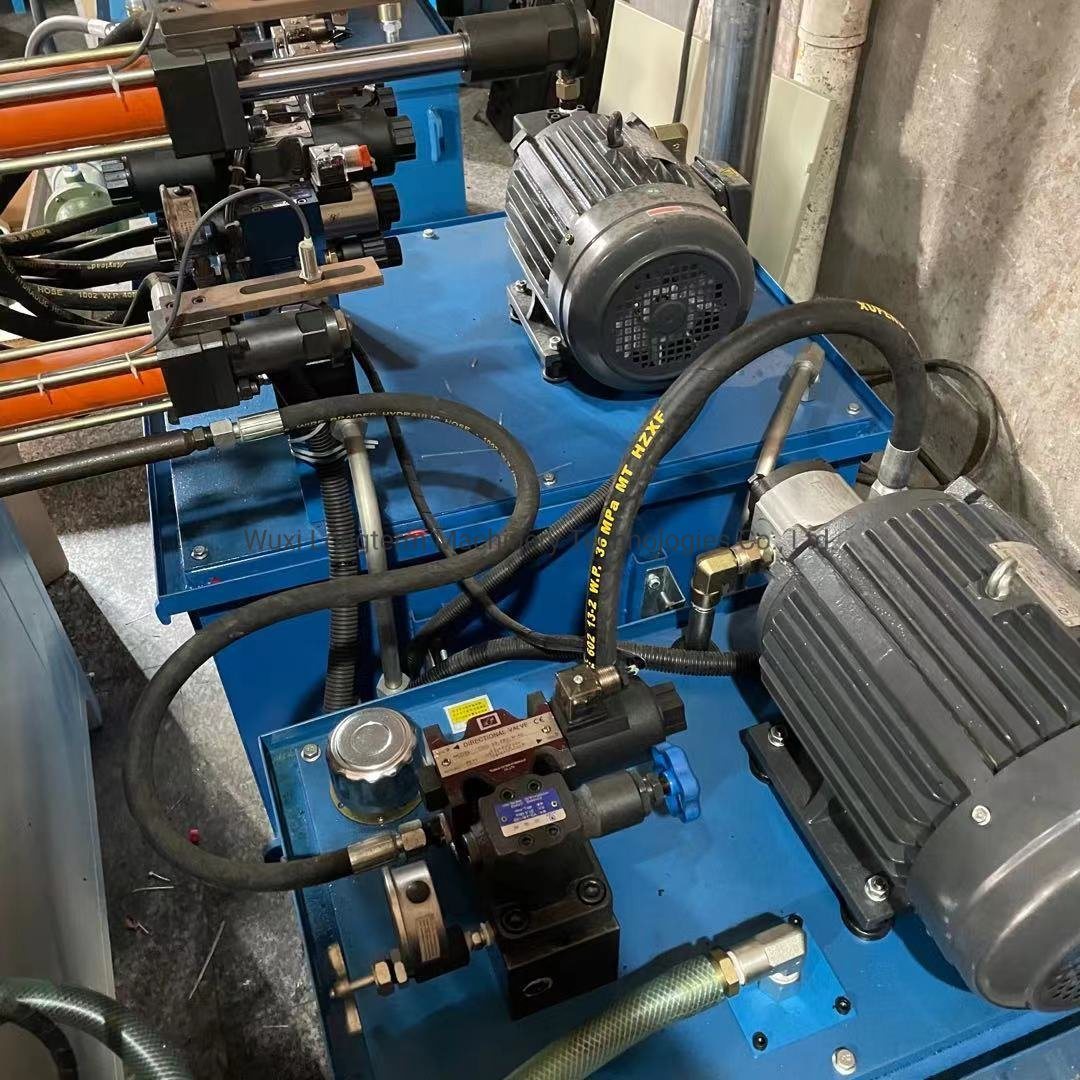

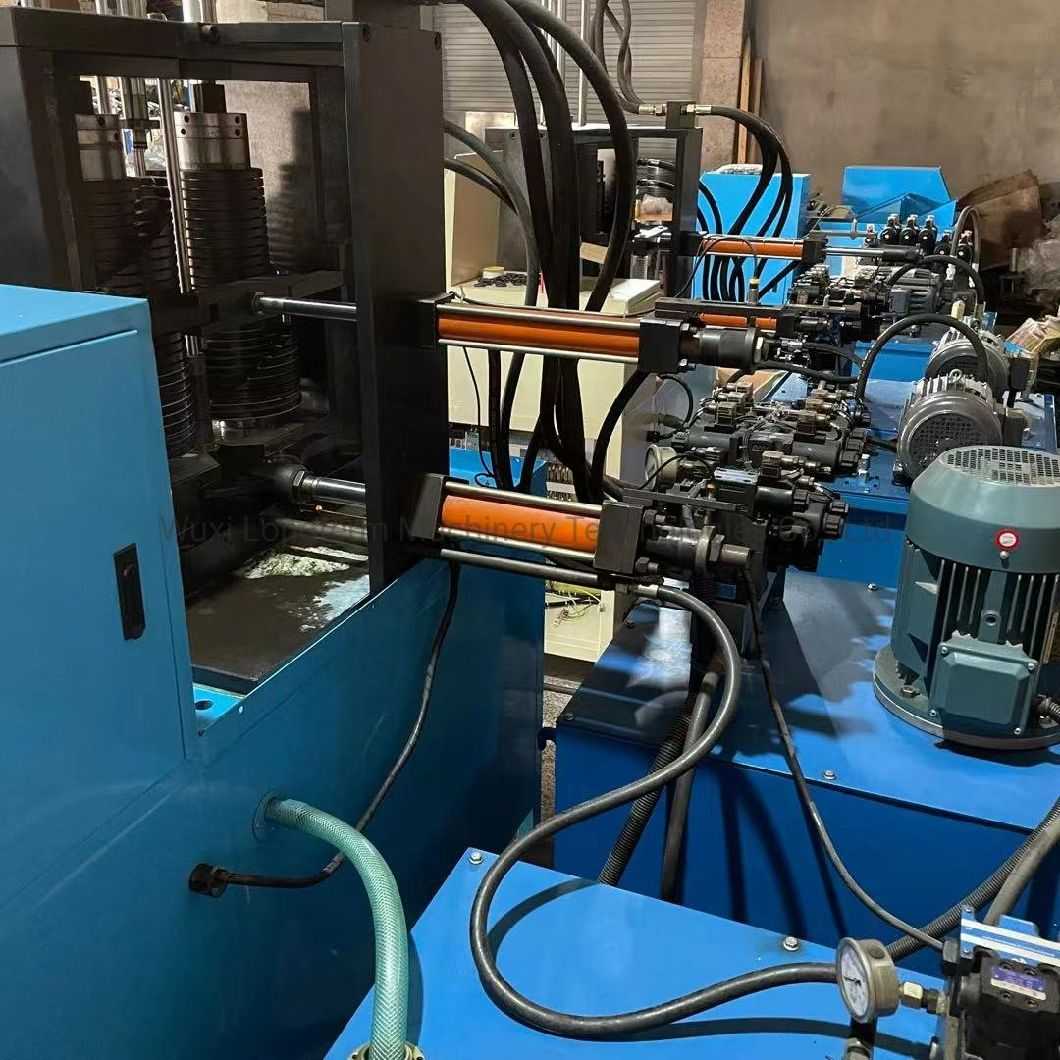

• Hydraulically powered, fast forming speed, low noise.
• The material of forming tools are high strength die steel, long service life
• Many safety precautions to ensure the safety of personnel and equipment in the production process.
• This machine can be customized according to the customer's parameters.
Features:
Compared with horizontal single pitch hydraulic bellow forming machine, the bellows formed on this machine is more precise with better shape and quality.
We are most professional metal hose, metal bellow and related machineries manufacturer and exporter with more than 30 years of history. Our products exported and are exporting to many countries, such as Denmark, UK, USA, Russia, Ukraine, Iran, Australia, Zambuwae etc...Bellow and Hose machineries are exported to world wide, such as Turkey, India, Russia, Ukraine, Iran, Australia, Canada, USA, UK, etc...We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc...We are lead manufacturer of flex-related products in China.

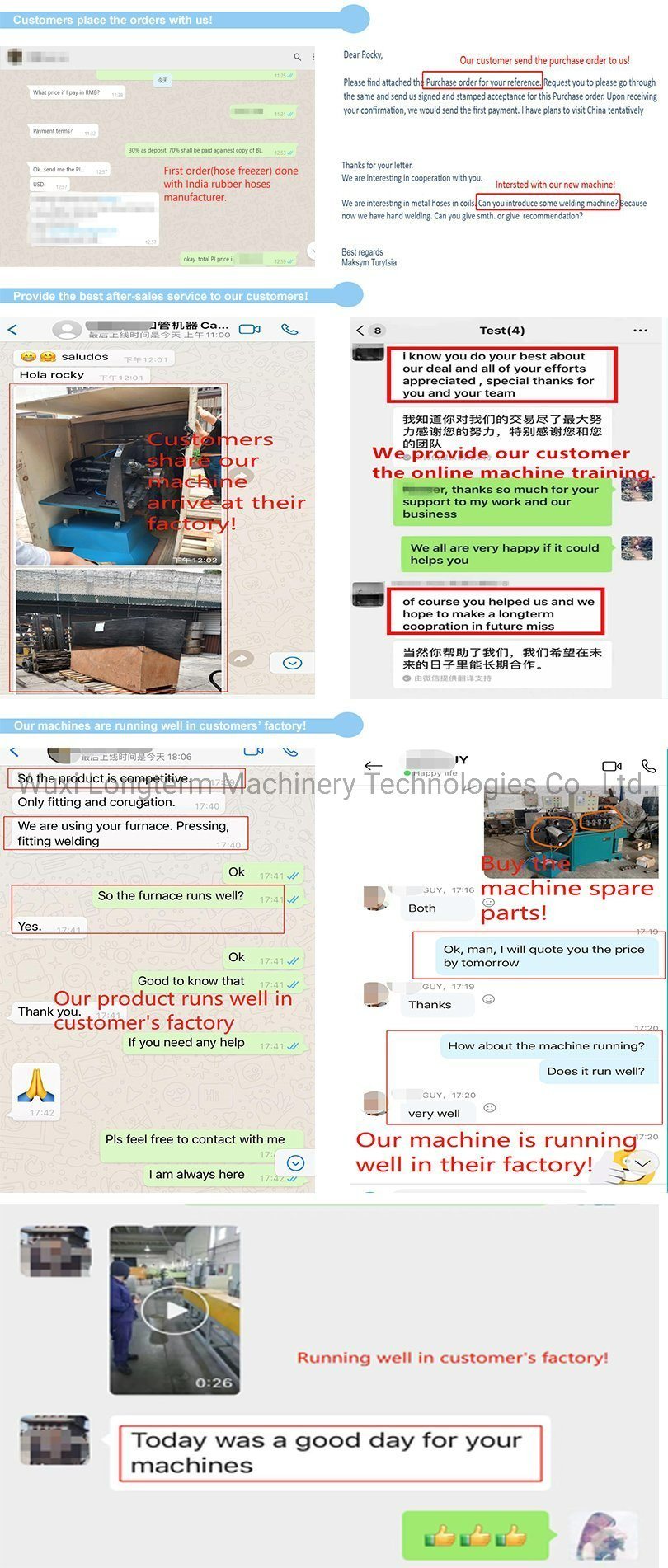

Part of customers:
Our team:
FAQ
Q: Why choose us for auto exhaust bellow forming and assembly line?
A: We are most professional manufacturer of hose making machine with more than 30 years of experience.
Q: What size can you make?
A: All the sizes from DN32 up to DN100
Q: How many different types of machine can you make?
A: Different types of bellow forming machines
B: Bellow compressing machine
C: Bellow end trimming machine
D. Cap crimping machine
E. Interlock hose making machines
F. Wire braiding machines etc...
We need to know following information to quote you correct machineries:
1. Size range you want to make
2. Technical drawing of the bellow, so that we can check the convolution details.
