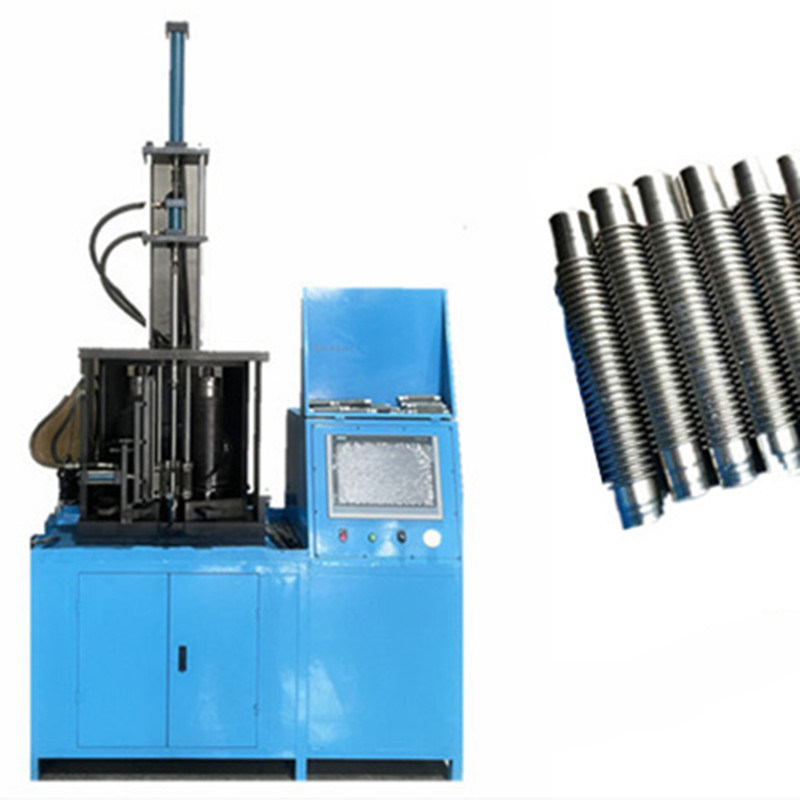

High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine

Quantity:
  • Intergrated Cassette Type Mould

  • Fully Automatic

  • CE, ISO, CSA etc..

  • 6-25mm, 32-50 mm, 50-80 mm, 80-100 mm

  • Single or Double Layers

  • 0.3mm Per Layer

  • Valve Bellow, Instrument Bellow, Vacuum Bellow, FL

  • Standard Sea Package

  • Customized

  • HLT

  • Jiangsu, China

  • 844790900

  • 500 Sets/Year

  • US$ 40000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

High Performance Stainless Steel hose ,EXpansion Joint Bellow Forming Machine

High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine

Product Parameters

Application:

For valve bellow, instrument bellow, vacuum bellow, flexible element forming.

Machine Model
6-25 mm
32-50 mm
50-80 mm
80-100 mm
Thickness
Max. 0.5 mm * 2 plies
Max. 1 mm * 1 ply
Max. 0.5 mm * 2 plies
Max. 1 mm * 1 ply
Max. 0.5 mm * 2 plies
Max. 1 mm * 1 ply
Max. 0.5 mm * 2 plies
Max. 1 mm * 1 ply
Expanding Time <20S <30S <30S <40S
Corrugation Height ≤165mm Can be Customized Can be Customized Can be Customized
Tube Length Before Forming ≤165mm ≤360mm ≤360mm ≤460mm
Total Power 6KW 6KW 6-8kw 6-8KW


Advantage in technology:

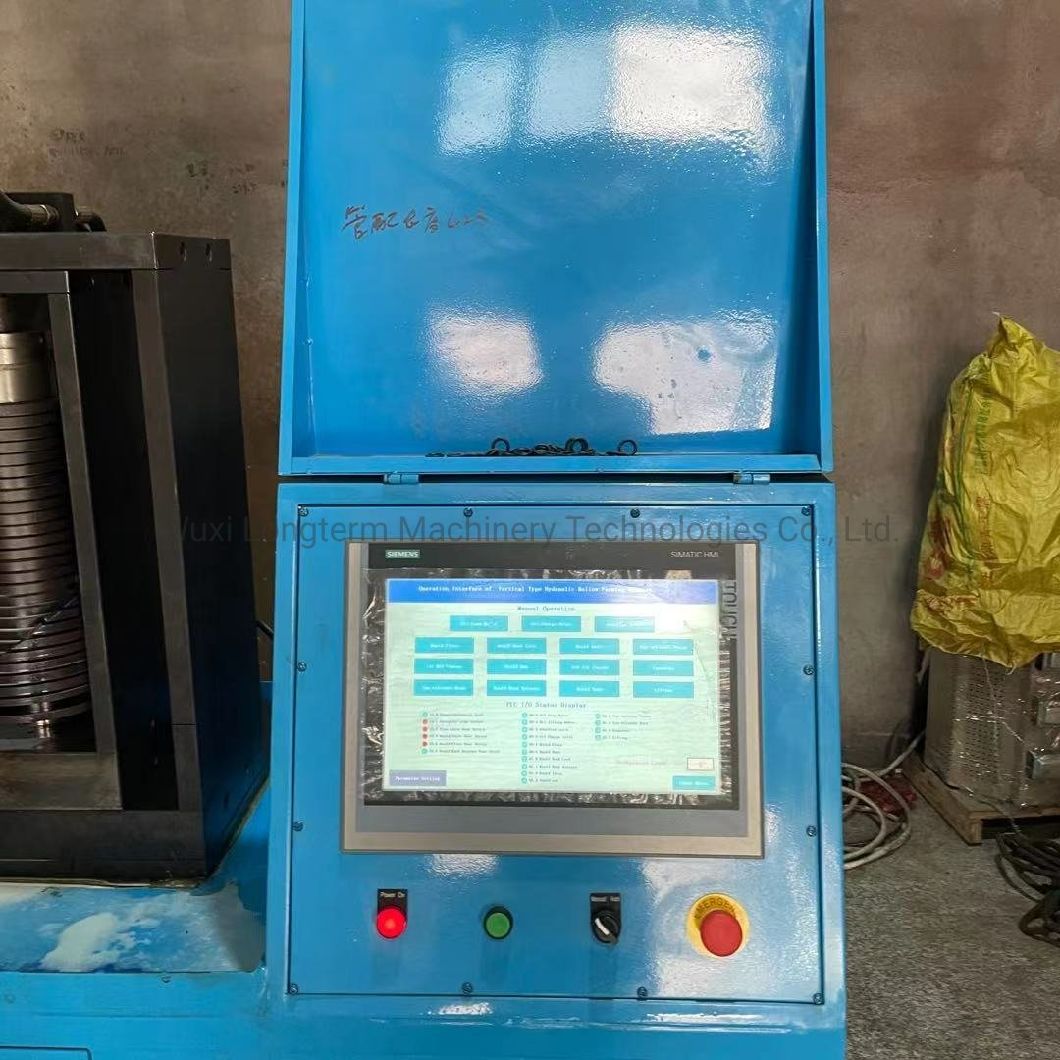

Adopting advanced bellow making technology, Siemens controller controlled, fully automated production.

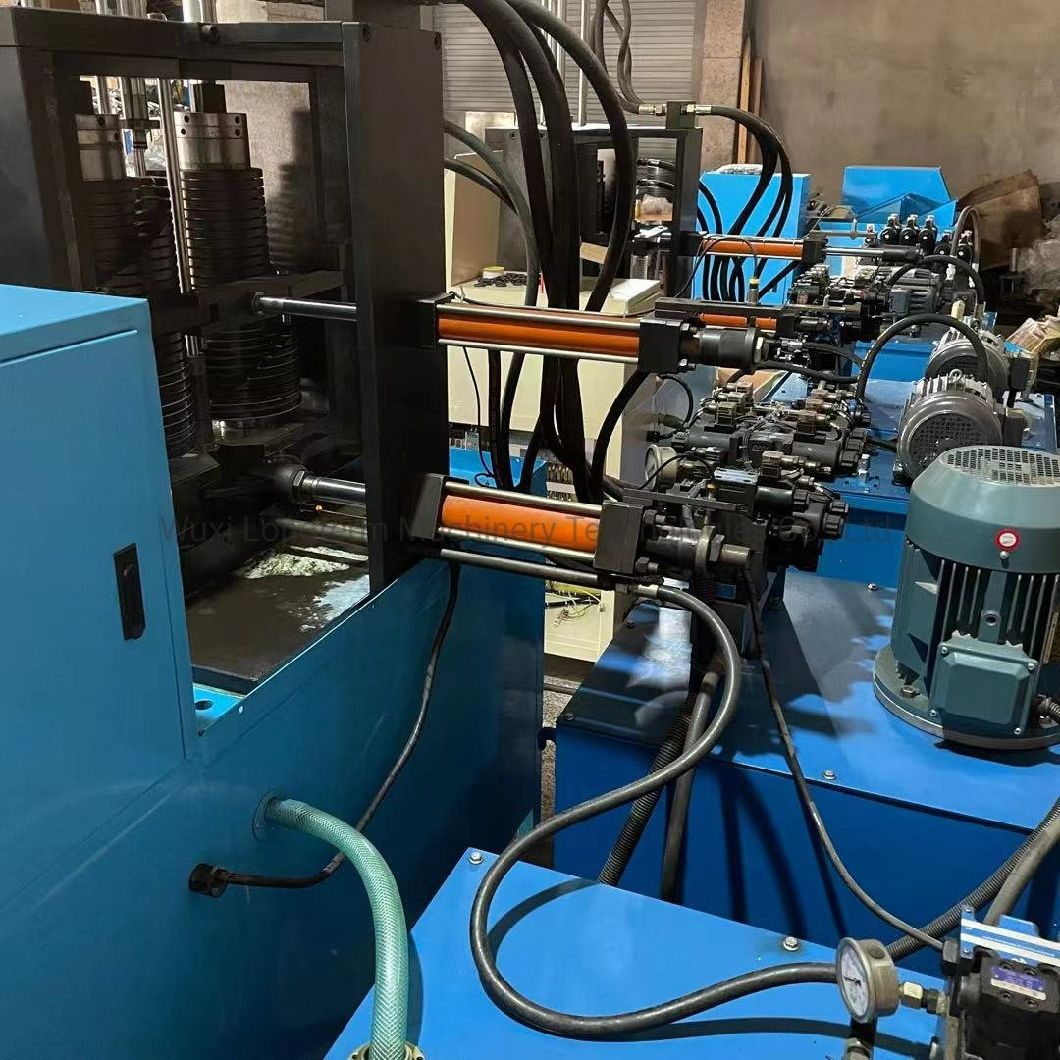

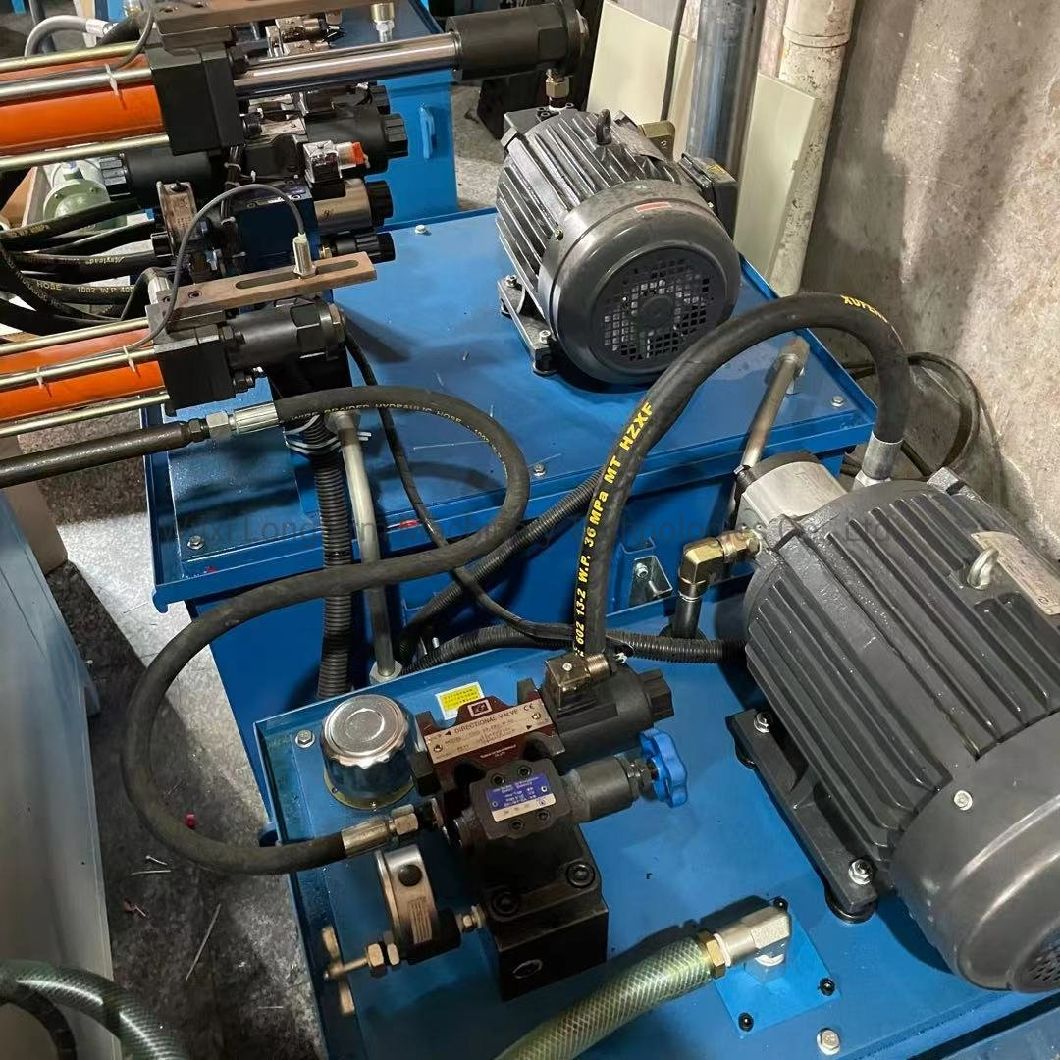

Hydraulically powered, fast forming speed, low noise.

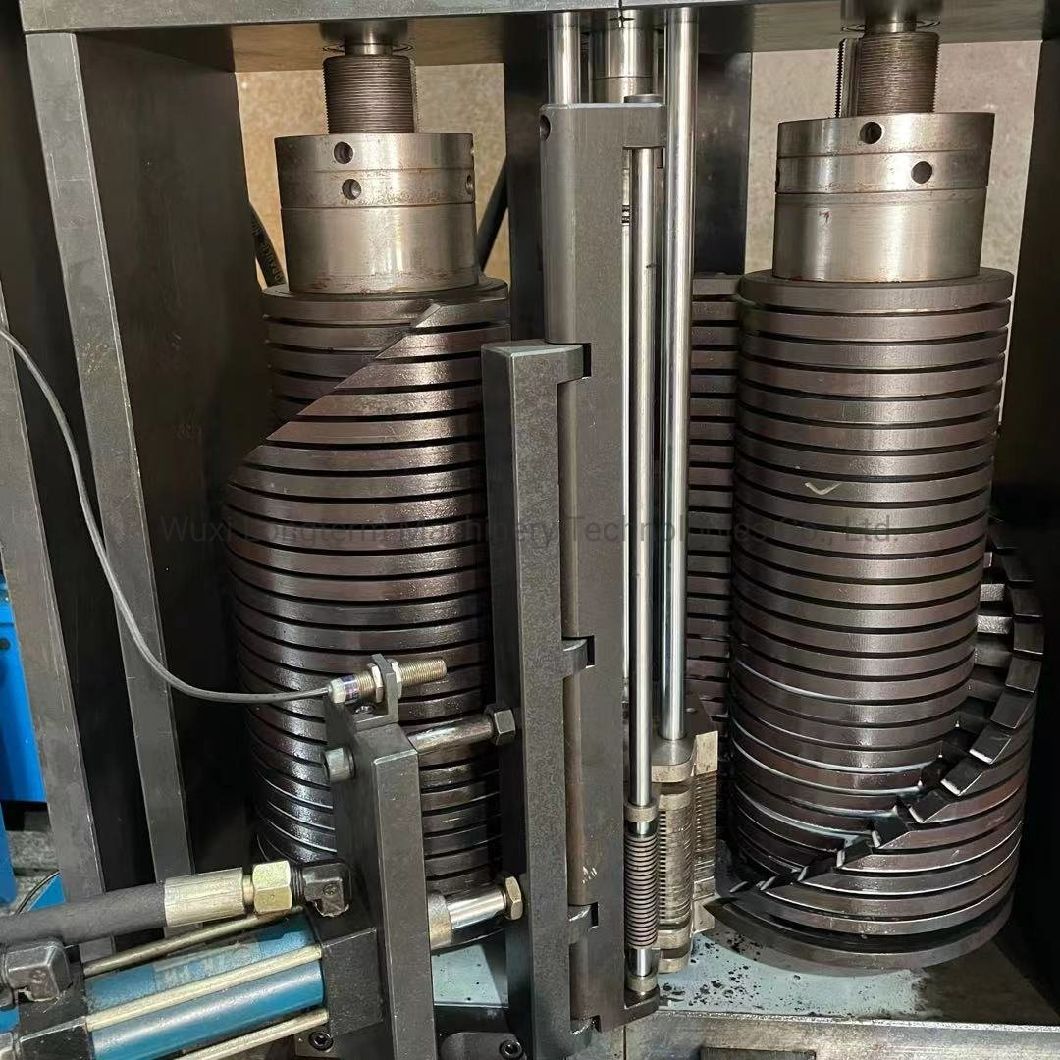

The material of forming tools are high strength die steel, long service life
Many safety precautions to ensure the safety of personnel and equipment in the production process.
This machine can be customized according to the customer's parameters.


Features:
Compared with horizontal single pitch hydraulic bellow forming machine, the bellows formed on this machine is more precise with better shape and quality.

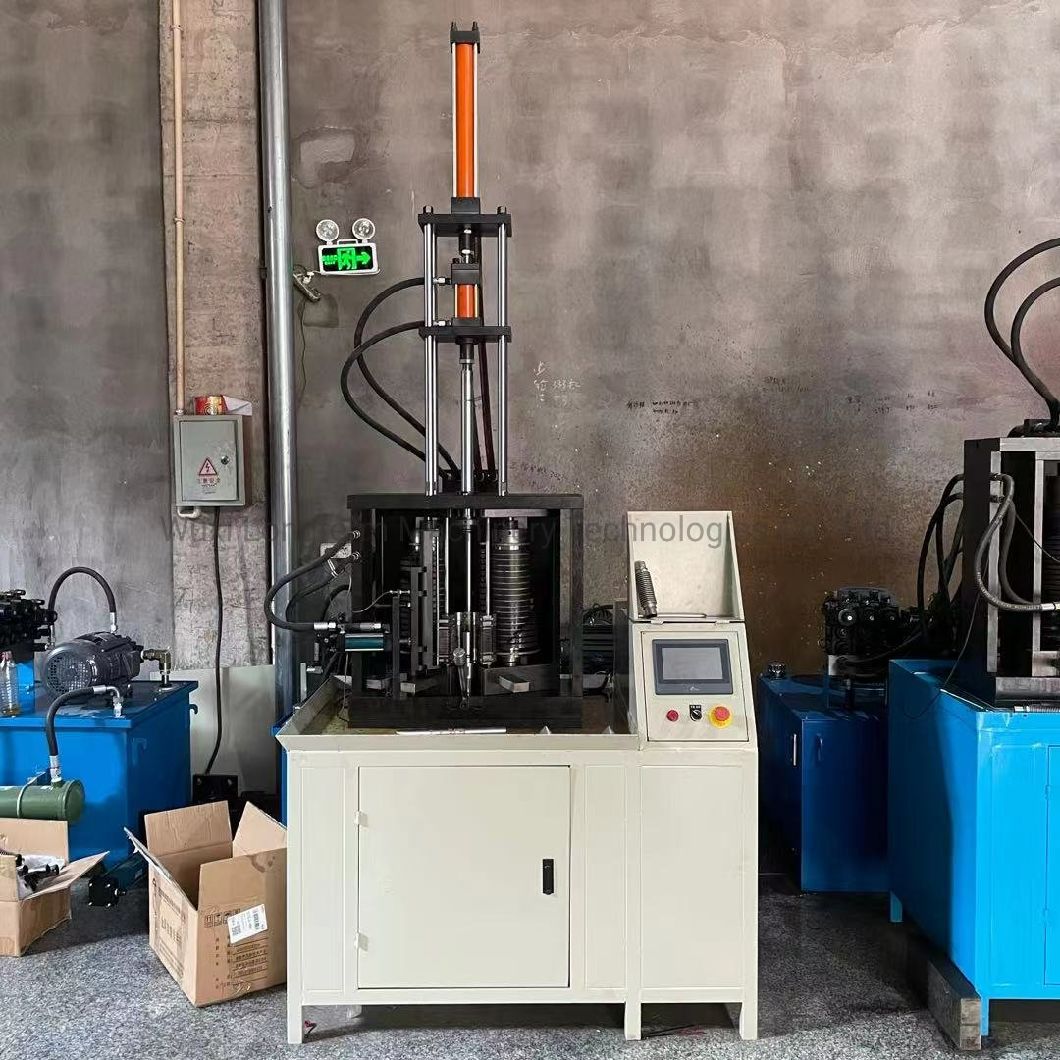

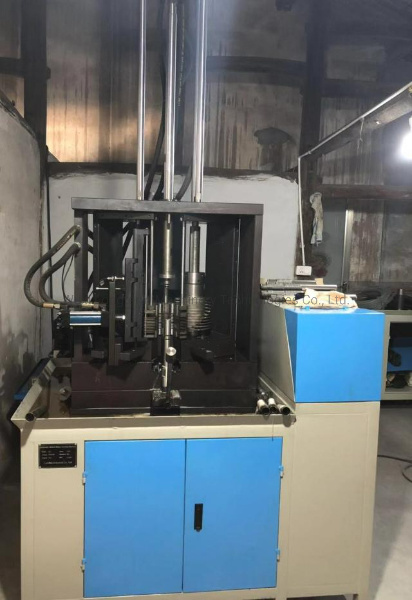

Hydraulic Muti-pitch Vertical Type Metal Bellow forming machine
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine



High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine

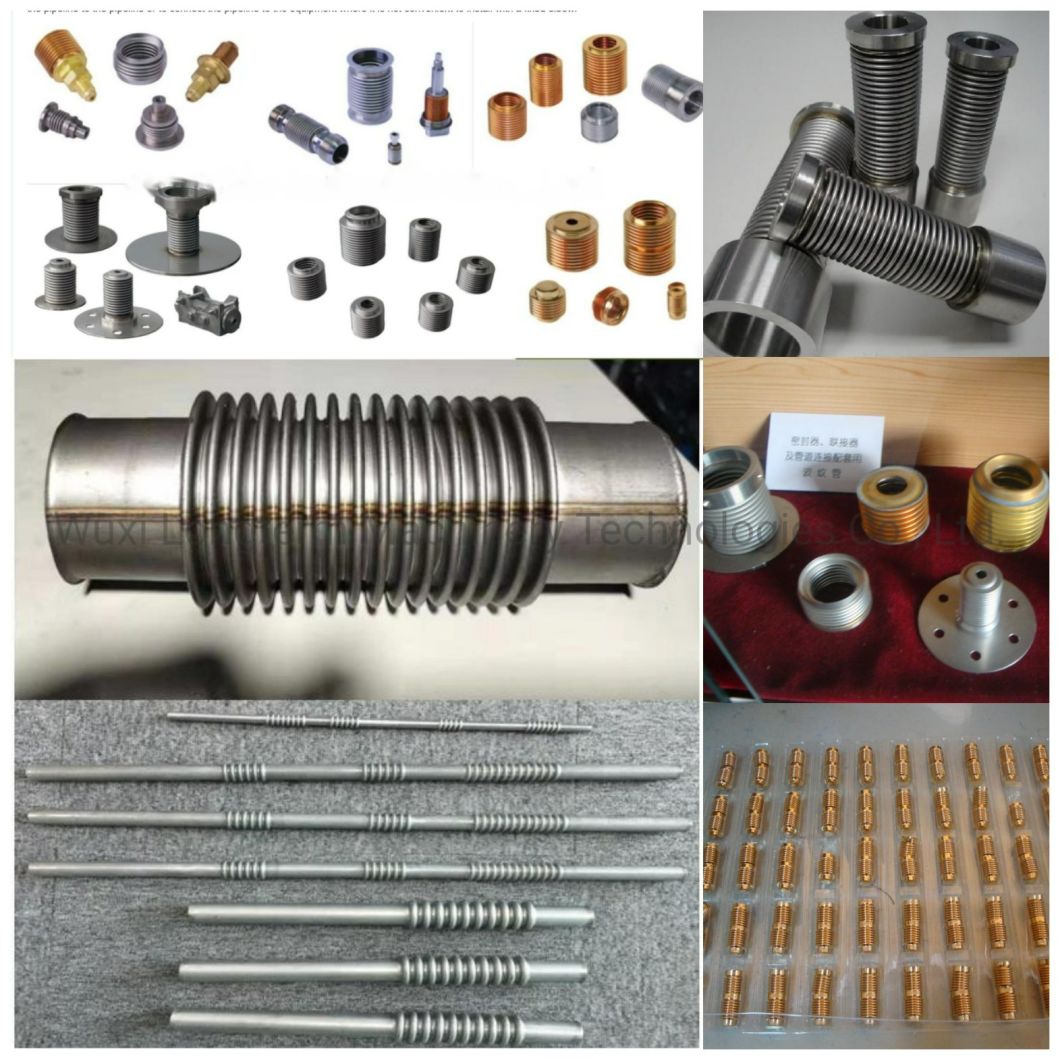

Finish Products

Detailed Photos

High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine



Packaging & Shipping
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine

Company Profile

We are most professional metal hose, metal bellow and related machineries manufacturer and exporter with more than 30 years of history. Our products exported and are exporting to many countries, such as Denmark, UK, USA, Russia, Ukraine, Iran, Australia, Zambuwae etc...Bellow and Hose machineries are exported to world wide, such as Turkey, India, Russia, Ukraine, Iran, Australia, Canada, USA, UK, etc...We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc...We are lead manufacturer of flex-related products in China.

Part of customers:

High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine


Our team:
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine

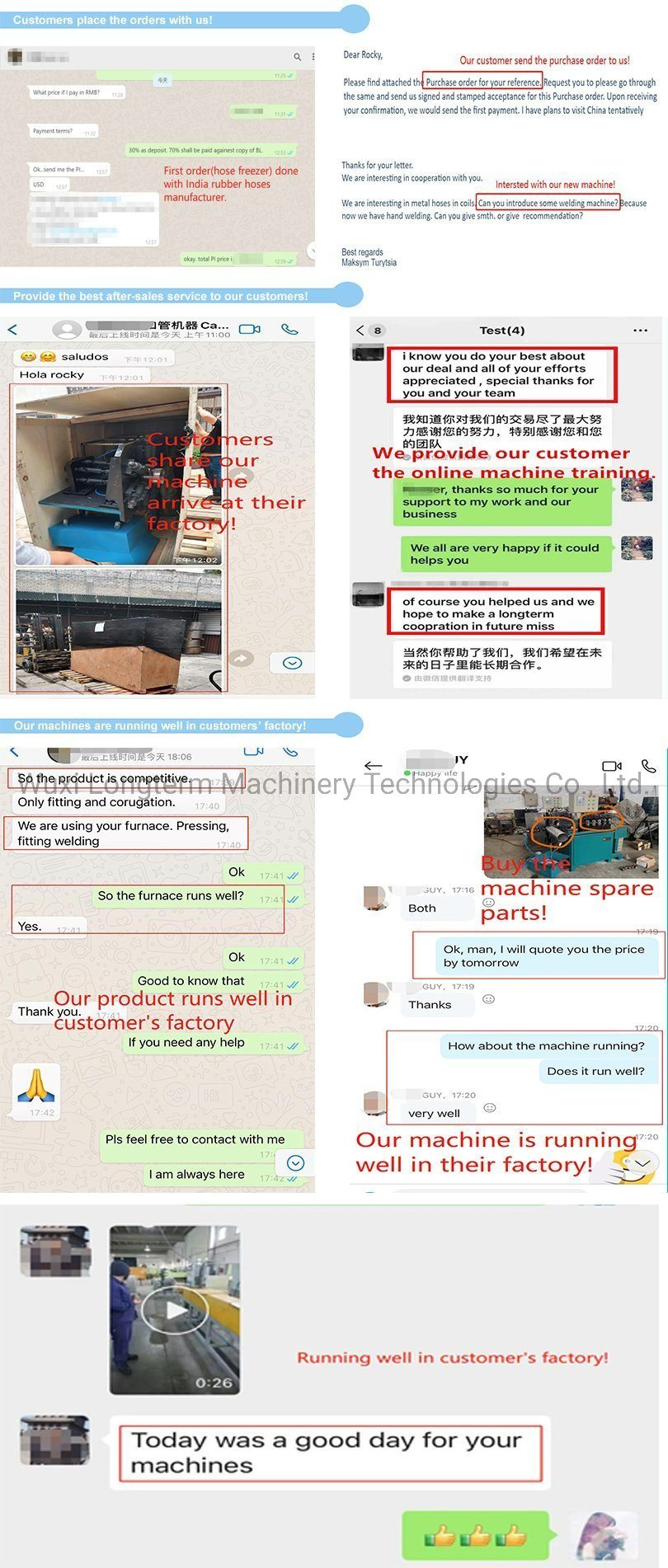

Customer evaluation
High Performance Stainless Steel Hose, Expansion Joint Bellow Forming Machine


FAQ

FAQ
Q: Why choose us for auto exhaust bellow forming and assembly line?
A: We are most professional manufacturer of hose making machine with more than 30 years of experience.
Q: What size can you make?
A: All the sizes from DN32 up to DN100
Q: How many different types of machine can you make?
A: Different types of bellow forming machines
B: Bellow compressing machine
C: Bellow end trimming machine
D. Cap crimping machine
E. Interlock hose making machines
F. Wire braiding machines etc...

We need to know following information to quote you correct machineries:
1. Size range you want to make
2. Technical drawing of the bellow, so that we can check the convolution details.
