High Grade Ss 430 Stainless Steel Strip

Quantity:
  • Sunrise
  • 1 Ton
  • Process Service
  • Technical Treatment
  • Roll
  • depend on demands
  • HLT
  • Jiangsu, Wuxi
  • 72202040
  • 1000 Ton/ Quater
  • US$ 10/Piece 1 Piece(Min.Order) | Request Sample

Product Description

High Grade SS 430 Stainless Steel Strip



High Grade Ss 430 Stainless Steel Strip

Longterm Co.,ltd specializes in all grades of cold-rolled stainless steel strip with thickness ranging from 0.03 to 3.0mm, and width 650mm or less. With registered capital of 60million yuan, Longterm covers an area of 40000 m2. The annual production capacity is around 40,000 tons. In possession of a number of technical and managerial talents, superior production fixtures, complete auxiliary facilities and testing equipment, Longterm enjoys unique advantages in cutting-edge technology, strong technical force and strict management.

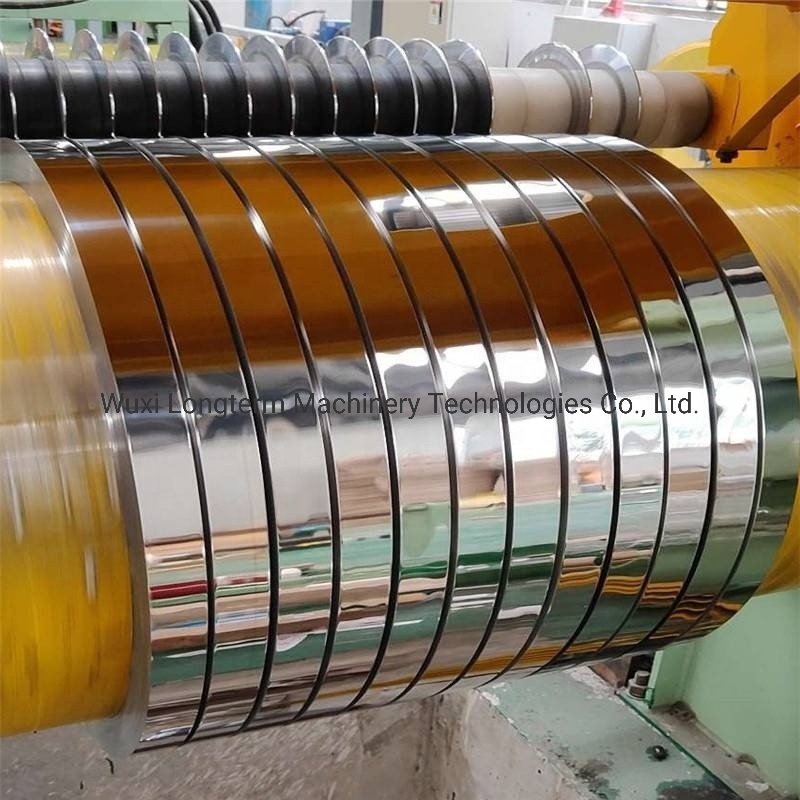

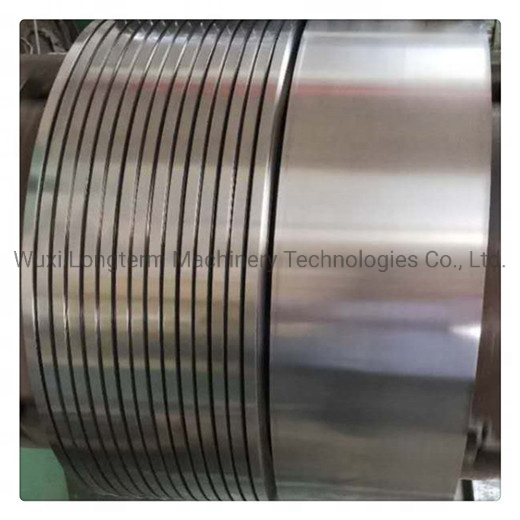

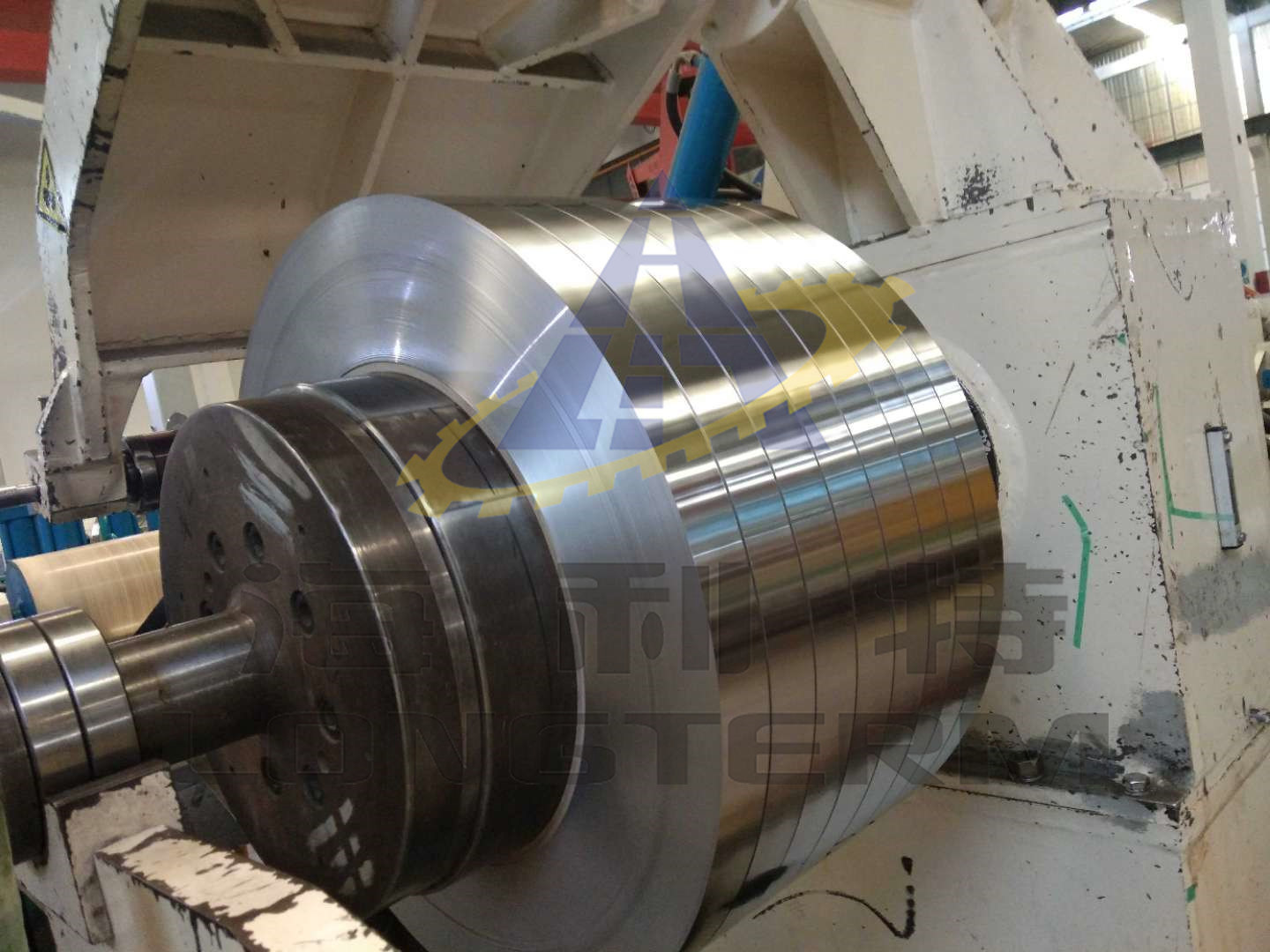

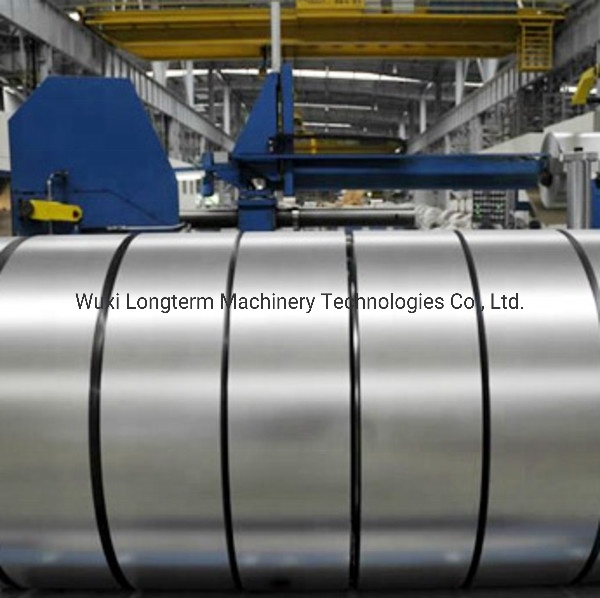

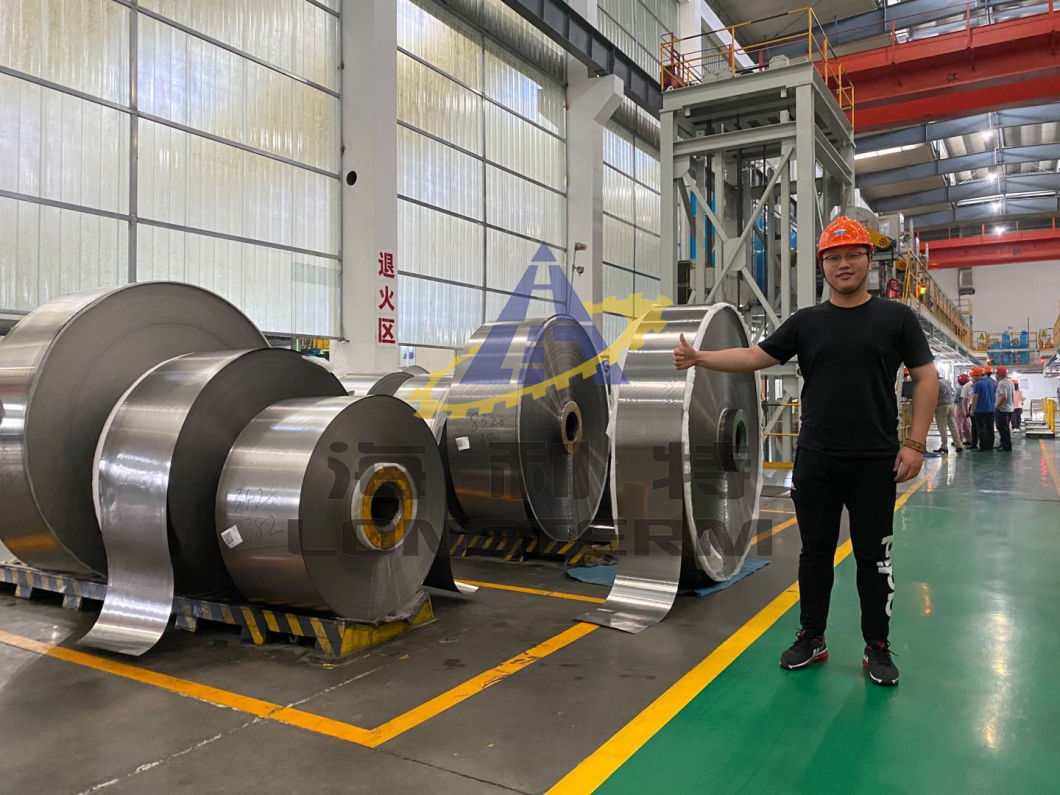

--1. Detailed Images

High Grade Ss 430 Stainless Steel Strip
High Grade Ss 430 Stainless Steel Strip

High Grade Ss 430 Stainless Steel Strip
Typical Mechanical Properties
Classification Type Yield Strength
Mpa
Tensile Strength
Mpa
Elongation
%
Hardness
HV
Austenitic SUS 201 245+ 635+ 40+ 253-
SUS 301 205+ 520+ 40+ 200-
SUS 304 205+ 520+ 40+ 200-
SUS 304L 175+ 480+ 40+ 200-
SUS 305 175+ 480+ 40+ 200-
SUS 309S 205+ 520+ 40+ 200-
SUS 310S 205+ 520+ 40+ 200-
SUS 316 205+ 520+ 40+ 200-
SUS 316L 175+ 480+ 40+ 200-
SUS 317 205+ 520+ 40+ 200-
SUS 321 200+ 520+ 40+ 200-
Ferritic SUS 409 205+ 380+ 22+ 200-
SUS 430 205+ 450+ 22+ 200-
SUS 430LX 175+ 365+ 22+ 200-
Martensitic SUS 410 175+ 440+ 20+ 210-
SUS 410S 175+ 410+ 20+ 200-
SUS 420J 225+ 520+ 18+ 234-
SUS 440A 245+ 590+ 15+ 270-

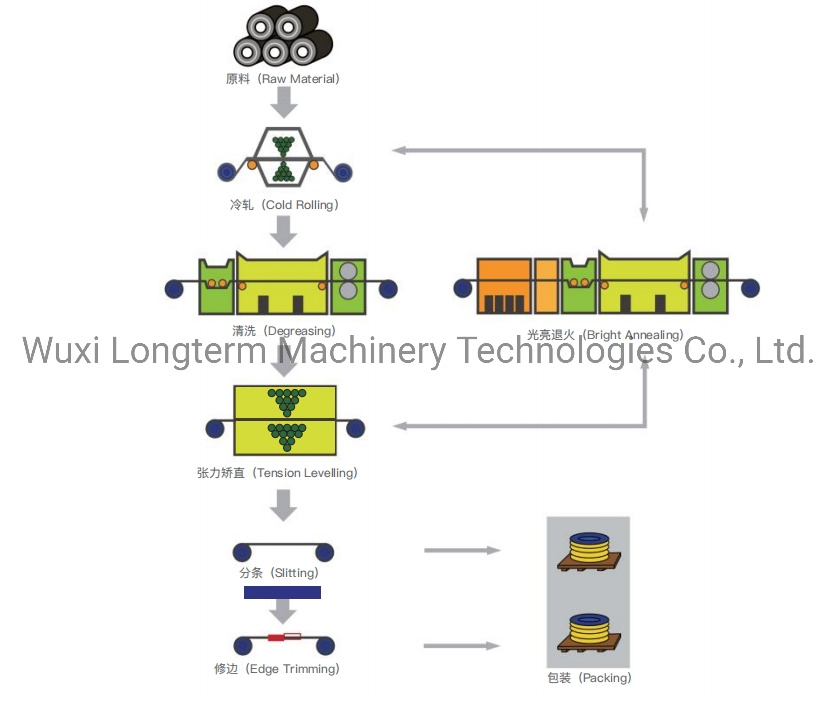

--2. Manufacturing Process
High Grade Ss 430 Stainless Steel Strip

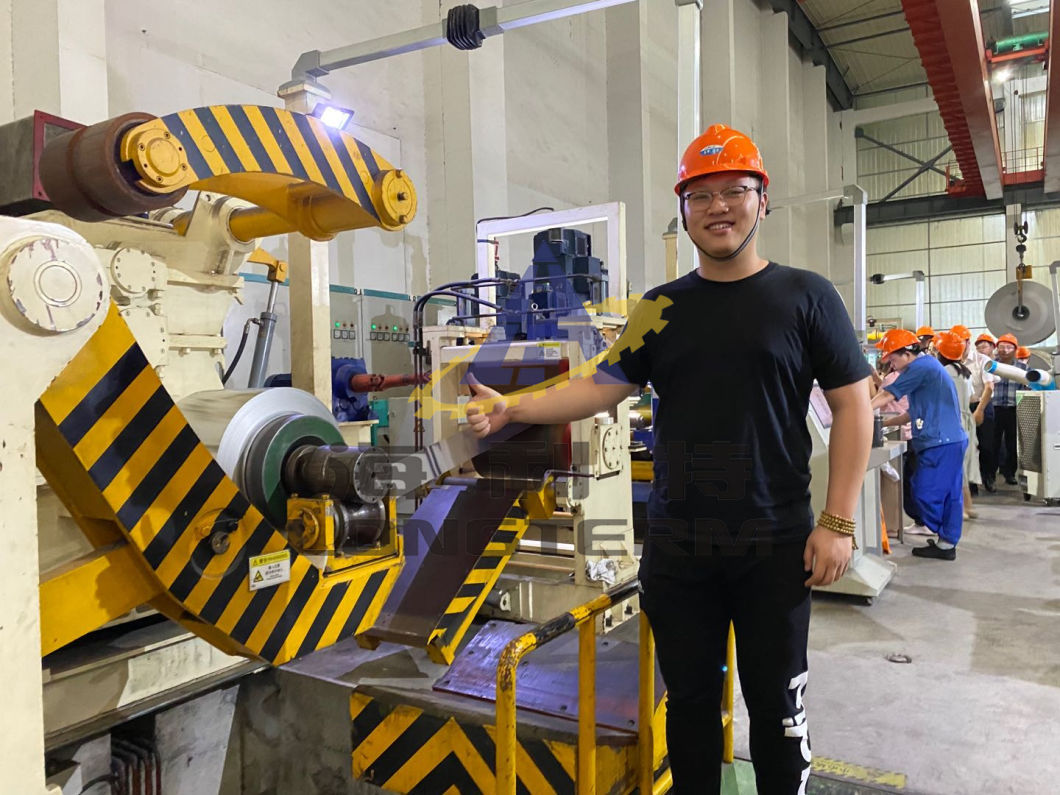

--3. Main Equipments

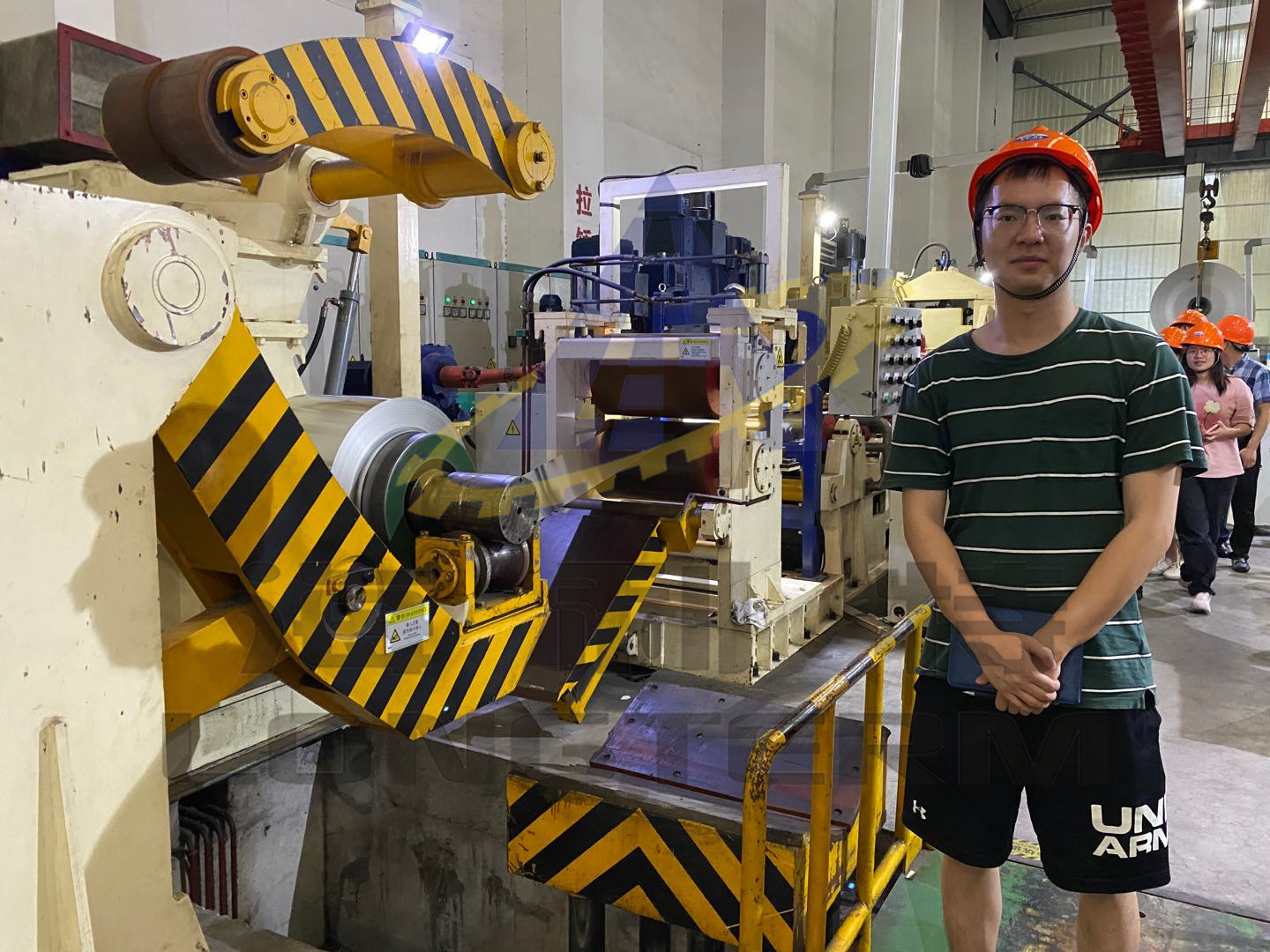

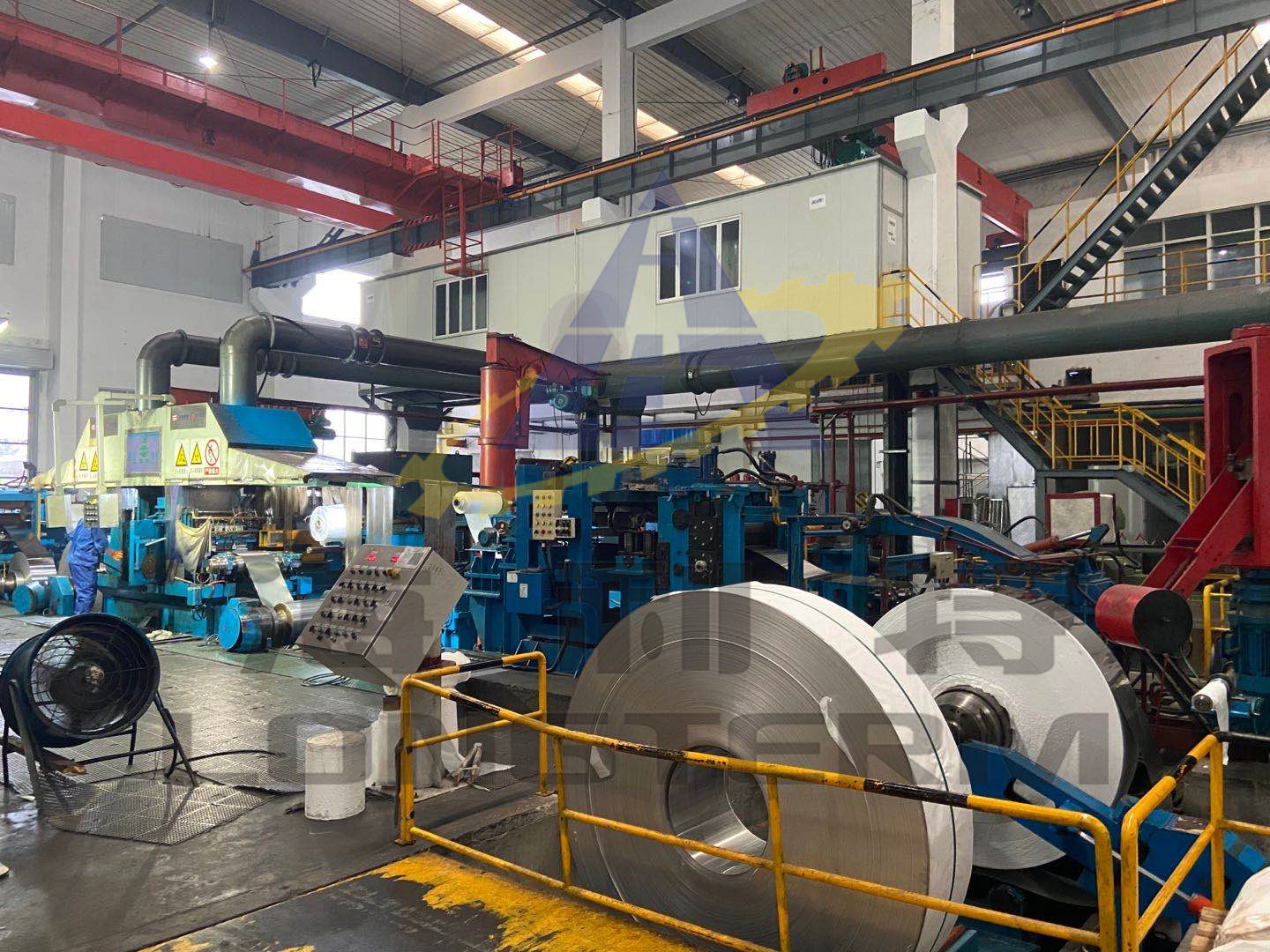

A.Imported Fourteen-high Cold-roll Reversing Mill
High Grade Ss 430 Stainless Steel Strip

B.Continuous Bright Annealing Oven
High Grade Ss 430 Stainless Steel Strip

C.TENSION LEVELLER


High Grade Ss 430 Stainless Steel Strip



--4. Major Application

High Grade Ss 430 Stainless Steel Strip

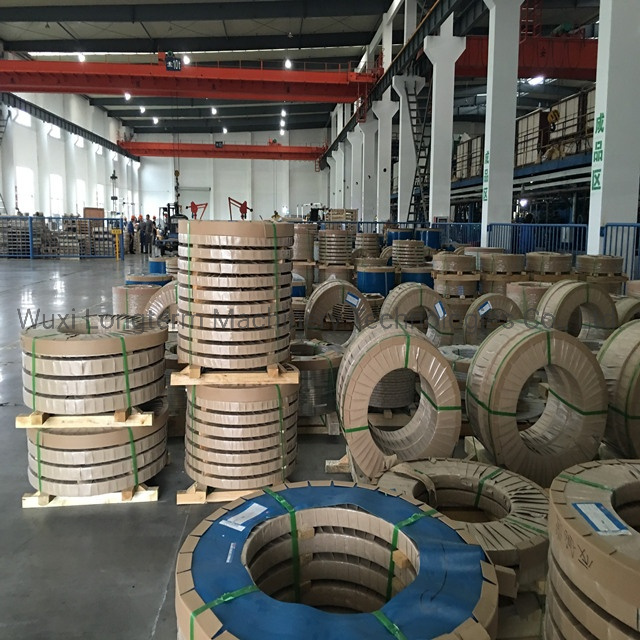

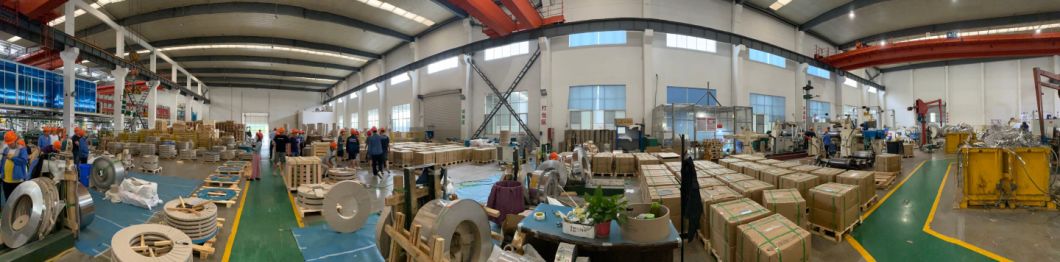

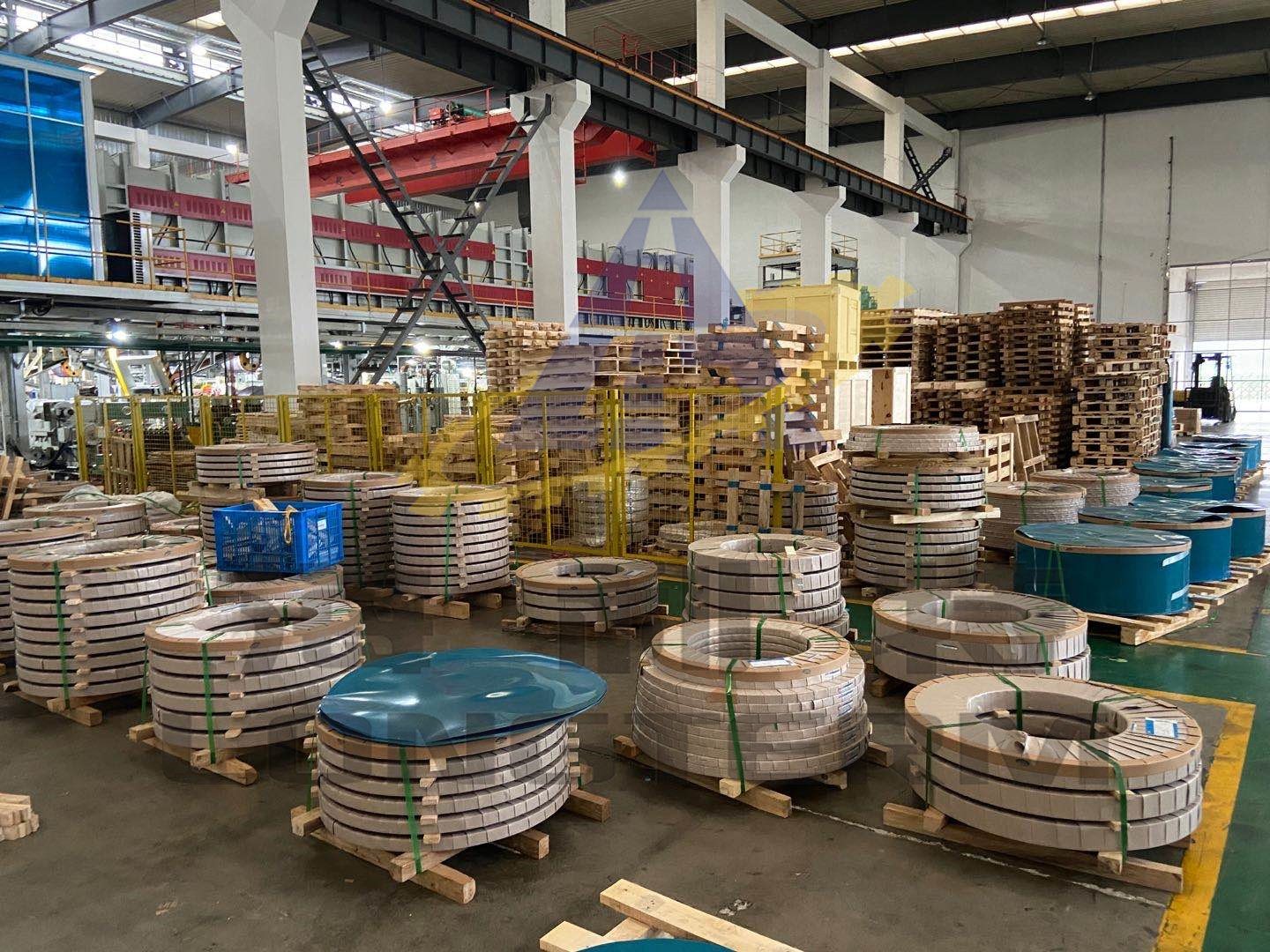

--5. Packing & Shipping

High Grade Ss 430 Stainless Steel Strip
High Grade Ss 430 Stainless Steel Strip



--6. Certification
High Grade Ss 430 Stainless Steel Strip



--7. FAQ

1. Items To Be Specified in Order
Standard: ASTM, JIS, DIN, GB
Grade: 200, 300, 400 series and etc.
Surface condition: TR, BA
Mechanical property: hardness, tensile strength, elongation rate and etc.
Grain Size: ASTM
Size: thickness, width, length, I.D. and O.D.
Quantity: weight
Packaging: packing method, single - roll weight
Delivery date, method and place

2. Does stainless steel never rust?
The different characteristics of stainless steel are attributed to the
different elements added along with ferrum element. Stainless steel is
anti-rust because the chromium (CR) element added can form a
dense oxide film. However, once stainless steel is exposed to high
temperature or a strong chemical environment for a long time, the
oxide film on the surface will be destroyed and lead to corrosion.

3. Into what categories is stainless steel usually divided according to matrix structure?
Usually stainless steel can be divided into following categories by
matrix structures:
1. Ferritic stainless steel, which contains 12% ~ 30% Cr. Its corrosion
resistance, toughness and weldability is improved with the increase
of Cr content, and its resistance against chloride stress corrosion is
superior to other types of stainless steel.
2. Austenitic stainless steel, which contain over 18% Cr, about 8% Ni
and a small amount of Mo, Ti, N and etc. It has good overall perfor
mance and is resistant to a variety of chemical medium corrosion.
3. Austenitic-ferritic duplex stainless steel, which has the merits of both
austenitic and ferritic stainless steel. It has an excellent performance
in superplasticity as well.
4. Martensitic stainless steel, which is of high strength but bad in plasticity
and weldability.
According to chemical composition, it can be divided into CR series
(SUS400), CR-NI series (SUS300), CR-MN-NI(SUS200) and precipitation
hardening series (SUS600).
200 series - Cr - Ni - Mn austenitic stainless steel
300 series - Cr - Ni austenitic stainless steel
400 series - ferritic and martensitic stainless steel
500 series - heat resistant chromium alloy steel
600 series - martensitic precipitation hardening stainless steel
