Metal Strip Winding or Rewinding Machine with Traversing Device

Quantity:
  • Comflex
  • Automatic
  • Fully Wrapped Winding Machine
  • Horizontal Winding Machine
  • Mechanical Stretch
  • 200m/Min
  • 22.75kw
  • 2 Meters
  • 7 Meters
  • 400mm-500
  • 2200*1800*2200mm
  • 650mm
  • 750kg
  • 0-35rpm
  • PLC
  • Customized
  • customized
  • Comflex
  • China Jiangsu
  • 500 Sets Per Year
  • Available | Customized Request

Product Description

Metal strip winding or rewinding machine with traversing device
Product Description
Metal Strip Winding or Rewinding Machine with Traversing Device
Metal Strip Winding or Rewinding Machine with Traversing Device

1. Production parameters
(1) The steel strip rewinding machine is to wind the disc-shaped steel strip on the plastic shaft into a roll shape. During the winding process, the steel strip is arranged in an orderly manner, so that each layer of the steel strip is wound flat.

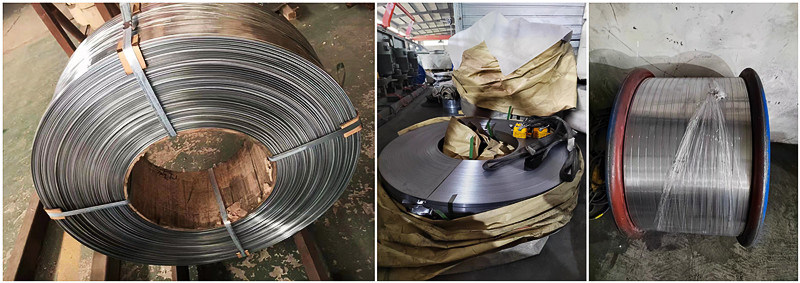

(2) Applicable strip material: low carbon steel material stainless steel material, size 13.6х0.84mm
(3) Design production speed: 200m/min
(4) Total equipment power: 22.75kw
(5) The size of the floor space after the equipment is placed: 2 meters in width and 7 meters in length 2. Configuration instructions

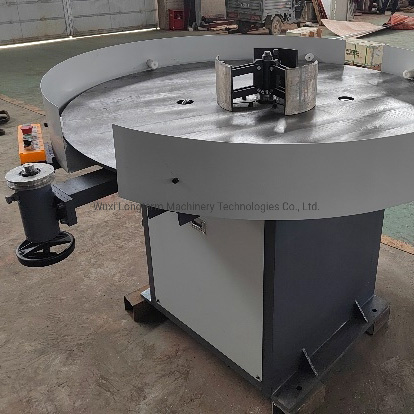

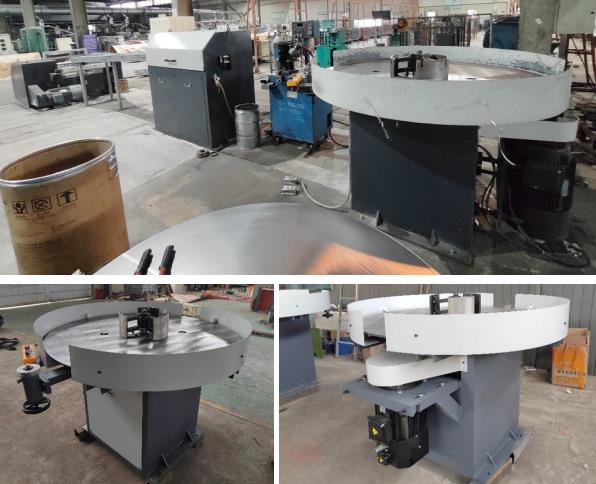

1. Flat tape placement machine
(1) The diameter of the belt disc: 1600mm, the maximum square is 1500mm steel belt reel
(2) Steel belt inner ring clamping range φ400mm-φ500mm
(3) Transmission mode: belt drive, pulley tapered sleeve installation, phosphating treatment, dynamic balancing
(4) There are safety guards on the outer side of the flat disc and rotating parts such as pulleys
(5) Frequency conversion motor drive: 11kw
2. Speed compensator
(1) It is used to adjust the speed matching between the unwinder and the winder
(2) The movable swing arm rotates against the steel belt, and the pneumatic back tension is controlled (3) Box-type structure, equipped with safety shield
Metal Strip Winding or Rewinding Machine with Traversing Device

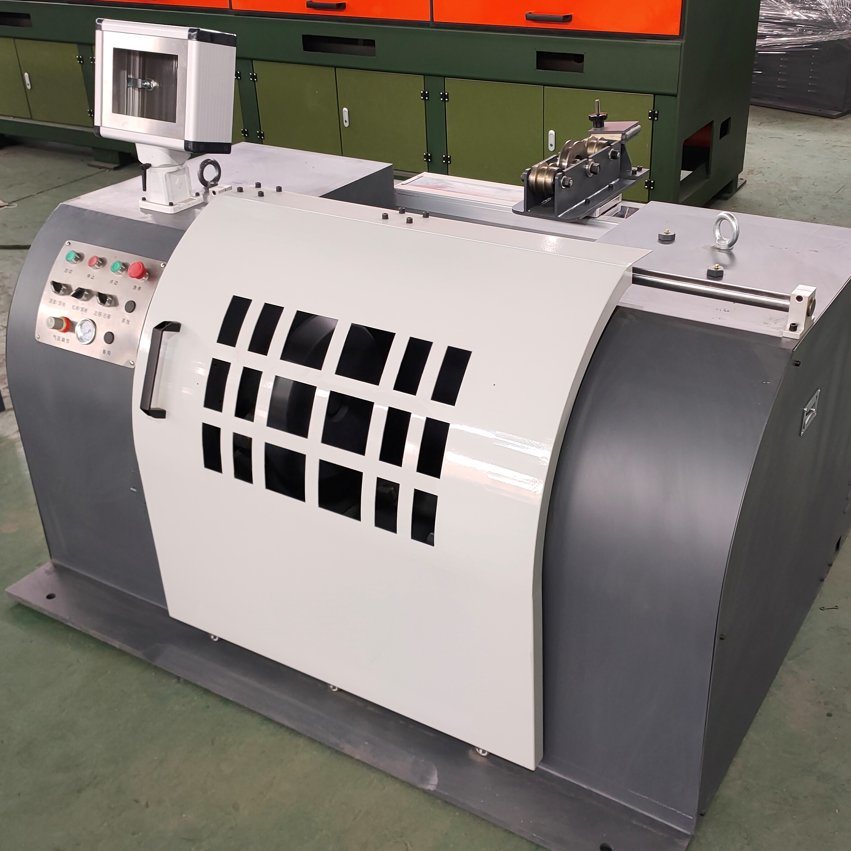

3. Take-up machine
(1) The tension range of the inner ring of the spool: 400-450mm
(2) Maximum size of the outer diameter of the spool: 1400mm
(3) The weight of the spool is 1400kg
(4) Wiring method: Servo motor drives linear module wiring, soft limit for reversing position, 0.75kw.
(5) Braking method: pneumatic brake.
(6) Transmission mode: belt drive, pulley cone sleeve installation, phosphating treatment, and dynamic balancing.

(7) Protective cover: The I-wheel protective door slides left and right, and the motor, pulley and other components are equipped with protective covers.
(8) Frequency conversion motor drive: 11kw, servo motor cable: 0.75kw
4. Electrical control configuration:
(1) Adopt PLC and inverter control
(2) A 7-inch touch screen is placed on the take-up machine for human-computer interaction
(3) Special function: By modifying the number on the touch screen, the reversing position of the cable can be changed, and this soft limit control is more convenient to operate.
Specification
Metal Strip Winding or Rewinding Machine with Traversing Device
item
value
Place of Origin
China Jiangsu
Brand Name
HLT
Condition
New
Machine Type
Take-up Machine
Weight (KG)
3000
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Engine, Gearbox
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Manufacturing Plant
Showroom Location
Bangladesh, Uzbekistan, Malaysia, Philippines, Pakistan, India
Dimension
2200*1800*2200mm
Thickness
0.2-3mm
Length of axis
650mm
Winding method
cold welding
Decoiler loading
750kg
CNC system
PLC
Spindle speed
0-35RPM
Power
3kw
Cu foil thickness
0.2-2.0mm
Color
Customer's Requirement
Packing & Delivery
Metal Strip Winding or Rewinding Machine with Traversing Device
Company Profile
Metal Strip Winding or Rewinding Machine with Traversing Device
We are an integrated company which specialize in metal flexible hose machine and products, solar water heater tank and LPG gas cylinder welding machine, cable completed unit. With decades of developing, our metal flexible hose products and machine have been applied almost all models in industry. Based on forming types, we provide flexible metal hose making machine such as hydraulic flexible hose making machine, polyurethane flexible hose making machine, ring flexible hose making machine and inter lock conduit hose making machine. Based on manufacturing technique, we provide whole production line including steel coil machine, welding & forming machine and twisting & braiding machine for braiding assembly. In past years, we also developed special welding market. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution. As one of our most important products, our wire & cable machinery has been entered American market successfully through cooperating with a national enterprise- CNBM. As machinery manufacture, our advantages reflected on our flexible metal hose and bellows. Our flexible metal hose, bellows and expansion joint are various in models, good price and quality, hot sale in global market. "Long cooperation clients, forever good quality". Our clients are from all over the world, our service are famous all over the world.
Team & Customers
Metal Strip Winding or Rewinding Machine with Traversing Device
Metal Strip Winding or Rewinding Machine with Traversing Device

FAQ
Enable us to quote you the accurate machine, please kindly let me know the following information:
1. Steel strip specifications: width * thickness?
2. The reel Specifications?
3. Reel specifications after winding?
4. The state of the steel strip before rewinding?
5. The state of the steel strip after rewinding, whether to install it on the spool or not to install the spool?
