High Grade Advanced MIG Circular Welding Machine

Quantity:
  • HLT
  • Seam Welding / Circumferential Welding Machine for
  • Panasonic 350 with Wire Feeder
  • Stepless Adjustable
  • Argon Arc Welding
  • 1-1.5mm
  • Stainless Steel, Carbon Steel, Galvanized etc.
  • 310-800mm
  • 1 Year
  • Available
  • 1000kg
  • Customized
  • 240-500
  • Intelligent Microcomputer Control
  • ISO9001
  • Depends on Diameter
  • Seaworthy Package
  • ISO
  • longterm
  • Jiangsu, China
  • 85152900
  • 1000 Sets/Per Year
  • US$ 350/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Circumferential Seam Welding Machinery For Lng Gas Cylinder / Bottle
High Grade Advanced MIG Circular Welding Machine


Product Description

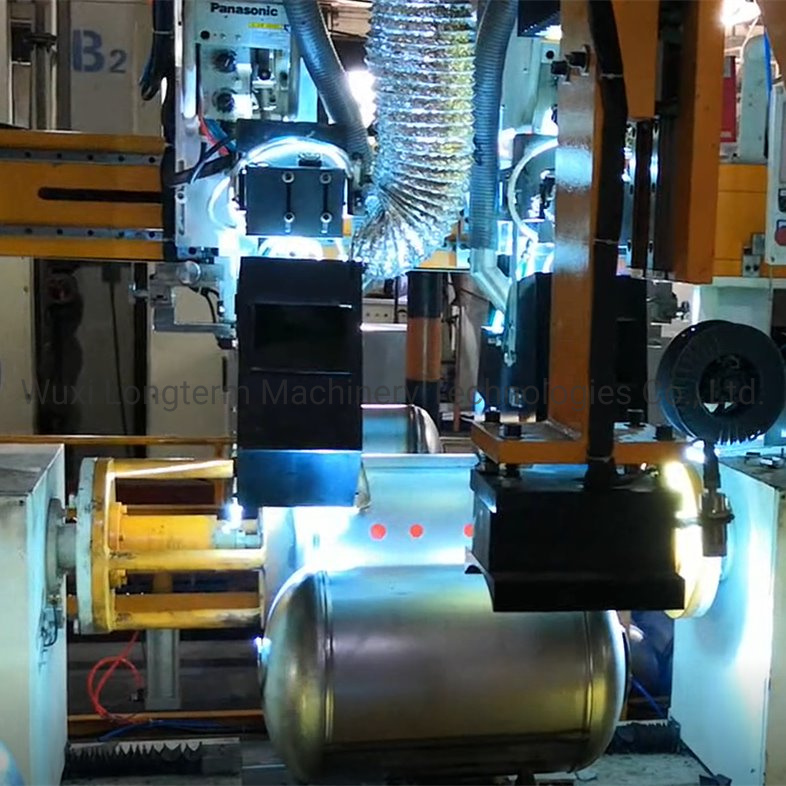

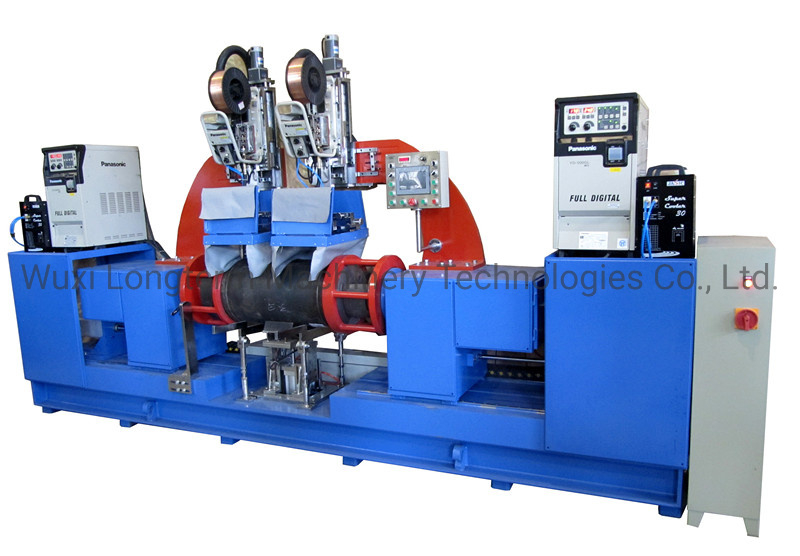

Double head circumferential welding machine with full vision Laser tracking system

This machine is used for auto.double-head TIG circumferential weding of Dura-Cyland LNG inner cylinder.
Panasonic high-speed pulse welding machine(GS5-500), Two sets of visual tracking system, with hydraulic tail top, upper and lower hydraulic cylinder
Finished products
High Grade Advanced MIG Circular Welding Machine

Parameter
Double head circumferential welding machine with full vision Laser tracking system
Length ≤2000 mm
Thickness 2.5~8.0 mm
Diameter 400~900 mm

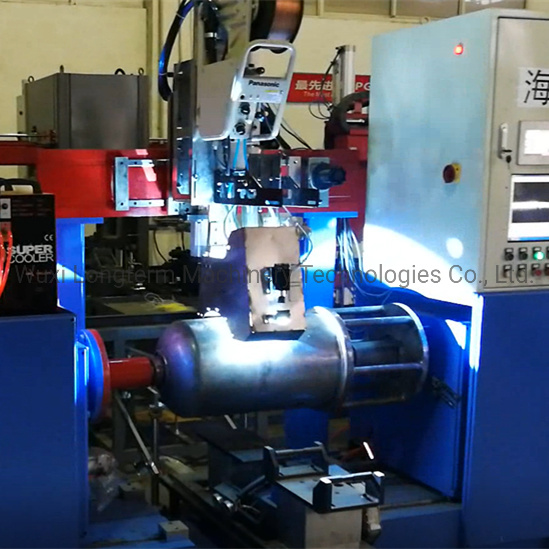

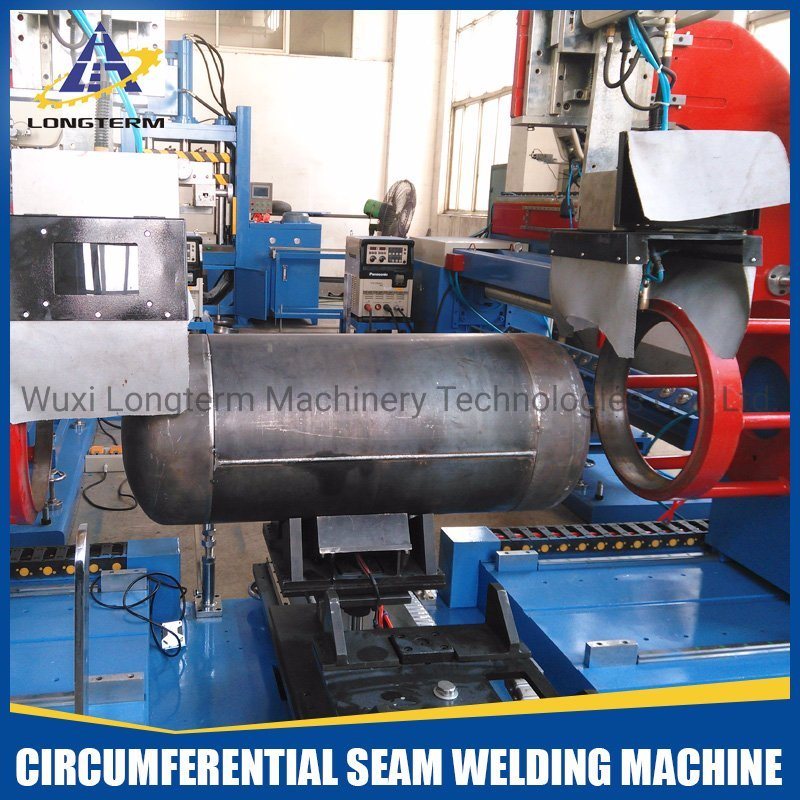

Circumferential welding details High Grade Advanced MIG Circular Welding Machine

SpecificationWelding progress: TIG/MIG/PAW/MAG welding
Welding thickness: 2-6 mm
Welding material: stainless steel, carbon steel
Welding object: Cryogenic Cylinder / LNG Cylinder / Dewar Bottle
Automatic brazing equipment for copper pipe
This machine is used for auto.copper tube brazing soldering of dura-ayl,min.cylinder,cyroEase and LNG cylinder.
High Grade Advanced MIG Circular Welding Machine

Parameter
Automatic brazing equipment for copper pipe
Length ≤2000 mm
Thickness 2.5~6.0 mm
Diameter 400~800 mm

Automatic brazing equipment for copper pipe welding details

High Grade Advanced MIG Circular Welding Machine

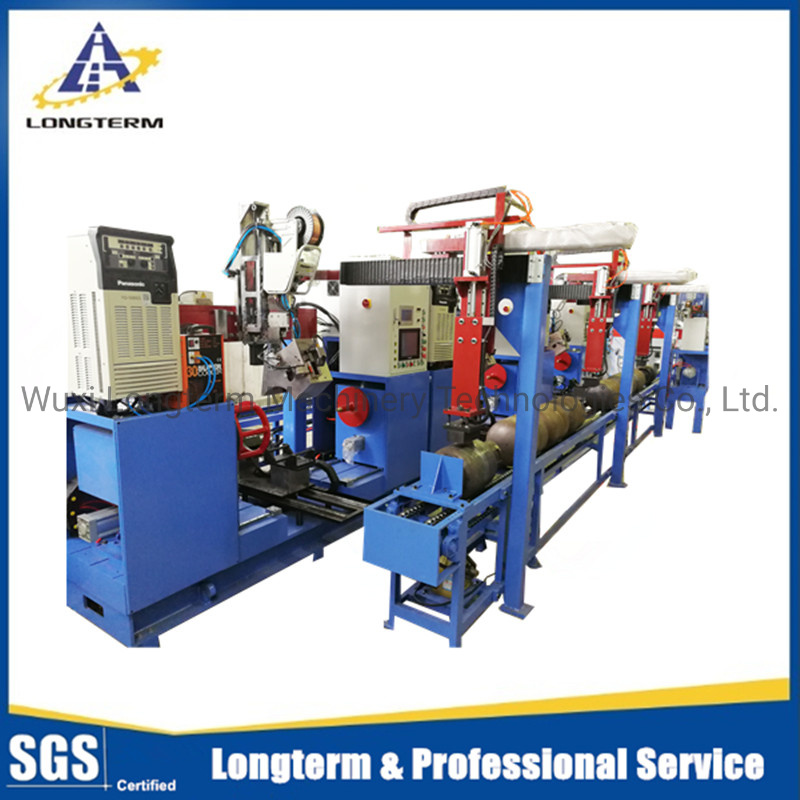

Longitudinal Seam welding equipment for LNG Cylinder

This machine is used for PAW+TIG auto. linear welding of metal material,such as stainless steel,carbon steel.Single-side welding with double-side forming.
High Grade Advanced MIG Circular Welding Machine
Parameter
Longitudinal Seam welding equipment for LNG Cylinder
Length ≤2000 mm
Thickness 2.5~6.0 mm
Diameter 250~800 mm

Straight welding details
High Grade Advanced MIG Circular Welding Machine

Product packaging
High Grade Advanced MIG Circular Welding Machine

Our Factory
High Grade Advanced MIG Circular Welding Machine
Wuxi Longterm Machinery Technologies Co.,LtdOur company boasting tremendous technological strength,rich experience and one high qualitytechnical team,our company has been engaged in research of welding technology for more than 40 years.Machineries have been expored to Europe,Asia, and America with good quantity and enjoyed good fame.

Our company is specialized in designing and producing complete sets of Auyo.welding equipment(TIG,MAG,PAW),Auto.welding system integrations and related equipments.Being eide used in lines of aerospace industry,chemical industry mechanical industry,pressure vessel making,water heater making and stainless steel products
Our team
High Grade Advanced MIG Circular Welding Machine
Customers
High Grade Advanced MIG Circular Welding Machine

FAQ
Q: How can you guarantee the quality of welding machine?

A: we have passed the ISO test,we warmly welcome you and your technical team visit our factory to check the machine before order, And we have one year guaranteed,free parts can be send free within one year.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

Q: How long is the warranty for machines?

A:Machines warranty is 12 months after receive our machine. in Warranty time,we can provide new free parts for changing.

Q:Can you engineer come to our place to help with machine installation & commission?

A:Yes, our engineers are available to travel to your factory for machine installation and commissioning.

We need to know following information to quote you correct machineries:

1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce? (6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require,How many pieces and sizes you want to make per day?
