Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

Quantity:
  • HLT

  • Seam Welder for Heat Pump

  • Panasonic 350 with Wire Feeder

  • Stepless Adjustable

  • TIG/MIG/Mag Welding

  • 1-1.5mm

  • Stainless Steel, Carbon Steel, Galvanized etc.

  • 18kVA

  • 310-800mm

  • 1 Year

  • Available

  • 1000kg

  • Customized

  • 240-500

  • Intelligent Microcomputer Control

  • ISO9001

  • Standard Sea Worthy Package

  • LTM

  • LTM-1

  • China Jiangsu

  • 8515319900

  • 400sets/Year

  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Full-automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*
-Product Description
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*


To weld end covers to tank shell. MAG welding process or others as needed. Full automatic available.
-Specification
Welding process:
welding process is single-sided welding double-sided molding, Welding speed requirement ≥800mm/min Welding torch shielding gas: Ar /100%; Shielding gas: Ar/100% (for back protection of electric water heater tanks).
Automatic:
load&unload, positioning, fixing, welding and so on.
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

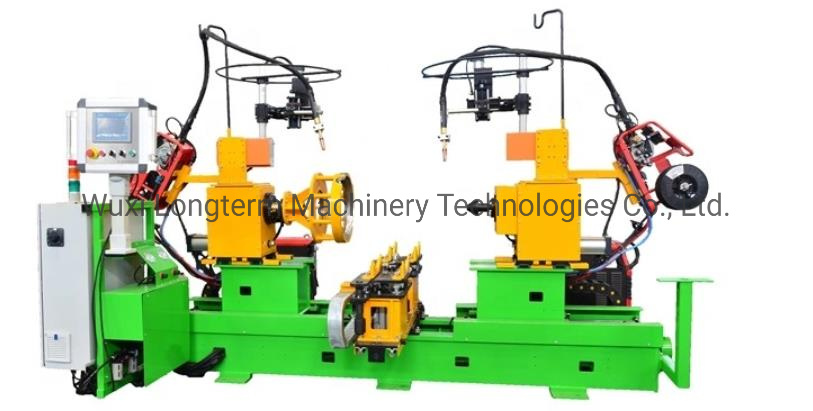

Double and single head circumferential seam welding machine1.This equipment is mainly used for automatic welding of 1.0~2.5mm thickness tank body and heads . The tank is rotated and the torch is fixed. Use double-head mixed gas protection welding method. Applicable materials: carbon steel, stainless steel, etc.2.The welding power supply is equipped with OTC500 welding machine, wire feeder, air-cooled welding torch and 2 sets3. Tank requirements: length is 300 ~ 1000mm (including end), diameter 340mm, roundness ≤ ± 1mm, the wrong side of the middlebodyis ≤ 1mm, and the matching end cover mould size is φ340mm
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

Item
Name
Technical parameter
1
Control power supply
Single phase50Hz ,AC 220V
2
Welding torch lift stroke
100 mm
3
Input power
Three phase 50Hz AC 380V
4
Welding torch manual fine tuning range
X,Y,Z±30mm
5
Compressed air pressure range
0.3~0.5MP a
6
Applicable wire specification
φ1.0mm ~ φ1.2mm
7
Tank diameter range
200mm≤φ≤500mm
8
Welding speed range
>1500mm/min

Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

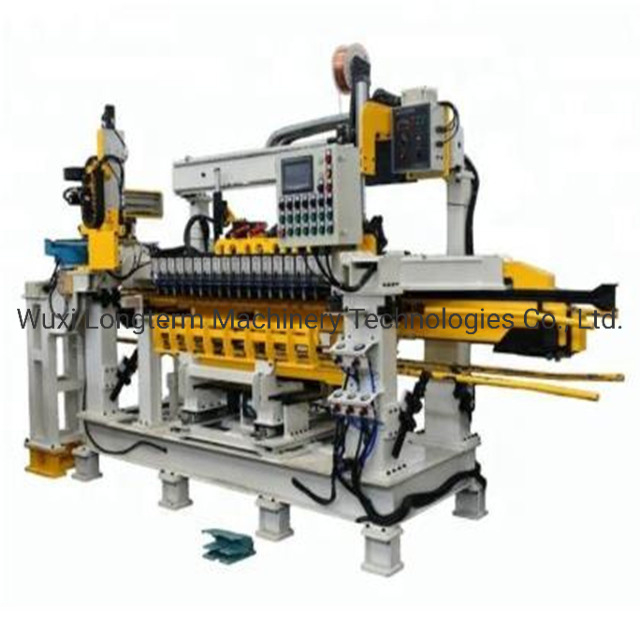

Longitudinal seam welding machineLongitudinal seam welding machine is mainly used for semi-automatic welding for 1.0 to 2.0 mm thickness electrical water heater tank. The action mode is tank fixed and welding torch moves. The process uses TIG welding and is equipped with an automatic wire filling mechanism. The equipment is suitable for welding such as carbon steel and stainless steel raw metals. The welding power source adopts Miller Maxstar400, the welding length is adjustable from 0-800mm, suitable for the Ф 340 diameter electrical water heater tank.

Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*Water pipe&Sewage discharging pipe welding machine1. The water pipe welding machine is a special equipment for realizing the automatic welding of the tank body and water pipe; mainly completed by the rotation of the welding torch. Adopt MAG welding method, air-cooled welding torch, power supply adopts OTC400 2. Automatic welding of different size structures can be satisfied by adjusting the positioning fixture. 3 The welding station is designed with a lifting bracket, which separates the tank from the conveyor chain during welding.4. The height of the wire feeder should be as low as possible to facilitate the loading of the wire spool. The torch cable passes directly from the center of the shaft of the rotary head, and the direction of rotation is always in one direction.
-Finished Product

Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

-Packing & Delivery
Standard Seaworthy Package
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

-Company Profie
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*


Wuxi Longterm machinery has been focus on the LPG/LNG cylinders and water heater tanks and medium size fire extinguisher cylinder welding since 1978. We are renowned in China and even the world for our leading teacnology. Wuxi Longterm weld has domestic operations located in Jiangsu Province, Sichuang Province and international engineering and manufacturing in China.. We offer our clients solar water heater inner and outer tank, pressure tank, oil tank welding system solution.
-Our Customers
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

--Our Team
Full-Automatic Heat Pump Welding Equipment, Automatic Tank Welding Machine*

-FAQ
Q:How can you guarantee the quality of welding machine?
A: we have passed the ISO test,we warmly welcome you and your technical team visit our factory to check the machine before order .And we have one year guaranteed,free parts can be send free within one year.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
Q:How long is the warranty for machines?
A:Machines warranty is 12 months after receive our machine. in Warranty time,we can provide new free parts for changing.
Q:Can you engineer come to our place to help with machine installation & commission?
A:Yes, our engineers are available to travel to your factory for machine installation and commissiong.
