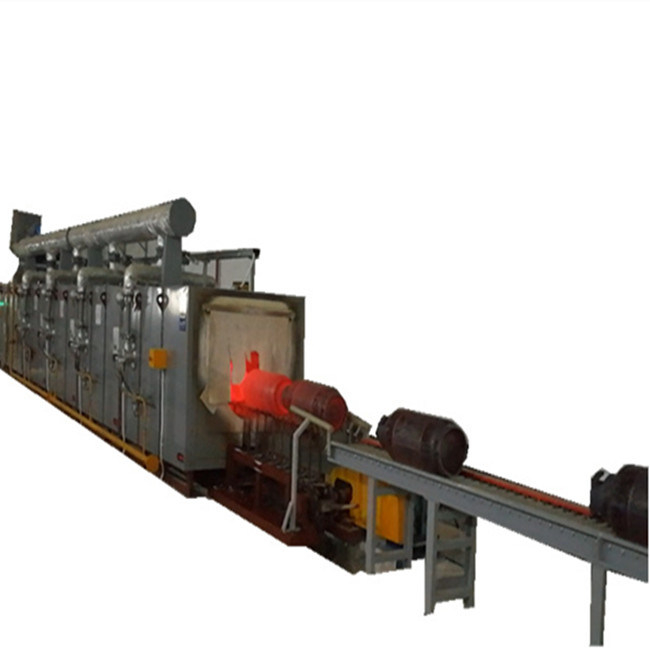

Gas Furnace Annealing/Normalizing Furnace, LPG Cylinder Heat Treatment Furnace

Share to:

Gas Furnace Annealing/Normalizing Furnace, LPG Cylinder Heat Treatment Furnace

Quantity:



Inquire Add to Basket

Cylinder Size:
6kg 13kg 33kg 4kg
Payment Term:
T/T
Delivery Time:
60 Days
Transport Package:
Standard Seaworthy Package
Specification:
as customer′s requirements
Trademark:
HLT
Origin:
China Mainland
HS Code:
844790900
Production Capacity:
500 Plants One Year
Customization:
Available | Customized Request

Product Description

Product Description

Gas Furnace Annealing/Normalizing Furnace, LPG Cylinder Heat Treatment Furnace

Product Description

After a period of use, the paint on the surface of the cylinder will peel and peel off, thus causing the surface of the cylinder to rust and corrode. After the expiration of use, the surface of the cylinder must be thoroughly cleaned and repainted at the same time as the inspection.
At present, due to the use of electrostatic spraying technology, the firmness of the paint film has been further improved, and some paint films are difficult to remove by shot blasting. In order to completely remove the paint film on the steel cylinder, only through the heat treatment furnace, the paint film on the surface of the steel cylinder is burned into charcoal or ashes. This makes it easy to remove any remaining paint from the surface, creating good conditions for blast cleaning and repainting.

Machine name	Heat treatment furnace for LPG cylinder
Production speed	75~300 cylinders/hour
Feeding type	chain drive feeding
Size of cylinder	320700~4201250mm
Max. pressure	25Mpa
Max. temperature	600~1200ºC
Dimensions	1250013901560mm
Weight	12ton

Machine Specification

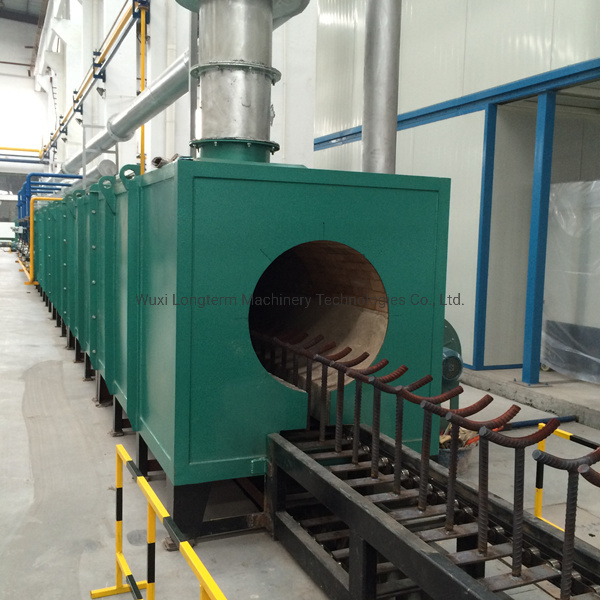

A. Normalizing Furnace
High-Quality LPG Gas Cylinder Heat Treatment Furnace, LPG Cylinder Annealing Furnace Price!

Parameter and requirements:
1.Continuous heat treatment furnace: total length for this machine is 20 meters(furnace is 15 meters, loading & unloading holder is 5 meters). The furnace is welded by high quality section steel, the furnace is lined with high temperature resistant high alumina refractory firebrick, insulation layer is made of fiber and other thermal insulation materials. Overall, the high temperature furnace is light and of good insulation performance.
2.Application: Cylinder normalizing heat treatment
3.Specification: ISO Standard, cylinder weight:6kg/pc, 12.5kg/pc,25 and 52kgs Diameter of cylinder is from DN200-400mm
4.Working efficiency: 200pcs/hour
5.Entrance temperature: 30ºC
6.Cylinder heating temperature: 900ºC±25ºC
7.The max. working temperature of the furnace body: ≤1000ºC
8.The temperature rise of furnace body surface is according to China industry standards.
9.Parts of the furnace:
10.Horizontal furnace body: 1 set
11.Loading and unloading chain mechanism: 1 pair
12.Nature gas control system(record containing): 1 set
13.Flue gas and heat exchange system: 1 set
14.Fuel type: nature gas
15.Fuel calorific value: 8500 Kcal / kg
16.The form of combustion apparatus: high-speed fuel burner
17.Heating quantity and thermal load distribution: 8 pcs gas burner
18.No. of burners in heating section:4 pcs burners, 230KW/pcs
19. No. of burners in the front of temperature holding section : 2 pcs burners, 230KW/pcs
20. No. of burners in the back end of temperature holding section : 2pcs burners, 150KW/pcs
21.Power supply: 20KW, 380V, 50Hz

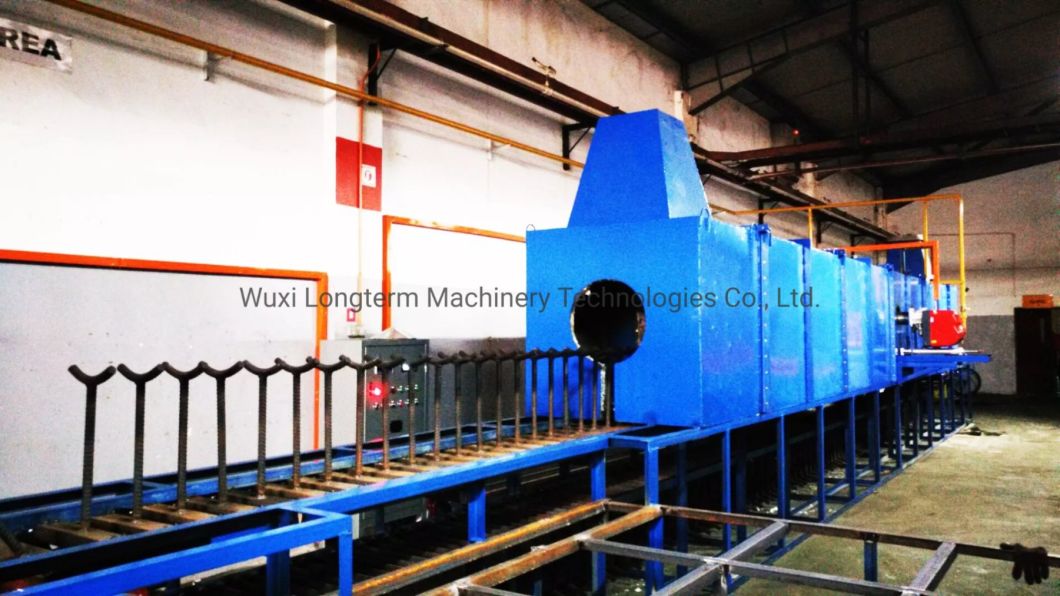

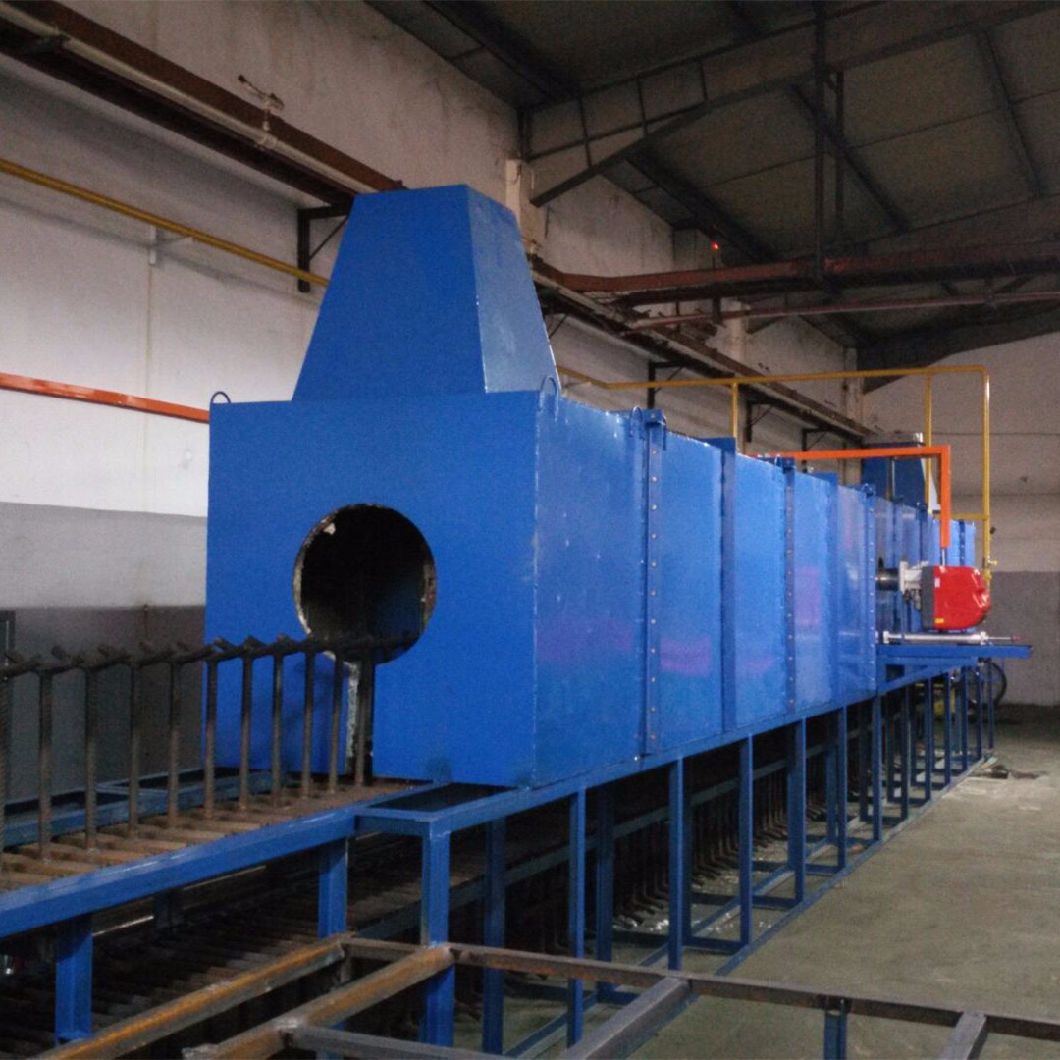

B: Annealing Furnace

High-Quality LPG Gas Cylinder Heat Treatment Furnace, LPG Cylinder Annealing Furnace Price!

Parameter:
1. No of burning nozzle: 150000Kcal, totally 8 pieces.
2. Working temperature: 700 ± 25 degree
3. Furnace chamber
A.Furnace length: 32.5m, overall length including loading & unloading: 37.5m.
Furnace liner lower part is high-temperature cast structure, upper part is heavy brick or cast module. Between the furnace body and furnace liner is insulating layer made from Aluminum silicate fiber cotton. To ensure the ability of keeping the temperature.
B.Each section of furnace: L2500*W1350*H1450mm, inner hole size 650mm.
C.Out shell is made from angle iron and steel sheets. The bottom is made from steel structure, channel steel, with steel sheets, due to the high pressure.
Between each section of furnace, they are connected by angle steel flange, easy to install and adjust.

Installation

1. The user should make the equipment foundation according to the civil information and drawings supplied by supplier, strictly meeting to all requirement in drawings.
2. The fire furnace is made by subsections. When install, you should put the all sections of furnace onto the earth pits, jointing face by face in plane (on the butt joint place, please put the silica acid aluminum pads), pay attention to the installation level surface and the butt joint line.
3. Fix the conveying unit on the setting position according the inlet/outlet positions shown in the installation sketch and the civil information drawings.
4. Install the oil supply and gas supply pipelines and burners.
5. Install the control system, after installation, carry out the test running. Observe the conveying motor running direction whether it is correct or not, the convey unit should run smooth without block.
6. Install the smoke removing system according to the site requirement.

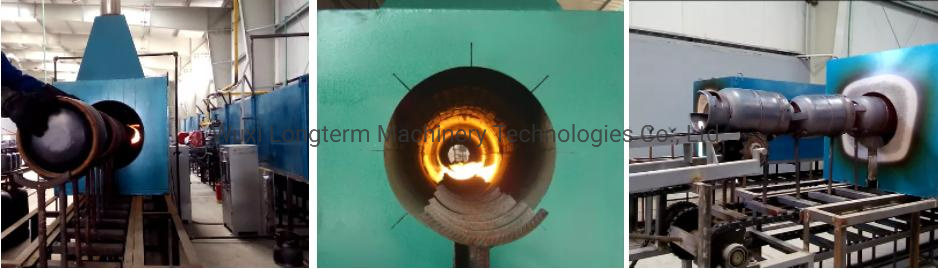

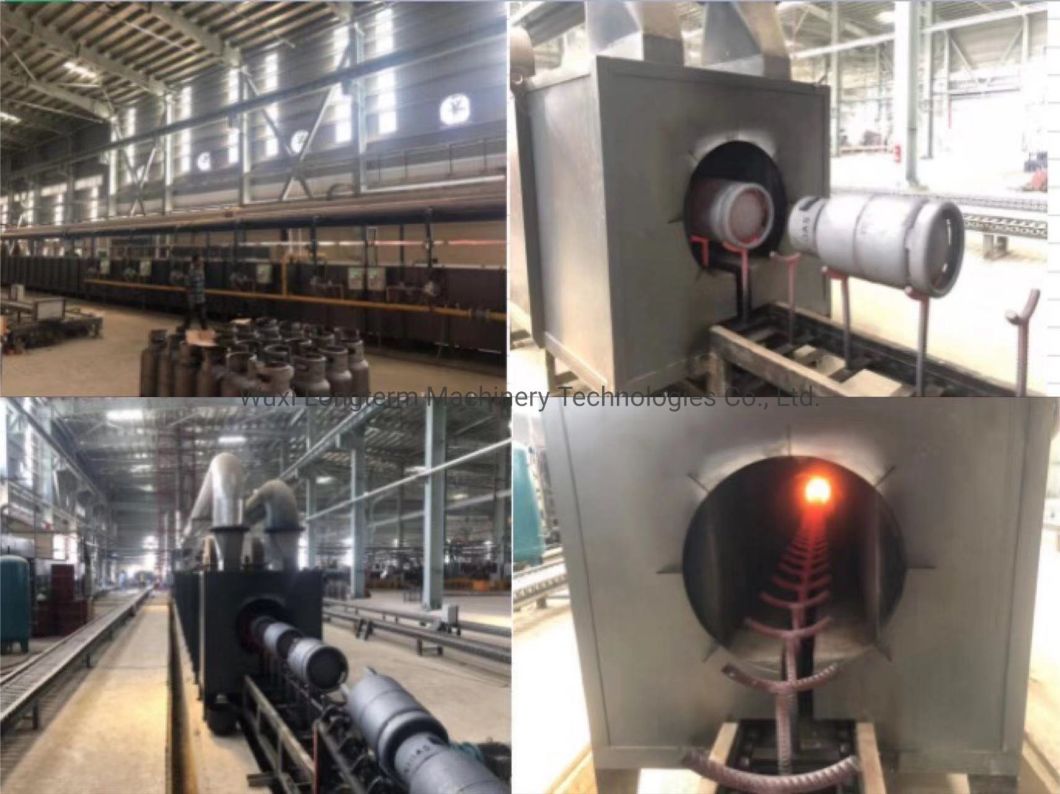

Process Display
Gas Furnace Annealing/Normalizing Furnace, LPG Cylinder Heat Treatment Furnace

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Wuxi Longterm Machinery Technologies Co., Ltd. specializes in LPG cylinder machinery with 30 years' background, supplying the better machine to help our customers gain more profits is the motivation to let us move forward all the time, the experienced technicians and the well-trained sales are the guarantee for each project, whatever the turnkey project or the existing plant upgrade project, we provide the pro-support of each aspect to serve our customers well all the time.

Thus far, our machine is sold to US, Brazil, Turkey, Argentina, Thailand, Vietnam, Kenya, Tunisia, Nigeria, Bangladesh, Philippines, Uganda, Sudan, Lebanon, Ecuador, among of them are the well-known LPG cylinder manufacturers in the world, such as Manchester tank from US (Indian branch factory), TPA from Vietnam, Aygaz from Turkey, MBG from Tunisia, Cylinder works from Kenya,Ferrotechsteel from Philippines, BM Energy from Bangladesh. Our machine helps them achieve an obvious improvement on saving the manpower and increasing the productivity.

We can give you the most professional advice and guidance on the DOT certification.

FAQ

Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(such as 6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
