Fully Automatic Beer Barrel&Can Cylinder Kegs Making Machine

Quantity:



Inquire Add to Basket

Barrel Height:
590mm
Barrel Material:
SS304
Material Thickness:
1.22-1.5mm
Input Power:
380V
Output Power:
24V
Efficiency:
150/1 Hour
Transport Package:
Customized
Specification:
customized
Trademark:
HLT
Origin:
China
Production Capacity:
100set Per Year
Customization:
Available | Customized Request

Product Description

Product Description

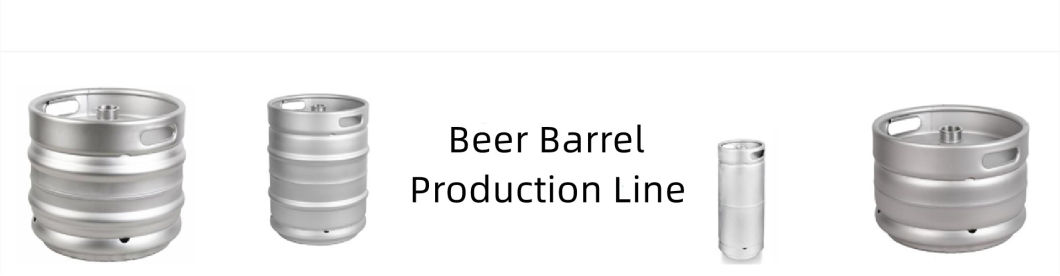

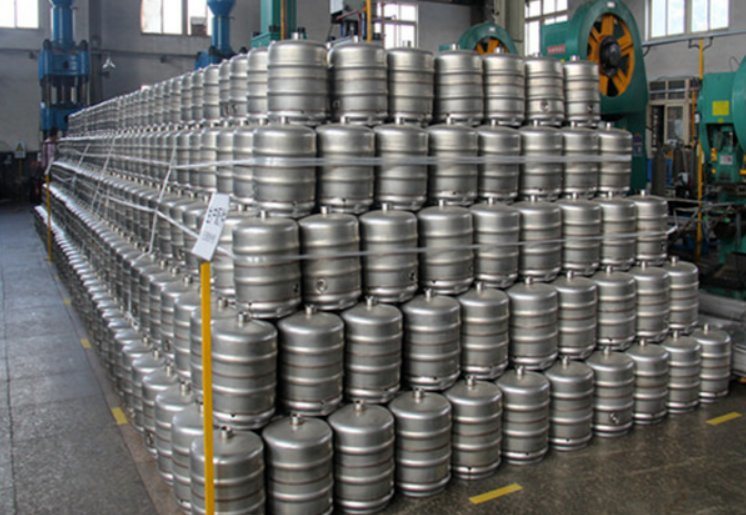

50 Liter Steel Barrel For Beer Stainless Steel Beer Keg G Type Beer Barrel For Brewery production line

Product Description
Fully Automatic Beer Barrel&Can Cylinder Kegs Making Machine

Specification

Location	craft
Upper/lower barrel	Punching
	Stretch
	Trimming
	Reinforcing
	Trimming
upper barrel	punch hole
	Top circumferential weld
	Top circumferential weld
	Top circumferential weld
Upper/lower barrel	shearing
	Punching
	roller
	Straight seam welding
	Longitudinal seam welding machine
	crimping
	Joggling
upper barrel	Punch handle hole
	Flip handle hole
	Crimped inside handle hole
	Joggling
Upper and lower barrel body + barrel	circumferential weld
Upper and lower barrel body + barrel	circumferential weld
Upper barrel + lower barrel	Spot welding
	Spot welding
	Spot welding
	Spot welding

Machine Specification

Trimming machine

Input power: 380V
Output power: 24V
Total power: 3KW
Applicable diameter: 50-400mm
Transmission mode: gas-liquid mixing
Applicable: within 300mm
Equipment use function: trimming (automatic cutting waste)
Equipment efficiency: about 8-10 seconds/piece
(excluding manual pick-and-place parts).

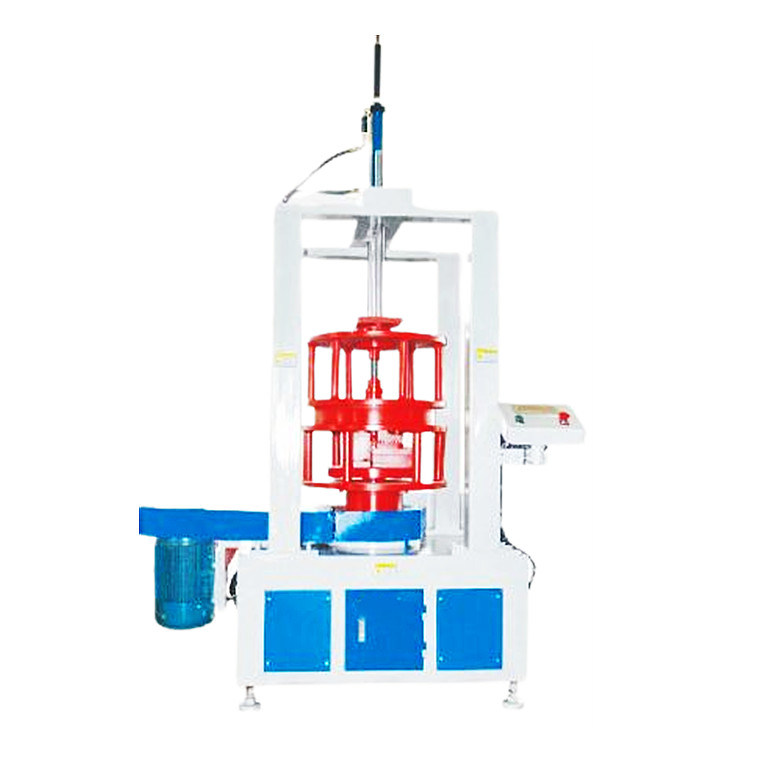

Expander

Input power: 380V
Output power: 24V
Total power: 4.5KW
Transmission mode: hydraulic
Applicable product diameter: 250-400mm
Applicable product height: within 300mm
Equipment use function: Reinforcement
Equipment efficiency: about 18-20 seconds/piece (excluding manual pick-and-place parts)

Input power: 380V

Output power: 24V

Total power: 3KW
Applicable product diameter: 200-400mm
Transmission mode: gas-liquid mixing
Applicable product height: within 300mm
Equipment use function: car side

The processing quality requirements are as follows:according to the sample as the acceptance standard

Equipment efficiency: about 15-20 seconds/piece (excluding manual
pick-and-place parts)

Joggling machine

Input power: 380V

Output power: 24V Total power: 3KW
Applicable product diameter: 200-400mm
Transmission mode: gas-liquid mixing
Applicable product height: within 600mm
Equipment use function: shrink mouth

The processing quality requirements are as follows: according to the sample as the acceptance standard
Equipment efficiency: about 15-20 seconds/piece (excluding manual
pick-and-place parts)

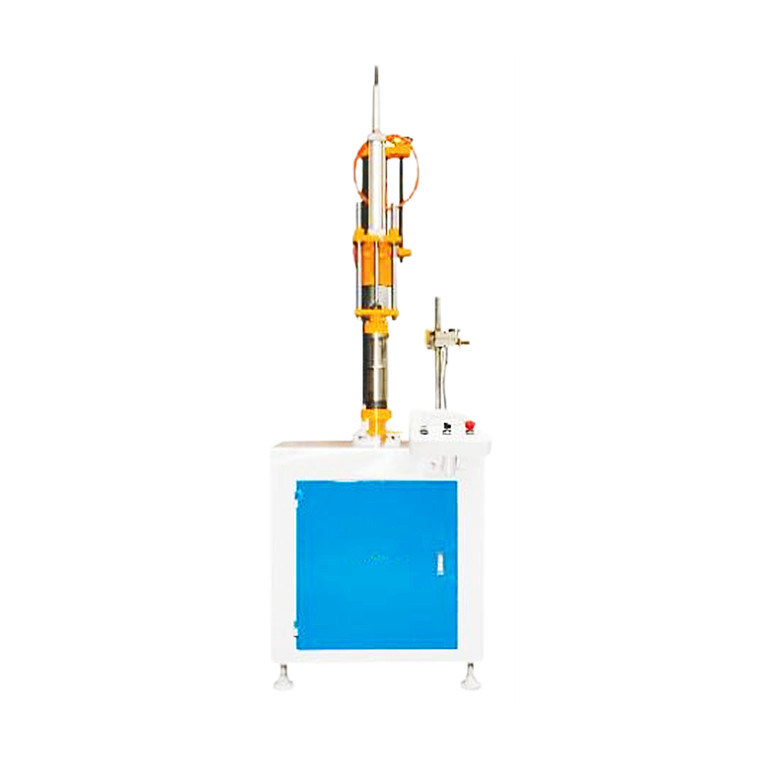

Vertical circumferential welding machine

Input power: 220V

Output power: 24V
Total power: 0.75KW
Applicable product diameter: 50-400mm
Transmission mode: Servo CNC
Applicable product height: within 300mm
Equipment use function: vertical ring welding
The processing quality requirements are as follows: according to the sample as the acceptance standard
Equipment efficiency: welding speed is about 800mm/1 minute (excludingmanual pick-and-place parts)

Roller machine

Input power: 380V

Output power: 24V
Total power: 3KW
Applicable diameter: 200-400mm
Transmission mode: hydraulic

Applicable height: within 400mm

Equipment use function: roller cylinder

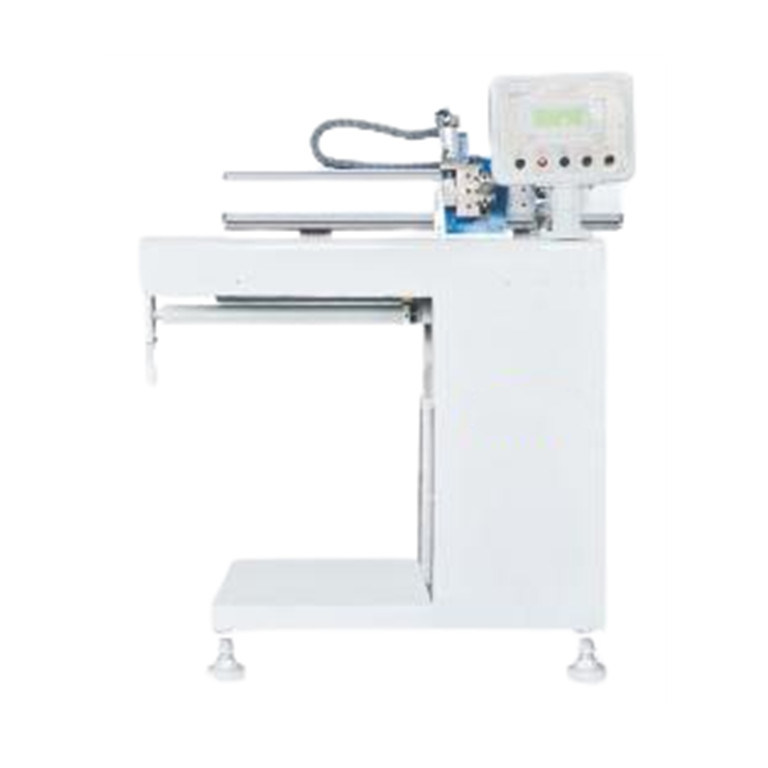

Longitudinal seam welding machine

Input power: 380V

Output power: 24V
Total power: 0.75KW
Applicable diameter: 200-400mm
Transmission mode: Servo CNC

Effective welding length: within 400mm
Equipment use function: straight seam welding
The processing quality requirements are as follows:
according to the sample as the acceptance standard
Equipment efficiency: welding speed is about 800mm/1 minute (excluding manualpick-and-place parts)

Manufacturing Technique

Exhibition

Company Profile

Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-welding equipment (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related equipment.Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.

FAQ

In order to recommend you the proper machine, we'd like to get the below info from you:

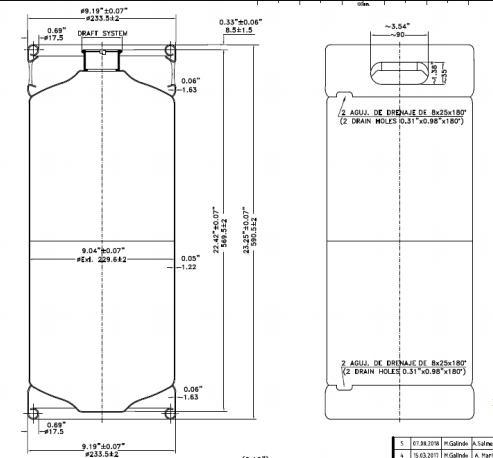

- Please provide the beer kegs drawing.

- What's the daily capacity you want to attain?
