Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

Quantity:
  • HLT

  • Electric

  • Automatic

  • Keyuan

  • Airtac

  • 970mm

  • 90s/2PCS (Adjustable)

  • 80PCS/H

  • 0.5MPa

  • 68.7kw

  • 8100*2700*4260mm

  • Beer Keg/Can/Barrel/Drum Production Line Machine

  • Standard Seaworthy Package

  • ISO9001

  • HLT

  • Jiangsu, China

  • 8480490000

  • 300sets Per Year

  • Available | Customized Request

Product Description

Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

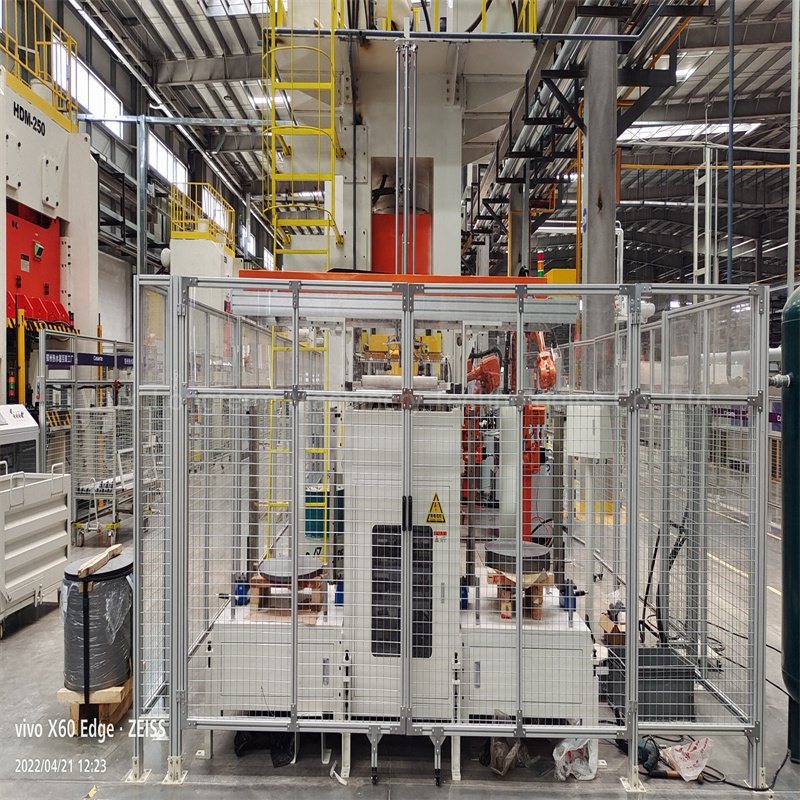

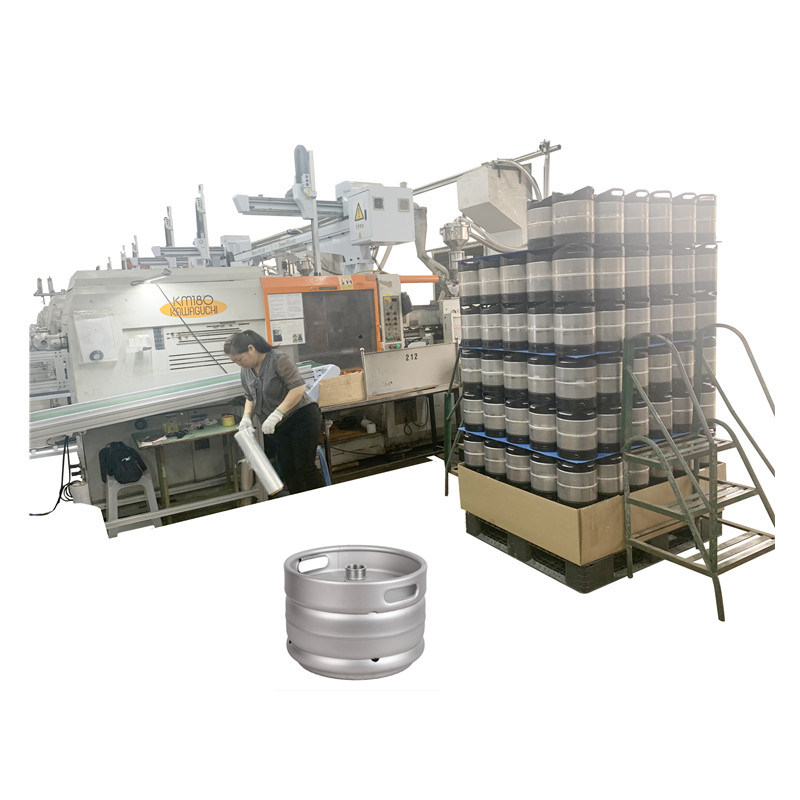

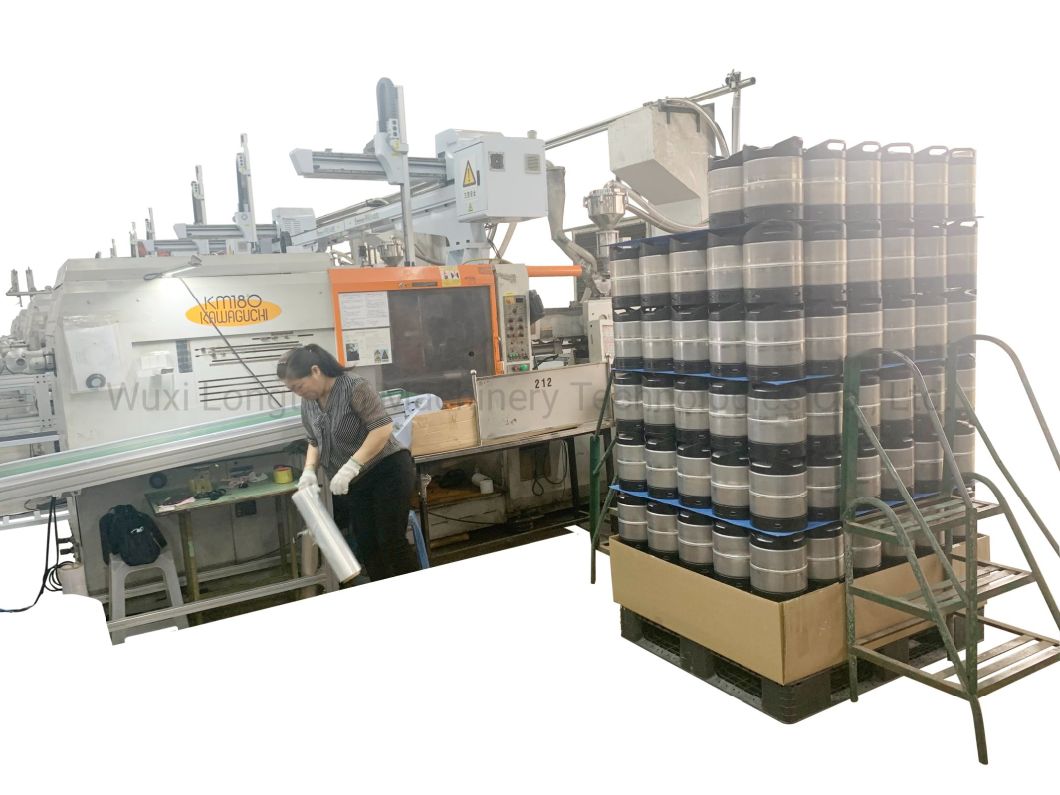

Beer Keg Production Making Machine
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

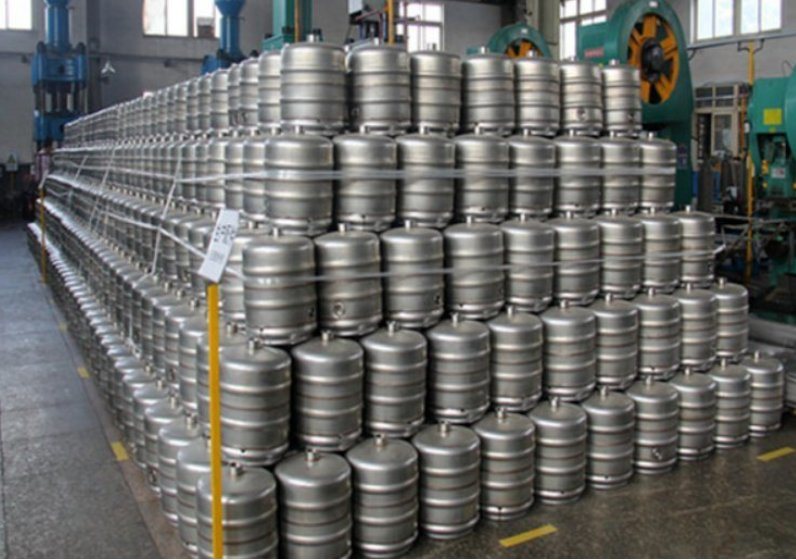

Stainless steel kegs produced by our machines
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^


Technical Specification of Cleaning Machine(BJQX-410VII)
  1. Equipment name:Step-by-step beer keg cleaning machine
  2. Number of equipment:2 sets
  3. Cleaning process flow:
FeedingTransitioning→PicklingRinsingRinsingPassivatingRinsingRinsing→Dry with compressed air→TransitioningUnloading
  1. Main cleaning method:
The first station: pickling, the probe extends into the keg, the rotary nozzle rotates automatically, and the inner wall of the keg is pickled without dead ends; the pickling pressure: 0.5MPa, the flow rate: 6m³/H. There is an independent filter water tank. The cleaning solution is filtered and reused.
The second, third, fifth, and sixth stations: rinsing, the probe extends into the keg, the rotary nozzle rotates automatically, and the inner wall of the keg is rinsed without dead angle; rinsing pressure: 0.4MPa, flow: 5m³/H. There is an independent filter water tank. The cleaning solution is filtered and reused.
The fourth station: passivation, the probe extends into the keg, the rotary nozzle rotates automatically, and the inner wall of the keg is pickled without dead ends; the pickling pressure: 0.4MPa, the flow rate: 5m³/H. There is an independent filter water tank. The cleaning solution is filtered and reused.
The seventh station: drying; the probe extends into the keg, the rotary nozzle rotates automatically, and the inner wall of the keg is dried without dead ends; drying pressure: 0.4MPa, compressed air consumption: 90m³/H.
  1. Main technical parameters
  • Feeding height:970mm
  • Channel size:W*H=420*650mm,dual channel
  • Cleaning speed:90S/2pcs (adjustable)
  • Machine capacity:80pcs/h
  • Cleaning fluid temperature:Normal temperature -60ºC (self-control, adjustable)
  • Pickling pressure:0.5MPa,spray flow:6T/h
  • Passivating pressure:0.4MPa,spray flow:5T/h
  • Rinsing pressure:0.4MPa,spray flow:5T/h
  • Effective volume of water tank:0.3m³
  • Water pump power:2.2+1.5*5=9.7KW
  • Heating power:9KW*6=54KW
  • Absorption power:4KW
  • Stepper drive power:1.0KW
  • Compressed air consumption:100m³/H,pressure 0.4-0.8Mpa
  • Total equipment power:68.7KW
  • Device dimensions:L *W *H =8100*2700*4260mm
  1. Equipment structure and principle
It is mainly composed of machine body, circulating water tank and filtration system, probe cleaning system, sliding stepping system, jacking and transplanting system, water mist exhaust treatment system and electrical control system.

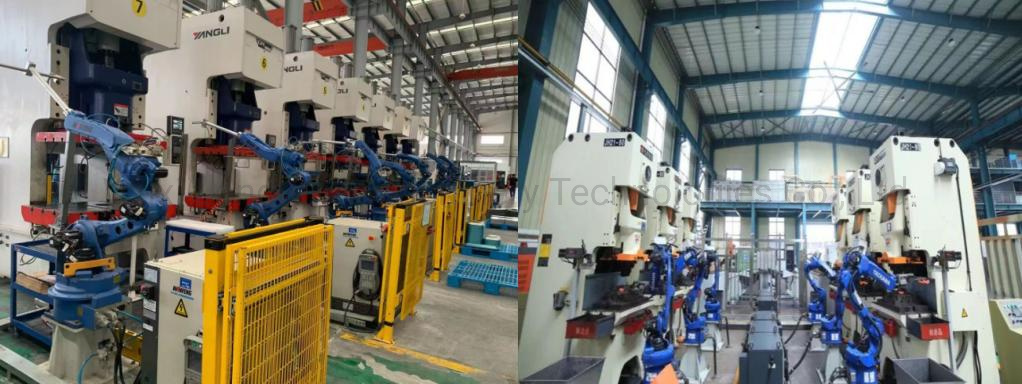

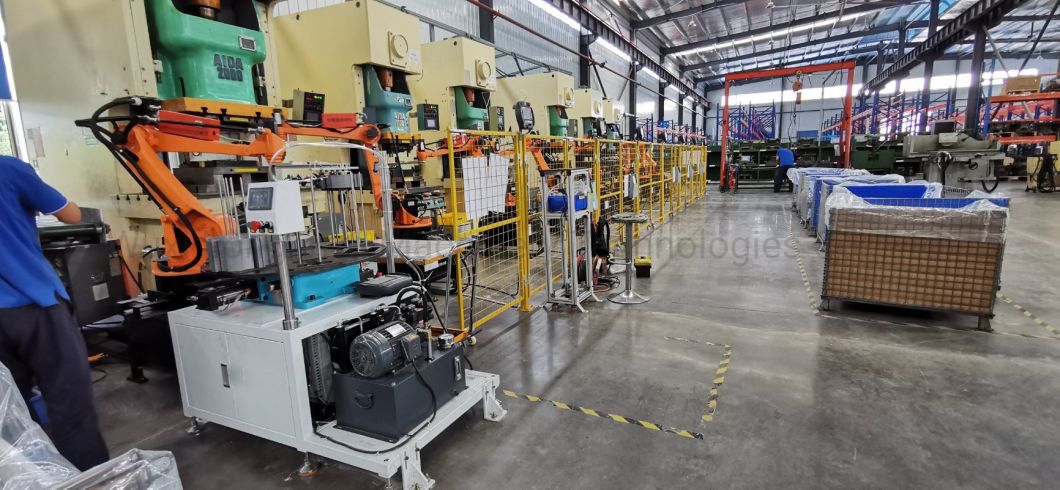

Automatic Blanking,deep drawing machine
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

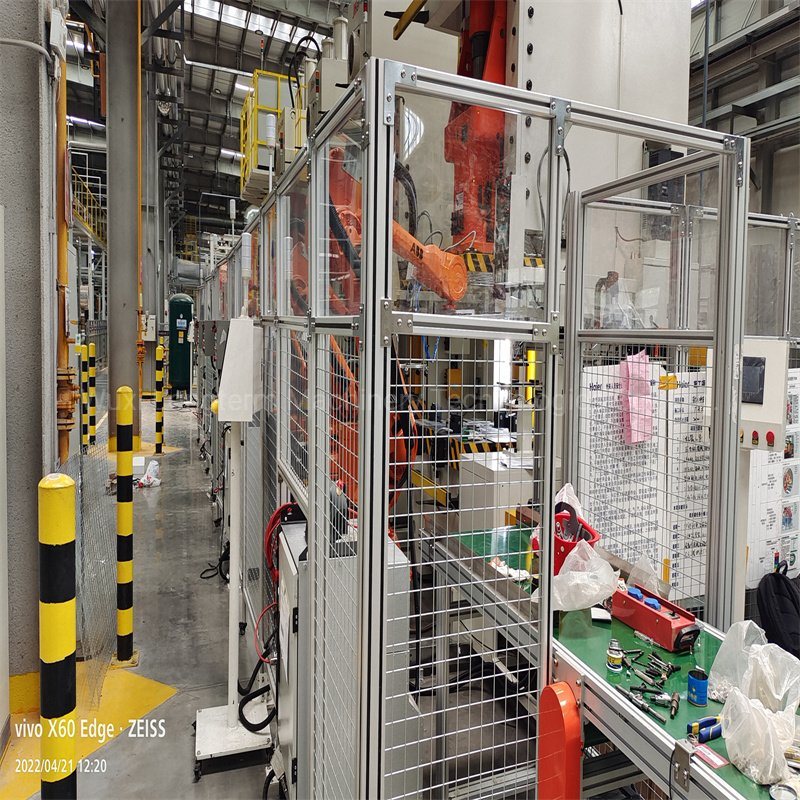

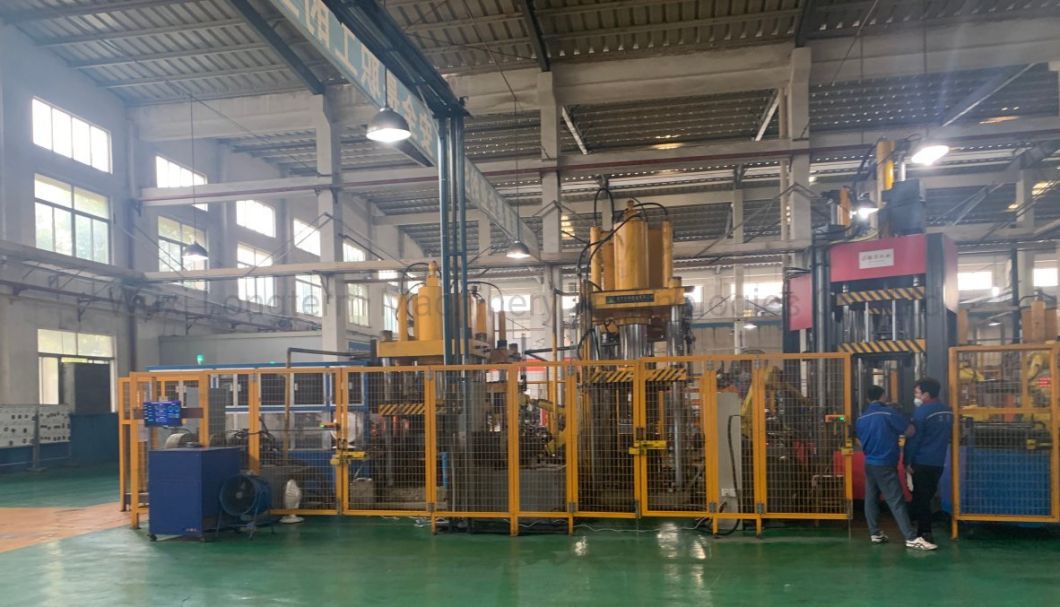

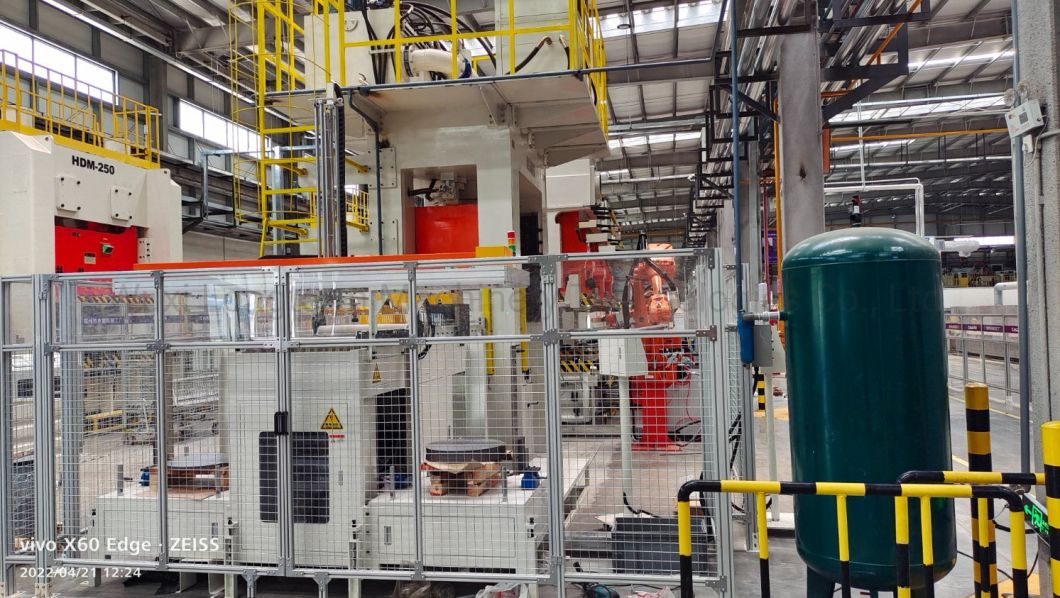

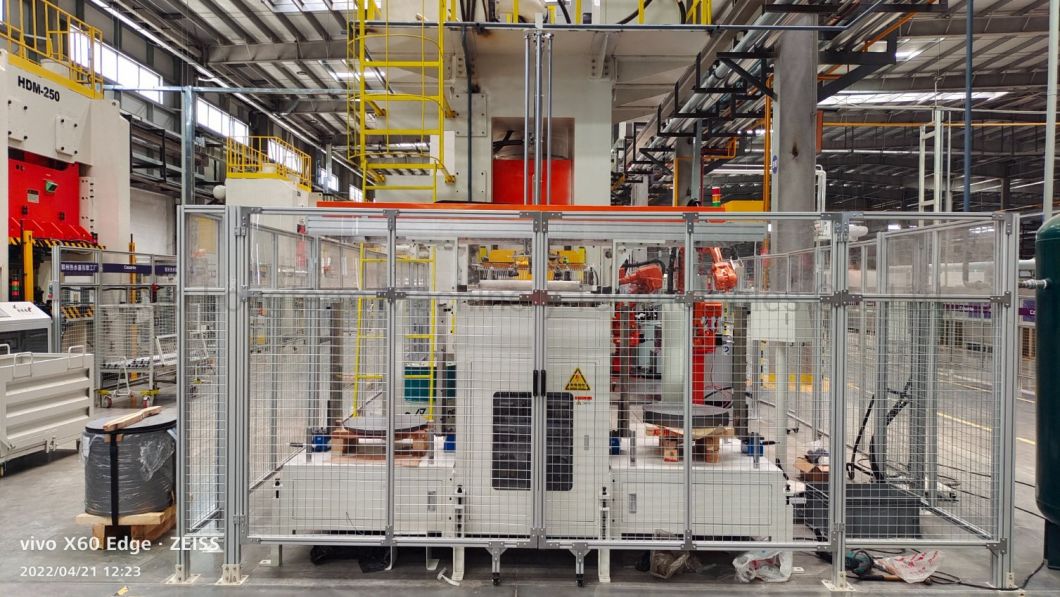

Machine in our client's plant

Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

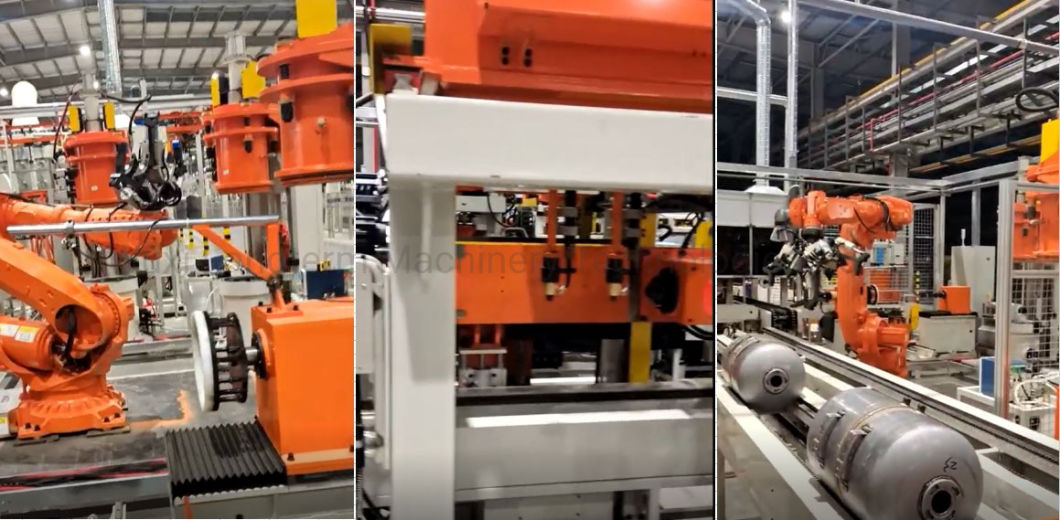

Automatic welding line
Six-axis MAG welding robot with one-way valve and upper keg body
Three-axis palletizing truss manipulator
Three-axis laser welding equipment
Six-axis handling robot
Triaxial group truss manipulator
One-way valve and upper keg body positioner
Upper keg body feeding conveyor line and positioning


Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

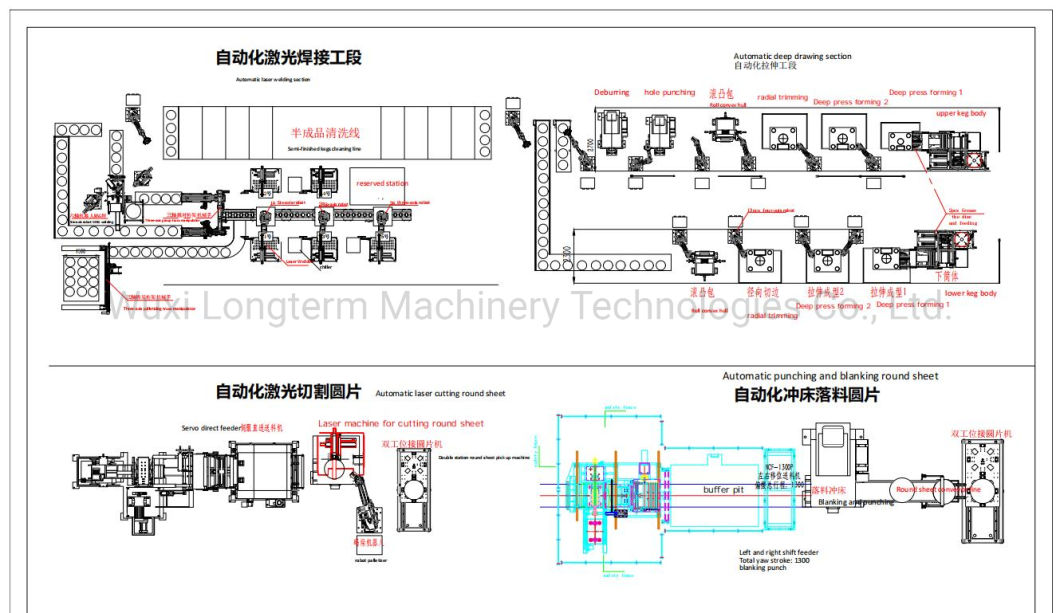

Machine layout
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

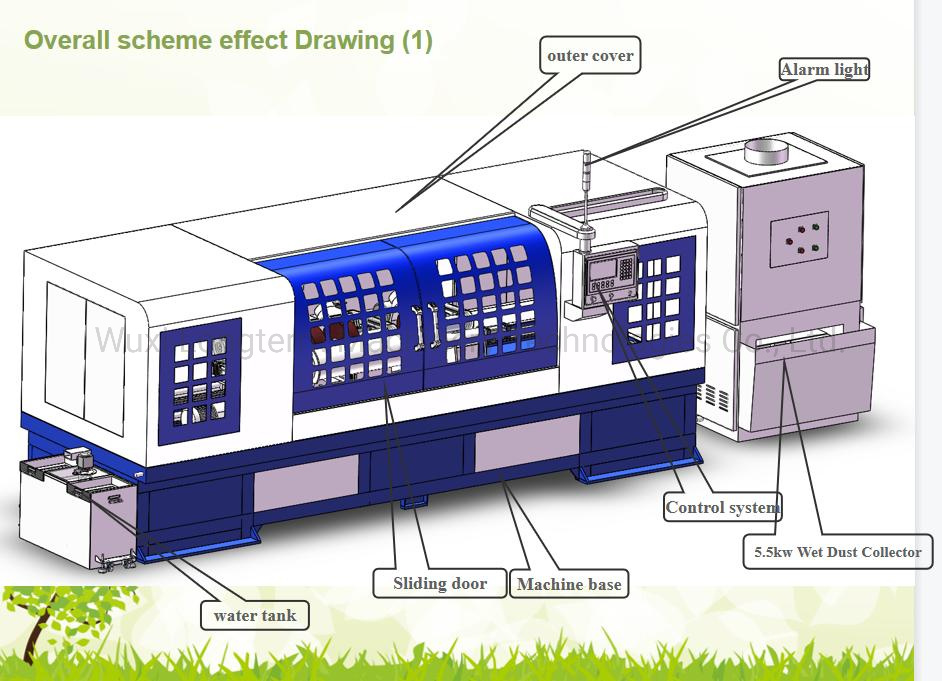

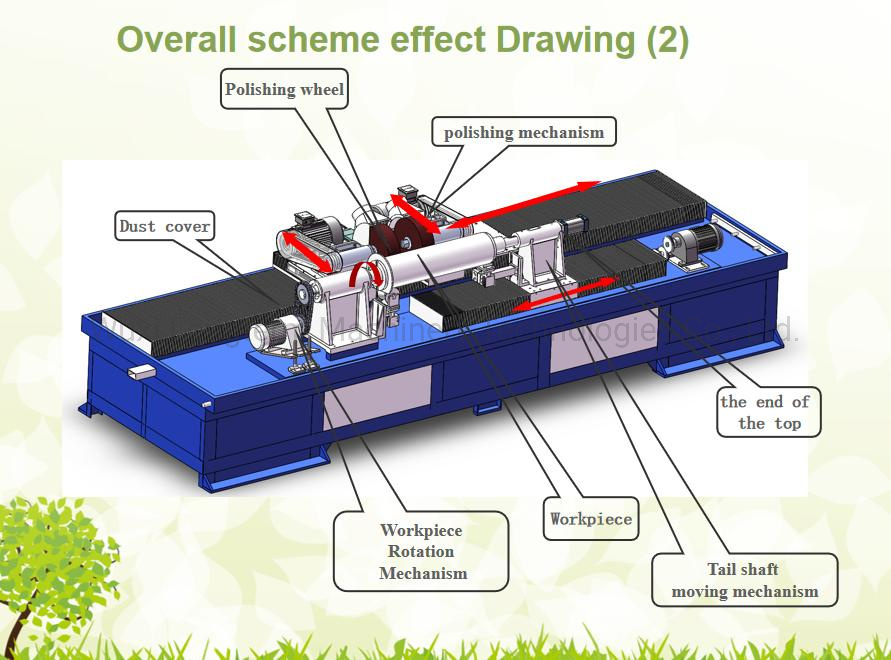

Technical specification for polishing beer keg outer surface


Machine Description
This equipment is mainly for the surface polishing of beer kegs. The equipment uses a cylinder to clamp both ends of the kegs tightly. The outer surface is polished in sequence by two sets of polishing wheels (consumables are selected according to the polishing process). The left and right movement of the grinding mechanism and the wear of the polishing wheel can be automatically fed and compensated by the servo system. The equipment automatically completes the polishing process, and the surface effect is uniform and meticulous, and the operation is simple. The whole machine is equipped with a ring protection cover, and is equipped with a dust collector, which is safe and environmentally friendly.
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

Main configuration
Name Brand/Specification QTY(set)
Frame Homemade 6000*1600*500 1
Sheet metal Homemade 6000*1700*1200 1
Workpiece rotating power head Bearing seat, spindle 1
Polishing power head Bearing seat, spindle, motor board, pulley 2
The end of the top 63*150 Cylinder, Tailstock 1
Servo motor + drive Delta/1.5KW 1
Servo motor + drive Delta/0.75KW 2
Planetary reducer Newgate/120 Model 1:10 1
Bearing HRB 1 lot
Screw rod Homemade 32*450 2
Dust cover Homemade 500*5500 2
Dust cover Homemade 400*1200 2
Rails, sliders 30*800 4
Rails, sliders 40*5500 2
Rails, sliders 40*1200 2
Main motor Mindong, Fujian/4KW 2
Gear reducer Feibao/1.5KW 1
Gear reducer Feibao/0.75KW 1
3-axis CNC control system Keyuan 1
Electrical appliances Shihlin Electric 1 lot
Pneumatic Components AirTAC 1 lot
Inverter Zheng Xuan 1


1 Voltage 480V-60HZ 2 Equipment installation size 6000*2000*2000
3 Total power 13.25kw 4 Polishing Wheel Specifications φ350x100*φ32
Inner hole mm
5 Polished main motor 4kw*2 6 One-time processing product 1 piece
7 Workpiece rotation motor 1.5kw 8 Spindle speed 2300r/min
9 Tail shaft moving motor 0.75KW 10 Machine weight About 2200kg
11 Polishing wheel feed servo 0.75kw*2 12 Polishing wheel moves left and right servo 1.5kw
13 Air pressure 0.5-0.8MPa 14 Scope of workpiece Diameter:50-500
Length: 200-300mm
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^


Numbers of workers for fully-auto beer keg prodution line
NO. Production Process No. of workers Remark
1 Round sheet blanking 1
2 Automatic deep drawing 1
3 Cleaning line 0
4 Auto keg body welding 1
5 Semi-auto top⊥ skirt welding 3
6 Air leakage 1
7 Passivation 2
8 Outer polishing 8 According to 150 kegs per hour, it requires about 25 sets machine
9 Top skirt welding line 7
10 Bottom skirt welding line 5
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

Company Introdution

Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of steel drum, beer kegs, steel cans production line machienry,such as auto-welding equipment (MIG, TIG, MAG, PAW) and automatic welding system integration, as well as related equipment. Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace.
if you have any inquiry,welcome to inquiry us!
Fully Automatic Stainless Steel Beer Keg/Can/Barrel/Drum Production Line Machines^

FAQ

To enable me send you offer for correct machines, please tell me following details:

A: Technical drawing of beer kegs

B: Size range of beer kegs you want to manufacture

C: What's the capacity per shift/day?
