Full Automatic H Beam Welding Production Line for Steel Structures

Quantity:
  • HLT

  • Product Line

  • Automatic H Beam Gantry Type Saw Welding Machine

  • 4000~15000mm or as Per User′s Request

  • 200-800mm

  • H Beam Automatic Welding Machine

  • Blue & Yellow

  • Mz-1000 / DC-1000

  • 0.15-2.5 M/Min

  • 200-1000 mm

  • Depends

  • Control Box and Remote Control

  • Saw Arc Welding

  • V Type Rail or Rectangular Type Rail

  • Gantry Type

  • Steel, Aluminium Ect

  • Wooden Package for Arc Welding Machine

  • CE

  • longterm

  • Wuxi, Jiangsu

  • 85158090

  • 500 PCS / Per Month

  • US$ 350/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Full Automatic H beam Welding Production Line for Steel Structures
Product Description

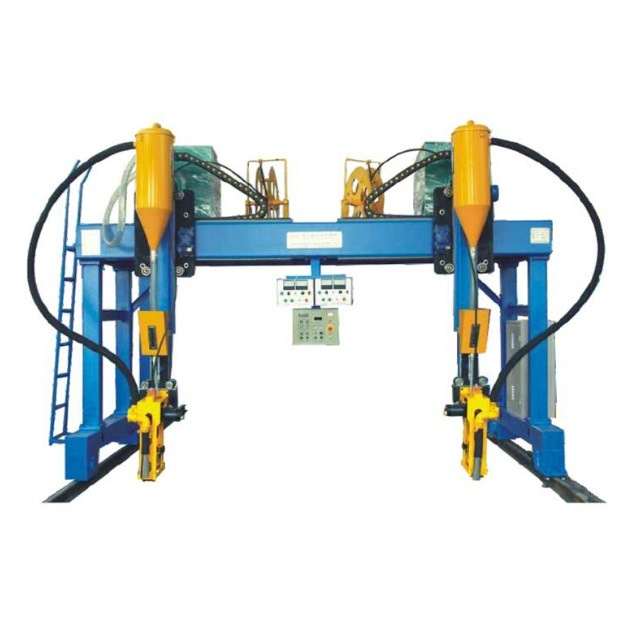

Full Automatic H Beam Welding Production Line for Steel Structures
This machine is designed according to special character of vessel welding,its mainly consist of Gantry frame,slide structure,welding gun tracking device,Flux recovery system,electrical control system and Submerged welding machine. Full Automatic H Beam Welding Production Line for Steel Structures

SAW Advantage

One of the top advantages of submerged arc welding is that it prevents hot materials from splattering and splashing onto workers.
Another benefit is that the flux prevents high levels of radiation from being emitted into the air. Submerged arc welding does not
require added pressure to weld because it is already generated by the electrode. This application is excellent for quickly welding
together thin metal sheets and creates a secure fusion between welds. This application also produces high productivity, fast
travel speed, high repeatability, and quality results.

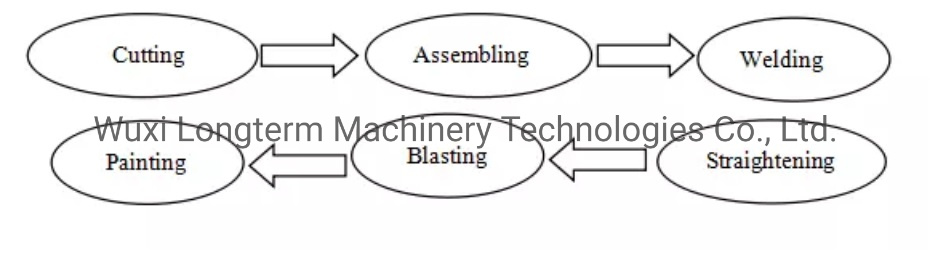

Process Flow
Full Automatic H Beam Welding Production Line for Steel Structures

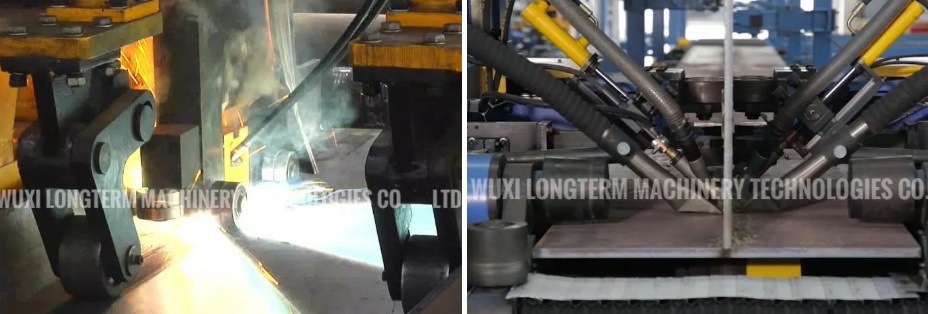

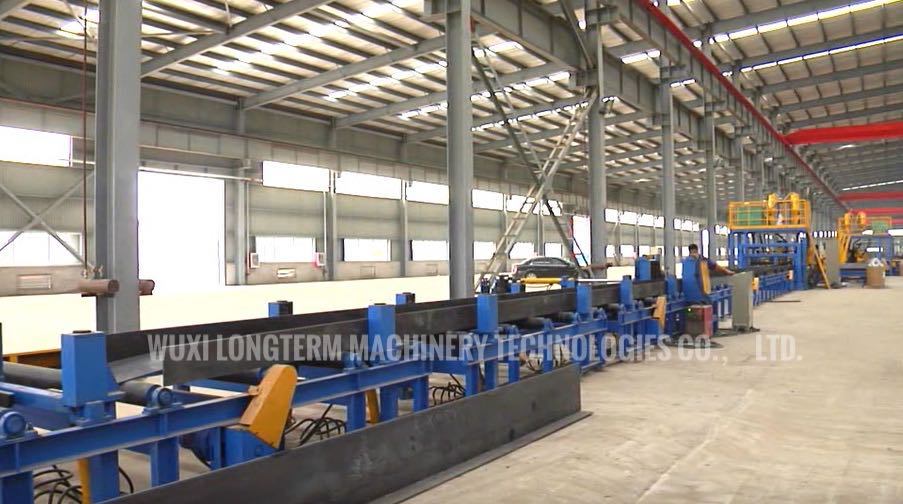

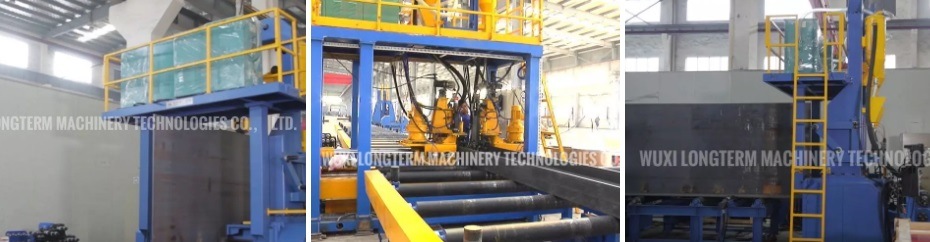

Details Images Full Automatic H Beam Welding Production Line for Steel Structures

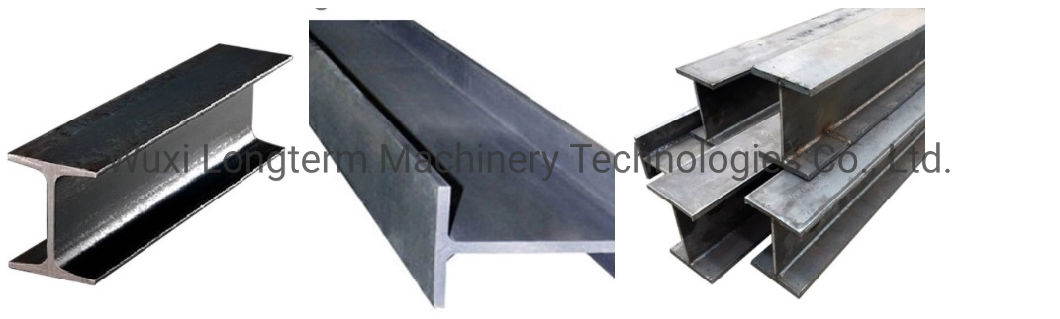

Finished Product

Full Automatic H Beam Welding Production Line for Steel Structures

After-Sales Service.

If during warranty period: 1. If any damage for accessories or spare parts,we will provide for free. 2. If any damage for machine and machine doesn't work,we will send our engineer to repair. But customer needs to pay flight tickets,food and living. If beyond warranty period: 1. If any damage for accessories or spare parts,we will provide for free.But customer needs to pay flight charge. 2. If any damage for machine and machine doesn't work,we will send our engineer to repair. But customer needs to pay flight tickets,food,living and Salary (USD 80 per day).

Technical parameters
Web beam height: 200-1800mm
Web beam thickness: 6-32mm
Flange beam width: 200-800mm
Flange beam thickness: 6-40mm
H beam length: 4000-15000mm
Assembling speed: 0.5-8m/min
Input roll: 3000mm×3
Output roll: 3000mm×3
Adjust method: AC converter
Power: 9 Kw
Supply scope.
Assembly machine :main machine,gantry bracket,flange synchrony clamping system,main transmit motor and reducer etc
Input rolls :drive and idler rolls 3000mm*3 sets and 2 sets bar system
Output rolls:drive and idler rolls 3000mm*3 sets
Hydraulic system :oil pumping stations,high pressure rubber tube and 8 hydraulic pots etc
lectrical system :electric cabinet,Electric control panel ,AC inverter(Schneider)
Automatic spot welding system:2 sets CO2 NB-350A welding sources etc.
Spare parts :3 buttons,2 HH54PDC24V relay, three 4A and 6A fusible core.
Instruction book(including electrical principle diagram,Hydraulic pump principle diagram,easy abrasion list etc)
Inverter instruction book ,Hydraulic pump instruction book, PLC program instruction book.
Qualified certificate,shipping list,pedestal diagram.

Company Introduction
Full Automatic H Beam Welding Production Line for Steel Structures

Full Automatic H Beam Welding Production Line for Steel Structures
Our company is an experienced h beam production line manufacturer with 10 years.After many years' development ,H beam production line that we manufacture has compact structure,advanced functions and reliable quality. It is highly spoken of by customer because of its high automation.We also can design suitable h beam production line according to client's workshop and work piece with low price,reliable quality and thinkable service.
Our team and Customers' visit
Full Automatic H Beam Welding Production Line for Steel Structures

Full Automatic H Beam Welding Production Line for Steel Structures

FAQ

− Q: Are you the manufacturer or trading company?

A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the filed for more than ten years.
− Q: What is the application of our products?
A: H beam SAW Welding
− Q: What can we offer our customers?
A: The products we offer are exactly according to CE and ISO Standard.
− Q: How long is the product warranty?
A: Warranty period of one year.
