Automatic Assembly Straightening Integrated H/I Beam Welding Machine
Product Description

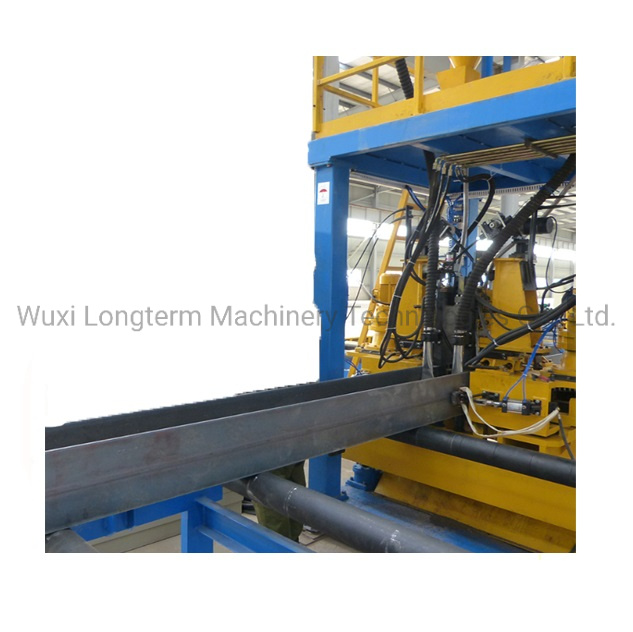

This machine is designed according to special character of vessel welding,its mainly consist of Gantry frame,slide structure,welding gun tracking device,Flux recovery system,electrical control system and Submerged welding machine. SAW Advantage
One of the top advantages of submerged arc welding is that it prevents hot materials from splattering and splashing onto workers.
Another benefit is that the flux prevents high levels of radiation from being emitted into the air. Submerged arc welding does not
require added pressure to weld because it is already generated by the electrode. This application is excellent for quickly welding
together thin metal sheets and creates a secure fusion between welds. This application also produces high productivity, fast

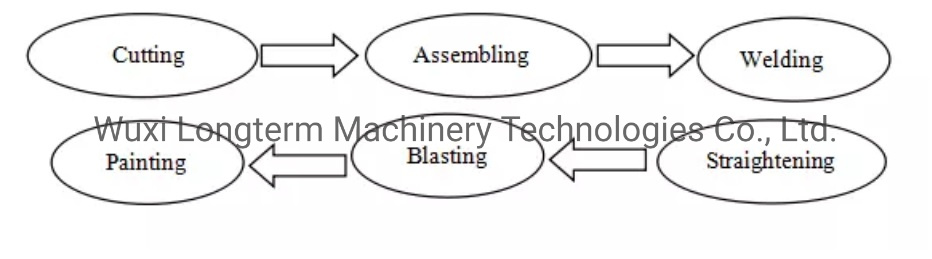

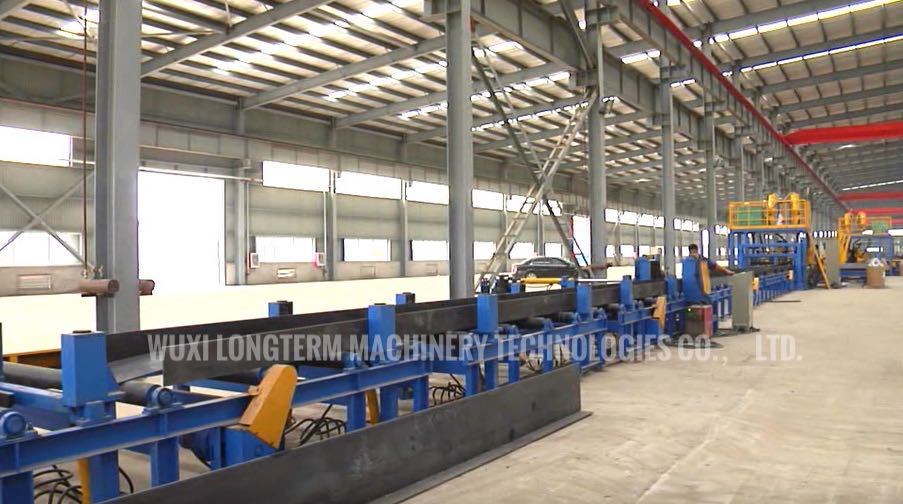

travel speed, high repeatability, and quality results. Process Flow Details Images

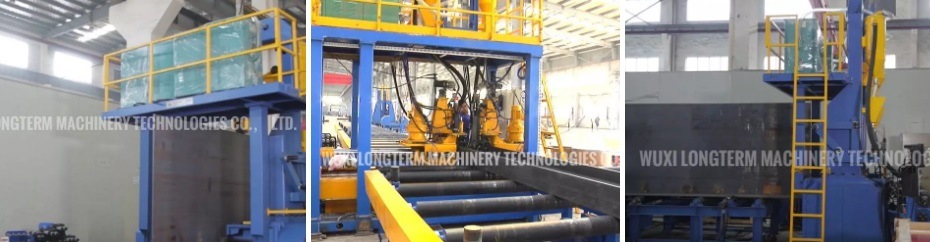

Finished Product
After-Sales Service.
If during warranty period: 1. If any damage for accessories or spare parts,we will provide for free. 2. If any damage for machine and machine doesn't work,we will send our engineer to repair. But customer needs to pay flight tickets,food and living. If beyond warranty period: 1. If any damage for accessories or spare parts,we will provide for free.But customer needs to pay flight charge. 2. If any damage for machine and machine doesn't work,we will send our engineer to repair. But customer needs to pay flight tickets,food,living and Salary (USD 80 per day).
Technical parameters
| Web beam height: | 200-1800mm |
| Web beam thickness: | 6-32mm |
| Flange beam width: | 200-800mm |
| Flange beam thickness: | 6-40mm |
| H beam length: | 4000-15000mm |
| Assembling speed: | 0.5-8m/min |
| Input roll: | 3000mm×3 |
| Output roll: | 3000mm×3 |
| Adjust method: | AC converter |
| Power: | 9 Kw |
Supply scope.
Assembly machine :main machine,gantry bracket,flange synchrony clamping system,main transmit motor and reducer etc
Input rolls :drive and idler rolls 3000mm*3 sets and 2 sets bar system
Output rolls:drive and idler rolls 3000mm*3 sets
Hydraulic system :oil pumping stations,high pressure rubber tube and 8 hydraulic pots etc
lectrical system :electric cabinet,Electric control panel ,AC inverter(Schneider)
Automatic spot welding system:2 sets CO2 NB-350A welding sources etc.
Spare parts :3 buttons,2 HH54PDC24V relay, three 4A and 6A fusible core.
Instruction book(including electrical principle diagram,Hydraulic pump principle diagram,easy abrasion list etc)
Inverter instruction book ,Hydraulic pump instruction book, PLC program instruction book.
Qualified certificate,shipping list,pedestal diagram.
Company Introduction Our company is an experienced h beam production line manufacturer with 10 years.After many years' development ,H beam production line that we manufacture has compact structure,advanced functions and reliable quality. It is highly spoken of by customer because of its high automation.We also can design suitable h beam production line according to client's workshop and work piece with low price,reliable quality and thinkable service. Our team and Customers' visit
FAQ
− Q: Are you the manufacturer or trading company? A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the filed for more than ten years.
− Q: What is the application of our products? A: H beam SAW Welding
− Q: What can we offer our customers? A: The products we offer are exactly according to CE and ISO Standard.
− Q: How long is the product warranty? A: Warranty period of one year.
