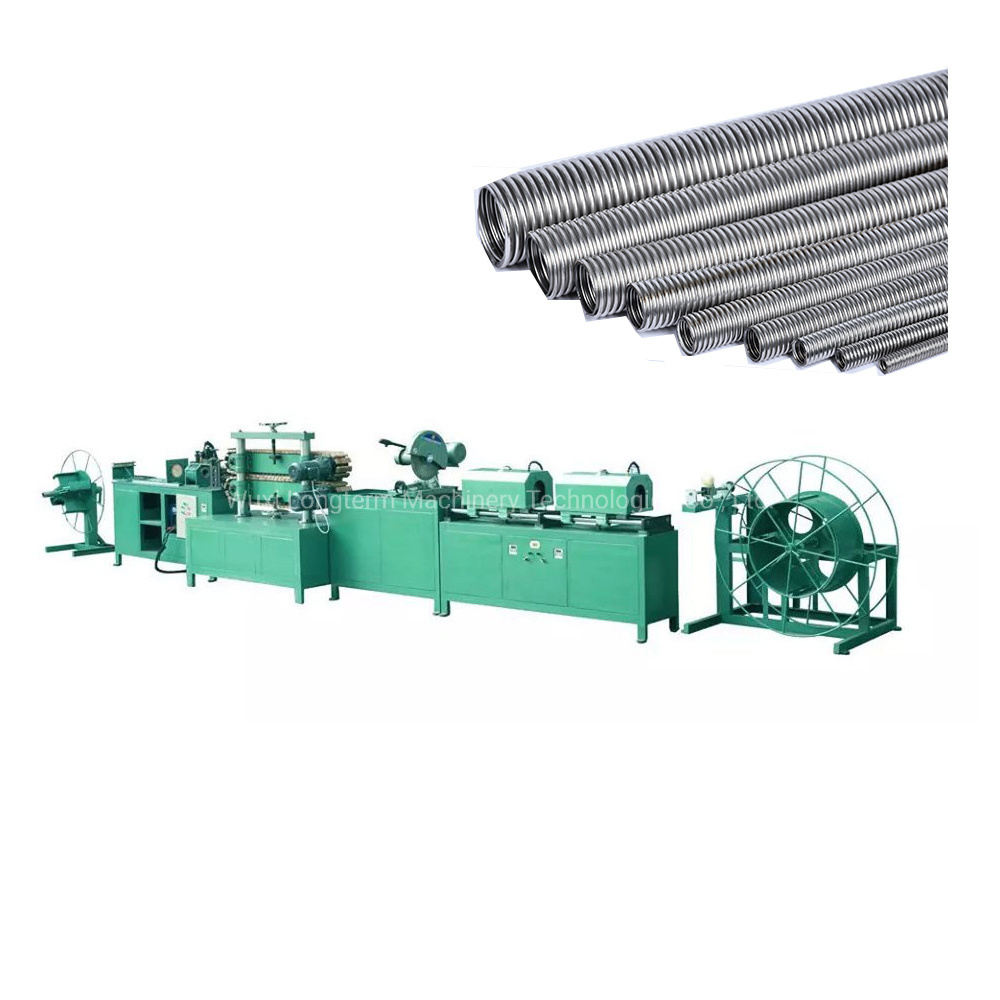

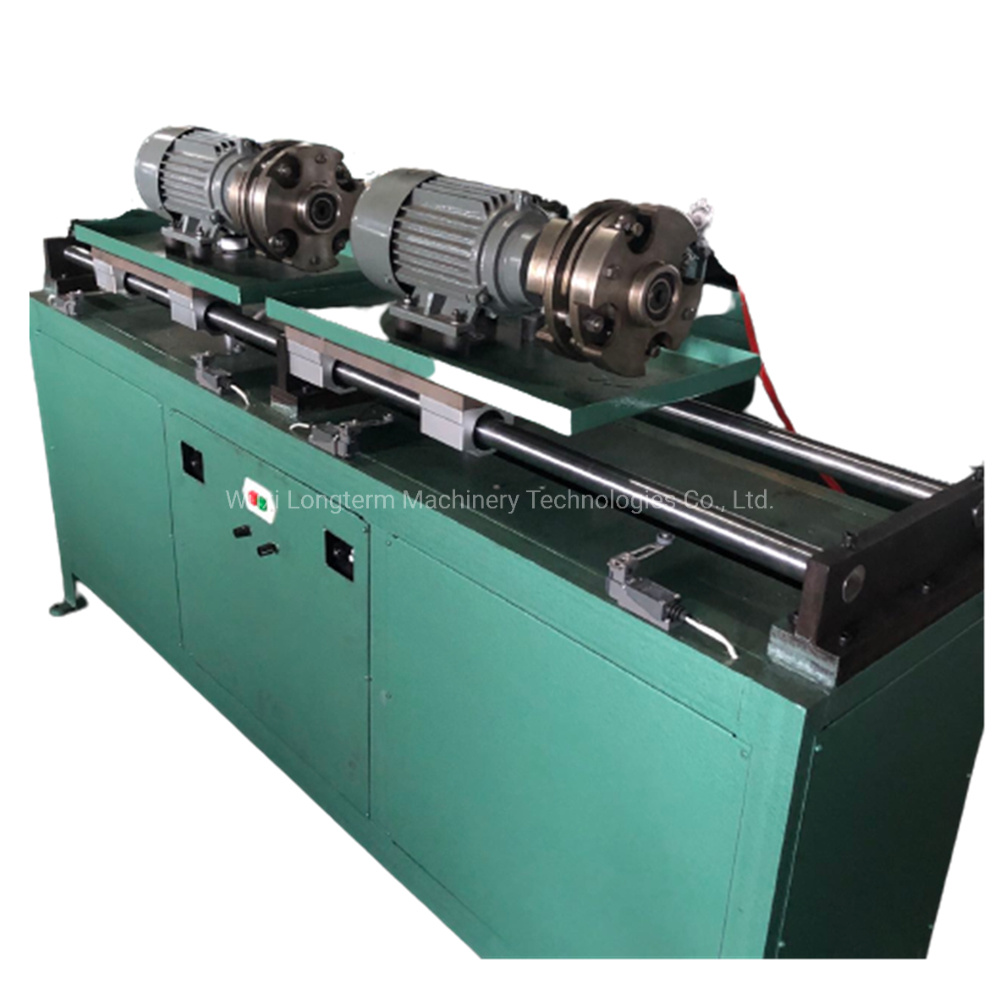

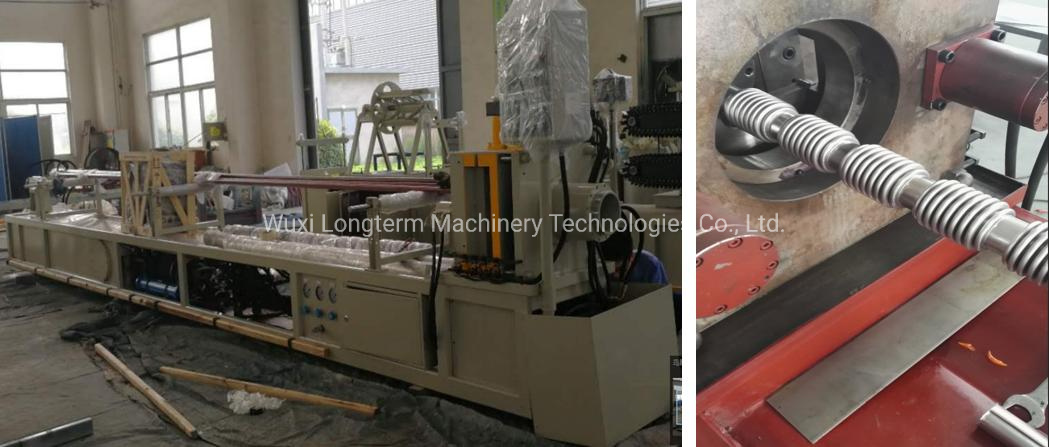

Flexible Pipe Machine DN8-40 Mechanical Flexible Metal Hose Forming Machine

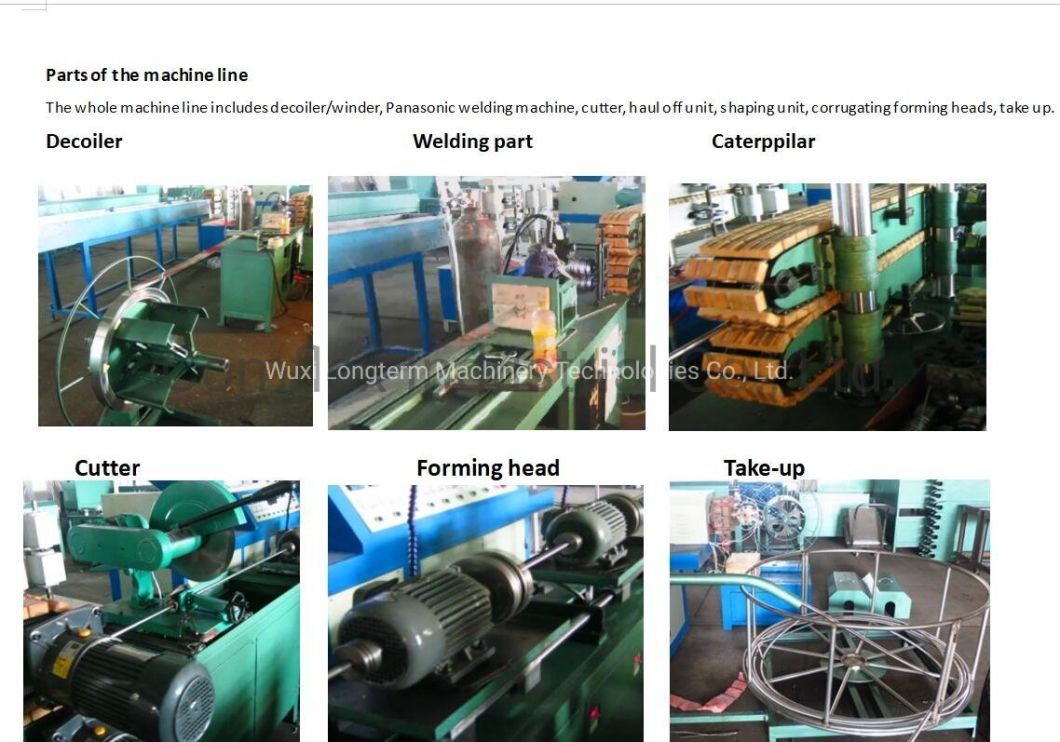

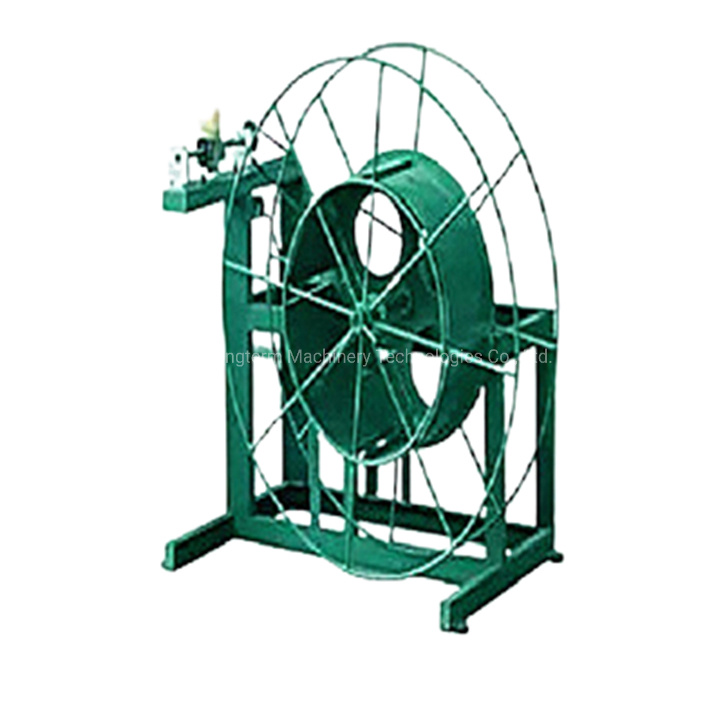

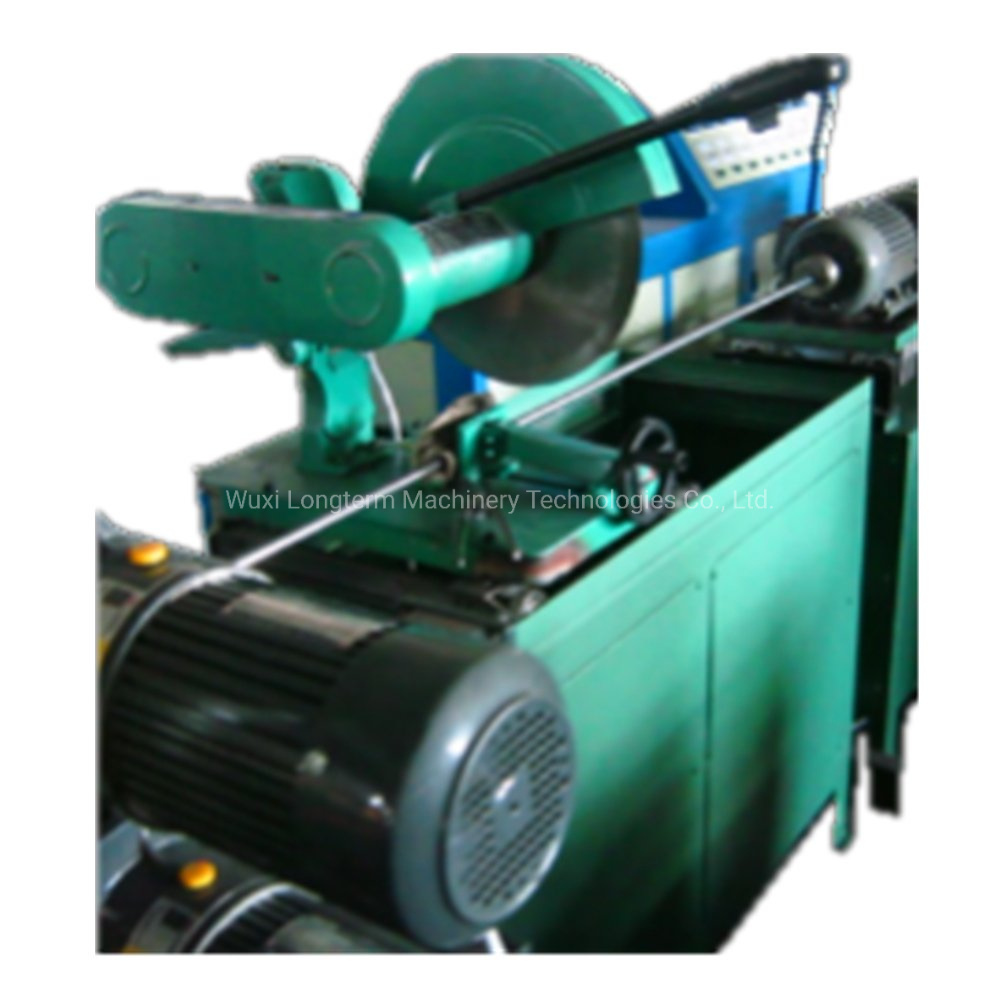

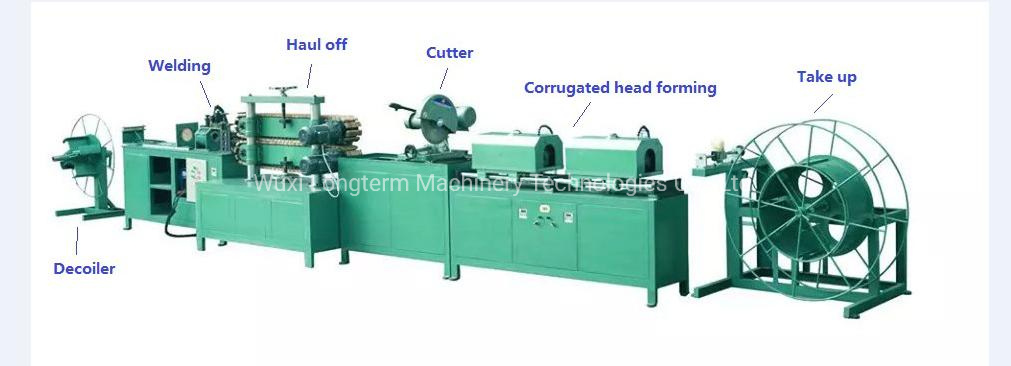

Products description
Continuously forms unlimited length of hose The machine can be used for different applications as follows: A: Annular metal hose making machine with mould B: helical metal hose making machine with mould C: tube welding machine for the size up to DN50 without hose forming machine The machine can be used for gas hose, water hose, solar hose, heat exchanger and fire fighting/sprinkler hose manufacturing. Size range: DN8 up to DN40 Wall thickness: 0.18-0.3mm Production speed:2.5~3.5m/min Strip thickness: 0.18-0.3mm Material: sus304, 321 and 316L Parameter of hose
No. |
Size |
Tube OD
(mm) |
Wall thickness
(mm) |
Hose ID
(mm) |
Hose OD
(mm) |
Pitch
distance
(mm) |
Width of the strip
(mm) |
1 |
DN 8 |
10.3 |
0.18 |
8 |
11.3 |
2.7 |
31.8 |
2 |
DN10 |
12.3 |
0.18 |
10 |
13.5 |
2.9 |
38.1 |
2 |
DN 12 |
15 |
0.18 |
12.3 |
16.3 |
3.2 |
46.6 |
3 |
DN 16 |
20 |
0.2 |
16.2 |
21.3 |
4.5 |
62.2 |
4 |
DN 20 |
23.5 |
0.25 |
20 |
25 |
4.5 |
73.0 |
5 |
DN 25 |
30 |
0.3 |
25 |
31.5 |
4.5 |
93.3 |
6 |
DN 32 |
39.5 |
0.3 |
33 |
41 |
4.5 |
123.2 |

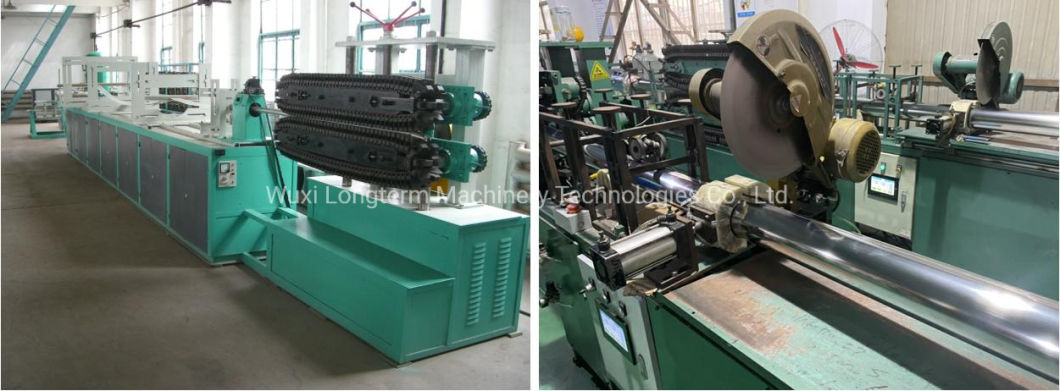

Related machines
We make all kinds of hose making machines including the following:
1. Elastomer Annular Hose Forming Machine: DN12-DN100
1). Diameter: DN12mm-DN100mm
2). Mill Length: 4m-8m
3). Hydraulic pressure: 3.5-4.5MPa
4). Operation mode: manual/automatic
2. Helical Hose Forming Machine:
1). Diameter: DN8-DN50mm
2). Thickness: 0.2-0.6mm
3). Speed: 1m/min
4). Welding machine: Panasonic TIG150 or Kemppi Finland(made in China)
5). Voltage rating: motor 380V, argon welder 220V
6). Electric power: 6KW
7). Adjustable speed: control by inverter
3. Hydraulic Hose Forming Machine: DN25-DN100
1). Range: DN25-DN100mm
2). Length 3.5-4.5m
3). Thickness: 0.2-0.5mm*2 layer
4). Lathe outline dimension: 4960mm * 560mm
4. DN50-300 Hydraulic Forming Machine
Diameter: DN50-300mm
No. of layers: single or double layers
Type of the bellows: annular bellows
Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
Control: PLC control
Length: ≤7500mm
Expanding medium: emulsified liquid
Forming speed: 5-10seconds per convolution

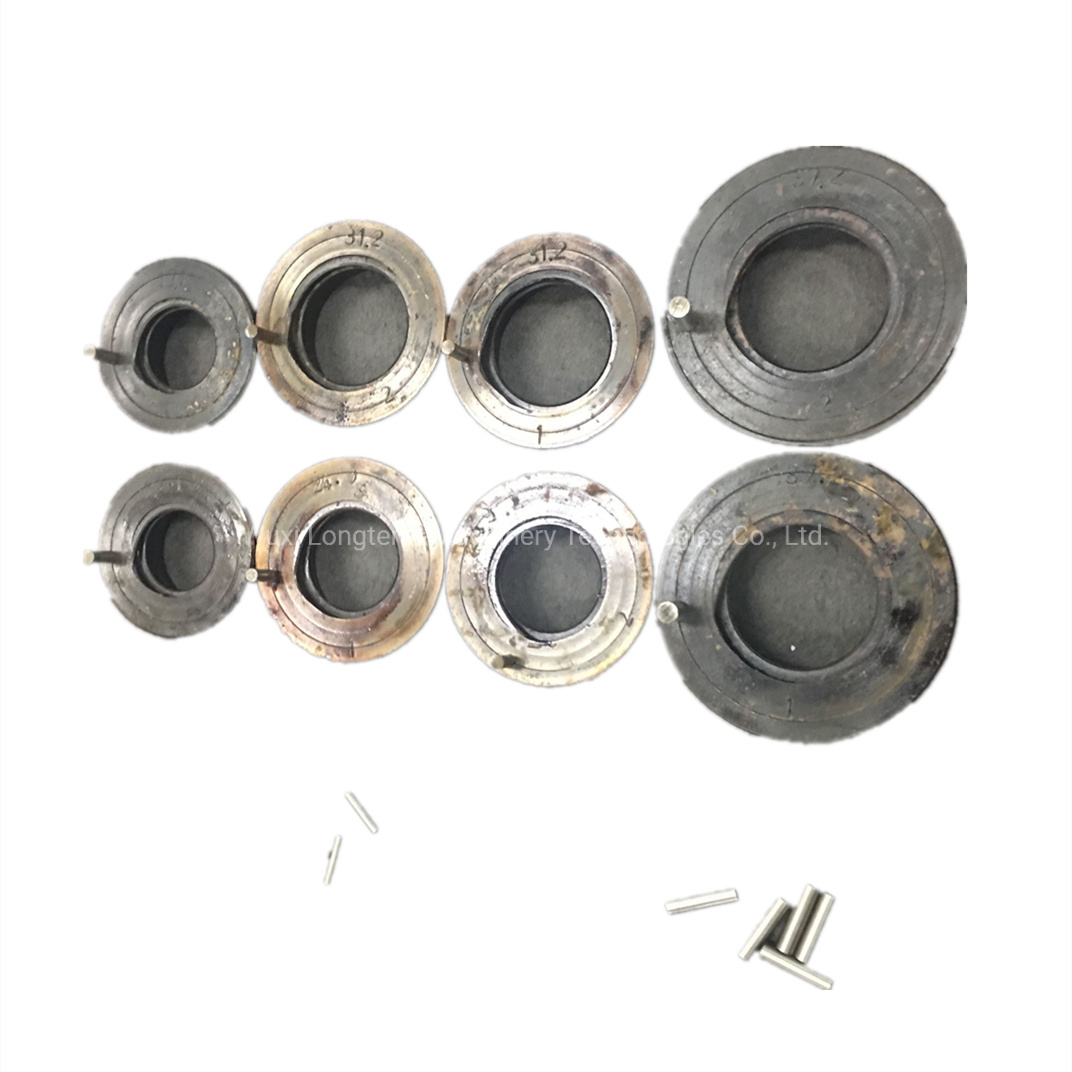

| ID | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 |
| Single wall thickness | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 |
| Double layer wall thickness | 0.25*2 | 0.3*2 | 0.4*2 | 0.50X2 | 0.60X2 | 0.70X2 | 0.80X2 | 0.90X2 | 1.0X2 |
The parts will go with the machines: The molds for DN50,65,80,100,125, 150,200,250,300mm 5.DN200-630 Hydraulic Forming Machine Diameter: DN200-630mm No. of layers: single or double layers Wall thickness: Single layer1.0-3.0mm Double layers:0.8*2-1.6*2 Type of the bellows: annular bellows Control: PLC control, manual or automatic control Straight tube length: ≤1800mm Expanding medium: emulsified liquid Forming speed:8-28seconds per convolution Molds and water injection head: DN200,250, 300,350,400,450,500,550,600mm | Hydraulic Hose Making Machine |
| Machine Type No. | HLT-H-150 |
| Technical Data | Application of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Outer dimensions:15000*1100*1700 |
| Packing details | Plywood box and standard pallet |
| MOQ | 1 set |
| Warranty | 1 year |
| Payment terms | T/T, L/C, D/P, Western union |
DN10-150 Tube welding machine Wall thickness d³0.18mm Tube diameter Ф10―Ф65mm Control Inverter control Welding speed About 250mtrs/hr Tube length No limit Hydraulic bellow forming machine YKCX-150A ID range: Φ32-Φ159mm
Thickness range: Single layer 0.4-1.2mm
Double layer 0.25×2-0.8×2mm
Length range: L≤7000mm
Company Profile: We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc.. The sizes are as follows: Square lock hose and machinery:ID6-ID103 Interlock hose and machinery:ID3-ID350mm on different machine Annular and corrugated metal hose: ID8 till ID600 on different machine
Package And Delivery: Installation And Commissioning Our service Warranty period of one year Standard seaworthy package Engineers available to service machinery overseas FAQ Q: Why choose us for metal hose forming machine? A: We are most professional manufacturer of hose making machine with more than 25 years of experience Q: What size can you make? A: All the sizes from DN8 up to DN1200 can be made on different machines Q: How many different types of machines can you make? A: Hydraulic metal hose forming machine a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm B: Mechanical hose making machine DN8-50mm C: PU/ Elastomer Metal Hose Making Machine a:DN12-100 b: DN50-150 c:DN12-65 Q: Can the hose forming machine be used for bellow making? A: Yes, all above hose forming machine can be used for bellow making as well We need to know the following information to quote your correct machinery: 1. Size range you want to make 2. The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc.. 3. Wall thickness
