Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

Share to:

Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Product Name:
Cryogenic / LNG Cylinder Welder
Welding Process:
TIG/MIG/Paw/Mag Welding
Welding Length:
0-2000 mm
Welding Thickness:
2-6 mm
Welding Diameter:
250 -800 mm
Welding Material:
Stainless Steel, Carbon Steel
Weldable Object:
Cryogenic Cylinder / LNG Cylinder / Dewar Bottle
Welding Speed:
180 mm/Min
Color:
Customer Requirement
Package:
Standard Package
Transport Package:
Standard Seaworthy Package
Specification:
2040x1005x1740mm
Trademark:
HLT
Origin:
Jiangsu, China
HS Code:
8515390000
Production Capacity:
300 Piece/Year
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

Product Description

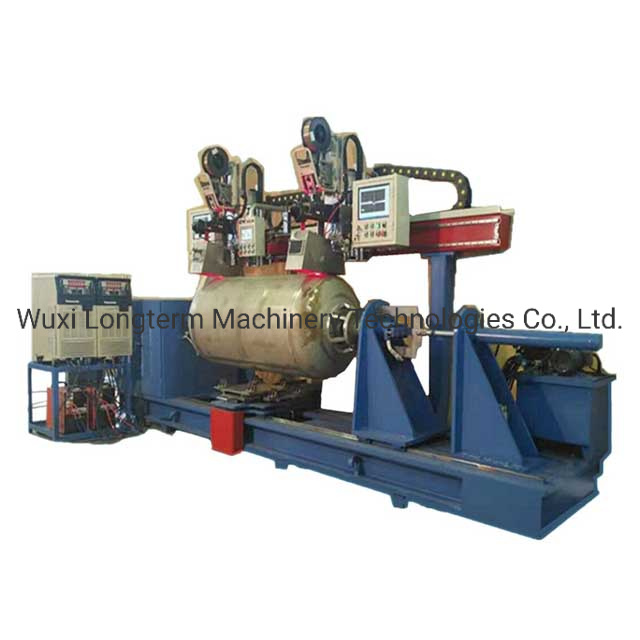

Double head circumferential welding machine with full vision Laser tracking system

This machine is used for auto.double-head TIG circumferential weding of Dura-Cyland LNG inner cylinder.
Panasonic high-speed pulse welding machine(GS5-500), Two sets of visual tracking system, with hydraulic tail top, upper and lower hydraulic cylinder
Finished products

Parameter

	Double head circumferential welding machine with full vision Laser tracking system
Length	≤2000 mm
Thickness	2.5~8.0 mm
Diameter	400~900 mm

Circumferential welding details Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

Specification Welding progress: TIG/MIG/PAW/MAG welding
Welding thickness: 2-6 mm
Welding material: stainless steel, carbon steel
Welding object: Cryogenic Cylinder / LNG Cylinder / Dewar Bottle

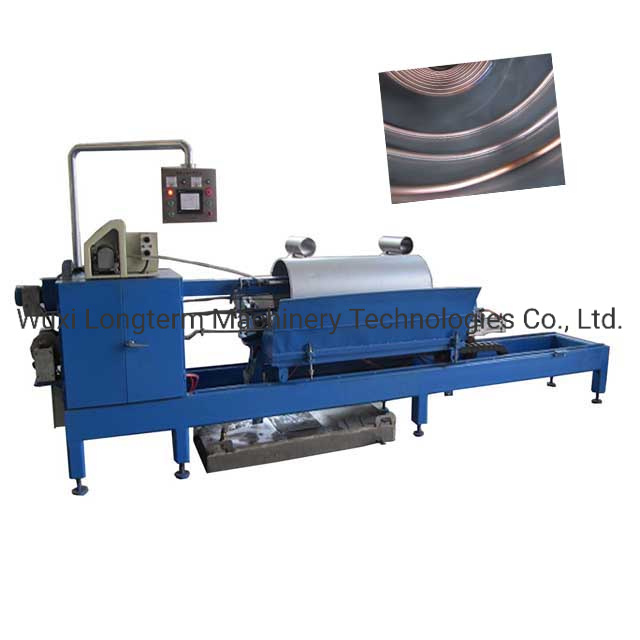

Automatic brazing equipment for copper pipe
This machine is used for auto.copper tube brazing soldering of dura-ayl,min.cylinder,cyroEase and LNG cylinder.

Parameter

	Automatic brazing equipment for copper pipe
Length	≤2000 mm
Thickness	2.5~6.0 mm
Diameter	400~800 mm

Automatic brazing equipment for copper pipe welding details

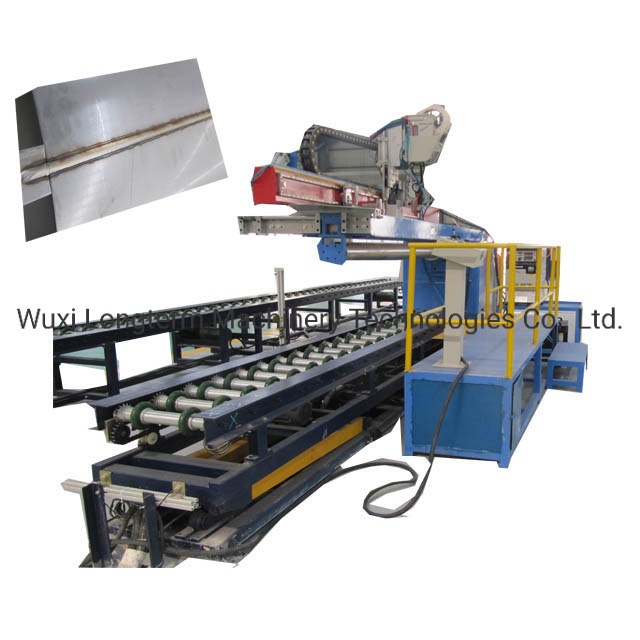

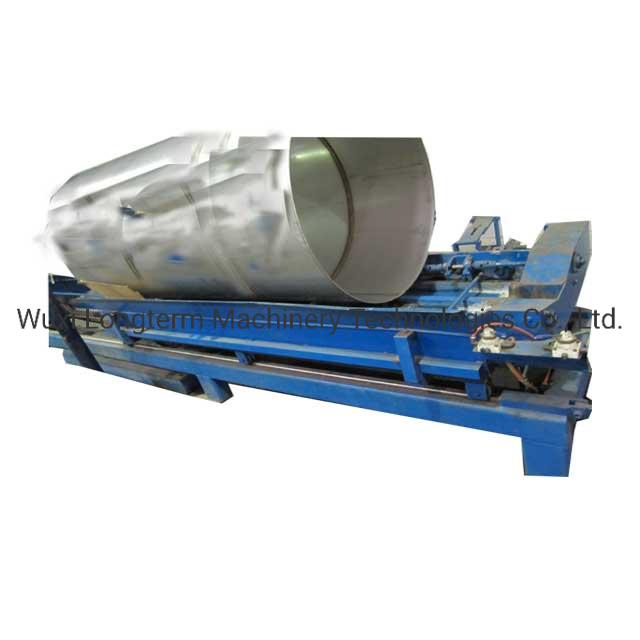

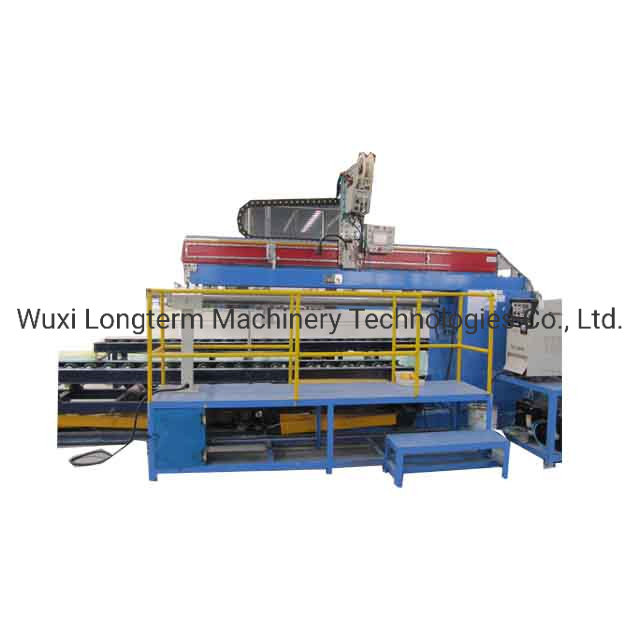

Longitudinal Seam welding equipment for LNG Cylinder

This machine is used for PAW+TIG auto. linear welding of metal material,such as stainless steel,carbon steel.Single-side welding with double-side forming.
Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

Parameter

	Longitudinal Seam welding equipment for LNG Cylinder
Length	≤2000 mm
Thickness	2.5~6.0 mm
Diameter	250~800 mm

Straight welding details

Product packaging
Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

Our Factory

Wuxi Longterm Machinery Technologies Co.,LtdOur company boasting tremendous technological strength,rich experience and one high qualitytechnical team,our company has been engaged in research of welding technology for more than 40 years.Machineries have been expored to Europe,Asia, and America with good quantity and enjoyed good fame.

Our company is specialized in designing and producing complete sets of Auyo.welding equipment(TIG,MAG,PAW),Auto.welding system integrations and related equipments.Being eide used in lines of aerospace industry,chemical industry mechanical industry,pressure vessel making,water heater making and stainless steel products

Our team

Customers
Cryogenic Cylinder / LNG Cylinder / Dewar Bottle MIG / TIG / Paw /Mag Circumferential / Longitudinal Seam Welding Equipment

FAQ

Q:How can you guarantee the quality of welding machine?

A: we have passed the ISO test,we warmly welcome you and your technical team visit our factory to check the machine before order, And we have one year guaranteed,free parts can be send free within one year.

Q: What are the benefits to choose your machines?

A: Our machines are strong and reliable for long term industrial manufacturing

Q:How long is the warranty for machines?

A:Machines warranty is 12 months after receive our machine. in Warranty time,we can provide new free parts for changing.

Q:Can you engineer come to our place to help with machine installation & commission?

A:Yes, our engineers are available to travel to your factory for machine installation and commissioning.

We need to know following information to quote you correct machineries:

1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce? (6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require,How many pieces and sizes you want to make per day?
