Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder

Quantity:
  • LTM

  • 2-6mm

  • Customized

  • Standard Package

  • 0-2000mm

  • TIG/MIG/Paw/Mag Welding

  • 200-800mm

  • Stainless Steel/Carbon Steel

  • LNG Cylinder, Cryogenic Cylinder and So on

  • 100%

  • 12 Months

  • Auto-Weld

  • Engineers Available to Service Machinery Overseas

  • 5 Tons

  • 1kVA

  • Chinese CE TIG MIG Saw Automatic Tank Linear Weldi

  • Sea Worthy

  • 4000mm*1500mm*2000mm

  • Longterm

  • Jiangsu, China

  • 8515390000

  • 400 Sets/Year

  • US$ 50/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Double side cooler straight linear weld welding seamer machinery factory for water heater boiler cylinder

Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder

Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
Normal Size LNG Cylinder
Diameter: Φ600mm ~ Φ1000mm; specifications 450L (Φ600 / 650mm), 1000L (Φ850mm), 1350L (Φ950mm), 1350L (Φ1000mm) Length (without head): 1110mm ~ 1550mm(Note: 400mm test board welding length is reserved, and the key board is driven and compressed by an independent cylinder);
Board thickness: 3.0mm ~ 5.0mm; Material: 304 stainless steel
No. Device name Qty No.(worker) Remarks
1 Inlet and outlet robot welding station 1 1 V-shaped double-station layout, in turn welding inlet and outlet pipes, gas phase pipe joints
Double station layout, welding 2 joints in turn
2 Distribution head, joint robot welding station 1
3 Inlet and outlet, gas phase tube, dispensing head artificial welding workbench 1 1 manual welding
4 Supporting neck tube, flange inner and outer ring seam robot welding workstation 1 1
5 Supporting neck tube, flange inner and outer ring seam robot welding workstation 1 1
6 Support neck tube ring seam welding machine 1 1 Double gun configuration
7 Front head, support neck tube, reinforcing plate manual assembly spot welding machine 1 1 Manually assembling the reinforcing plate and spot welding
8 Front head, support neck tube ring seam welding machine 1 1
9 Front head, reinforcing plate, ring seam welding machine 1
10 Front head, support neck tube inner ring seam welding machine 1 1
11 Front head, molecular sieve package manual assembly spot welding machine 1 1 Manual assembly spot welding
12 Front head, molecular sieve, ring seam welding machine 1 0
13 Molecular sieve package double-sided head manual welding station 1 1
14 Internal pipeline manual welding station 2 2
15 Molecular sieve package ring seam welding machine 1 1
16 Front head logistics transmission line 1 1 Including: attachment welding equipment transmission line, double speed chain transmission line, aerial transplanter, power assist
robot


Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder

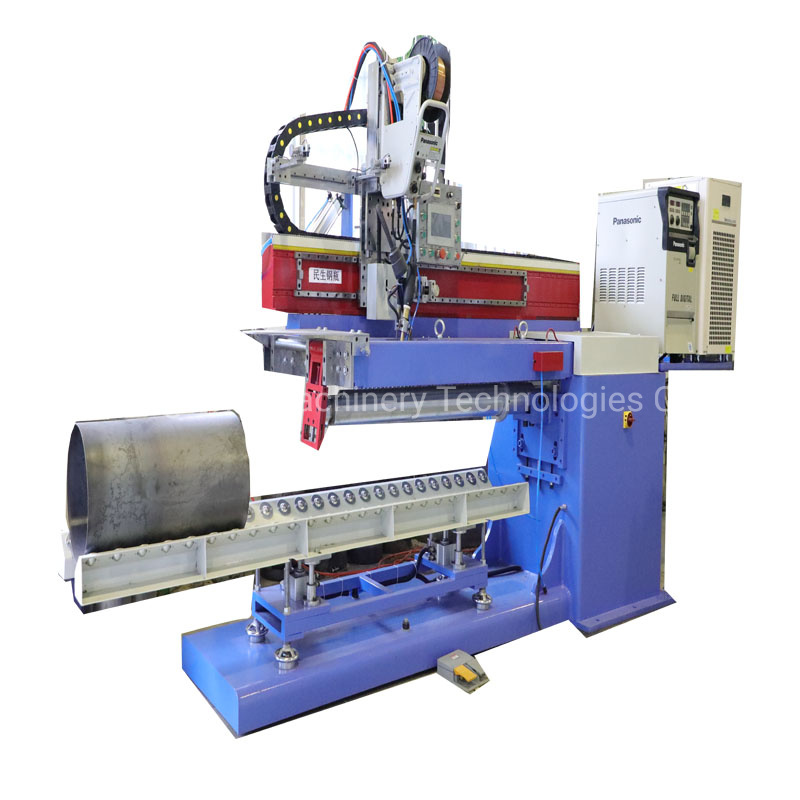

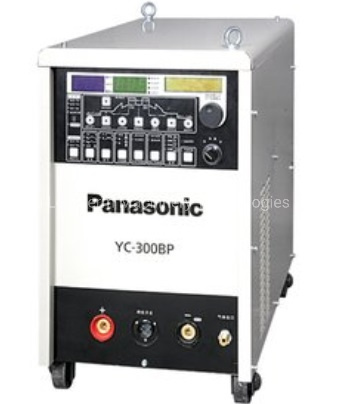

Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder Famous Panasonic welder

Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
The equipment automatically completes the feeding, fixed seam, closed seam, compaction, placement / point fixed arc board, straight seam welding and discharge of the cylinder.

No. Name Brand
1. PLC SIEMENS
2. Frequency converter SIEMENS
3. HMI SIEMENS
4. Pneumatic components SMC
5. Linear slide rail,ball screw HIWIN
6. AC motor SEW
7. AC servo motor SIEMENS, Schneider
8. Circuit breaker,Contactor,electronic overload protection Schneider
9. Button Schneider
10. Sensor OMRON
11. Encoder OMRON, Koyo
Related Production:
Full-automatic dome assembly&spot welding machine

The dome is automatically pressed and assembled, and the position of the welding seam is automatically scanned and automatically compensated, and the workpiece is rotated and position.
Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
Automatic Circumferential welding machine-LNG Cylinder
Circumferential seam welding machine can adopt special machine welding or robot welding form, and the workpiece can be automatically loaded by manual assistance or aerial manipulator. It can be configured with contact or non-contact welding seam automatic tracking system to automatically locate and track the welding seam position.
Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder

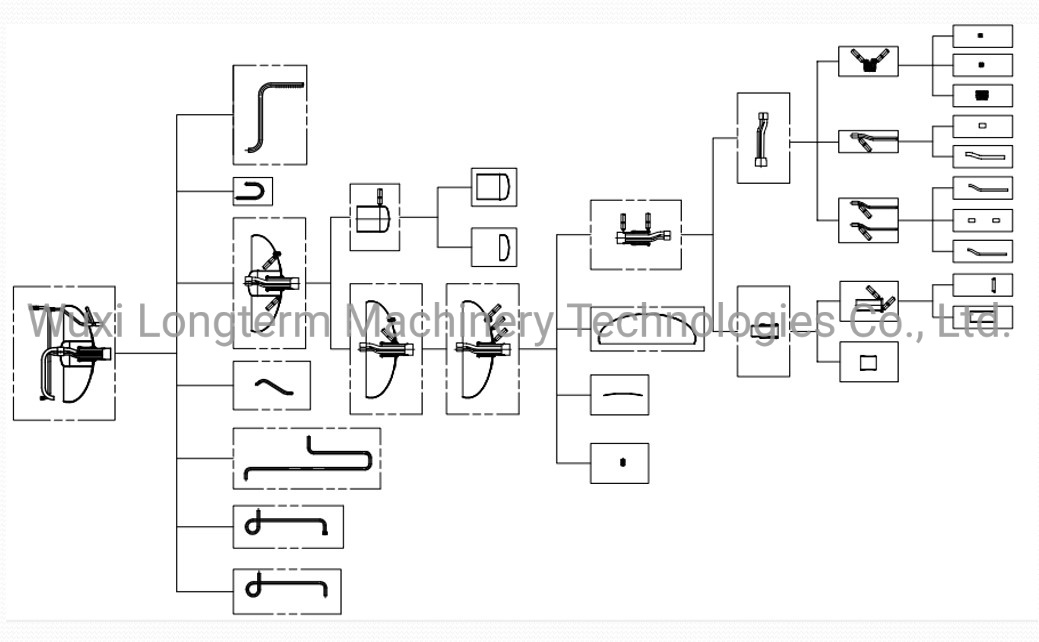

Process flow chart of automatic welding production line for front Dome attachment

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
Welding robot workstation for inlet and outlet liquid pipes and pipe joints
The robot of the inlet and outlet liquid pipe and the double-sided joint is welded automatically. Welding process: TIG. Welding method: V-shaped double station layout; each station is equipped with 3 station fixtures, corresponding to 3 different inlet and outlet pipe workpieces, using manual picking and placing, positioning the workpiece, and robot automatic welding. Robot system: The robot system is equipped with products of Japan's MOTOMAN company, including the body of the arc welding robot embedded in the MA1400 cable and the robot control box.
Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
Distribution head, pipe joint welding robot workstation
The robot for automatic welding of the distribution head and the threaded pipe joint. Welding process: TIG. Welding method: double station layout; place the distributing head and the thread joint manually, use the two holes at the lower end of the distributing head to position in the tooling fixture; use manual pick and place, position the workpiece, and the robot automatically welds. Robot system: The robot system is equipped with products of Japan's MOTOMAN company, including the body of the arc welding robot embedded in the MA1400 cable and the robot control box.
Double Side Cooler Straight Linear Weld Welding Seamer Machinery Factory for Water Heater Boiler Cylinder
Customized machine for circle welding of supporting neck tube and distribution head
The support neck tube is automatically welded to the distribution head. Welding process: TIG. Welding method: two welding guns are automatically welded at the same time. The support neck tube and the distribution head that are completed by spot welding are manually clamped and positioned by the front pneumatic chuck of the rotary head, and the neck tube is positioned tightly by jacking the cylinder.
Front Dome head, support neck tube, reinforced plate manual assembly spot welding machine
Welding process: TIG; Welding method: manual welding; Positioning method: online layout, the front head is positioned and transmitted by the accompanying tooling plate, the inner header and the gas valve are manually placed and positioned, and the manual pressing clamp drives the positioning and pressing mechanism to press the workpiece
