Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

Share to:

Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

Quantity:



Inquire Add to Basket

Model NO.:
LTM
Welding Thickness:
2-6mm
Color:
Customized
Package:
Standard Package
Welding Length:
0-2000mm
Welding Process:
TIG/MIG/Paw/Mag Welding
Welding Diameter:
200-800mm
Welding Material:
Stainless Steel/Carbon Steel
Welding Object:
LNG Cylinder, Cryogenic Cylinder and So on
Rated Duty Cycle:
100%
Warranty:
12 Months
Usage:
Auto-Weld
After-Sales Service:
Engineers Available to Service Machinery Overseas
Weight:
5 Tons
Rated Capacity:
1kVA
Name:
Chinese Ce TIG MIG Saw Automatic Tank Linear Weldi
Transport Package:
Sea Worthy
Specification:
4000mm*1500mm*2000mm
Trademark:
Longterm
Origin:
Jiangsu, China
HS Code:
8515390000
Production Capacity:
400 Sets/Year
Samples:
US$ 50/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

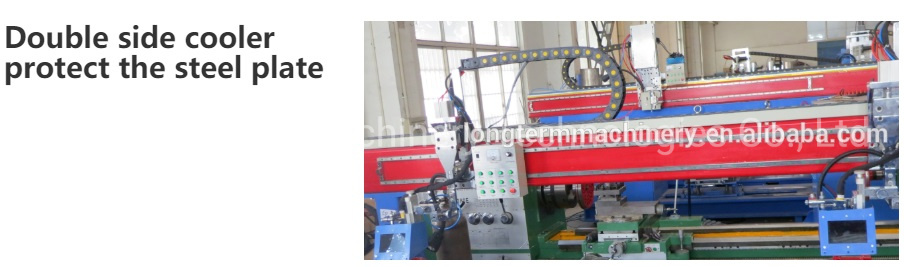

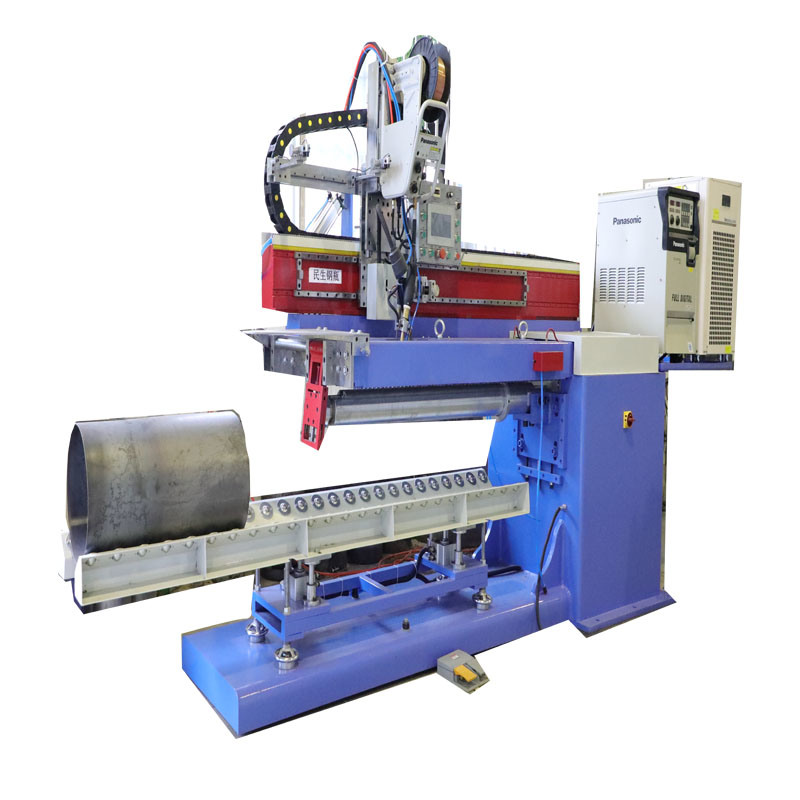

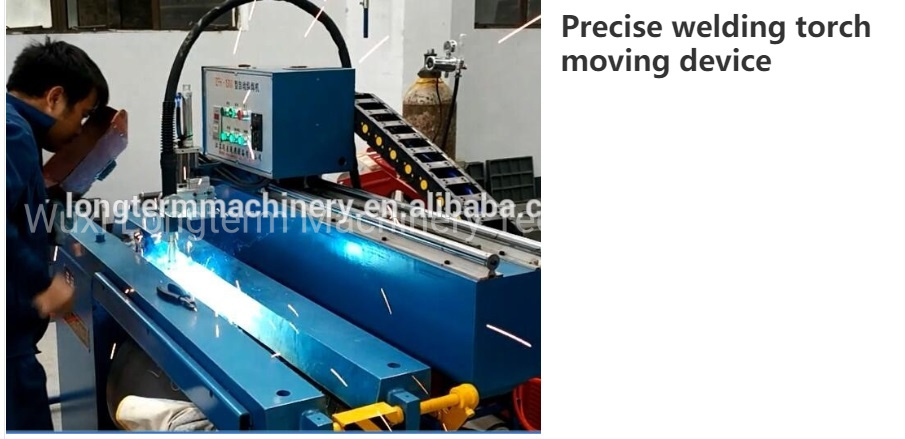

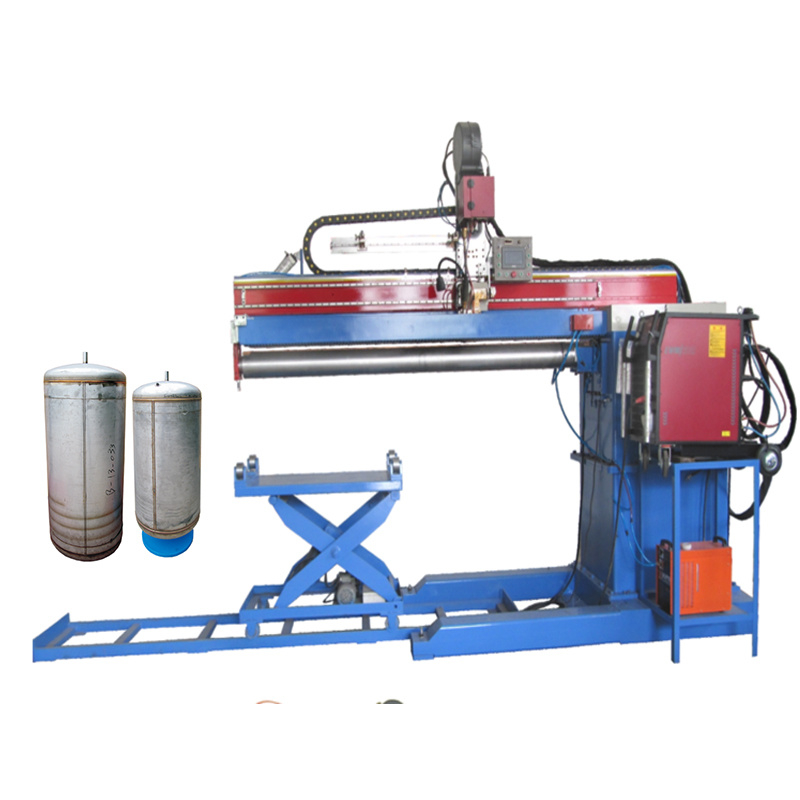

Chinese CE TIG MIG SAW Automatic tank linear welding machine manufacture for LNG/LPG tank, automatic cylinder body welder!

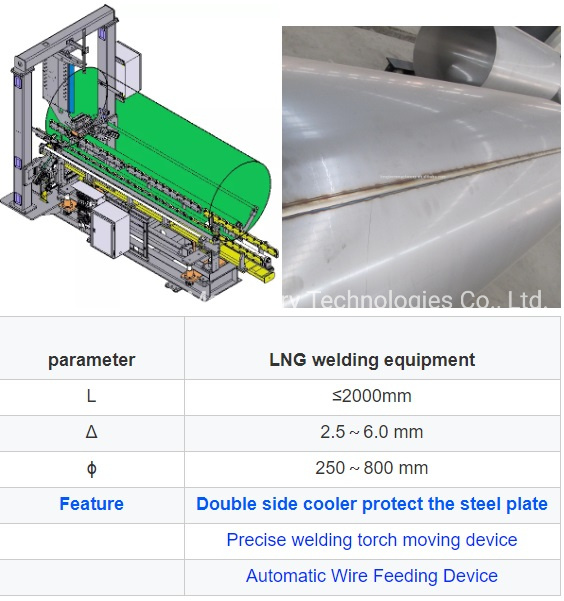

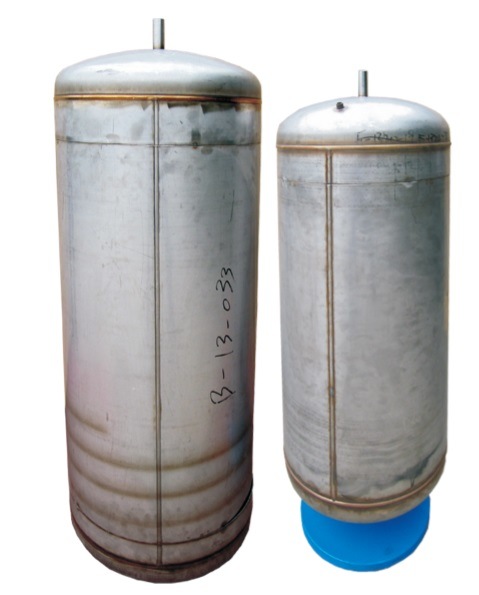

Normal Size LNG Cylinder

Diameter: Φ600mm ~ Φ1000mm; specifications 450L (Φ600 / 650mm), 1000L (Φ850mm), 1350L (Φ950mm), 1350L (Φ1000mm) Length (without head): 1110mm ~ 1550mm(Note: 400mm test board welding length is reserved, and the key board is driven and compressed by an independent cylinder);

Board thickness: 3.0mm ~ 5.0mm; Material: 304 stainless steel

No.	Device name	Qty	No.(worker)	Remarks
1	Inlet and outlet robot welding station	1	1	V-shaped double-station layout, in turn welding inlet and outlet pipes, gas phase pipe joints Double station layout, welding 2 joints in turn
2	Distribution head, joint robot welding station	1
3	Inlet and outlet, gas phase tube, dispensing head artificial welding workbench	1	1	manual welding
4	Supporting neck tube, flange inner and outer ring seam robot welding workstation	1	1
5	Supporting neck tube, flange inner and outer ring seam robot welding workstation	1	1
6	Support neck tube ring seam welding machine	1	1	Double gun configuration
7	Front head, support neck tube, reinforcing plate manual assembly spot welding machine	1	1	Manually assembling the reinforcing plate and spot welding
8	Front head, support neck tube ring seam welding machine	1	1
9	Front head, reinforcing plate, ring seam welding machine	1
10	Front head, support neck tube inner ring seam welding machine	1	1
11	Front head, molecular sieve package manual assembly spot welding machine	1	1	Manual assembly spot welding
12	Front head, molecular sieve, ring seam welding machine	1	0
13	Molecular sieve package double-sided head manual welding station	1	1
14	Internal pipeline manual welding station	2	2
15	Molecular sieve package ring seam welding machine	1	1
16	Front head logistics transmission line	1	1	Including: attachment welding equipment transmission line, double speed chain transmission line, aerial transplanter, power assist robot

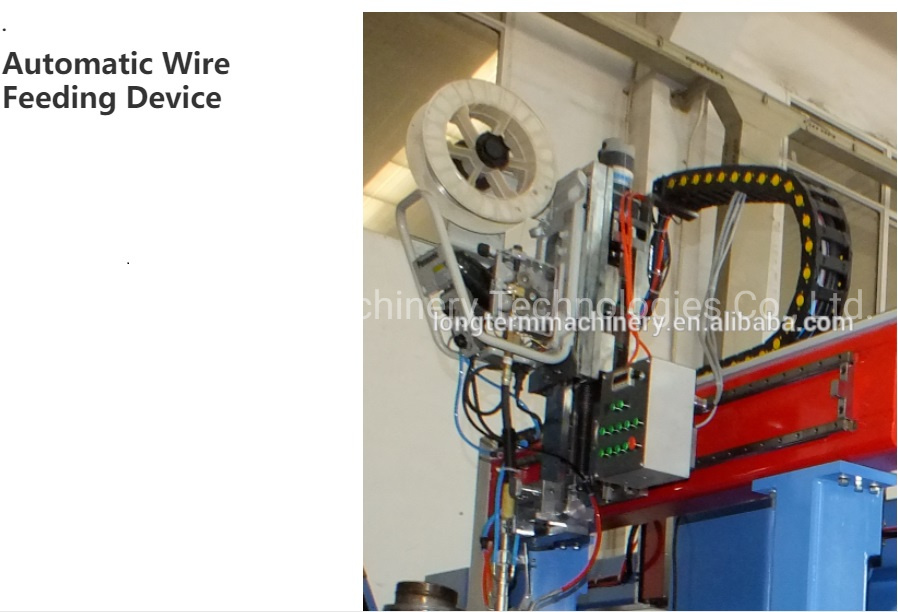

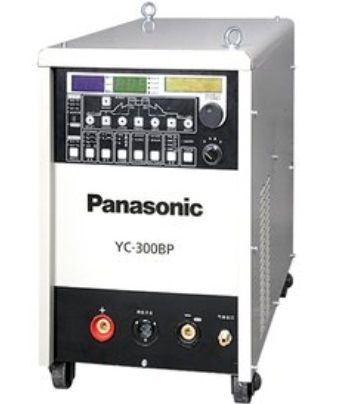

Famous Panasonic welder

The equipment automatically completes the feeding, fixed seam, closed seam, compaction, placement / point fixed arc board, straight seam welding and discharge of the cylinder.

No.	Name	Brand
1.	PLC	SIEMENS
2.	Frequency converter	SIEMENS
3.	HMI	SIEMENS
4.	Pneumatic components	SMC
5.	Linear slide rail,ball screw	HIWIN
6.	AC motor	SEW
7.	AC servo motor	SIEMENS, Schneider
8.	Circuit breaker,Contactor,electronic overload protection	Schneider
9.	Button	Schneider
10.	Sensor	OMRON
11.	Encoder	OMRON, Koyo

Related Production:
Full-automatic dome assembly&spot welding machine
The dome is automatically pressed and assembled, and the position of the welding seam is automatically scanned and automatically compensated, and the workpiece is rotated and position.
Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

Automatic Circumferential welding machine-LNG Cylinder

Circumferential seam welding machine can adopt special machine welding or robot welding form, and the workpiece can be automatically loaded by manual assistance or aerial manipulator. It can be configured with contact or non-contact welding seam automatic tracking system to automatically locate and track the welding seam position.

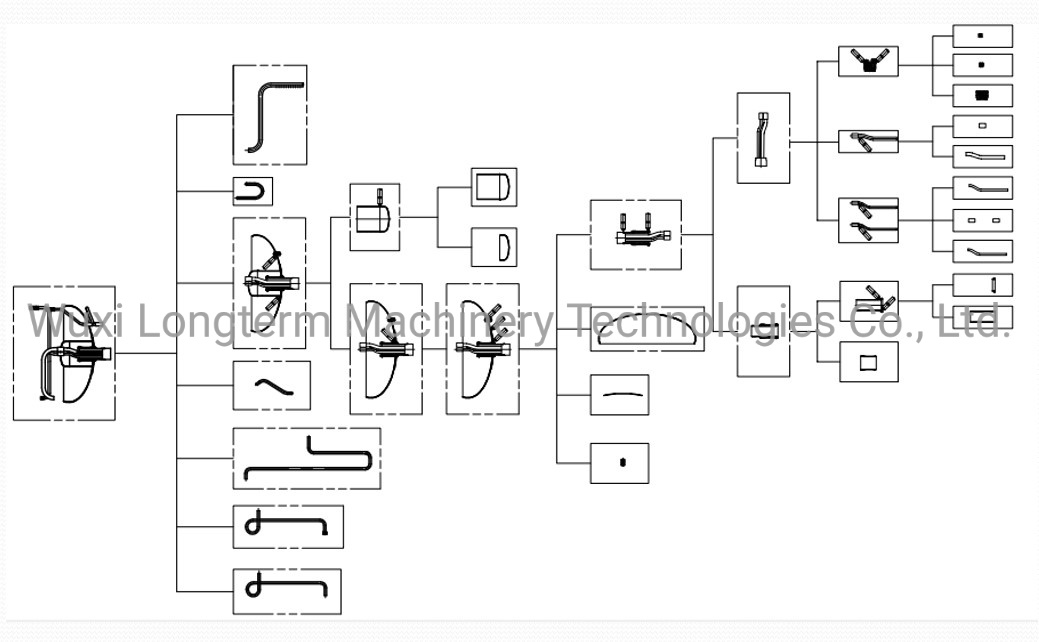

Process flow chart of automatic welding production line for front Dome attachment

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

Welding robot workstation for inlet and outlet liquid pipes and pipe joints

The robot of the inlet and outlet liquid pipe and the double-sided joint is welded automatically. Welding process: TIG. Welding method: V-shaped double station layout; each station is equipped with 3 station fixtures, corresponding to 3 different inlet and outlet pipe workpieces, using manual picking and placing, positioning the workpiece, and robot automatic welding. Robot system: The robot system is equipped with products of Japan's MOTOMAN company, including the body of the arc welding robot embedded in the MA1400 cable and the robot control box.
Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

Distribution head, pipe joint welding robot workstation

The robot for automatic welding of the distribution head and the threaded pipe joint. Welding process: TIG. Welding method: double station layout; place the distributing head and the thread joint manually, use the two holes at the lower end of the distributing head to position in the tooling fixture; use manual pick and place, position the workpiece, and the robot automatically welds. Robot system: The robot system is equipped with products of Japan's MOTOMAN company, including the body of the arc welding robot embedded in the MA1400 cable and the robot control box.
Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

Customized machine for circle welding of supporting neck tube and distribution head

The support neck tube is automatically welded to the distribution head. Welding process: TIG. Welding method: two welding guns are automatically welded at the same time. The support neck tube and the distribution head that are completed by spot welding are manually clamped and positioned by the front pneumatic chuck of the rotary head, and the neck tube is positioned tightly by jacking the cylinder.

Front Dome head, support neck tube, reinforced plate manual assembly spot welding machine

Welding process: TIG; Welding method: manual welding; Positioning method: online layout, the front head is positioned and transmitted by the accompanying tooling plate, the inner header and the gas valve are manually placed and positioned, and the manual pressing clamp drives the positioning and pressing mechanism to press the workpiece

Packing∇ivery
Chinese Ce TIG MIG Saw Automatic Tank Linear Welding Machine Manufacture for LNG/LPG Tank, Automatic Cylinder Body Welder!

FAQ
Q: Can you design machines according LNG cylinder or other tanks/cylinders technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
