Best Quality Round Can Machine, Oil Tin Can Making Machine, Can Production Line

Best Quality Round Can Machine ,Oil Tin Can Making Machine,Can Production Line

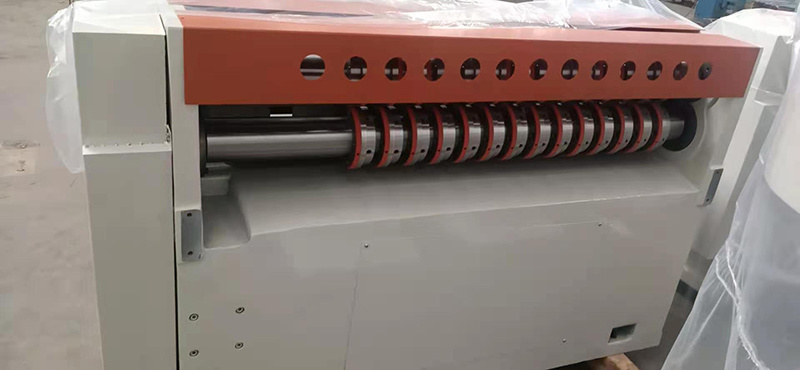

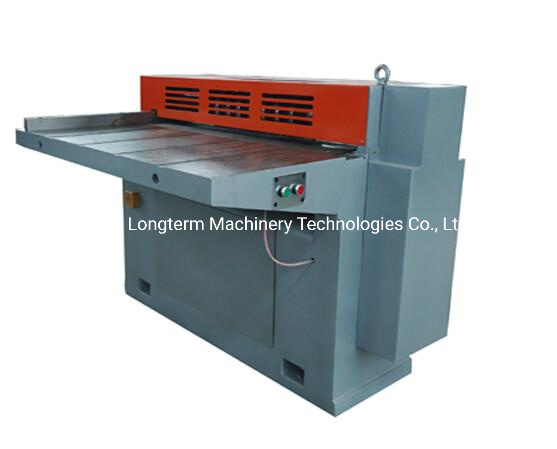

1. R-40 Shearing machine

Function: cut tinplate sheets into small pieces
Production------------- 1.6metre/second
Suitable thickness----Max. 0.5mm
Suitable width---------40-1050mm
Suitable height--------Max. 440mm
Power consumption-1.1kw
Dimensions -----------1700×1100×100mm
Weight------------------About 1000kg

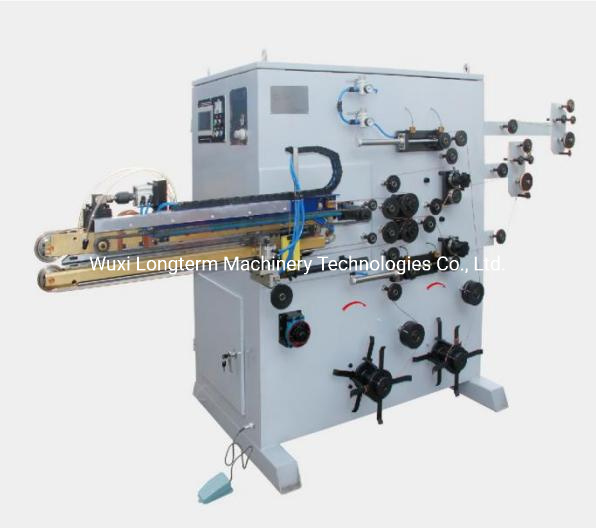

2. Automatic big can body seam welding machine

Model--------------FBZ-A
Power--------3N380V/50Hz 40KVA
Welding speed------------6-18m/min
Capacity -------------20-30pcs/min
Diameter Range--------Φ250-Φ290mm
Height Range-----------180-450mm
Overlap--------------0.8-1.2mm
Thickness------------------0.28-0.4mm
Copper wire--------------------Φ1.5mm
Compressor air-------0.5MPa 900L/min
Cooling water------0.3Mpa 8-10L/min
Net Weight-----------------------2000 kg
Dimension--------------2100*1900*1900 mm

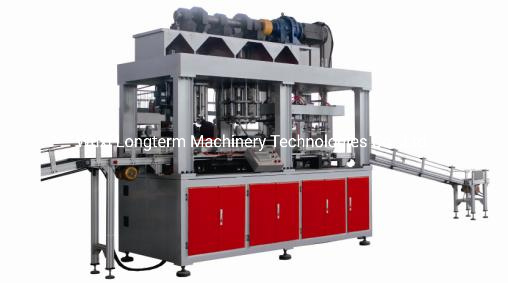

3. Automatic 5 work station square forming& embossing and flanging machine

Production capability-----------19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption---------- 14kw
Dimensions/ Weight----- 30000x1300 x2400mm
Weight------------6800kgs

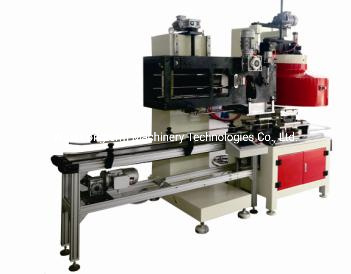

4. Automatic big square can seaming machine with auto lid placing device

Production capability-----------18-19cans/min
Suitable thickness----------------- 0.2-0.4mm
Suitable range--------------10-18L square can
Power consumption------------------4kw
Applicable electric power----------380V 50HZ
Dimensions/ Weight---------2800x1100 x1900mm
Weight------------------1300kgs
Function: square can lid and bottom seaming automatically


5. Turner

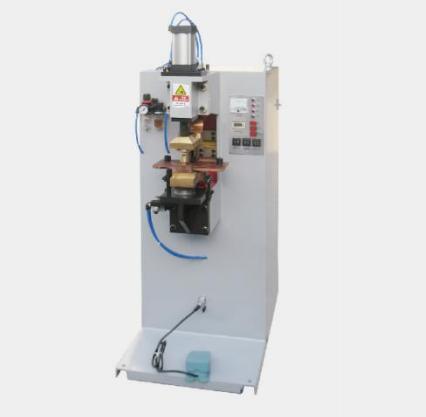

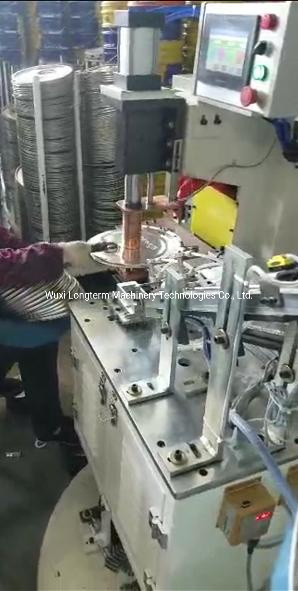

6. 18L square can single head handle welding machine

Production----------------23-25pcs/min
Suitable thickness-------- Max. 0.4mm
Power---------------------------63KVA
Dimension-------------1900 X 1550 X 1500mm
Weight----------------------- about 1200kgs


7. Dies

Die for bottom------------------1 set
Die for punch hole-----------------1 set
Die for catcher handle-------------1 set

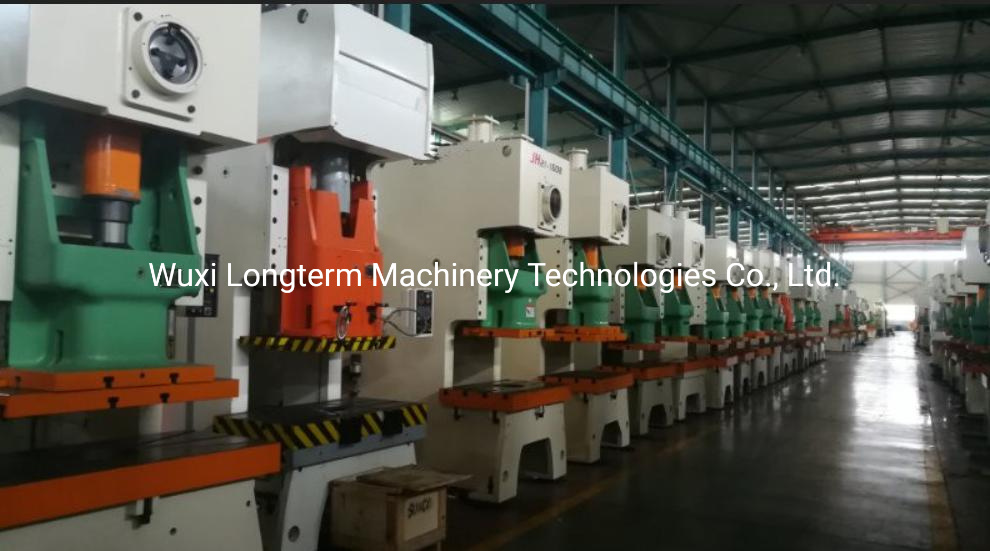

8. JH21-45 punch machine
Capacity---------------------------450
Nominal Force------------------- 4mm
Slide Stroke----------------------100
Max. Die Height:-----------------270
Die Height Adjustment----------60
Between Slide Center & Frame------230
Bolster (FB×LR)-------------------440*810
Bolster Thickness---------------110
Slide Area (FB×LR)------------ 300*300
Shank Hole (Dia.×Dpth)--------Φ40×60
Between Columns------------------550
Motor Power-------------------------5.5KW

9. J23-16B press machine
Capacity------------------------------160
Nominal Force-----------------------5mm
Slide Stroke---------------------------55
Max. Die Height---------------------125
Die Height Adjustment-------------45
Between Slide Center & Frame--160
Workable dimension----------300×450
Dimension od workable hole-----Φ100
Thickness of bloster----------40
Hole size in bed (Dia.×FB×LR)--------------Φ210×160×240
Slide Area (FB×LR)-------180×200
Size of handle Hole (Dia.×Depth)--------------Φ40×60
Max. Inclined Angle-------25°
Between Columns-------- 220
Motor Power---------------1.5KW
Outline Size -------------1150×900 ×191

10. Automatic feeder

Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------1500×800×1600mm
Weight-----------------------------400kg


11. Automatic square lid lining & oven machine(with turner, curling and lids collection device)
Function: edge curling can bottom
Production-------------------------30pcs/min
Suitable thickness--------------- Max. 0.5mm
Suitable size----------------10-20L square can
Main Power consumption-------------1.5kw
Dimensions------------------3200×1000×1500mm
Weight-----------------------------600kg
